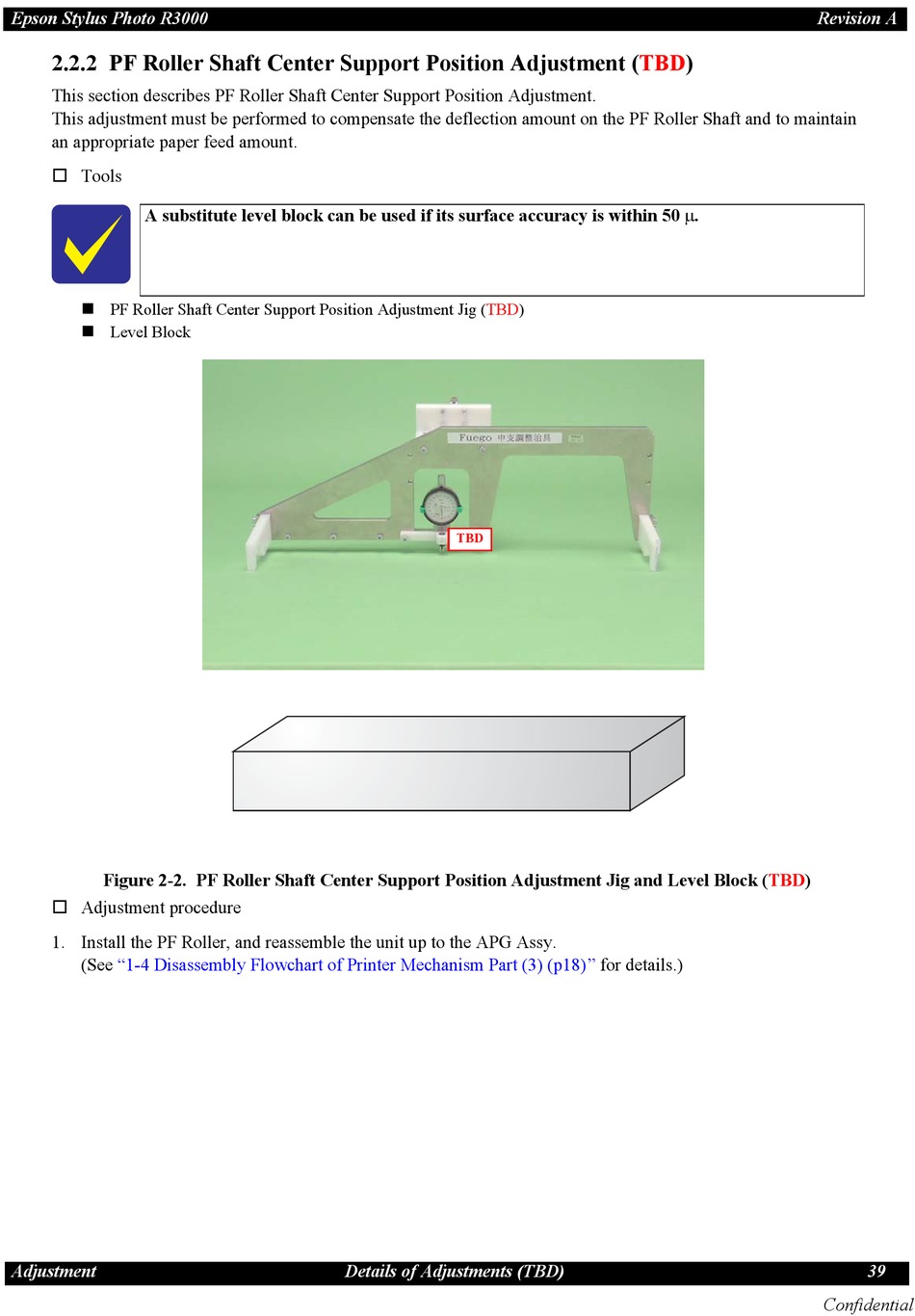

2.2.2 PF Roller Shaft Center Support Position Adjustment (TBD)

This section describes PF Roller Shaft Center Support Position Adjustment.
This adjustment must be performed to compensate the deflection amount on the PF Roller Shaft and to maintain
an appropriate paper feed amount.
 Tools
A substitute level block can be used if its surface accuracy is within 50 .

PF Roller Shaft Center Support Position Adjustment Jig (TBD)

Level Block
Figure 2-2. PF Roller Shaft Center Support Position Adjustment Jig and Level Block (TBD)
 Adjustment procedure
1. Install the PF Roller, and reassemble the unit up to the APG Assy.
(See "1-4 Disassembly Flowchart of Printer Mechanism Part (3) (p18)"
Adjustment
TBD
Details of Adjustments (TBD)
for details.)
