HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the

reed switch should be adjusted. To adjust the reed

switch, first press the power switch to the off posi-

tion and unplug the power cord.

Next, remove the

four M4 x 16mm

Screws (not

shown) from the

Large Storage

Foot (27), and

then remove the

Large Storage

Foot. Then,

remove the two

M4 x 16mm

Screws (not shown) from the Top Shield (37), and

then use a standard screwdriver to pry the Top Shield

upward off the elliptical.

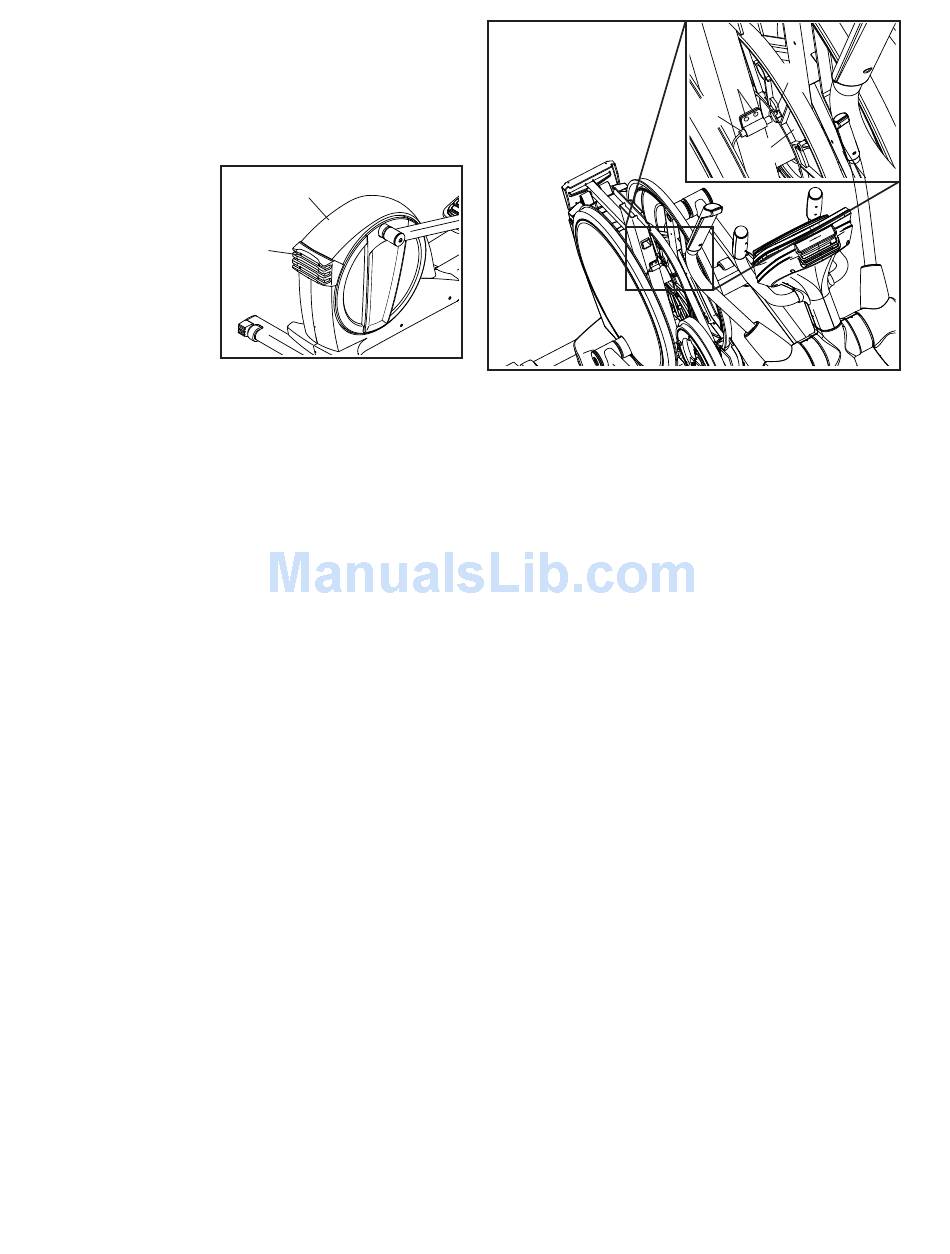

See the drawing at the right. Look into the access

opening and locate the Reed Switch (58). Rotate the

Pulley (66) until a Magnet (41) is aligned with the

Reed Switch.

Next, slightly loosen the two indicated M4 x 16mm

Screws (61), slide the Reed Switch (58) slightly toward

or away from the Magnet (41), and then retighten the

Screws.

Plug in the power cord, press the power switch to the

reset position, and rotate the pulley for a moment.

Repeat these actions until the console displays correct

feedback.

When the reed switch is correctly adjusted, press the

power switch to the off position, unplug the power cord

and reattach parts that you removed. Then, plug in the

power cord.
