Summary of Contents for Coby IR68N

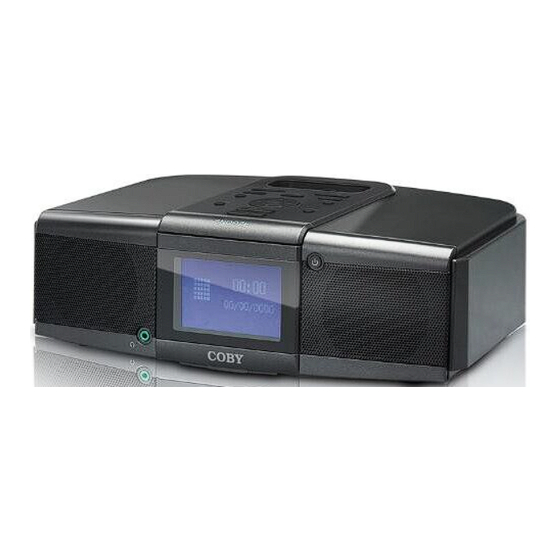

- Page 1 ® Internet Radio, DAB+, DAB, FM with Docking for iPod Instruction Manual...
-
Page 2: Safety Information
Safety Information 7. Do not block any ventilation openings. The ventilation shall not be impeded by covering the ventilation openings with items, such as newspapers, table clothes, curtains, etc. 8. Do not install near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 3 cord or plug is damaged, liquid has been spilled or objects have fallen into the This device complies with Part 15 of the FCC apparatus, the apparatus has been exposed Rules Operation that is subject to following two to rain or moisture, does not operate conditions: normally, or has been dropped.
-
Page 4: Safety Warnings
Safety Warnings Thanks for your buying! Please read before installation! If this Internet Radio has been moved from a cold place to a warm place, DO NOT plug it in for 2-3 hours (e.g. from a cold car boot to a warm room). There is a possibility that moisture may have condensed in the Internet Radio, this can cause damage to your Internet Radio. -
Page 5: Table Of Contents
Contents Safety Information Safety Warnings Package Content What you need before you can use your Internet Radio ........... 3 Controls Overview (a) ....................4 Controls Overview (b) ....................6 Installing the remote control battery ..............7 Replacing the battery ..................7 Connecting to wired network .................. -
Page 6: Package Content
Package Content Main unit Remote control Instruction manual... -
Page 7: What You Need Before You Can Use Your Internet Radio
What you need before you can use your Internet Radio Before you use your Internet Radio, you need the following: Wireless LAN Setting: · A broadband Internet connection. · A wireless access point (Wi-Fi) connected to your broadband Internet, preferably via a router. ·... -
Page 8: Controls Overview (A)
Controls Overview (a) UNIT TOP VIEW UNIT FRONT VIEW iPod docking SNOOZE button INFO button ALARM button Please refer below note 1 SCAN button PRESET button MODE button Please refer below note 2 STANDBY/ON button MENU button Display screen VOL + button Earphone socket VOL - button Note1:... - Page 9 Control Internet FM mode Media Player iPod mode ALARM Press to set Alarms Press to INFO display Queue No function information No function Previous Track No function Play/Pause No function Next Track SCAN No function Press to scan stations No function Press and hold to save Preset station PRESET 1-10;...
-
Page 10: Controls Overview (B)
Controls Overview (b) REMOTE CONTROL VIEW MODE button ALARM button STANDBY/ON button SNOOZE/SLEEP button INFO button button MENU button button Please refer below note 1 Please refer below note 2 PRESET button 1-10 Note1: Note2: SELECT button UNIT BOTTOM VIEW... -
Page 11: Installing The Remote Control Battery
Installing the remote control battery Replacing the battery... -
Page 12: Connecting To Wired Network
Connecting to wired network Step 1 - Power up Radio First, connect to your Internet Radio adaptor and ensure the Power LED is light up. In use, Radio can be switched on or off by press button. Step 2 - connect to the internet 1．... -
Page 13: Step 4 - Access Network
Step 4 – Access Network 1. In some cases Radio may find more than one network. Press to cycle through the name list, and then press SELECT when the name of your own network is displayed. 2. If your network is not configured to request a password (WEP/WPA), radio will connect to the network and display: 3. - Page 14 4. It should now successfully connect to your network, press to <STATION LIST>, and then press SELECT to confirm. Note: a. Radio will automatically save the WEP/WPA you’ve input, so no use to re-entered, unless a <FACTORY RESET> is being executed. After trying to connect to network, if it says: Perhaps you need: A.
-
Page 15: Choosing A Station
Choosing a station After your radio has successful connected to network, you are now ready to select a station. 1. Press to <STATION LIST>, press SELECT confirm. 2. Press to <STATIONS>, press SELECT to confirm. 3. There are five options are available for you choose a station. Note: ‘LOCATION’... -
Page 16: Changing The Station Information
Changing the Station Information It is possible to change the information that is displayed on the second line of the display when listening Internet program. To change the information displayed by pressing INFO. 1. Description of Station This is scrolling text information supplied by the Internet station. It may comprise information on music titles or details of the programme and is provided by the broadcaster. -
Page 17: Music Player Operation Mode
Music player Operation Mode Note: To play this order, reading appendix at first, which at following pages is highly recommending! A. PLAY SHARED MEDIA 1. Press MODE repeatedly until <MUSIC PLAYER> is shows up. Or enter ‘MAIN MENU’, and then press to <MUSIC PLAYER>, press SELECT. -
Page 18: Dab Operation Mode（Optional Item
DAB Operation Mode（optional item） 1. Switch Radio on and press MODE repeatedly until <DAB RADIO> is shows up. For initial use, it will now scan for DAB stations in your area and store them in memory. Note: to enter this mode, you may also press to goes back to <MAIN MENU>, and then press <DAB >, press SELECT to confirm. -
Page 19: Fm Operation Mode
FM Operation Mode A. GENERAL OPERATION Switch Radio on and press MODE repeatedly until <FM RADIO> is shows up. For initial use, it will start at the beginning of the FM frequency range (87.50MHz). Otherwise, the last FM station you were listening to will be selected. -
Page 20: Setting Station Presets
C. AUDIO SETTING Running into FM mode, at any step by press to enter, and then press to <AUDIO SETTING>, press SELECT to confirm. Press to select ‘YES’ or ‘NO’, and then press SELECT to confirm. Setting Station Presets Your Radio can store 10 Internet, 10 DAB and 10 FM stations preset, to preset current station: 1. -
Page 21: Selecting A Preset Station
Selecting a Preset station To select a stored station: 1. Enter corresponding mode at first, and then press PRESET at first, and then press to your purpose one. 2. Press SELECT to confirm. Note: a. do not hold the button down - if you do then the station currently playing will overwrite the one stored in the preset, be careful! b. -
Page 22: Docking And Playing Your Ipod
Insert the Dock Adapter that fits your iPod model, then plug it in your iPod. 1. Insert your iPod into the iPod docking on the top of the unit. IR68N Dock will begin to charge your iPod if necessary. Charging will stop when the iPod is fully charged (check the iPod screen). -
Page 23: Setting Clock
Setting Clock 1. At any mode, enter ‘MAIN MENU’, ‘System settings’ ‘Time/Date’, press SELECT. 2. Press SELECT to confirm to set ‘Set Time/Date’, and then press to set date, press SELECT to confirm. Note: Using the same method setting month, year, hour and minutes. 3. -
Page 24: Daylight Savings
5. At step 1, press to ‘Set Timezone’, and then press SELECT to confirm. To obtain Your Local Timezone Please Visit website: = GMT ± _?_ hour. http://wwp.greenwichmeantime.com l Take Germany - Time Zone for instance, visit above website at first, then choose Europe, German, Current time in German Zone now is appeared. -
Page 25: Setting Alarm
Setting Alarm Note: Setting Alarm, make sure Setting Time at first. 1. Press ALARM directly to enter. Alternatively, enter ‘MAIN MENU’, ‘ALARMS’, press SELECT to confirm, press SELECT once more. 2. Press to ‘Time: 00:00’, press SELECT to confirm, press to change hours, and then press SELECT to confirm, using the same method setting minutes. - Page 26 6. Press SELECT to confirm, press to ‘Volume’, press SELECT to confirm, and then press to your desire Alarm frequency. 7. Press SELECT to confirm, finally press to ‘Save’, press SELECT to confirm. The display will show ‘Alarm Saved’ for 3 seconds, Alarm icon appeared. To check alarms status, press to enter standby mode.
-
Page 27: Sleep Function
Sleep Function 1. Directly press SNOOZE to enter, or alternatively, press SNOOZE/SLEEP on remote control. Note: make sure no alarm is coming when you press this button to set sleep. Or It also can be activated from ‘MAIN MENU’ ‘SLEEP’, press SELECT to confirm. 2. -
Page 28: System Settings
System settings Network setup Note: Use this if you take the Internet Radio to another building where you want to use it. Doing this order will enable you to scan again for connection to another wireless network, or to manually configure the network parameters. -
Page 29: Factory Reset
Factory reset Note: Performing a factory reset will completely reset your Radio’s memory, clearing all WEP/WPA codes and user settings. This will effectively return to its default factory settings. It can be activated from ‘MAIN MENU’ ‘System settings’ ‘Factory reset’. Press SELECT to confirm, and press to ‘YES’. -
Page 30: Software Updates
Software Updates 1. It can be activated from ‘MAIN MENU’ ‘System settings’ ‘Software update’, press SELECT to confirm, and then press to select ‘Auto- check setting’ 2. Press SELECT to confirm, and then press to select ‘YES’, press SELECT to confirm, then your radio shows as above step3, press to ‘Check now’, press SELECT to confirm. -
Page 31: General Operation
General Operation Register This will display a key code that can be used to register your Radio on the Frontier customer portal: http://www.wifiRadio-frontier.com Requesting a Station If you want to listen to a Radio station that is currently not listed in station list, you can visit the Frontier website at http://www.wifiRadio-frontier.com and make a request to add the station to the list. -
Page 32: Appendix
Appendix Step 1: Set Up Media Sharing in WMP 11 After you download and install Windows Media Player 11 for Windows XP and connect your Radio to the network, you need to set up media sharing so that you can share music with your Radio. The following steps describe how to set up media sharing in Windows Media Player 11. -
Page 33: Step 2: Play Music On The Internet Radio
Check the “share my media to” box. In the list, click your Radio *, click Allow, the selected device will now show a green tick and then click OK. If your device does not appear in the list of devices, perform the following steps; From the "Media Player"... -
Page 34: Set Up Media Sharing In Mac Os
Set Up Media Sharing in MAC OS Using the Radio with a MAC will require Windows File Sharing. MAC OS 9 and earlier versions of the OS will need extra software to use Windows File Sharing, but MAC OS X 10.2 and later versions have Windows File Sharing built into the OS. -
Page 35: Troubleshooting
Troubleshooting If you experience any trouble with your wireless Internet Radio, then you may find it useful to visit the help section on our webpage: http://www.wifiRadio-frontier.com If you have trouble connecting the Radio to your wireless network, these steps may help to resolve the problem: 1. -
Page 36: Specification
Specification ITEMS DESCRIPTION ® Specifications: Internet Radio, DAB+, DAB, FM with Docking for iPod Power Requirements: AC Power Input: 100-240VAC, 50-60HZ (please use we provide adapter ) (FM) 87.5-108MHz Frequency Range: (DAB, DAB+) 174 – 240MHz Rated Output Power: 15W X 2 Speaker: 4 ohm Headphone Jack:...
