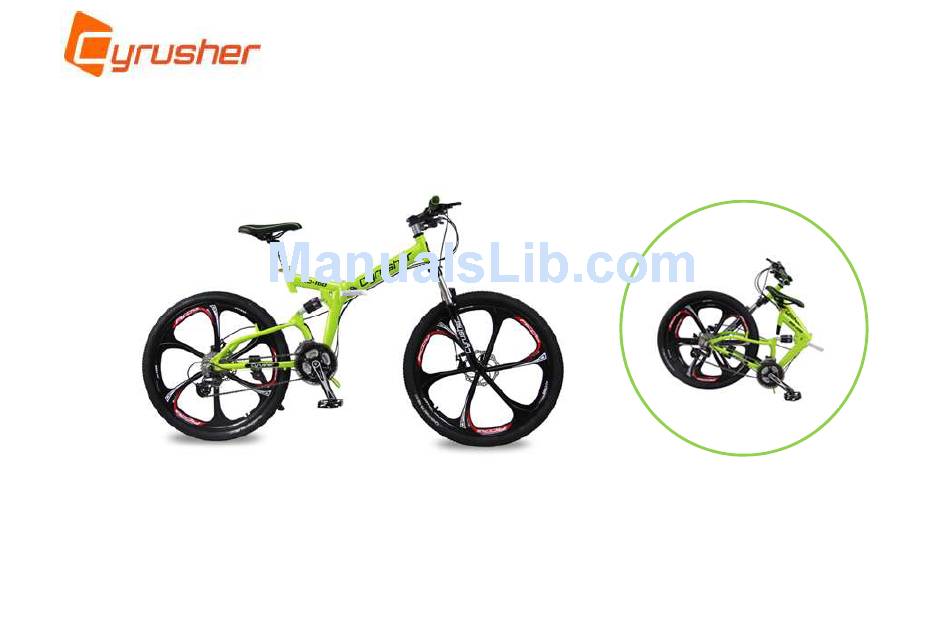

- Page 1 Cyrusher Cycling Ltd. Co. Assembly Manual RD100 Folding Mountain Bike...
- Page 2 1 get the bike out of box 2 prepare assemble tools 3 remove the packaging...
- Page 3 4 take off screws on top of 5 take off screws on side of stem stem 6 turn the stem with 180 degree 7 screw off the cap of stem...
- Page 4 8 take off the stem cap 8 take off the stem cap 9 put the handle bar on the stem And screw on the cap 10 finish the handle bar assemble...
- Page 5 11 remove the plastic protector 12 remove the protector on end on disc brake of front wheel of front fork 14 install with quick release 13 put the front wheel under front fork, make sure wheel center aligns with and lock the wheel fork holes...
- Page 6 15 distinguish the pedals, WL means left, WR means rights, 16 assemble pedals on correct side with wrench...
- Page 7 17 put the saddle on seat 18 make sure to remove the rear tube, adjust the height and tube, adjust the height and derailleur protector before riding derailleur protector before riding lock it with the metal clamp Congratulations! You have finished the assemble.
