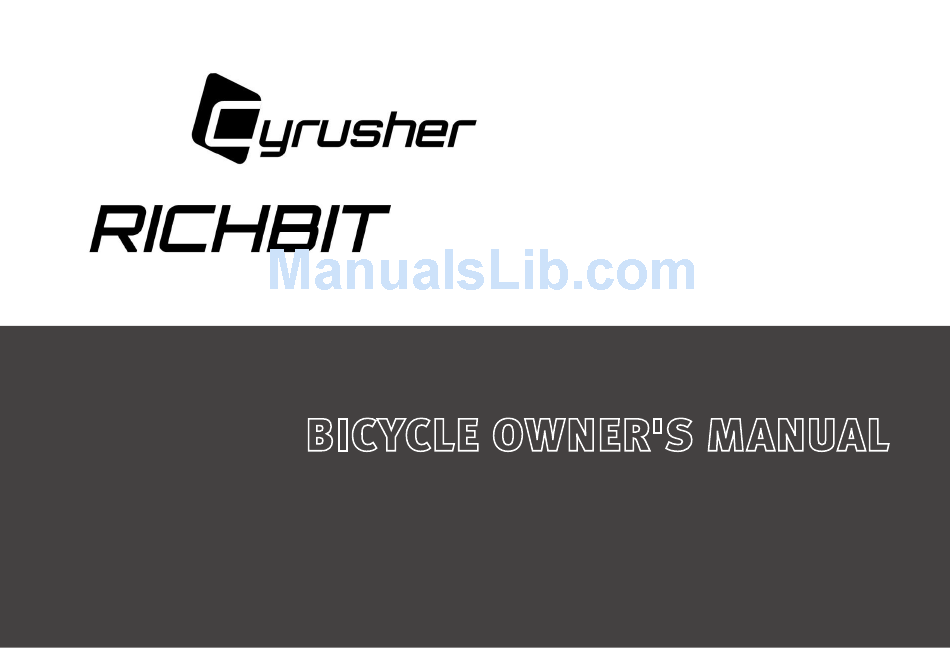

- Page 1 2015 www.cyrusher.com THIS MANUAL CONTAINS IMPORTANT SAFETY, PERFORMANCE AND MAINTENANCE INFORMATION. READ THE MANUAL BEFORE TAKING YOUR FIRST RIDE ON YOUR NEW BICYCLE, AND KEEP THE MANUAL HANDY FOR FUTURE REFERENCE.
- Page 2 CORRECT FITTING Correct Make sure your helmet covers your forehead INCORRECT FITTING Correct Incorrect Forehead is exposed and vulnerable to serious injury...
- Page 3 Personal Care from Congratulations on your new purchase! Our Service Department is dedicated to your satisfaction with Cyrusher and its products. For questions regarding performance, assembly, operation, parts or returns, contact the experts at WhatsApp/Cell Phone:+86-159-5924-0023 8:00am - 5:00pm Beijing Time...
- Page 4 SERVICE CALL US AT 0086-159-5924-0023 Monday - Friday 8:00 a.m. to 5:00 p.m. Beijing Time Service Time: Website: 08:00AM ~5:00PM, Mon. -- Fri. (Beijing Time) Email: www.cyrusher.com cyrusher@163.com Phone/Whatsapp: +86 159-5924-0023 (English Only--Harry) Skype: harry_xc...
-
Page 5: About This Manual
ABOUT THIS MANUAL It is important for you to understand your new bicycle. By reading this manual before you go out on your first ride, you’ll know how to get better performance, comfort, and enjoyment from your new bicycle. It is also important that your first ride on your new bicycle is taken in a controlled environment, away from cars, obstacles, and other cyclists. -
Page 6: Parts Identification
1 PARTS IDENTIFICATION ....................6-7 Single Speed Bicycle • Multi Speed Bicycle 2 BEFORE YOU RIDE .......................8-24 Warning, Note to parents • Fit • Helmets, Protective Gear & Clothing • Safety Checklist • Riding Safety • Operation • Security • Maintenance • Storage 3 ASSEMBLY ........................25-47 Tools •... - Page 7 SINGLE SPEED BICYCLE Get to know the parts of your bicycle. This will help with assembly, maintenance, and troubleshooting. Single speed bicycles vary greatly. Your model may have additional accessories such as fenders, bags, carriers, etc. Note that smaller children’s bicycles also contain training wheels. Rear brake lever Handle bar Handlebar grip...
- Page 8 MULTI SPEED BICYCLE Get to know the parts of your bicycle. This will help with assembly, maintenance, and troubleshooting. Multi speed bicycles vary greatly. Your model may have additional accessories such as fenders, bags, carriers, etc. Handlebar Shi lever Brake lever Handlebar stem Brake control cables Head set...
- Page 9 SIZING GUIDE & CHART When choosing the correct size bicycle, there are some guidelines that will help you determine the correct fit. It is important that you are able to safely mount and dismount the bicycle, and that while riding you are comfortable and can operate the brakes, steering and pedal without any added difficulty.
-
Page 10: Riding Position
RIDING POSITION Saddle Height Arms not overextended In order to obtain the most comfortable riding position and offer the best possible pedaling efficiency, the seat height should be set correctly in relation to the rider’s leg Handlebar length. The correct saddle height should not cause leg strain from over-extension, and stem height about the the hips should not rock from side to side when pedaling. -
Page 11: Handlebar Height
Handlebar Height Maximum comfort is usually obtained when the handlebar height is equal to the height Stem wedge bolt of the seat. You may wish to try different heights to find the most comfortable position. Handlebar binder bolt Threadless headsets and clamp-on stems are not adjustable. Please refer to assembly-adjustments (p. - Page 12 HELMETS, PROTECTIVE GEAR & CLOTHING Helmets A WORD TO PARENTS REGARDING CHILDREN AND HELMETS: Many states have passed helmet laws regarding children. Make sure you know your states helmet laws. It is your job to enforce these rules with your children. Even if your state does not have a children’s helmet law, it is recommended that everyone wear a helmet when cycling.
- Page 13 Choosing Riding Clothing and Protective Gear When choosing to ride a bicycle, the riders should always consider the clothing they will wear. Any loose clothing parts or strings can get caught in a bicycles moving parts and cause an accident. Be sure there are no loose cords, strings, over sized cuffs or pant legs.
-
Page 14: Safety Checklist
SAFETY CHECKLIST Before every ride, it is important to carry out the following safety checks: Brakes • Ensure front and rear brakes work properly. • Ensure brake shoe pads are not overly worn and are correctly positioned in relation to the rims. •... -
Page 15: Frame And Fork
Bearings • Ensure all bearings are lubricated, run freely and display no excess movement, grinding or rattling. • Check headset, wheel bearings, pedal bearings and bottom bracket bearings. Cranks and Pedals • Ensure pedals are securely tightened to the cranks. •... - Page 16 Reflectors 16” and under bicycles are considered “sidewalk bicycles”, and may not be fitted with reflectors. These bicycles should not be ridden on streets, at night or unattended by an adult. All other bicycles are supplied with one front (white), one rear (red), two wheel +/–...
-
Page 17: Riding Safety
RIDING SAFETY General Rules • When riding obey the same road laws as all other road vehicles, including giving way to pedestrians, and stopping at red lights and stop signs. For further information, contact the Road Traffic Authority in your State. •... -
Page 18: Wet Weather
Wet Weather • In wet weather you need to take extra care. • Brake earlier, you will take a longer distance to stop. • Decrease your riding speed, avoid sudden braking and take corners with additional caution. • Be more visible on the road. •... -
Page 19: Rules For Children
Rules for Children To avoid accidents, teach children good riding skills with an emphasis on safety from an early age. Children should be supervised by an adult. 1. Many states require that children wear a helmet while cycling. Always wear a properly fitted helmet. 2. -
Page 20: Brake Operation
BRAKE OPERATION There are 2 types of braking systems for bicycles; Foot operated and hand operated. Foot Operated Brakes Foot operated brakes allow the rider to pedal forward to accelerate the bicycle, and pedal backwards to brake. The harder you push back on the pedals, the more braking force is applied to the rear wheel. -
Page 21: Hand Operated Brakes
Hand Operated Brakes Hand operated brakes have a separate hand lever to operate front and rear brakes. Front hand brake levers are located on the left side of the handlebar, and rear hand brake levers are located on the right side of the handlebar. Hand operated brakes may be used alone or on some models in conjunction with foot operated brakes. -
Page 22: Gear Operation
GEAR OPERATION Multi speed bicycles can have internal or derailleur gear systems. WARNING: Improper shifting can result in the chain jamming, or becoming derailed resulting in loss of control or a crash. Always be sure the chain is fully engaged in the desired gear before pedaling hard. - Page 23 External Gears (derailleur equipped bicycles) Derailleur equipped bicycles all have a rear derailleur. Some may also have a front Derailleur control cable derailleur offering more gear choices. The right side shifter will operate the rear Front Freewheel derailleur, and the left side (if equipped) will operate the front derailleur. On derailleur derailleur cogs equipped bicycles, it is important to be pedaling forward when shifting gears.
- Page 24 Front Shifter Note that not all models have a front shifter. The front (left) shifter will have an indicator that reads either “low to “high” or a series of numbers from 1 up. Low or “1” is the lowest gear. The front shifter acts much like the rear shifter, but the change between gears is greater.
-
Page 25: Basic Maintenance
BASIC MAINTENANCE The following procedures will help you maintain your bicycle for years of enjoyable riding. • For painted frames, dust the surface and remove any loose dirt with a dry cloth. To clean, wipe with a damp cloth soaked in a mild detergent mixture. -
Page 26: Tools For Assembly
TOOLS FOR ASSEMBLY Your new bicycle was assembled and tuned in the factory and then partially disassembled for shipping. You may have purchased the bicycle already fully assembled and ready to ride OR in the shipping carton in the partially disassembled form. The following instructions will enable you to prepare your bicycle for years of enjoyable cycling. -
Page 27: Getting Started
GETTING STARTED Open the carton from the top and remove the bicycle. Remove the straps and protective wrapping from the bicycle. Inspect the bicycle and all accessories and parts for possible shortages. It is recommended that the threads and all moving parts in the parts package be lubricated prior to installation. - Page 28 There are 2 basic types of handlebar mounting; Quill and Threadless. Quill Stems This is a handlebar assembly that has a wedge shaped part at the bottom of the stem that is inserted into the fork steer tube. Loosen the center bolt enough so that the wedge and stem can slide into the fork steer tube.
-
Page 29: Front Wheel
FRONT WHEEL Retaining washer There are two types of front wheel hubs; Nutted and quick release. Axle Nutted Front Wheels Loosen the axle nuts on the front wheel. If there is a washer inside of the axle nut, it belongs outside of the fork dropouts. If the washer has a hook or a step, be sure that it engages the fork before tightening the axle nuts. -
Page 30: Quick Release Wheels
Quick Release Wheels 1. Locate the quick release skewer from the small parts carton of your bicycle. Some tire tread patterns have a direction, so compare your front tire and rear tire of the bicycle so that both tread patterns face the same way. (Fig. 3.10) 2. -
Page 31: Saddle Assembly
SADDLE ASSEMBLY The seat post must be inserted so that the minimum insertion mark cannot be seen. The quick release mechanism must be tightened securely to prevent a sudden shift of the seat when riding. Failure to do this may cause loss of bicycle control. -
Page 32: Pedals And Cranks
PEDALS AND CRANKS Attachment of an incorrect pedal into a crank arm can strip pedal threads and cause irreparable damage. Before your first ride, please check to ensure your pedals are attached correctly. Look for the letters “R” for right, and “L” for left, stamped on each pedal spindle. Start each pedal spindle by hand to avoid stripping the threads. -
Page 33: Front Brake
FRONT BRAKE Cable adjus ng barrel Handlebar CAUTION: Improper use of the front brake may cause front wheel to lock up resulting in loss of directional control or front pitch over. Determine which type of brake your bike is equipped with and refer to the appropriate Grip assembly instructions below. - Page 34 Check the brake pads to be sure they are square to the rim, and do not contact the tire Brake pad aligned with the rim surface when the brake is applied. Adjust brake pads if needed. Then squeeze and release the Brake pad aligned with the rim surface brake several times squeezing as hard as you can.
- Page 35 U-Brake FRONT Brake cable If the brake cable is not connected at the brake lever, slide the head of the brake cable Cable anchor bolt Housing barrel into the brake lever per the diagram, and thread the cable through the slot in the brake lever so the cable end rests squarely in the adjustment barrel or cable end rests in the recess of the brake lever.
- Page 36 Check the brake pads to be sure they are square to the rim, and do not contact the tire Brake pad aligned with the rim surface when the brake is applied. Adjust brake pads if needed. Then squeeze and release the brake several times squeezing as hard as you can.
-
Page 37: Cable Detangler
Cable Detangler Some freestyle bicycles are equipped with a cable detangler for the rear brake. See diagram of the cable routing. If the upper cable is not already assembled, insert the cable barrel end into the right (rear) brake lever. Adjust the brake lever adjustment barrel so that the slots line up with the brake lever and insert the upper cable through the brake barrel slots. - Page 38 Single cable casing Upper cable Cable adjuster (long casing) Cable spli er Barrel end Upper cable (short casing) Adjus ng barrel Locknut Upper plate Set for maximum travel Keyed washer Minimum 1mm (1/32”) Bearing Football ends Minimum 1mm (1/32”) Lower plate Locknut Lower cable Lower cable...
- Page 39 Linear Pull Brakes If the brake cable is not connected at the brake lever, slide the head of the brake cable into the brake lever per the diagram, and thread the cable through the slot in the brake Cable adjus ng barrel lever so the cable end rests squarely in the adjustment barrel or cable end rests in the Handlebar recess of the brake lever.
- Page 40 Check the brake pads to be sure they are aligned with the rim, and that they do Brake pad aligned with the rim surface not contact the tire when the brake is applied. Adjust brake pads if needed. Then squeeze and release the brake several times squeezing as hard as you can. After this Pad and rim should the cable may “stretch”...
-
Page 41: Disc Brake
Disc Brake If the brake cable is not connected at the brake lever, line up brake barrel slots with brake lever slot before installing the cable. Then slide the head of the brake cable into Cable adjus ng barrel the brake lever per the diagram, and thread the cable through the slot in the brake lever Handlebar so the cable end rests squarely in the adjustment barrel or cable end rests in the recess of the brake lever. - Page 42 Centering brake If you squeeze the brake and one side moves more than the other, or one side does not move at all, then the brake is not centered, or the wheel is not centered. First determine if the wheel is centered. Look at the gap between the tire and the fork or frame on either side.
-
Page 43: Rear Derailleur
DERAILLEUR Freewheel Outer side of top gear Although the front and rear derailleurs are initially adjusted at the factory, you will need to inspect and readjust both before riding the bicycle. Pulley adjustment Rear Derailleur screw Begin by shifting the rear shifter to largest number indicated and place the chain on the smallest sprocket. -
Page 44: Front Derailleur
Front Derailleur Low adjus ng screw (Fig. 3.44) Shift both shifters to the smallest number indicated and place the chain Cable on the corresponding cog and chainwheel. Disconnect the front derailleur cable from anchor bolt the cable anchor bolt. Check the position of the front derailleur; it should be parallel with the outer chainwheel and clear the largest chainwheel by 1-3mm when fully High adjus ng screw... - Page 45 FRONT FENDER - if equipped The front fender is mounted at the fork crown. There are two ways in which to mount your front fender. The first is the caliper brake mounting system (see Fig. 3.45), and the second is the 10mm nut and bolt system (see Fig. 3.46). Identify the mounting system used on your bicycle and follow the given instructions for that particular type of mounting system.
-
Page 46: Training Wheels
PEGS Some models may come equipped with 2 or 4 pegs. To install pegs, DO NOT loosen or remove axle nuts. Check to make sure axle nuts are properly tightened before installing pegs. Thread the pegs on the axle over the axle nut, and insert a screwdriver or similar tool through the peg holes and tighten by turning the peg with the tool. -
Page 47: Flat Brace
Flat Brace It is very important to check the training wheel connection to the bicycle. Inner axle Failure to properly tighten may cause the training wheel to dislodge. Please contact Pacific Cycle Service with any questions. Flat wheel brace Remove the outer axle nut and washer from the rear wheel axle. Place the flat wheel Brace brace onto the axle. -
Page 48: Final Check
FINAL CHECK Never inflate a tire beyond the maximum pressure marked on the tire’s sidewall. Exceeding the recommended pressure may blow the tire off the rim, which could cause damage to the bicycle and injury to the rider and bystanders. Tighten both front/rear wheel axle nuts or the quick release mechanism securely. - Page 49 Correct routine maintenance of your new bike will ensure: Smooth running - Longer lasting components - Safer riding - Lower running costs Every time you ride your bicycle, its condition changes. The more you ride, the more frequently maintenance will be required. We recommend you spend a little time on regular maintenance tasks.
- Page 50 WHEELS Quick release: Check that these are set to the closed position and are properly tensioned before each ride. CAUTION: Maintain the closed position and the correct adjustment. Failure to do so may result in serious injury. Axle nuts: Check that these are tight before each ride. It is most important that wheels are kept in top condition.
-
Page 51: Detailed Maintenance
DETAILED MAINTENANCE How to fix a flat tire If you need to repair a tire, follow these steps: 1. Remove the wheel from the bicycle. 2. Deflate the tire completely via the valve. Loosen the tire bead by pushing it inward all the way around. (Fig. 4.1) 3. -
Page 52: Hub Bearings
Hub Bearings Hub bearings require special thin wrenches called “cone wrenches”. If you do not own these tools, do not attempt hub bearing adjustments. Have a qualified bicycle mechanic Lock Bearing body Ball washer cone perform the adjustment if you have any doubts. (Fig. 4.4) bearings 1. - Page 53 Brakes Never ride a bicycle unless the brakes are functioning properly. Usable brake shoe The correct adjustment and operation of your bicycle’s brakes is extremely important for safe operation. Brakes should be checked for effective operation before every ride. Frequent checking of adjustment is necessary as the control cables will stretch and the brake pads will become worn with use.
- Page 54 Screw the barrel adjuster 3/4 of the way in, squeeze the pads against the rim, undo the cable anchor bolt and pull the cable through with pliers. Re-tighten the cable anchor bolt and apply full force to the brake lever to test, then fine tune using the barrel adjuster. If Pad should be “toed-in”...
-
Page 55: Crank Set
Note: The right and left pedals of a bicycle each have a different thread and are not interchangeable. Never force a pedal into the incorrect crank arm. The right pedal, which attaches to the chainwheel side, is marked ‘R’ on the end of the axle, and screws in with a clockwise thread. - Page 56 To disassemble: 1. Remove the chain from the chainwheel. Front chainwheel 2. Remove the left pedal by turning the spindle clockwise. Rear 3. Remove the left side locknut by turning it clockwise and remove the keyed lockwasher. sprocket 4. Remove the adjusting cone by turning it clockwise with a screwdriver. 5.
- Page 57 Adjustment and replacement On derailleur geared bicycles the rear derailleur automatically tensions the chain. To adjust the chain on single speed freewheel, coaster hub braked or 3-speed hub geared bicycles: 1. Loosen the rear axle nuts (and coaster brake arm clip if fitted) and move the wheel forward to loosen, or backward to tighten, in the frame.
-
Page 58: Coaster Brake Hub
Lubrication Remove any accumulated dirt from the freewheel with a brush and a degreaser. Disassembly of the freewheel is a complicated procedure requiring special tools, and should be left Brake arm clip to a specialist. Apply oil to the freewheel whenever you lubricate the chain, taking care to wipe off any excess. - Page 59 The front derailleur should also shift the chain cleanly and without hesitation between each chainring. If your bicycle is equipped with front indexing (a click between gears), Freewheel Outer side of top gear then each click or stop in the shifter should equate exactly to a new gear position. When the chain has been positioned onto a new chainring, it should not rub on the front Pulley derailleur.
- Page 60 4. Shift the chain onto the largest sprocket; adjust the low limit screw so the chain and Low adjus ng screw the largest cog are lined up vertically. If you are unable to get the chain to the largest cog, turning the Low limit screw counter-clockwise will enable the chain to move Cable anchor bolt towards the wheel.
-
Page 61: Quick Release Levers
Quick Release Levers It is important to check the quick release levers before every ride to ensure all connections are made properly and securely. Periodically, disassemble the mechanism from the bicycle and inspect for any wear or damage and replace if necessary. When reinstalling, +/–... - Page 62 Problem Possible Cause Remedy Gear shifts not working properly • Derailleur cables sticking/ • Lubricate/tighten/replace cables stretched/damaged • Front or rear derailleur • Adjust derailleurs not adjusted properly • Indexed shifting not adjusted properly • Adjust indexing Slipping chain • Excessively worn/chipped chainring •...
- Page 63 Problem Possible Cause Remedy Grinding noise when pedaling • Pedal bearings too tight • Adjust bearings • Bottom bracket bearings too tight • Adjust bearings • Chain fouling derailleurs • Adjust chain line • Derailleur jockey wheels dirty/binding • Clean and lubricate jockey wheels Freewheel does not rotate •...
- Page 64 Problem Possible Cause Remedy Wobbling wheel • Axle broken • Replace axle • Wheel out of true • True wheel • Hub comes loose • Adjust hub bearings • Headset binding • Adjust headset • Hub bearings collapsed • Replace bearings •...
