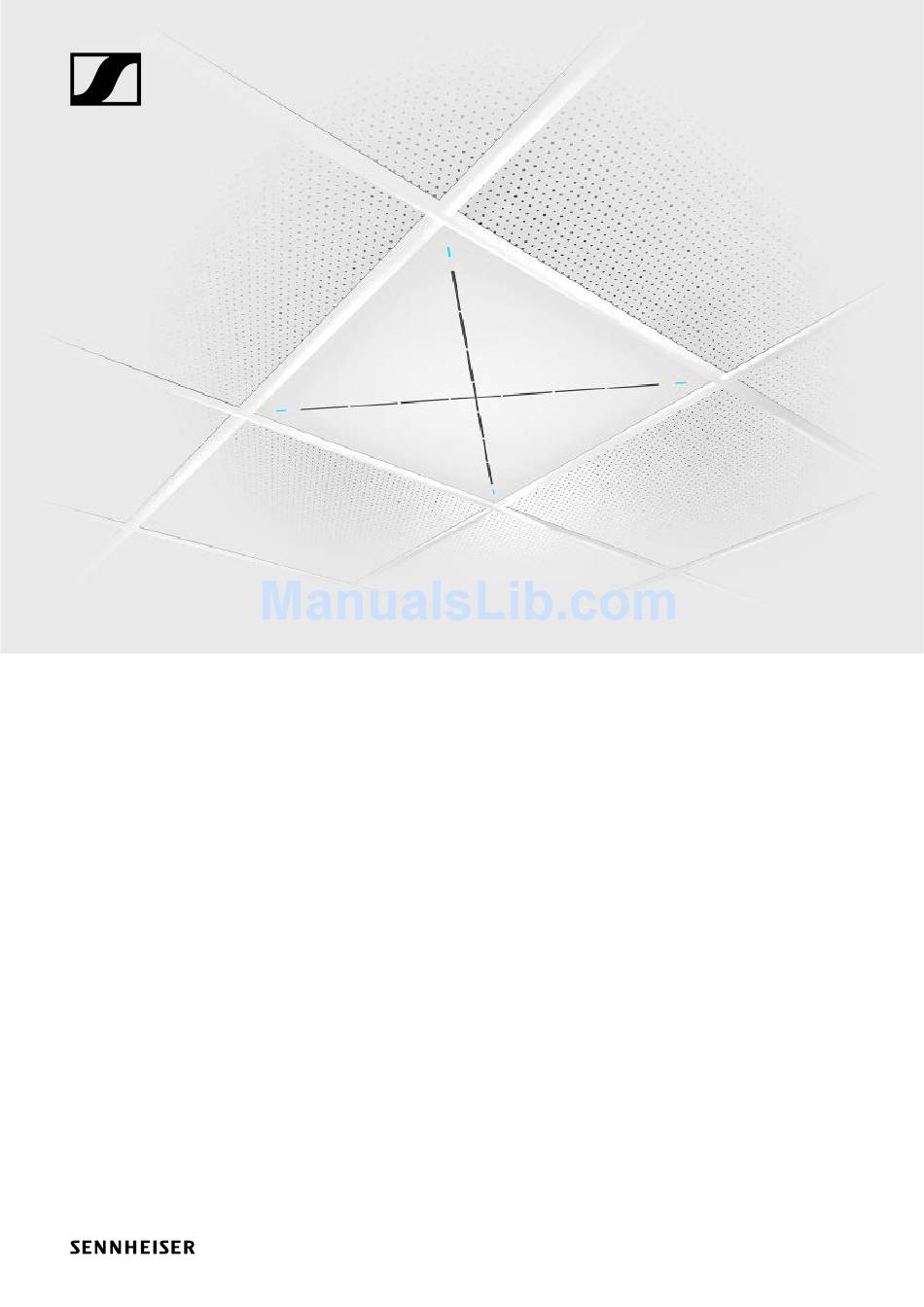

- Page 1 SL Ceiling Mic Connection Guide Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany, www.sennheiser.com TI 1095 v1.0...
- Page 2 Connect system and to 3rd party media control systems. For further information on the SL Ceiling Mic please refer to the instruction manual, which is available for download on the product page of the SL Ceiling Mic or in the Senn- heiser download area at www.sennheiser.com/download.
-
Page 3: Connecting The Power Cable
Connect the angled 4-pin connector of the power cable to the POWER terminal. Connect the STAS2 connector of the power cable to the STAK2 connector of the power supply unit and lock the connectors. STAK2 STAS2 SL Ceiling Mic Connection Guide | 2/5... - Page 4 SL TeamConnect CB1 SL Ceiling Mic SL TeamConnect CU1 To connect the SL Ceiling Mic to the TeamConnect system: Audio signal: Connect the angled 3-pin connector of the audio cable to the AUDIO I or the AUDIO II terminal of the SL Ceiling Mic.
- Page 5 MIC / LINE IN of the SL TeamConnect CU1. Control signal: You can use the control cables supplied with each SL Ceiling Mic and combine them on the one end which is connected to the SL TeamConnect CB1 according to the wiring diagram below.
- Page 6 Please note: Always plug the supplied Control Cable into the CONTROL terminal of the SL Ceiling Mic, even if you do not control the SL Ceiling Mic via a media control system. For making your own control cable, please observe the following wiring: Third party media control system: open collector with internal pull-up (e.
