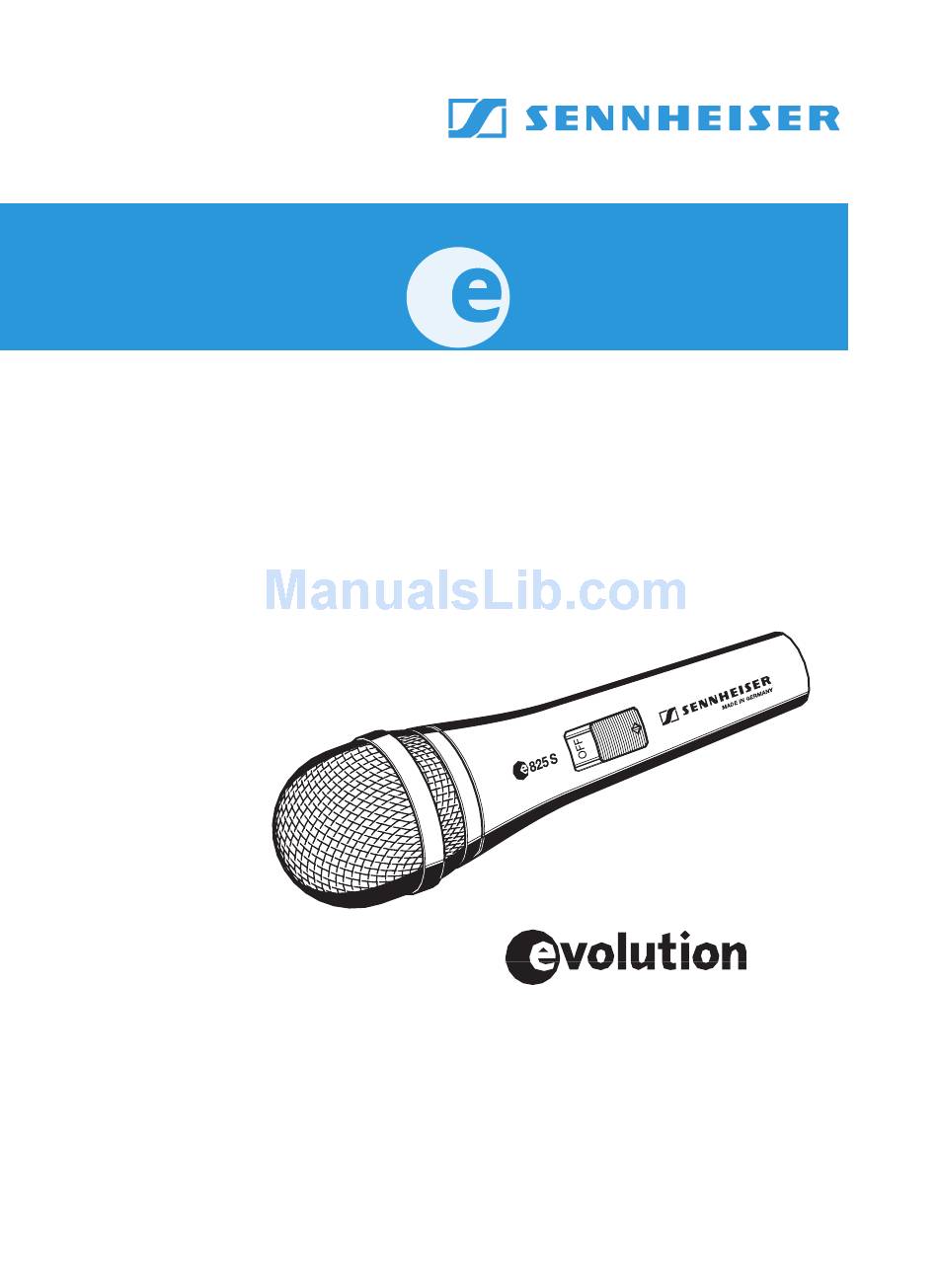

- Page 1 Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones para el uso Gebruiksaanwijzing...

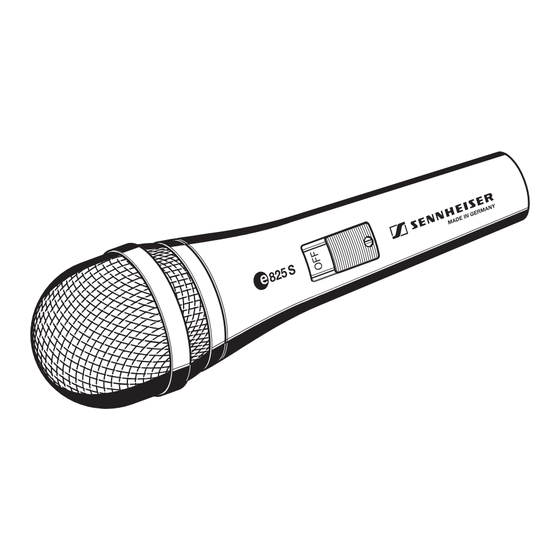

- Page 2 825 S 825 S is a general purpose microphone ideal for vocal and instrument miking and club PA. The balanced frequency response produces a warm, smooth sound. The cardioid pick-up pattern provides excellent feedback and spillage rejection. The rugged metal construction and internal damping isolates handling noise.
- Page 3 Delivery includes 825 S microphone MZQ 800 microphone clamp Pouch Instructions for use Warranty Certificate ON/OFF switch Use the screw to lock the switch in the ON position. With the switch set in the ON position, gently turn the screw head 90°...
-
Page 4: Positioning The Microphone
In order to prevent interference due to crosstalk between adjacent sound sources, try to position the microphone so that the interfering sound source is located in the angle area of the highest cancellation of the microphone (approx. -
Page 5: Polar Diagram
Polar diagram 30° 60° 90° 120° 150° 125 Hz 250 Hz 500 Hz 1000 Hz Frequency response curve - 40 - 50 - 60 - 70 - 80 - 90 0°, 1 m 0° 30° 150° 180° 2000 Hz 4000 Hz 8000 Hz 16000 Hz 5000 10000 20000 Hz... -
Page 6: Specifications
Specifications Transducer principle Frequency response Pick-up pattern Sensitivity (free field, no load at 1 kHz) Nominal impedance Min. terminating impedance Connector Operating temperature Weight Dimensions Pin assignment of XLR-3 connector dynamic 80...15,000 Hz cardioid 1.5 mV/Pa 350 Ω 1 kΩ XLR-3 0°C to +40°C 330 g... -
Page 7: Overview Of Microphone Applications
Overview of microphone applications Variant Application Vocals Choirs Studio, acoustic instruments Orchestra Brass / Saxophone Acoustic guitar Acoustic bass Guitar amplifiers Bass amplifiers Leslie Piano, grand piano Kick drums Snare drums Rack toms Floor toms Congas Cymbals Percussion Overheads... -
Page 8: Manufacturer Declarations
Manufacturer declarations Warranty 2 years Approval Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regulations. Before putting the device into operation, please observe the respec- tive country-specific regulations! WEEE Declaration... - Page 9 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 07/06 511654/A02...
