IMB500 LGA1151 ATX Motherboard
2.4.6

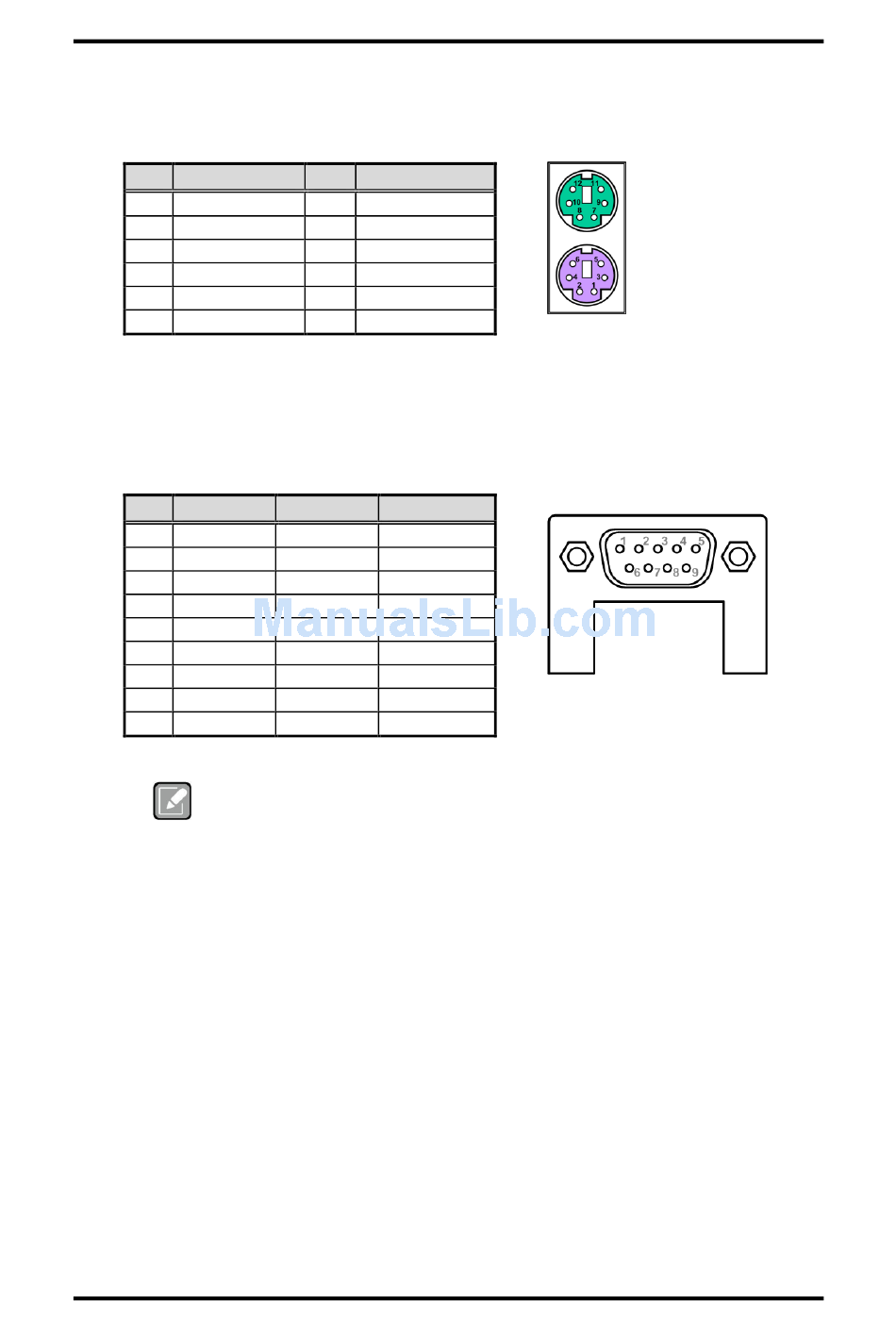

PS/2 Keyboard and Mouse Connector (CN8)

The motherboard has two 6-pin mini-DIN PS/2 connectors on the rear I/O; green for
mouse and purple for keyboard.
Pin
Signal
1
KB_DT1
2
N/C
3
GND
4
+5V_DUAL
5
KB_CK1
6
N/C
2.4.7

COM Connector (CN9)

This is a high rise 9-pin D-Sub connector for COM1 serial port interface. The pin
assignments of RS-232/422/485 are listed in table below.
Pin
RS-232
[**]
1
DCD#
2
RXD
3
TXD
4
DTR#
5
GND
6
DSR#
7
RTS#
8
CTS#
[**]
9
RI#
[*]
(see section 2.3.3).
[**]
Note
selecting JP4 (see section 2.3.4).
14
Pin
Signal
7
MS_DT1
8
N/C
9
GND
10
+5V_DUAL
11
MS_CK1
12
N/C
[*]
[*]
RS-422
RS-485
TX-
485-
TX+
485+
RX+
N/C
RX-
N/C
GND
GND
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
: Signals of COM1 can be RS-232/422/485 by selecting JP3, JP5 and JP6
: Pin 1 of COM1 can be DCD/+5V and pin 9 of COM1 can be RI/+12V by
[*]
Board and Pin Assignments
