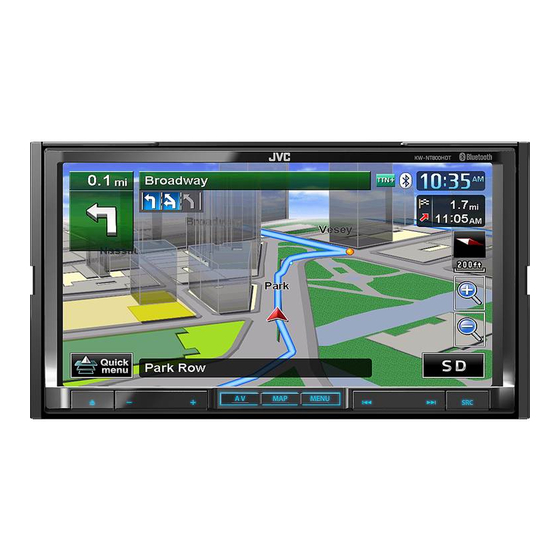

GPS NAVIGATION SYSTEM

SISTEMA DE NAVEGACIÓN GPS
SYSTÈME DE NAVIGATION GPS
KW-NT800HDT / KW-NT700
This HD Radio receiver enables:
This HD Radio receiver enables:
Only for KW-NT800HDT
Sólo para KW-NT800HDT
Uniquement pour le
KW-NT800HDT
For installation and connections, refer to the separate manual.
Para la instalación y las conexiones, refiérase al manual separado.
Pour l'installation et les raccordements, se référer au manuel séparé.
MANUEL D'INSTRUCTIONS
Cover1_NT800HDT_NT700[J]_001A.in2 2
Cover1_NT800HDT_NT700[J]_001A.in2 2
INSTRUCTIONS
MANUAL DE INSTRUCCIONES
Only for KW-NT800HDT
Sólo para KW-NT800HDT
Uniquement pour le
KW-NT800HDT
For customer Use:
Enter below the Model No.
and Serial No. which are
located on the top or bottom
of the cabinet. Retain this
information for future
reference.
Model No.
Serial No.
LVT2276-001A
[J]
11/21/2011 3:39:55 PM
11/21/2011 3:39:55 PM
