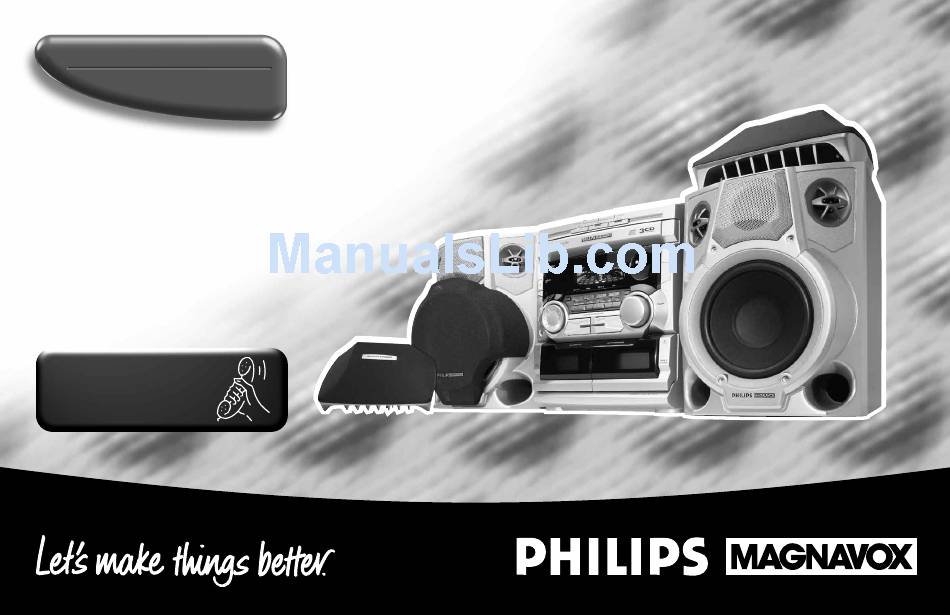

- Page 1 FW585C Toll Free Help Line Ligne d'assistance en service libre Linea de ayuada telefónica sin cargo 800-531-0039...
- Page 2 ’re e n t i t l e d t o. • Once your Philips Magnavox purchase is registered, you’re eligible to receive all the privileges of owning a Philips Magnavox product. Warranty...
- Page 3 As a member of the Philips Magnavox “family,” you’re enti- tled to protection by one of the most comprehensive war- ranties and outstanding service networks in the industry.
- Page 4 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock.
- Page 5 INDEX English ...6 Français ...30 Español ...56 CLASS 1 LASER PRODUCT...
- Page 6 SAFETY INSTRUCTIONS – Read before operating equipment This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
-
Page 7: Safety Instructions
Note to the Cable TV system installer This reminder is provided to call the Cable TV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. Example of Antenna Grounding as per NEC - National Electrical Code Electric Service Equipment... -
Page 8: Limited Warranty
TO GET WARRANTY SERVICE IN U.S.A., PUERTO RICO OR U.S. VIRGIN ISLANDS... Take the product to a Philips factory service center (see enclosed list) or authorized service center for repair.When the product has been repaired, you must pick up the unit at the center. -
Page 9: Table Of Contents
CONTENTS GENERAL INFORMATION General Information General Information ... 9 • The typeplate (which contains the Safety Information ... 9 serial number) is located at the rear of the system. Preparation ... 10 - 11 • Recording is permissible if Controls ... 12 - 13 copyright or other rights of third parties are not infringed. -
Page 10: Preparation
PREPARATION Rear Connections STANDBY ON CUT OFF FREQUENCY HIGH POWER SUBWOOFER 60Hz 150Hz AUDIO OUT DIGITAL SUB- WOOFER AUX/CDR IN LINE OUT FM AERIAL 300 AM AERIAL FRONT REAR SURROUND – – MAINS surr. surr. AUDIO IN – –... - Page 11 A AM Loop Antenna D Rear Speakers Connection Connection Connect the black (non-marked) wires to the black REAR SURROUND terminals and Connect the supplied loop antenna to the the white (marked) wires to the grey REAR AM ANTENNA terminal. Place the AM loop SURROUND terminals.
-
Page 12: Controls
CONTROLS DISC CHANGE MINI HIFI SYSTEM STANDBY CLOCK/ TIMER PROG £ ™ OPEN•CLOSE DISC 1 DISC 2 DISC 3 C H A N G E R PROGRAM SHUFFLE STEREO BACK REPEAT TIMER NEWS T.A. FRONT 60Hz 250Hz 500Hz 2KHz 4KHz 8KHz 1KHz C D 1 •... - Page 13 @ CD DIRECT PLAY (DISC 1 / DISC 2 / Controls on the system and DISC 3) remote control – to select a CD tray for playback. # DISC CHANGE 1 STANDBY ON – to change CD(s). – to switch the system on or to standby $ OPEN•CLOSE mode.
-
Page 14: Operating The System
OPERATING THE SYSTEM MINI HIFI SYSTEM PROGRAM SHUFFLE REPEAT NEWS T.A. 60Hz 250Hz 500Hz 1KHz STANDBY CLOCK/ C D 1 • 2 • 3 FM • AM TAPE 1 • 2 TIMER TUNER PROG SIDE SEARCH • TUNING STOP•CLEAR PLAY PAUSE SOUND NAVIGATION DIGITAL SOUND CONTROL... - Page 15 Note: Selecting the Equalizer – In NITE MODE, all lights will be Display switched off and the display brightness will be dimmed. You can select the desired equalizer display for the system. You must not press the DSC button on the system before using the JOG. Sound Control •...
- Page 16 DISC CHANGE DISC 1 DISC 2 MINI HIFI SYSTEM PROGRAM SHUFFLE REPEAT TIMER NEWS T.A. 60Hz 250Hz 500Hz 1KHz STANDBY CLOCK/ TIMER C D 1 • 2 • 3 FM • AM TAPE 1 • 2 TUNER PROG SIDE SEARCH • TUNING STOP•CLEAR PLAY PAUSE SOUND NAVIGATION...
- Page 17 Selecting a desired track Programming Tracks Selecting a desired track when Programming tracks of a loaded CD is playback is stopped possible when playback is stopped. The 1 Press PREV í or NEXT ë until the display will indicate the total tracks stored desired track appears on the display.
-
Page 18: Tuner
Shuffle Repeat (only on remote control) In shuffle mode, the system plays all the You can play the current track, a disc or all available discs and their tracks in random available discs repeatedly. order. Shuffle may be used also when 1 Press REPEAT on the remote control tracks are programmed. - Page 19 ™ The system will search for every Manual programming available station in the FM waveband 1 Press TUNER (FM•AM). first, then search the AM waveband. 2 Press TUNER (FM•AM) again to select ™ All available radio stations will be the desired waveband : FM or AM. stored automatically.
-
Page 20: Tape
TAPE MINI HIFI SYSTEM PROGRAM SHUFFLE REPEAT TIMER NEWS T.A. 60Hz 250Hz 500Hz 1KHz STANDBY CLOCK/ C D 1 • 2 • 3 FM • AM TAPE 1 • 2 TIMER TUNER PROG SIDE A•B SEARCH • TUNING STOP•CLEAR PLAY PAUSE SOUND NAVIGATION DIGITAL SOUND CONTROL... -
Page 21: Aux/Cdr
TAPE During playback • Press and hold à or á until the desired passage is located. ™ During searching, the sound is reduced to a low volume. ™ When you release à or á, the tape continues playing. Notes: – During rewinding or fast forwarding of a tape, it is also possible to select another source (e.g. -
Page 22: Recording
RECORDING MINI HIFI SYSTEM PROGRAM SHUFFLE REPEAT TIMER NEWS T.A. 60Hz 250Hz 500Hz 1KHz STANDBY CLOCK/ TIMER C D 1 • 2 • 3 FM • AM TAPE 1 • 2 TUNER PROG SIDE A•B SEARCH • TUNING STOP•CLEAR PLAY PAUSE SOUND NAVIGATION DIGITAL SOUND CONTROL... -
Page 23: Recording
– You can listen to another source while Dubbing tapes (from tape deck 1 to dubbing. tape deck 2) 1 Press TAPE ( TAPE 1•2 ) to select tape CD Synchro Start Recording deck 2. 2 Load the prerecorded tape into tape 1 Load a blank tape into tape deck 2 and a deck 1 and a blank tape into tape deck disc into a disc tray. -
Page 24: Clock
CLOCK MINI HIFI SYSTEM PROGRAM SHUFFLE REPEAT TIMER NEWS T.A. 60Hz 250Hz 500Hz 1KHz STANDBY CLOCK/ CD1 • 2 • 3 FM • AM TAPE 1 • 2 TIMER TUNER PROG SIDE SEARCH • TUNING STOP•CLEAR PLAY PAUSE SOUND NAVIGATION DIGITAL SOUND CONTROL View Clock... -
Page 25: Sleep Timer
Cleaning the CD lens • After prolonged use, dirt or dust may accumulate at the CD lens. To ensure good playback quality, clean the CD lens with Philips Magnavox CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner. -
Page 26: Specifications
SPECIFICATIONS Specifications AMPLIFIER Output power FW585C ... 2 x 120 W FTC Surround Channel ... 2 x 20 W FTC Signal-to-noise ratio ... 75 dBA (IEC) Frequency response ... 40 – 20,000 Hz, ± 3 dB Input sensitivity AUX/CDR In ... 450 mV Output Speakers ... -
Page 27: Troubleshooting
• The TV or VCR is too close to the stereo nearest dealer or service center. system. ™ Separate the stereo system from the TV CD Player Operation or VCR. “NO DISC” is displayed.
