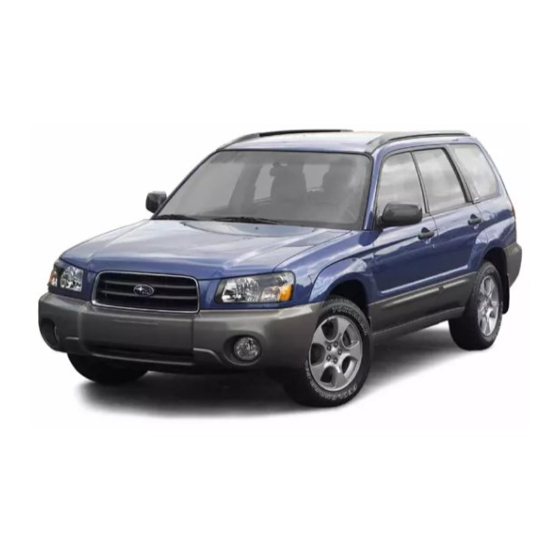

Subaru FORESTER 2004 Service Manual

Hide thumbs Also See for FORESTER 2004:

Advertisement

Quick Links

Download this manual See also: Service Manual, Owner's Manual
2004 FORESTER SERVICE MANUAL

ENGINE SECTION 2

This service manual has been prepared
to provide SUBARU service personnel
with the necessary information and data
for the correct maintenance and repair
of SUBARU vehicles.
This manual includes the procedures
for maintenance, disassembling, reas-
sembling, inspection and adjustment of
components and diagnostics for guid-
ance of experienced mechanics.
Please peruse and utilize this manual
fully to ensure complete repair work for
satisfying our customers by keeping
their vehicle in optimum condition.
When replacement of parts during
repair work is needed, be sure to use
SUBARU genuine parts.
All information, illustration and specifi-
cations contained in this manual are
based on the latest product information
available at the time of publication
approval.
FUJI HEAVY INDUSTRIES LTD.
QUICK REFERENCE INDEX
FUEL INJECTION (FUEL SYSTEM)
EMISSION CONTROL
(AUX. EMISSION CONTROL DEVICE)
INTAKE (INDUCTION)
MECHANICAL
EXHAUST
COOLING
LUBRICATION
SPEED CONTROL SYSTEM
IGNITION
STARTING/CHARGING SYSTEM
ENGINE (DIAGNOSTIC)
FU(H4DOTC)
EC(H4DOTC)
IN(H4DOTC)
ME(H4DOTC)
EX(H4DOTC)
CO(H4DOTC)
LU(H4DOTC)
SP(H4DOTC)
IG(H4DOTC)
SC(H4DOTC)
EN(H4DOTC)
G8080GE3

Advertisement

loading

Related Manuals for Subaru FORESTER 2004

Summary of Contents for Subaru FORESTER 2004

  • Page 1: Engine Section

    EC(H4DOTC) (AUX. EMISSION CONTROL DEVICE) INTAKE (INDUCTION) IN(H4DOTC) MECHANICAL ME(H4DOTC) This service manual has been prepared to provide SUBARU service personnel EXHAUST EX(H4DOTC) with the necessary information and data for the correct maintenance and repair of SUBARU vehicles. COOLING CO(H4DOTC)
  • Page 3 IGNITION IG(H4DOTC) Page General Description ..................2 Spark Plug....................5 Ignition Coil & Ignitor ASSY ................8...

  • Page 4: General Description

    General Description IGNITION 1. General Description A: SPECIFICATION Item Designation Model FK0186 Ignition coil and ignitor Ignition type Direct ignition ASSY Manufacturer DIAMOND 2.0 L model NGK: PFR6G Type and manufacturer 2.5 L model NGK: ILFR6B Thread diameter, pitch, length 14, 1.25, 26.5 Spark plug Spark gap...
  • Page 5 General Description IGNITION B: COMPONENT IG-00001 ⋅ Spark plug Ignition coil & ignitor ASSY Tightening torque: N m (kgf-m, ft-lb) T1: 21 (2.1, 15.2) T2: 16 (1.6, 11.7) IG(H4DOTC)-3...
  • Page 6 General Description IGNITION C: CAUTION • Wear working clothing, including a cap, protec- tive goggles, and protective shoes during opera- tion. • Remove contamination including dirt and corro- sion before removal, installation or disassembly. • Keep the disassembled parts in order and pro- tect them from dust or dirt.

  • Page 7: Spark Plug

    Spark Plug IGNITION 2. Spark Plug 5) Remove the spark plugs with the spark plug sockets. A: REMOVAL CAUTION: All spark plugs installed on an engine, must be of the same heat range. <Ref. to IG(H4DOTC)-2, General Description.> 1. RH SIDE 1) Disconnect the ground cable from battery.
  • Page 8 Spark Plug IGNITION 5) Disconnect the connector from ignition coil. 2. LH SIDE Install in the reverse order of removal. Tightening torque (Spark plug): ⋅ 21 N m (2.1 kgf-m, 15.2 ft-lb) Tightening torque (Ignition coil): ⋅ 16 N m (1.6 kgf-m, 11.7 ft-lb) NOTE: The above torque should be only applied to new spark plugs without oil on their threads.
  • Page 9 Spark Plug IGNITION 2) Carbon fouled: D: ADJUSTMENT Dry fluffy carbon deposits on insulator and elec- Clean the spark plugs with a wire brush. Clean and trode are mostly caused by slow speed driving in remove the carbon or oxide deposits, but do not city, weak ignition, too rich fuel mixture, dirty air wear ceramic insulator.

  • Page 10: Ignition Coil & Ignitor Assy

    Ignition Coil & Ignitor ASSY IGNITION 3. Ignition Coil & Ignitor ASSY A: REMOVAL Direct ignition type has been adopted. Refer to the “SparkPlug Removal” for removal procedure. <Ref. to IG(H4DOTC)-5, REMOVAL, Spark Plug.> B: INSTALLATION Install in the reverse order of removal. Tightening torque: ⋅...
