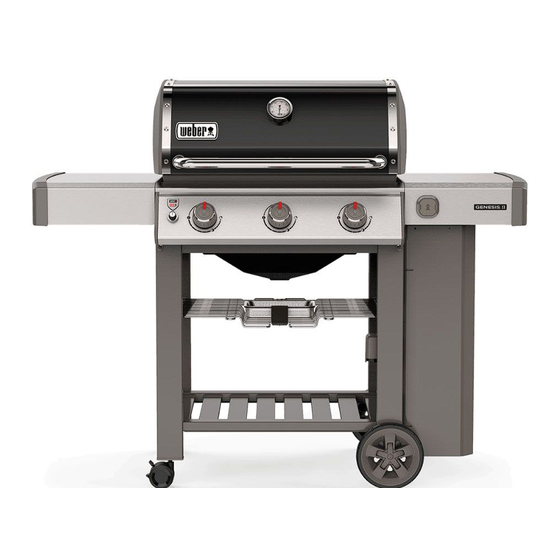

Genesis 310 Owner's Manual

Hide thumbs Also See for 310:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
GAS GRILL
LP Gas Grill Owner's Guide
310
YOU MUST READ THIS OWNER'S GUIDE
BEFORE OPERATING YOUR GAS GRILL.
m DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odour continues, keep away from the
appliance and immediately call your gas
supplier or your fire service.
Leaking gas may cause a fire or explosion,
which can cause serious bodily injury or
death, or damage to property.
m WARNING
1. Do not store or use petrol or other
flammable vapours and liquids in the
vicinity of this or any other appliance.
2. A gas supply cylinder not connected for
use should not be stored in the vicinity
of this or any other appliance.
#54387
m WARNING: Follow all leak-check
procedures carefully in this manual
before operating barbecue. Do this even
if barbecue was dealer-assembled.
m WARNING: Do not ignite this appliance
without first reading the BURNER
IGNITION sections of this manual.
INFORMATION FOR THE INSTALLER:
This manual must remain with the owner,
who should keep it for future use.
OUTDOOR USE ONLY.
54387 11/15/11 LP
EN - INTERNATIONAL ENGLISH

Advertisement

Table of Contents
loading

Related Manuals for Genesis 310

Summary of Contents for Genesis 310

  • Page 1 GAS GRILL LP Gas Grill Owner’s Guide #54387 YOU MUST READ THIS OWNER’S GUIDE m WARNING: Follow all leak-check BEFORE OPERATING YOUR GAS GRILL. procedures carefully in this manual before operating barbecue. Do this even if barbecue was dealer-assembled. m DANGER If you smell gas: m WARNING: Do not ignite this appliance 1.

  • Page 2: Warnings

    WARNINGS m DANGER Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property. m WARNINGS m While cooking, never lean over the open barbecue or place hands or fingers on the front edge of the cookbox.

  • Page 3: Table Of Contents

    TAbLE OF cONTENTS ....... . . 3 EXPLODED VIEW 310 ....... . . 4 EXPLODED VIEW LIST 310 .

  • Page 4: Exploded View 310

    EXPLODED VIEW 310 Genesis_310_LP_GB_080911...

  • Page 5: Exploded View List 310

    EXPLODED VIEW LIST 310 Thermometer Catch Pan Holder 33. Manifold Hose Thermometer Bezel 18. Left Frame Panel 34. Bulkhead Shroud 19. Front Frame Support 35. Hose Retention Bracket Handle 20. Left Door 36. Hose / Regulator Warming Rack 21. Right Door...

  • Page 6: Warranty

    WARRANTY Weber-Stephen Products LLC (Weber) hereby warrants to the ORIGINAL PURCHASER of this This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, Weber gas grill that it will be free of defects in material and workmanship from the date of purchase misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or ®...

  • Page 7: Gas Instructions

    Belgium, France, Greece, Ireland, Italy, Luxembourg, Portugal, Switzerland, United Kingdom Poland B/P - 37 mbar B/P - 50 mbar Austria, Germany cONSUmPTION DATA Propane kW Butane kW Genesis ® 11,14 12,7 Genesis ® 17, 58 20,1 Propane g/h Butane g/h Genesis ®...

  • Page 8: Cylinder Installation Location Options

    GAS INSTRUcTIONS CYLINDER INSTALLATION LOCATION OPTIONS Pick one of three options to determine the location of the cylinder; install inside the cabinet, mount on the cylinder hanger, or place the cylinder on the ground . The type and size of cylinder you purchase will help determine the cylinder installation location . Installation Inside of Cabinet 465 mm The LP gas cylinder can be connected inside the grill cabinet as long as the cylinder...

  • Page 9: Installing The Cylinder

    GAS INSTRUcTIONS INSTALLING THE CYLINDER Purchase a Full Cylinder of Gas From your Gas Dealer The cylinder must always be installed, transported and stored in an upright position . Never allow the cylinder to drop or be handled carelessly . Never store the cylinder where temperatures can exceed 51° C (too hot to hold by hand). For example, do not leave the cylinder in your car on hot days .
  • Page 10 GAS INSTRUcTIONS Installation Outside of Cabinet If the cylinder you have does not meet the cylinder type and size guidelines: Mount the cylinder on the cylinder hanger or place the cylinder on the ground . Either way the cylinder must be placed outside the base cabinet, on the right side of the grill . Cylinder Hanger Installation You will need: the cylinder hanger bracket (1) and cylinder hanger (2) .

  • Page 11: Prepare To Connect The Lp Cylinder

    GAS INSTRUcTIONS PREPARE TO CONNECT THE LP CYLINDER The regulator must be secured to the side panel with the supplied hose retention bracket . Installation Inside of Cabinet A) Open base cabinet doors . B) Slide hose retention bracket (1) along hose to align with inside right panel front mounting holes .

  • Page 12: Connecting The Liquid Propane Cylinder

    GAS INSTRUcTIONS CONNECTING THE LIQUID PROPANE CYLINDER m WARNING: Make sure that the LP cylinder or regulator valve is closed. A) Connect LP cylinder . Some regulators push ON to connect, and pull OFF to disconnect, others have a nut that has a left-hand thread that connects to the cylinder valve . Follow one of the specific regulator connection instructions illustrated based on your regulator type .

  • Page 13: Leak-Check Preparation

    GAS INSTRUcTIONS LEAK-CHECK PREPARATION m WARNING: The gas connections of your gas grill have been factory-tested. We do, however, recommend that you leak- check all gas connections before operating your gas grill. Remove Control Knobs & Control Panel for Leak Testing You will need: Phillips &...

  • Page 14: Check For Gas Leaks

    GAS INSTRUcTIONS CHECK FOR GAS LEAKS m DANGER Do not use an open flame to check for gas leaks. Be sure there are no sparks or open flames in the area while you check for leaks. Sparks or open flames will result in a fire or explosion, which can cause serious bodily injury or death and damage to property.
  • Page 15 GAS INSTRUcTIONS Check The grill illustrated may A) Regulator hose-to-bulkhead connection (1) . have slight differences B) Main gas line-to-bulkhead connection (2) . than the model purchased. C) Main gas line-to-manifold connections (3) . m WARNING: If there is a leak at connections (1, 2, or 3), re- tighten the fitting with a wrench and recheck for leaks with soap-and-water solution.

  • Page 16: Refilling The Liquid Propane Cylinder

    GAS INSTRUcTIONS REFILLING THE LIQUID PROPANE CYLINDER We recommend that you refill the LP cylinder before it is completely empty . To refill, take LP cylinder to a “Gas Propane” dealer . Removal of the gas supply cylinder: A) Shut off gas supply and disconnect hose and regulator assembly from the cylinder . Follow one of the specific regulator connection instructions illustrated based on your regulator type .

  • Page 17: Before Using The Grill

    bEFORE USING THE GRILL SLIDE-OUT GREASE TRAY AND DISPOSABLE DRIP PAN Your grill was built with a grease collection system . Check the slide-out grease tray and disposable drip pan for grease build-up each time you use your grill . Remove excess grease with a plastic spatula;...

  • Page 18: Main Burner Ignition & Usage

    mAIN bURNER IGNITION & USAGE MAIN BURNER IGNITION m DANGER Failure to open the lid while igniting the barbecue’s burners, or not waiting five minutes to allow the gas to clear if the barbecue does not light, may result in an explosive flare-up, which can cause serious bodily injury or death.

  • Page 19: Main Burner Manual Ignition

    mAIN bURNER IGNITION & USAGE MAIN BURNER MANUAL IGNITION m DANGER Failure to open the lid while igniting the barbecue’s burners, or not waiting five minutes to allow the gas to clear if the barbecue does not light, may result in an explosive flare-up, which can cause serious bodily injury or death.

  • Page 20: Grilling Tips & Helpful Hints

    GRILLING TIPS & HELPFUL HINTS FLAVORIZER SYSTEM • Always preheat the grill before cooking. Set all burners on HI heat and close lid; heat ® for 10 minutes, or until thermometer registers 500°-550°F (260°-288°C). When meat juices drip from the food onto the specially angled Flavorizer ® bars, • Sear meats and cook with the lid down for perfectly grilled food every time. they create smoke that gives foods an irresistible barbecued flavour . Thanks to the • Grilling times in recipes are based on 70°F (20°C) weather and little or no wind. Allow unique design of the burners, Flavorizer ® bars and the flexible temperature controls, more cooking time on cold or windy days, or at higher altitudes .

  • Page 21: Troubleshooting

    TROUbLESHOOTING PRObLEm cHEcK SOLUTION Burners burn with a yellow or orange flame, in Inspect Spider/Insect screens for possible obstructions . Clean Spider/Insect screens . Refer to “ANNUAL conjunction with the smell of gas. (Blockage of holes .) MAINTENANCE . ” Symptoms: The excess flow safety device, which is part of the To reset the excess flow safety device close the LP...

  • Page 22: Maintenance

    mAINTENANcE CLEANING WEBER SPIDER/INSECT SCREENS ® m WARNING: Turn your Weber gas barbecue off and wait for Your Weber ® gas barbecue, as well as any outdoor gas appliance, is a target for spiders ® and other insects . They can nest in the venturi section (1) of the burner tubes . This it to cool before cleaning.

  • Page 23: Burner Tubes Cleaning Or Replacement

    mAINTENANcE BURNER TUBES CLEANING OR REPLACEMENT You will need: Phillips screwdriver, flathead screwdriver, and 5/16" nut-driver . A) Your Weber ® gas barbecue must be OFF and cool . B) Turn gas OFF at source . C) Remove cookbox components - warming rack, grates and Flavorizer bars .
  • Page 24 B) Remove screw that holds burner tube to the cookbox using a 5/16" nut-driver (10) . C) Pull burner tube assembly (this includes igniter) up and out of cookbox (11) . Note: 310 units will have an additional earthing wire attached to the centre burner tube (12) .

  • Page 25: Electronic Ignition System Operations

    If the Electronic Ignition System still fails to light, contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com ® ◆ IGNITER mODULE WIRE GUIDE 310 Wire End & Terminal Colour Burner Tube Black (1) Left Burner (A)

  • Page 26: Annual Maintenance

    mAINTENANcE ANNUAL MAINTENANCE Inspection and Cleaning of the Spider/Insect Screens To inspect the spider/insect screens, remove the control panel . If there is dust or dirt on the screens, remove the burners to clean the screens . Brush the spider/insect screens lightly with a soft bristle brush (i .e ., an old toothbrush) . m CAUTION: Do not clean the spider/insect screens with hard or sharp tools.

  • Page 27: Memo

    mEmO WWW.WEbER.cOm ®...
  • Page 28 m ATTENTION: This product has been safety-tested and is only certified for use in a specific country. Refer to country designation located on outside of box. These parts may be gas-carrying or gas-burning components . Please contact Weber-Stephen Products LLC Customer Service Department for genuine Weber-Stephen Products LLC replacement part(s) information .
