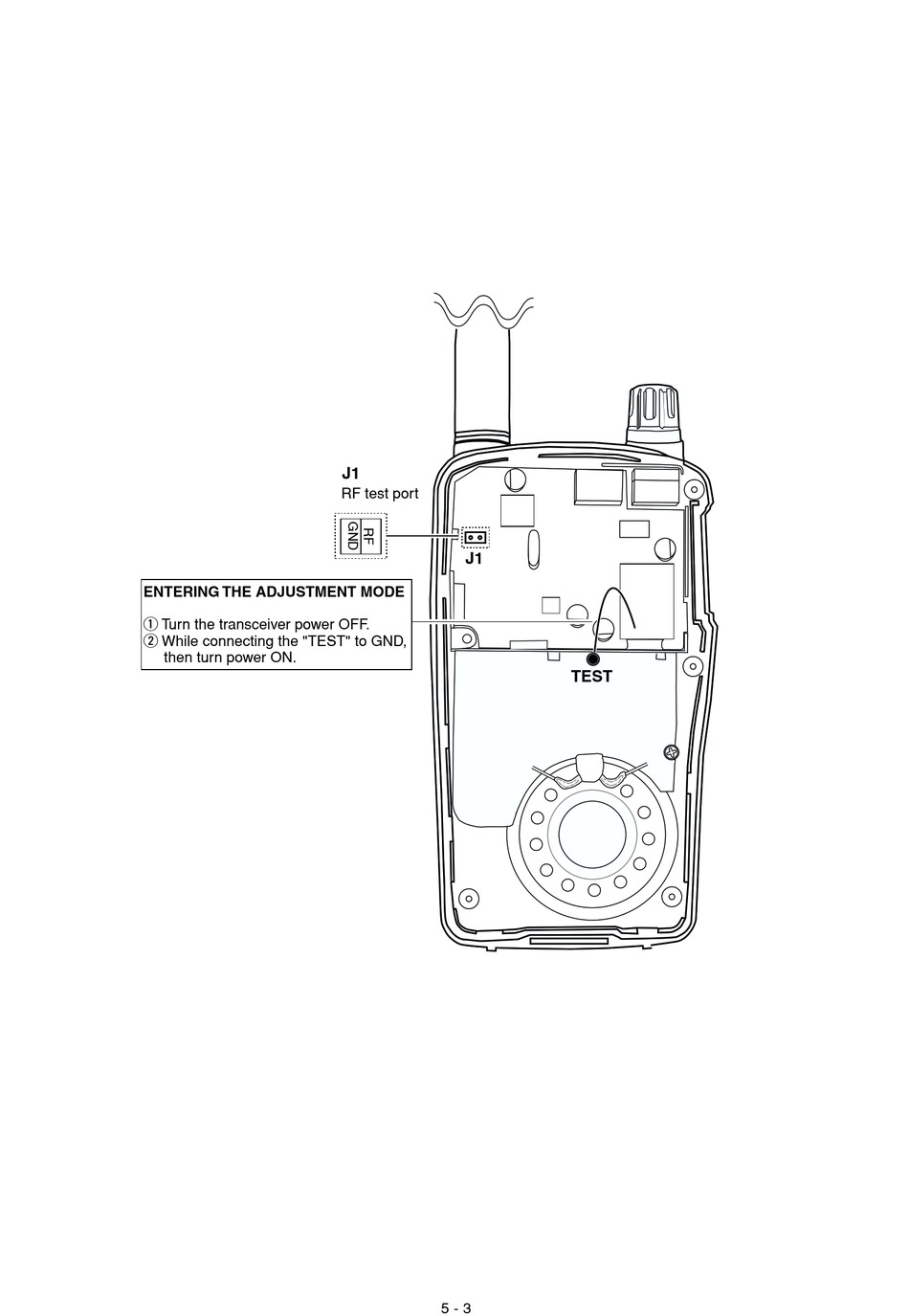

J1
RF test port
J1
ENTERING THE ADJUSTMENT MODE
q Turn the transceiver power OFF.
w While connecting the "TEST" to GND,
then turn power ON.
TEST
5 - 3
