SPECIFICATIONS

FM tuner section
Frequency range:
87.5MHz to 108.0MHz(0.05MHz
steps)
AM tuner section
Frequency range:
MW:531kHz to 1602kHz(9kHz
steps)
LW:153kHz to 279kHz(3kHz steps)
DVD player section
System:
Digital versatile disc system with
CDDA capable
Usable discs:
DVD video disc,Compact disc
Frequency response:
20Hz to 22kHz(48kHz)(+1/-1dB)
Signal to noise ratio:
100dB(1kHz)IHF-A
Dynamic range:
100dB(1kHz)
Distortion:
0.01%
Audio amplifier section
Rated power output:
18W x 4(20Hz to 20kHz,1%,4 ohm)
Maximum power output:
200W(50W x 4 JEITA)
Speaker impedance:
4 ohm(4 to 8 ohm)
Input section
Video input:
1.0V+0.2/-0.2Vp-p
(input impedance 75 ohm)
Audio input:
130mV+60/-60mVrms(High)
600mV+80/-80mVrms(Mid)
840mV+100/-100mVrms(Low)
(input impedance 10k ohm or
greater)
RGB input section
Video:
0.7V+0.2/-0.2Vp-p(input impedance
75 ohm)
Synchronize:
0.3V+0.9/-0.1Vp-p(input impedance
75 ohm)
Clarion Co., Ltd.
5-35-2, Hakusan, Bunkyouku, Tokyo, 112-8608 Japan
Service Dept.- 50 kamitoda,Toda-shi,Saitama,335-8511 Japan Tel: 048-443-1111 FAX:048-433-6996
- 1 -

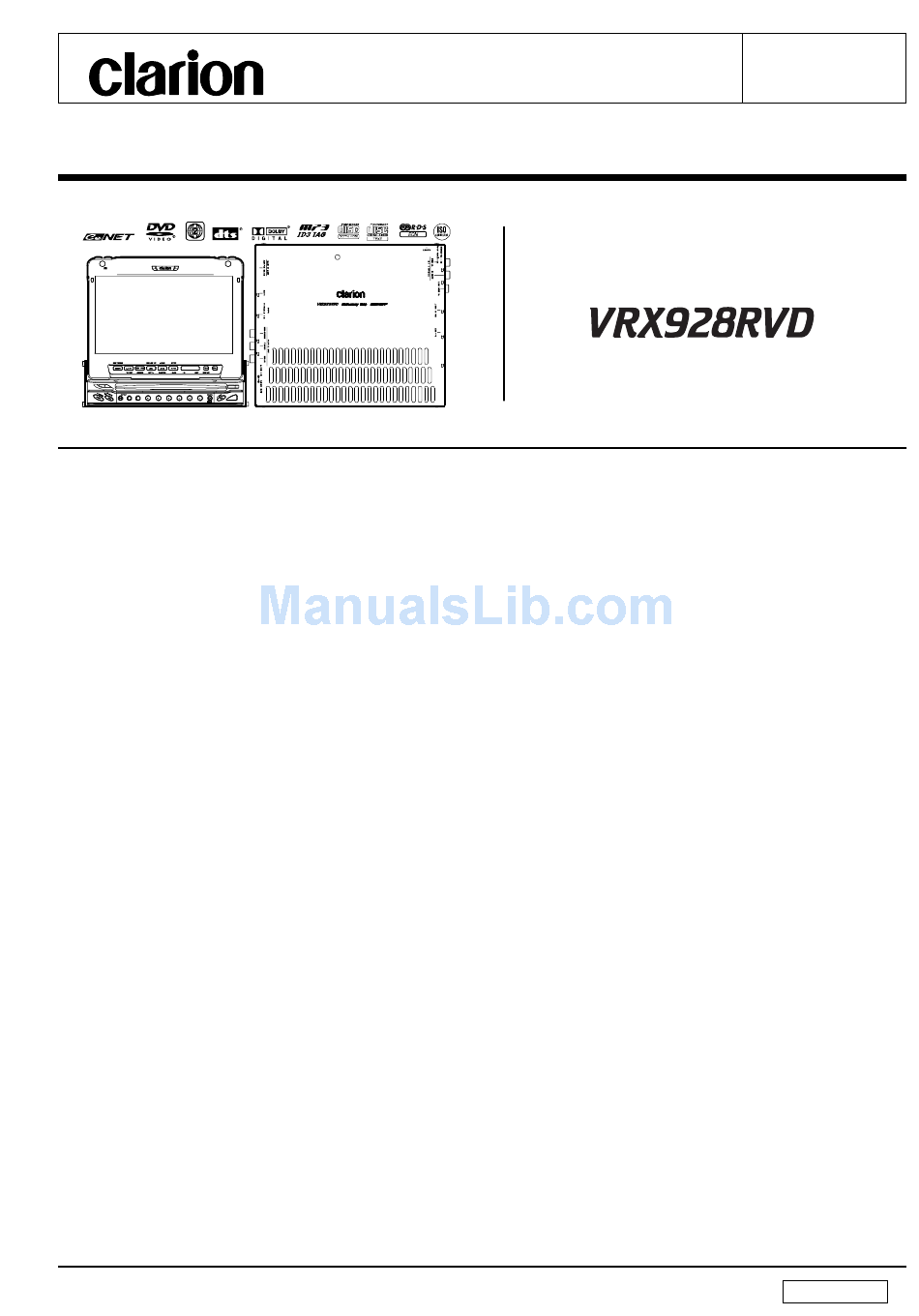

Service Manual
Radio/DVD Multimedia Center with
CeNET Control
Model
(QC-6810E)
(Region No.2)
Video output section
Video output:
LCD monitor section
Screen size:
Display method:
Drive method:
Pixels:
General
Power source voltage: 14.4V DC
Ground:
Current consumption: 4.0A(1W)
Auto antenna rated current:
Dimensions(mm):
Weight:
*
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby
Laboratories.
*
"DTS" is a registered trademarks of Digital Theater
Systems,Inc.
*
Specifications and design are subject to change without
notice for further improvement.
Published by Service Dept.
298-5999-00 Sep.2002 P
Printed in Japan

1.0V+0.2/-0.2Vp-p(output imped-
ance 75 ohm)
7-inch wide type
(152mm Width x 85mm Height)
Transmission type TN Liquid
Crystal Display
TFT(thin-film transistor) active
matrix driving
336,960(1440x234)
(10.8 to 15.6V allowable)
Negative
500mA less
Main unit
178(W)x50(H)x165(D)
Tuner amp unit
178(W)x37.5(H)x209.5(D)
Remote control unit
54(W)x28.8(H)x155(D)
Main unit 2.3kg
Tuner amp unit 1.1kg
Remote control unit 70g
(including battery)
VRX928RVD
