Clarion VRX575USB Service Manual

LF
This product is a lead free model.
Lead free solder is used in PWB stamped LF mark.
Please keep the following conditions when you repair.
1. Use lead free solder.
2. Use a nitrogen solder system.
3. Do not use •gGeneral solder•h and •gLead free
solder•h together.
NOTES
This DVD video player cannot play back DVD-Audio,
*
DVD-RAM, etc. This DVD player can play the following
discs. DVD video discs, Audio CDs.
This unit can play back CD-R/CD-RW, DVD-R/RW,
*
DVD+R/RW discs on which MP3/WMA music data have
been recorded. This unit is an ID3 Tag compatible model.
This unit supports the ID3 Tags of the version 2.4, 2.3, 1.1
and 1.0.
The DVD video system assigns a region number to DVD
*
Video players and DVD discs by sales area. The DVD
video region number is marked on the disc jacket.
DivX, DivX Certified, and associated logos are trademarks
*
of DivX Inc and are used under license.
This product includes technology owned by Microsoft
*
Corporation and cannot be used or distributed without a
License from MSLGP.
Windows Media , the Windows? logo are trademarks, or
*
registered trademarks of Microsoft Corporation in the
United States and/or other countries.
Manufactured under license from Dolby Laboratories.
*
"Dolby", "Pro Logic" and the double-D symbol are
trademarks of Dolby Laboratories.
iPod is for legal or rightholder-authorized copying only.
*
Don't steal music.
iPod is a trademark of Apple Computer, Inc., registered in
the U.S. and other countries.
This product incorporates copyright protection technology
*
that is protected by U.S. patents and other intellectual
property rights. Use of this copyright protection technology
must
Clarion Co., Ltd.
7-2, Shintoshin, Chuo-Ku, Saitama-Shi, Saitama 330-0081 Japan
Service Dept.: 7-2, Shintoshin, Chuo-Ku, Saitama-Shi, Saitama 330-0081 Japan
Tel : +81-48-601-3705, FAX : +81-48-601-3804
Service Manual

SPECIFICATIONS

FM Tuner
Frequency range:
Quieting sensitivity:
Limiting sensitivity:
Stereo separation:
Frequency response:
AM Tuner
Frequency range:
Usable sensitivity:
DVD Player
System:
Usable discs:
- 1 -

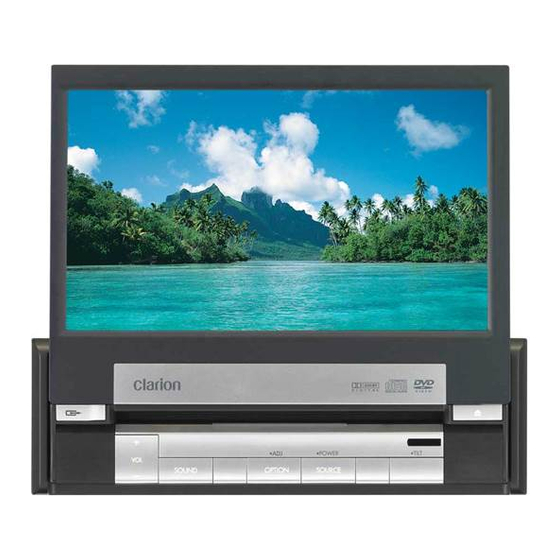

RADIO/DVD MULTIMEDIA CENTER
575
VRX
Model
(QC-6825B-A)
be authorized by Macrovision, and is intended for home
and other limited viewing uses only unless otherwise
authorized by Macrovision. Reverse engineering or
disassembly is prohibited.
About USB memory
USB is an acronym for Universal Serial Bus, and refers
to an external bus standard supporting data transfer
rates of 12 Mbps.
This unit is compatible with USB 1.1/2.0 with maximum
data transfer rates of 12 Mbps.
USB memory devices that can be played by connecting
to the unit's USB cable are limited to those recognized as
"USB mass storage class devices"; operation is not
guaranteed with all USB memory devices.
Devices compatible with "USB Mass Storage Class" can
be used merely by connecting to the host device, without
need for special drivers or application software.
Consult the manufacturer of your USB memory device for
information regarding whether it is supported by "USB
Mass Storage Class" standards.
Audio files playable on this unit are limited to MP3/WMA
files.
This unit isn't compatible USB Card-Reader (SD).
87.9MHz to 107.9MHz
20dBf
15dBf
20dB (1kHz)
100Hz to 7kHz
530kHz to 1710kHz
40dBuV
Digital versatile disc system with
CDDA capable
DVD video disc, Compact disc
Published by Service Dept.
298-6507-00 Jan.2008
Printed in Korea
USB
VRX575USB
