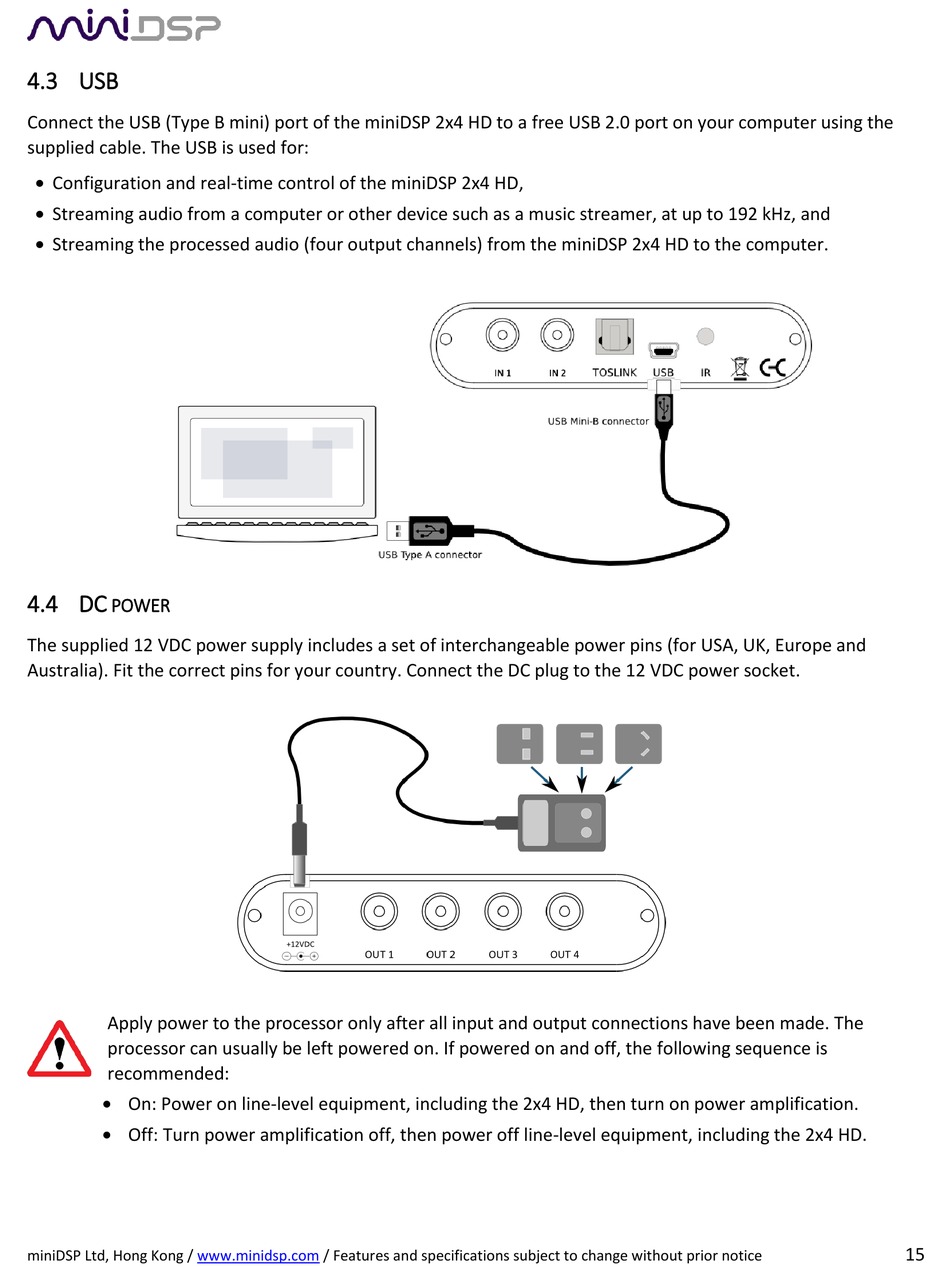

4.3 USB

Connect the USB (Type B mini) port of the miniDSP 2x4 HD to a free USB 2.0 port on your computer using the
supplied cable. The USB is used for:
 Configuration and real-time control of the miniDSP 2x4 HD,
 Streaming audio from a computer or other device such as a music streamer, at up to 192 kHz, and
 Streaming the processed audio (four output channels) from the miniDSP 2x4 HD to the computer.
4.4 DC
POWER
The supplied 12 VDC power supply includes a set of interchangeable power pins (for USA, UK, Europe and
Australia). Fit the correct pins for your country. Connect the DC plug to the 12 VDC power socket.
Apply power to the processor only after all input and output connections have been made. The
processor can usually be left powered on. If powered on and off, the following sequence is
recommended:
 On: Power on line-level equipment, including the 2x4 HD, then turn on power amplification.
 Off: Turn power amplification off, then power off line-level equipment, including the 2x4 HD.
