Clevo W830T User Manual

Clevo W830T User Manual

Models a,b,c,d
Hide thumbs Also See for W830T:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
V09.1.00

Advertisement

Table of Contents
loading

Related Manuals for Clevo W830T

Summary of Contents for Clevo W830T

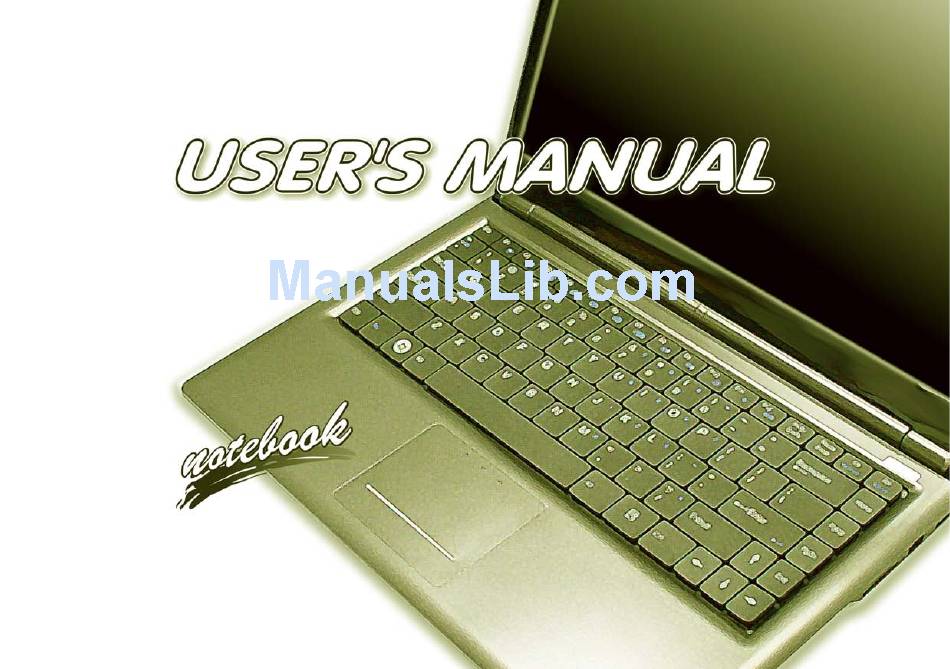

  • Page 1 V09.1.00...
  • Page 3 Preface Notice The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.

  • Page 4: Fcc Statement

    Preface FCC Statement (Federal Communications Commission) You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 5: Fcc Rf Radiation Exposure Statement

    Preface FCC RF Radiation Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

  • Page 6: Important Safety Instructions

    Preface IMPORTANT SAFETY INSTRUCTIONS Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury to persons when using any electrical equipment: Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

  • Page 7: Instructions For Care And Operation

    Preface Instructions for Care and Operation The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions: Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged. Do not expose the computer Do not place it on an unstable Do not place anything heavy...
  • Page 8 Preface Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong magnetic fields. These can hinder proper performance and damage your data. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save your work.

  • Page 9: Power Safety

    Preface Power Safety The computer has specific power requirements: • Only use a power adapter approved for use with this computer. • Your AC/DC adapter may be designed for international travel but it still requires a Power Safety steady, uninterrupted power supply. If you are unsure of your local power specifications, Warning consult your service representative or local power company.

  • Page 10: Battery Precautions

    Preface Battery Precautions • Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer. • Do not remove any batteries from the computer while it is powered on. • Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.

  • Page 11: Cleaning

    Preface Cleaning Do not apply cleaner directly to the computer; use a soft clean cloth. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer. Servicing Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock.

  • Page 12: Travel Considerations

    Preface Travel Considerations Packing As you get ready for your trip, run through this list to make sure the system is ready to go: Check that the battery pack and any spares are fully charged. Power off the computer and peripherals. Close the display panel and make sure it’s latched.
  • Page 13 Preface On the Road In addition to the general safety and maintenance suggestions in this preface, and Chapter 8: Troubleshooting, keep these points in mind: Hand-carry the notebook - For security, don’t let it out of your sight. In some areas, computer theft is very common.
  • Page 14 Preface Developing Good Work Habits Developing good work habits is important if you need to work in front of the computer for long periods of time. Improper work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or other joints.

  • Page 15: Lcd Screen Care

    Preface Lighting Proper lighting and comfortable display viewing angle can reduce eye strain and muscle fatigue in your neck and shoulders. • Position the display to avoid glare or reflections from overhead lighting or outside sources of light. • Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly. •...
  • Page 16 Preface...

  • Page 17: Table Of Contents

    Preface Contents Notice .................I Keyboard ..............1-11 FCC Statement .............II Function Keys & Visual Indicators ......1-12 FCC RF Radiation Exposure Statement: ....III System Map: Front & Rear Views .......1-13 Instructions for Care and Operation ......V System Map: Left & Right Views .......1-14 Power Safety .............VII System Map: Bottom View - Models A &...
  • Page 18 Preface Power Management Driver Installation ............4-2 Updating/Reinstalling Individual Drivers ....4-4 Overview ................3-1 User Account Control (Win Vista) ......4-4 The Power Sources ............3-2 Windows Security Message .........4-4 AC/DC Adapter ............3-2 New Hardware Found ..........4-4 Battery .................3-2 Driver Installation Procedure ........4-5 Turning on the Computer ..........3-3 Chipset ................4-5 Power Plans ..............3-4 Video ................4-5...
  • Page 19 Preface The Setup Utility ............5-4 Password on boot (Security Menu) ......5-13 Entering Setup .............5-4 Fixed disk boot sector (Security Menu) .......5-13 Setup Screens ...............5-5 Boot Menu ..............5-14 Main Menu ..............5-6 Exit Menu ..............5-15 System Time & Date (Main Menu) .......5-6 Upgrading The Computer SATA Port 1 (Main Menu) ..........5-7 System/Extended Memory (Main Menu) ......5-7...
  • Page 20 Preface HSPA Modem Interface Installation ......7-24 Video ................. B-1 HSPA Modem Interface ...........7-25 Dynamic Video Memory Technology ......B-1 Adding a Profile ............7-27 Contacts ..............7-29 Messages ..............7-30 Settings ..............7-31 Mobile Partner ............7-33 Mobile Partner Application Installation ....7-33 Mobile Partner Application ........7-34 Profile Management ..........7-34 Troubleshooting Overview ................8-1...

  • Page 21: Quick Start Guide

    Quick Start Guide Chapter 1: Quick Start Guide Overview This Quick Start Guide is a brief introduction to the basic features of your computer, to navigating around the computer and to getting your system started. The remainder of the manual covers the following: •...

  • Page 22: Model Differences

    Quick Start Guide Model Differences This notebook series includes Four different model types which differ slightly in design style and LCD size (see “Specifications” on page C - 1). Note that your model’s color may appear different from those pictured throughout this manual.

  • Page 23: Advanced Users

    Quick Start Guide Advanced Users If you are an advanced user you may skip over most of this Quick Start Guide. However you may find it useful to refer to “What to Install” on page 4 - “BIOS Utilities” on page 5 - 1 “Upgrading The Computer”...

  • Page 24: Not Included

    Quick Start Guide Not Included Operating Systems (e.g. Windows Vista/Windows 7) and applications (e.g. word processing, spreadsheet and da- tabase programs) have their own manuals, so please consult the appropriate manuals. Drivers If you are installing new system software, or are re-configuring your computer for a different system, you will need to install the drivers listed in “Drivers &...

  • Page 25: System Software

    Quick Start Guide System Software Your computer may already come with system software pre-installed. Where this is not the case, or where you are re-configuring your computer for a different system, you will find the following operating systems are sup- ported.

  • Page 26: System Startup

    Quick Start Guide System Startup Remove all packing materials, and place the computer on a stable surface. Securely attach any peripherals you want to use with the notebook (e.g. keyboard and mouse) to their ports. Attach the AC/DC adapter to the DC-In jack at the rear of the computer, then plug the AC power cord into an outlet, and connect the AC power cord to the AC/DC adapter.

  • Page 27: Operating System Setup

    Quick Start Guide Operating System Setup If you are installing new system software, or are re-configuring your computer for a different system, make sure you configure the appropriate OS setting in the BIOS before installing a new operating system (see “Advanced Menu”...

  • Page 28: System Map: Lcd Panel Open - Models A & B

    Quick Start Guide System Map: LCD Panel Open - Models A & B Figure 1 - 3 LCD Panel Open Models A & B Wireless Device Built-In PC Camera Operation Aboard (Optional) Aircraft Power Button The use of any portable elec- tronic transmission devices Keyboard aboard aircraft is usually pro-...

  • Page 29: System Map: Lcd Panel Open - Models C & D

    Quick Start Guide System Map: LCD Panel Open - Models C & D Figure 1 - 4 LCD Panel Open Models C & D Wireless Device Built-In PC Camera Operation Aboard (Optional) Aircraft LED Power The use of any portable elec- tronic transmission devices Indicators aboard aircraft is usually pro-...

  • Page 30: Led Indicators

    Quick Start Guide LED Indicators The LED indicators display helpful information about the current status of the computer. Icon Color Description Notes Orange DC Power is Plugged In Note that Models C & D do not have power or battery icons. The left icon on Green The Computer is On (Power...

  • Page 31: Keyboard

    Quick Start Guide Keyboard The keyboard has a numerical keypad for easy numeric data input, and features func- Other Keyboards tion keys to allow you to change operational features instantly. See Table 1 - 3, on page 1 - 12 for full function key combination details.

  • Page 32: Function Keys & Visual Indicators

    Quick Start Guide Function Keys & Visual Indicators The function keys (F1 - F12 etc.) will act as hot keys when pressed while the Fn key is held down. Keys Function/Visual Indicators Keys Function/Visual Indicators Fn + ~ Play/Pause (in Audio/Video Programs) Fn + F7 Display Toggle 3.75G Module Power...

  • Page 33: System Map: Front & Rear Views

    Quick Start Guide System Map: Front & Rear Views Figure 1 - 6 Front & Rear Views Models A & B LED Indicators (Models A & B Models C & D only) Vent/Fan Intake/ Outlet Security Lock Slot Models A & B USB Port (Models A &...

  • Page 34: System Map: Left & Right Views

    Quick Start Guide System Map: Left & Right Views Figure 1 - 7 Left & Right Views Models A & B External Monitor Port (Models B & C Only) Models C & D HDMI-Out Port USB 2.0 Ports Microphone-In Jack Models A &...

  • Page 35: System Map: Bottom View - Models A & B

    Quick Start Guide System Map: Bottom View - Models A & B Figure 1 - 8 Bottom View Models A & B 3.75G USIM Card Bay The CPU is not a user Hard Disk Bay serviceable part. Open- Cover ing this compartment, or Battery accessing the CPU in Vent/Fan Intake/...

  • Page 36: System Map: Bottom View - Models C & D

    Quick Start Guide System Map: Bottom View - Models C & D Figure 1 - 9 Bottom View Models C & D 3.75G USIM Card Bay Hard Disk Bay The CPU is not a user serviceable part. Open- Cover ing this compartment, or Battery accessing the CPU in Vent/Fan Intake/...

  • Page 37: Windows Vista Start Menu & Control Panel

    Quick Start Guide Windows Vista Start Menu & Control Panel Most of the control panels, utilities and programs within Windows Vista (and most other Windows versions) are accessed from the Start menu. When you install programs and utilities they will be installed on your hard disk drive, and a shortcut will usually be placed in the Start menu and/or the desktop.

  • Page 38: Video Features

    Quick Start Guide Video Features You can switch display devices, and configure display options, from the Display Settings control panel (in Per- sonalization) in Windows Vista as long as the appropriate Intel video driver is installed. For more detailed vid- eo information see “Intel Video Driver Controls”...
  • Page 39 Quick Start Guide Figure 1 - 11 - Display Properties Desktop Intel Display Mode Description Single Mode One of the connected displays is used as the display device Intel(R) Dual Display Clone Mode Both connected displays output the same view and may be configured independently Extended Desktop Mode Both connected displays are treated as separate devices, and act as a virtual desktop Table 1 - 4 - Display Options...

  • Page 40: Power Options

    Quick Start Guide Power Options The Power Options (Hardware and Sound menu) control panel icon in Windows (see page 16) allows you to configure power management features for your computer. You can conserve power by means of power plans and configure the options for the power button, sleep button, computer lid (when closed), display and sleep mode from the left menu.

  • Page 41: Features & Components

    Features & Components Chapter 2: Features & Components Overview Read this chapter to learn more about the following main features and components of the computer: • Hard Disk Drive • 7-in-1 Card Reader • ExpressCard Slot • TouchPad and Buttons/Mouse •...

  • Page 42: Hard Disk Drive

    Features & Components Hard Disk Drive The hard disk drive is used to store your data in the computer. The hard disk can be Power Safety taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5 mm.

  • Page 43: 7-In-1 Card Reader

    Features & Components 7-in-1 Card Reader The card reader allows you to use some of the latest digital storage cards. Push the Card Reader Cover card into the slot and it will appear as a removable device, and can be accessed in the same way as your hard disk (s).

  • Page 44: Expresscard Slot

    Features & Components ExpressCard Slot The computer is equipped with an ExpressCard/34/54 slot that reads Express Card/ ExpressCard 34 and ExpressCard/54 formats. ExpressCards are the successors to PCMCIA (PC Slot Cover Cards). Make sure you install the Card Reader driver (see “CardReader”...

  • Page 45: Touchpad And Buttons/Mouse

    Features & Components TouchPad and Buttons/Mouse The TouchPad is an alternative to the mouse; however, you can also add a mouse to Mouse Driver your computer through one of the USB ports. The TouchPad buttons function in much the same way as a two-button mouse. If you are using an ex- ternal mouse your op- Once you have installed the TouchPad driver (see...

  • Page 46: Audio Features

    Features & Components Audio Features You can configure the audio options on your computer from the Sound control Sound Volume panel in Windows, or from the Realtek HD Audio Manager icon in the taskbar/ Adjustment control panel (right-click the taskbar icon to bring up an audio menu).

  • Page 47: Adding A Printer

    Features & Components Adding a Printer The most commonly used peripheral is a printer. The following conventions will Parallel Printer help you to add a printer; however it is always best to refer to the printer manual for specific instructions and configuration options. After setting up the print- er attach the parallel ca- USB Printer...
  • Page 48 Features & Components 2 - 8...

  • Page 49: Power Management

    Power Management Chapter 3: Power Management Overview OS Note Power management To conserve power, especially when using the battery, your computer power man- functions will vary slight- agement conserves power by controlling individual components of the computer ly depending on your (the monitor and hard disk drive) or the whole system.

  • Page 50: The Power Sources

    Power Management The Power Sources The computer can be powered by either an AC/DC adapter or a battery pack. AC/DC Adapter Use only the AC/DC adapter that comes with your computer. The wrong type of AC/ DC adapter will damage the computer and its components. Attach the AC/DC adapter to the DC-in jack at the rear of the computer.

  • Page 51: Turning On The Computer

    Power Management Turning on the Computer Now you are ready to begin using your computer. To turn it on simply press the pow- Shut Down er button on the front panel. Note that you should al- When the computer is on, you can use the power button as a Sleep/Hibernate hot- ways shut your comput- er down by choosing the key button when it is pressed for less than 4 seconds (pressing and holding the power...

  • Page 52: Power Plans

    Power Management Power Plans The computer can be configured to conserve power by means of power plans. You Resuming can use (or modify) an existing power plan, or create a new one. Operation The settings may be adjusted to set the display to turn off after a specified time, and Table 3 - 1, on to send the computer into Sleep after a period of inactivity.
  • Page 53 Power Management Each Windows power plan will also adjust the processor performance of your ma- chine in order to save power. This is worth bearing in mind if you are experiencing any reduced performance (especially under DC/battery power). Choose High performance for maximum performance when the computer is pow- ered from an AC power source.

  • Page 54: Power-Saving States

    Power Management Power-Saving States You can use power-saving states to stop the computer’s operation and restart where Power Button you left off. Sleep is the default power-saving state in Windows Vista. The Power Button Earlier versions of Windows used Stand By and Hibernate as system power-saving in the Start Menu (in Classic View use the states.

  • Page 55: Hibernate

    Power Management Hibernate Hibernate uses the least amount of power of all the power-saving states and saves all of your information on a part of the hard disk before it turns the system off. If a power failure occurs the system can restore your work from the hard disk; if a power failure occurs when work is saved only to memory, then the work will be lost.

  • Page 56: Configuring The Power Buttons

    Power Management Configuring the Power Buttons The power/sleep button (Fn + F4 key combo) and closed lid may be set to send the Password computer in to a power-saving state. Protection It is recommended that you enable a password on wake up in order to protect your data.

  • Page 57: Resuming Operation

    Power Management Resuming Operation You can resume operation from power-saving states by pressing the power button, or in some cases pressing the sleep button (Fn + F4 key combo). Closing the Lid If you have chosen to Power Status To Resume Icon Color send the computer to...

  • Page 58: Battery Information

    Power Management Battery Information Please follow these simple guidelines to get the best use out of your battery. Low Battery Warning Battery Power When the battery is criti- Your computer’s battery power is dependent upon many factors, including the pro- cally low, immediately grams you are running, and peripheral devices attached.

  • Page 59: Conserving Battery Power

    Power Management Conserving Battery Power • Use a power plan that conserves power (e.g Power saver), however note that this may have an affect on computer performance. Windows Mobility Center • Lower the brightness level of the LCD display. The system will decrease LCD brightness slightly to save power when it is not powered by the AC/DC adapter.

  • Page 60: Battery Life

    Power Management Battery Life Battery life may be shortened through improper maintenance. To optimize the life and improve its performance, fully discharge and recharge the battery at least once every 30 days. We recommend that you do not remove the battery yourself. If you do need to re- move the battery for any reason (e.g.

  • Page 61: Proper Handling Of The Battery Pack

    Power Management Proper handling of the Battery Pack • DO NOT disassemble the battery pack under any circumstances • DO NOT expose the battery to fire or high temperatures, it may explode Caution • DO NOT connect the metal terminals (+, -) to each other Danger of explosion if battery is incorrectly re- placed.

  • Page 62: Battery Faq

    Power Management Battery FAQ How do I completely discharge the battery? Use the computer with battery power until it shuts down due to a low battery. Don’t turn off the computer even if a message indicates the battery is critically low, just let the computer use up all of the battery power and shut down on its own.
  • Page 63 Power Management Scroll down to Battery and click + to expand the battery options. Choose the options below (click Yes if a warning appears): Figure 3 - 8 Power Options Advanced Settings - Battery • Low battery levels = 0% •...
  • Page 64 Power Management How do I fully charge the battery? When charging the battery, don’t stop until the LED charging indicator light changes from orange to green. How do I maintain the battery? Completely discharge and charge the battery at least once every 30 days or after about 20 partial discharges.

  • Page 65: Drivers & Utilities

    Drivers & Utilities Chapter 4: Drivers & Utilities What to Install This chapter deals with installing the drivers and utili- ties essential to the operation or improvement of some You will need to attach a CD/DVD drive to the com- of the computer’s subsystems.

  • Page 66: Driver Installation

    Drivers & Utilities Driver Installation Check the driver installation order from Table 4 - 1, on page 4 - 3 (the drivers must be installed in Insert the Device Drivers & Utilities + User’s Manual this order) which is the same as that listed in the disc into an attached CD/DVD drive and click Install Drivers Installer menu below.
  • Page 67 Drivers & Utilities Manual Driver Installation Click Browse CD (button) in the Drivers Installer ap- Driver - Windows Vista Page # with Service Pack 2 plication and browse to the executable file in the ap- propriate driver folder. Chipset Page 4 - 5 Video Page 4 - 5 Windows Update...

  • Page 68: Updating/Reinstalling Individual Drivers

    Drivers & Utilities Updating/Reinstalling Individual Drivers User Account Control (Win Vista) If you wish to update/reinstall individual drivers it If a User Account Control prompt appears as part of may be necessary to uninstall the original driver.To do the driver installation procedure, click Continue or this go to the Control Panel in the Windows OS and Allow, and follow the installation procedure as direct- double-click the Programs and Features icon (Pro-...

  • Page 69: Driver Installation Procedure

    Drivers & Utilities Driver Installation Procedure Chipset Insert the Device Drivers & Utilities + User’s Manual 1. Click 1.Install Chipset Driver > Yes. disc into your attached CD/DVD drive and click In- 2. Click Next > Yes > Next > Next. stall Drivers (button), or Option Drivers (button) to 3.

  • Page 70: Touchpad

    Drivers & Utilities TouchPad 1. Click 5.Install Touchpad Driver > Yes. 2. Click Next. Windows Update 3. Click the button to accept the license agreement After installing all the drivers make sure you enable Win- and click Next. dows Update in order to get all the latest security up- 4.

  • Page 71: Optional Drivers

    Drivers & Utilities Optional Drivers Bluetooth Module See the pages indicated for the driver installation pro- Note: The operating system is the default setting for cedures for any modules included in your purchase op- Bluetooth control in Windows Vista, and does not re- tion.
  • Page 72 Drivers & Utilities 4 - 8...

  • Page 73: Bios Utilities

    BIOS Utilities Chapter 5: BIOS Utilities Overview BIOS Settings Warning This chapter gives a brief introduction to the computer’s built-in software: Incorrect settings can cause your system to Diagnostics: The POST (Power-On Self Test) malfunction. To correct mistakes, return to Set- up and restore the Set- Configuration: The Phoenix Setup utility up Defaults with <F9>.

  • Page 74: The Power-On Self Test (Post)

    BIOS Utilities The Power-On Self Test (POST) Each time you turn on the computer, the system takes a few seconds to conduct a POST Screen POST, including a quick test of the on-board RAM (memory). 1.BIOS information As the POST proceeds, the computer will tell you if there is anything wrong. If there 2.CPU type is a problem that prevents the system from booting, it will display a system summary 3.Memory status...

  • Page 75: Failing The Post

    BIOS Utilities Failing the POST Errors can be detected during the POST. There are two categories, “fatal” and “non- fatal”. Fatal Errors These stop the boot process and usually indicate there is something seriously wrong with your system. Take the computer to your service representative or authorized service center as soon as possible.

  • Page 76: The Setup Utility

    BIOS Utilities The Setup Utility The Phoenix Setup Utility tells the system how to configure itself and manage basic features and subsystems (e.g. port configuration). Entering Setup To enter Setup, turn on the computer and press F2 during the POST. The prompt (Press F2 to Enter Setup) seen on page 5 - 2 is usually present for a few seconds...

  • Page 77: Setup Screens

    BIOS Utilities Setup Screens The following pages contain additional advice on portions of the Setup. Setup Menus Along the top of the screen is a menu bar with menu headings. When you select a Setup menus heading, a new screen appears. Scroll through the features listed on each screen to shown in this section are make changes to Setup.

  • Page 78: Main Menu

    BIOS Utilities Main Menu Figure 5 - 2 Main Menu System Time & Date (Main Menu) The hour setting uses the 24-hour system (i.e., ØØ = midnight; 13 = 1 pm). If you can change the date and time settings in your operating system, you will also change these settings.

  • Page 79: Sata Port 1 (Main Menu)

    BIOS Utilities SATA Port 1 (Main Menu) Pressing Enter opens the sub-menu to show the configuration of a HDD on the com- puter’s Serial ATA Port 1. Use the Auto (Type:) setting to have the items configured automatically for you. System/Extended Memory (Main Menu) This item contains information on the system memory, and is not user configurable.

  • Page 80: Advanced Menu

    BIOS Utilities Advanced Menu Figure 5 - 3 Advanced Menu 5 - 8 Advanced Menu...

  • Page 81: Advanced Chipset Control (Advanced Menu)

    BIOS Utilities Advanced Chipset Control (Advanced Menu) The sub-menu here allow you to Enable/Disable detection for External CRT’s (ex- ternal displays). You can disable detection to save system power. Installed O/S (Advanced Menu) This setting tells the computer what kind of operating system you’re using. Make sure you choose the correct setting for your O/S in order to prevent system problems.

  • Page 82: Boot-Time Diagnostic Screen (Advanced Menu)

    BIOS Utilities Boot-time Diagnostic Screen (Advanced Menu) Use this menu item to enable/disable the Boot-time Diagnostic Screen or POST screen (see “The Power-On Self Test (POST)” on page 5 - Legacy OS Boot (Advanced Menu) If “Enabled” the system will attempt to load the Legacy OS (e.g. Vista/Windows XP) first.

  • Page 83: Power On Boot Beep (Advanced Menu)

    BIOS Utilities Power On Boot Beep (Advanced Menu) Use this menu item to enable/disable the beep as the computer starts up. Battery Low Alarm Beep (Advanced Menu) Use this menu item to enable/disable the audible warning when the battery has reached low power status.

  • Page 84: Security Menu

    BIOS Utilities Security Menu Security Menu changes make here affect the access to the Setup utility itself, and also access to your ma- chine as it boots up af- ter you turn it on. These settings do not affect your machine or network passwords which will be set in...

  • Page 85: Set User Password (Security Menu)

    BIOS Utilities Set User Password (Security Menu) You can set a password for user mode access to the Phoenix SecureCore Setup Utility. This will not affect access to the computer OS, (only the Setup utility) unless Password Warning you choose to set a Password on Boot (see below). Many menu items in the Phoenix If you set a boot pass- SecureCore Setup Utility cannot be modified in user mode.

  • Page 86: Boot Menu

    BIOS Utilities Boot Menu Figure 5 - 5 Boot Menu When you turn the computer on it will look for an operating system (e.g. Windows Vista) from the devices listed in this menu, and in this priority order. If it cannot find the operating system on that device, it will try to load it from the next device in the order specified in the Boot priority order.

  • Page 87: Exit Menu

    BIOS Utilities Exit Menu Figure 5 - 6 Exit Menu Choosing to Discard Changes, or Exit Discarding Changes, will wipe out any changes you have made to the Setup. You can also choose to restore the original Set- up defaults that will return the Setup to its original state, and erase any previous changes you have made in a previous session.
  • Page 88 BIOS Utilities 5 - 16...

  • Page 89: Upgrading The Computer

    Upgrading The Computer Chapter 6: Upgrading The Computer Overview This chapter contains information on upgrading the computer. Follow the steps out- lined to make the desired upgrades. If you have any trouble or problems you can con- Warranty Warning tact your service representative for further help. Before you begin you will need: Please check with your service representative...

  • Page 90: When Not To Upgrade

    Upgrading The Computer When Not to Upgrade These procedures involve opening the system’s case, adding and sometimes replac- ing parts. Power Safety Warning You should not perform any of these upgrades if: Before you undertake upgrade proce- • Your system is still under warranty or a service contract dures, make sure that •...

  • Page 91: Removing The Battery

    Upgrading The Computer Removing the Battery If you are confident in undertaking upgrade procedures yourself, for safety reasons Warranty Warning it is best to remove the battery. Turn the computer off, and turn it over. Please check with your Slide the latch in the direction of the arrow.

  • Page 92: Upgrading The Hard Disk Drive

    Upgrading The Computer Upgrading the Hard Disk Drive The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard HDD System disk drives with a height of 9.5mm (h) (see “Storage” on page C - 2). Follow your Warning operating system’s installation instructions, and install all necessary drivers and util- ities (see...
  • Page 93 Upgrading The Computer Grip the tab and slide the hard disk in the direction of the arrow Lift the hard disk up in the direction of arrow Remove screws & and then remove the cover tab Reverse the process to install a new hard disk drive. Figure 6 - 3 HDD Removal Upgrading the Hard Disk Drive 6 - 5...

  • Page 94: Upgrading The System Memory (Ram)

    Upgrading The Computer Upgrading the System Memory (RAM) The computer has one memory socket for 204 pin Small Outline Dual In-line (SO- DIMM) DDRIII (DDR3) type memory modules (see “Memory” on page C - 2 details of supported module types). The total memory size is automatically detected by the POST routine once you turn on your computer.
  • Page 95 Upgrading The Computer Carefully lift the keyboard up, being careful not to bend the keyboard cable. Disconnect the keyboard ribbon cable from the locking collar socket Remove the keyboard. Keyboard Cable To release this cable, use a small flat-head screwdriver to gently pry the locking collar away from its base.
  • Page 96 Upgrading The Computer Gently pull the two release latches on the sides of the memory socket in the direction indicated by the arrows ( & Figure 6 - Figure 6 - 6 RAM Module Release Contact Warning Be careful not to touch the metal pins on the module’s connecting...
  • Page 97 Upgrading The Computer The RAM module will pop-up, and you can remove it. Figure 6 - 7 RAM Module Removal Pull the latches to release the second module if necessary. 10. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory socket (see sidebar note if you are inserting a single module).

  • Page 98: Upgrading The Processor

    Upgrading The Computer Upgrading the Processor If you want to upgrade your computer by replacing the existing processor with a fast- Warranty er/new one you will need to contact your customer service representative. We rec- ommend that you do not do this yourself, since if it is done incorrectly you may The CPU is not a user damage the processor or mainboard.

  • Page 99: Modules & Options

    Modules & Options Chapter 7: Modules & Options Overview Wireless Device Operation Aboard This chapter contains information on the following modules, which may come with Aircraft your computer, depending on the configuration purchased. If you are unsure please The use of any portable contact your service representative.

  • Page 100: Bluetooth Module

    Modules & Options Bluetooth Module The operating system’s Bluetooth Devices control panel is used to configure the Wireless Device Bluetooth settings in Windows Vista, and therefore does not require a driver. Use the Operation Aboard Fn + F12 key combination (see “Function Keys &...

  • Page 101: Bluetooth Configuration In Windows Vista

    Modules & Options Bluetooth Configuration in Windows Vista Setup your Bluetooth Device so the Computer Can Find it Turn your Bluetooth device (e.g. PDA, mobile phone etc.) on. Bluetooth Taskbar Make the device discoverable (to do this check your device documentation). Icon To Turn the Bluetooth Module On If you cannot see the...
  • Page 102 Modules & Options To Add a Bluetooth Device Access the Bluetooth Devices control panel and click Bluetooth Settings. Click Options (tab), and make sure that Allow Bluetooth devices to connect to Pairing Options this computer check box (Connections) has a tick inside it, and click OK. Click Add Wireless Device in the Bluetooth Devices control panel.
  • Page 103 Modules & Options Enter the code into your Bluetooth enabled device and follow any on-screen instructions to complete the pairing. Figure 7 - 3 Pairing Codes Pairing Code Example The example outlined here shows a connection to a mobile device. Other devices e.g. computers, may have a slightly different connection proce- dure, and may require you to confirm a pairing code is correct on both devices.
  • Page 104 Modules & Options To Change Settings for the Bluetooth Device Access the Bluetooth Devices control panel. Click on the device you want to change and click Properties to: Bluetooth Help • Change the name of the device (click General, type a new name and click OK). •...

  • Page 105: Pc Camera Module

    Modules & Options PC Camera Module The PC Camera module uses the BisonCap application to capture video files and to Latest PC Camera take pictures. Before installing the driver, make sure that the optional PC Camera is Driver Information on. Use the Fn + F10 key combination (see “Function Keys &...
  • Page 106 Modules & Options PC Camera Driver Installation 1. Insert the Device Drivers & Utilities + User’s Manual disc into your exter- nal optical device drive. PC Camera Screen 2. Click Option Drivers (button). Refresh 3. Click 1.Install Camera Driver > Yes. The PC Camera module 4.

  • Page 107: Pc Camera Module

    Modules & Options PC Camera Audio Setup If you wish to capture video & audio with your camera, it is necessary to setup the audio recording options in Windows. Click Start, and click Control Panel (or point to Settings and click Control Panel).
  • Page 108 Modules & Options Figure 7 - 6 Audio Setup for PC Camera Right-click 7 - 10 PC Camera Module...
  • Page 109 Modules & Options BisonCap BisonCap is a video viewer for general purpose video viewing and testing, and for capturing video files to .avi format. Pre-Allocating File Space Run the BisonCap program from the Start > Programs/All Programs > Bison- Cam menu (it is recommended that you set the capture file before the capture You may pre-allocate process - see Set Capture File below).
  • Page 110 Modules & Options Reducing Video File Size Note that capturing high resolution video files requires a substantial amount of disk space for each file. After recording video, check the video file size (right-click the file and select Properties) and the remaining free space on your hard disk (go to My Computer, right-click the hard disk, and select Properties).
  • Page 111 Modules & Options Eliminating Screen Flicker If you find that the video screen in the BisonCap program is flickering, you can try to adjust the setting in the Video Capture Filter options. Run the BisonCap program. Go to Options and scroll down to select Video Capture Filter..Click either 50Hz or 60Hz under Frequency in Property Page (tab).
  • Page 112 Modules & Options Zoom The BisonCap program allows you to zoom the camera in and out. Run the BisonCap program. Go to Zoom and select Zoom Out/Zoom In. Figure 7 - 8 Zoom/Setting Taking Still Pictures Snapshot Folder The BisonCap program allows you to take still pictures. The Snapshot folder’s default location is on the Run the BisonCap program.

  • Page 113: Wireless Lan Module

    Modules & Options Wireless LAN Module If you have included an 802.11 b/g/n WLAN module in your purchase option, make Wireless Device sure that the Wireless LAN module is on before installing the driver. Use the Fn + Operation Aboard F11 key combination (see “Function Keys &...

  • Page 114: Connecting To A Wireless Network

    Modules & Options Connecting to a Wireless Network Make sure the Wireless LAN module is turned on. Click the taskbar wireless icon , and then click Connect to a network (or right- click the icon , and then click Connect to a network). Figure 7 - 9 Taskbar Menus Click icon...
  • Page 115 Modules & Options Click a network, and then click Connect. If you do not see a network you want to connect to, click Set up a connection or network (a list of options will appear allowing manual searching, and creating a new network).
  • Page 116 Modules & Options To disconnect from the wireless network you can click the taskbar wireless icon and then select Connect or disconnect to access the network menu, and click Disconnect (or right-click the icon , and then click Disconnect from). Security Enabled Networks You should try to make...

  • Page 117: Windows Mobility Center

    Modules & Options Windows Mobility Center The Windows Mobility Center control panel provides an easy point of access for information on battery status, power plans used and wireless device status etc. To access the Windows Mobility Center: Click Start, and click Control Panel (or point to Settings and click Control Panel).

  • Page 118: 3.75G/Hspa Module

    Modules & Options 3.75G/HSPA Module If you have included an optional 3.75G/HSPA (High Speed Packet Access) module 3.75G/HSPA Module (see “Communication” on page C - 3 for specification details) in your purchase op- Options tion, you will have the appropriate software provided for your module. Follow the instructions overleaf to install the USIM card (supplied by your service provider), There are two optional and then install the appropriate application.
  • Page 119 Modules & Options Turn off the computer, and turn it over and remove the battery (see “Removing the Battery” on page 6 - Remove screw , and then remove the USIM card bay cover Power Safety Insert the USIM card as you would into your mobile phone by sliding the SIMLOCK Warning towards the hinge in order to release the lock and lift it up.
  • Page 120 Modules & Options When the SIMLOCK is raised insert the USIM card as illustrated in (Figure 7 - and close the SIMLOCK. Figure 7 - 16 SIM Card Insertion 3.75G/HSPA Modules & System Wake Up Lock the SIMLOCK by pushing it in the direction of the arrow in Figure 7 - 17 until it clicks into the lock position.

  • Page 121: Table

    Modules & Options Before installing the application, make sure that the 3.75G/HSPA module is ON (installing the driver with the module off will not allow the software to detect the module hardware correctly). Use the Fn + key combination (see Table 1 - 4, on page 1 - 13) to toggle power to the 3.75G/HSPA module.

  • Page 122: Hspa Modem Interface

    Modules & Options HSPA Modem Interface With the 3.75G/HSPA module and USIM card (supplied by your service provider) installed you may then install the HSPA Modem Interface. The HSPA Modem In- Wireless Device terface allows you to directly access your HSPA internet service from the computer. Operation Aboard Aircraft HSPA Modem Interface Installation...

  • Page 123: Hspa Modem Interface

    Modules & Options HSPA Modem Interface The connection information is stored on the USIM card supplied by the service pro- vider. HSPA Modem Help Power on the 3.75G/HSPA module using the Fn + key combination. To get help on 3.75G/ Access the HSPA Modem Interface from the Start menu (Start >...
  • Page 124 Modules & Options Click Connect to connect to your service provider. Figure 7 - 19 Connecting to Network The message “Network is connected” will be displayed when the network connection is successful. Figure 7 - 20 Network is Connected You can then access the internet, download e-mail etc. as per any internet connection.

  • Page 125: Adding A Profile

    Modules & Options While you are connected the upper right corner of the HSPA Modem interface will display the upload and download rates, and the taskbar icon will display the connection speed. Figure 7 - 21 Uploading/ Downloading Rates and Speed 10.
  • Page 126 Modules & Options Click Add (button) and input any Network Settings required by your service provider. Click OK to save the profile. Figure 7 - 23 Network Settings & Profiles You can Edit or Delete profiles from the Profiles tab. To use a profile click to select it, and then click Apply (button) and the settings will be transferred to Connection Manager.

  • Page 127: Contacts

    Modules & Options Contacts Access the HSPA Modem Interface from the Start menu (Start > Programs/All Programs > HSPA Modem > HSPA Modem), or by clicking the desktop icon. Click Contacts (button). Figure 7 - 24 Network Settings & Profiles Click Refresh (button) to download the contacts from the USIM card to the computer.

  • Page 128: Messages

    Modules & Options Messages Access the HSPA Modem Interface from the Start menu (Start > Programs/All Programs > HSPA Modem > HSPA Modem), or by clicking the desktop icon. SMS Service Click Messages (button). In addition to standard in- ternet services you may also send and receive SMS text messages us- ing the HSPA Modem In-...

  • Page 129: Settings

    Modules & Options Click to select a contact from the list and then click Add (button) and the phone number will automatically be added to the recipient field. Type the message information into the message body and click Send (button) to send it, or Save to draft (button) to save the message.
  • Page 130 Modules & Options Click OK alongside any of the options to configure the settings. The Network can be configured for an Automatic (usually from the USIM card) or Manual connection. The Network Mode can be configured for any appropriate mode required. Figure 7 - 27 Settings - Network/ Network Mode...

  • Page 131: Mobile Partner

    Modules & Options Mobile Partner With the 3.75G/HSPA module and USIM card (supplied by your service provider) installed you may then install the Mobile Partner application. The Mobile Partner Wireless Device application allows you to directly access your HSPA internet service from the com- Operation Aboard puter.

  • Page 132: Mobile Partner Application

    Modules & Options Mobile Partner Application You will need to contact your service provider to obtain the exact details of how ex- actly to configure the settings on this page. Mobile Partner Help Profile Management To get help on Mobile Partner configuration Power on the 3.75G/HSPA module using the Fn +...
  • Page 133 Modules & Options Connecting to the Service Provider Power on the 3.75G/HSPA module using the Fn + key combination. Access the Mobile Partner application from the Start menu (Start > Programs/ All Programs > Mobile Partner), or by double-clicking the Mobile Partner icon on the desktop The software will run and you can select the Profile Name from the menu.
  • Page 134 Modules & Options When the connection is successful you can move the cursor over the network icon in the taskbar to display the connection information. Figure 7 - 31 Connected Taskbar Notification You can then access the internet, download e-mail etc. as per any internet connection.
  • Page 135 Modules & Options 11. The module will still be on, and you will need to press the Fn + key combination to turn it off. 12. If you click the Mobile Partner close icon a message will be displayed asking you to click OK to confirm the program exit and to terminate the connection.
  • Page 136 Modules & Options 7 - 38...

  • Page 137: Troubleshooting

    Troubleshooting Chapter 8: Troubleshooting Overview Should you have any problems with your computer, before consulting your service representative, you may want to try to solve the problem yourself. This chapter lists some common problems and their possible solutions. This can’t anticipate every problem, but you should check here before you panic. If you don’t find the answer in these pages, make sure you have followed the instructions carefully and observed the safety precautions in the preface.

  • Page 138: Basic Hints And Tips

    Troubleshooting Basic Hints and Tips Many of the following may seem obvious but they are often the solution to a problem when your computer ap- pears not to be working. • Power - Is the computer actually plugged into a working electrical outlet? If plugged into a power strip, make sure it is actually working.

  • Page 139: Backup And General Maintenance

    Troubleshooting Backup and General Maintenance • Always backup your important data, and keep copies of your OS and programs safe, but close to hand. Don’t forget to note the serial numbers if you are storing them out of their original cases, e.g. in a CD wal- let.

  • Page 140: Viruses

    Troubleshooting Viruses • Install an Anti-Virus program and keep the definitions file (the file which tells your program which viruses to look for) up to date. New computer viruses are discovered daily, and some of them may seriously harm your computer and cause you to lose data. Anti-Virus programs are commercially available and the defini- tions file updates are usually downloadable directly from the internet.

  • Page 141: Upgrading And Adding New Hardware/Software

    Troubleshooting Upgrading and Adding New Hardware/Software • Do not be tempted to make changes to your Windows Registry unless you are very sure of what you are doing, otherwise you will risk severely damaging your system. • Don’t open your computer or undertake any repair or upgrade work if you are not comfortable with what you are doing.
  • Page 142 Troubleshooting • Thoroughly check any recent changes you made to your system as these changes may affect one or more system components, or software programs. If possible, go back and undo the change you just made and see if the problem still occurs. •...

  • Page 143: Problems And Possible Solutions

    Troubleshooting Problems and Possible Solutions Problem Possible Cause - Solution You turned on the power but it doesn’t Battery missing / incorrectly installed. Check the battery bay, make sure the work. battery is present and seated properly (the design of the battery only allows it to go in one way).
  • Page 144 Troubleshooting Problem Possible Cause - Solution The computer feels too hot. Make sure the computer is properly ventilated and the Vent/Fan intakes are not blocked. If this doesn’t cool it down, put the system into Hibernate mode or turn it off for an hour. Make sure the computer isn’t sitting on a thermal surface (see “Overheating”...
  • Page 145 Troubleshooting Problem Possible Cause - Solution You forget the boot password. If you forget the password, you may have to discharge the battery of the CMOS. Contact your service representative for help. Password Warning If you choose to set a boot password, NEVER forget your password. The consequences of this could be serious. If you cannot remember your boot password you must contact your vendor and you may lose all of the information on your hard disk.
  • Page 146 Troubleshooting Problem Possible Cause - Solution The system freezes or the screen goes The system’s power saving features have timed-out. Use the AC/DC adapter, dark. press the sleep (Fn + F4) key combination, or press the power button if no LEDs are lit.
  • Page 147 Troubleshooting Problem Possible Cause - Solution A file cannot be copied to/from a The transfer of data between the computer and a Bluetooth enabled device is connected Bluetooth device. supported in one direction only (simultaneous data transfer is not supported). If you are copying a file from your computer to a Bluetooth enabled device, you will not be able to copy a file from the Bluetooth enabled device to your computer until the file transfer process from the computer has been completed...

  • Page 148: Screen Resolution Error

    Troubleshooting Screen Resolution Error If you are experiencing either screen resolution reduction, or screen flickering after resuming from Sleep in Windows Vista only then follow the instructions below to fix this problem. This error arises in compliance with Windows Vista policy, which triggers TMM (Transient Multi-Monitor Manager) when the notebook lid (S3) is closed.
  • Page 149 Troubleshooting Double-click Task Scheduler Library > Microsoft > Windows. Click MobilePC to open the control panel. Right-click TMM and select Disable. Figure 8 - 2 - TMM Disable Close all the control panels. Screen Resolution Error 8 - 13...
  • Page 150 Troubleshooting 8 - 14...

  • Page 151: Interface (Ports & Jacks)

    Interface (Ports & Jacks) Appendix A: Interface (Ports & Jacks) Overview The following chapter will give a quick description of the interface (ports & jacks) which allow your computer to communicate with external devices, connect to the internet etc. Item Description Card Reader Port The card reader allows you to use some of the latest digital storage cards.
  • Page 152 Interface (Ports & Jacks) Item Description Headphone-Out Jack Headphones or speakers may be connected through this jack. Note: Set your system’s volume to a reduced level before connecting to this jack. Microphone-In Jack Plug an external microphone in to this jack to record on your computer. RJ-45 LAN Jack This port supports LAN (Network) functions.

  • Page 153: Intel Video Driver Controls

    Intel Video Driver Controls Appendix B: Intel Video Driver Controls The basic settings for configuring the LCD are outlined in “Video Features” on page 1 - DVMT Notes Intel Video Driver Installation DVMT is not local video memory. Make sure you install all the drivers in the order indicated in Table 4 - 1, on page 4 - Video DVMT is not user-con-...

  • Page 154: Intel Graphics Properties

    Intel Video Driver Controls Intel Graphics Properties More advanced video configuration options are provided by the Intel(R) Graphics Taskbar Icon Media Accelerator Driver for mobile control panel. The Intel GMA control “Video Features” on page 1 - 22 Open the Display Settings control panel (see panel can also be ac- and click Advanced Settings (button).
  • Page 155 Intel Video Driver Controls You may make changes to the devices, color, schemes, Hot Keys etc. by clicking the appropriate menu item or button. Help Menus Right-click on many of the items in the tabs to bring up the “What’s This?”...

  • Page 156: Scheme Options

    Intel Video Driver Controls Scheme Options Use Scheme Options to configure quick settings for applications which require spe- cific resolution and color settings in order to run properly e.g. games, multimedia Application.exe programs. To set the scheme options: You will need to locate Open the Display Settings control panel and click Advanced Settings (button).

  • Page 157: Attaching Other Displays

    Intel Video Driver Controls Attaching Other Displays Besides the built-in LCD you can also use an external monitor/flat panel display/TV Function Key (TV through HDMI-Out port only), connected to the external monitor port or to the Combination HDMI-Out port (High-Definition Multimedia Interface) as your display device. The following are the display options: You can use the Fn + F7 key combination to tog-...
  • Page 158 Intel Video Driver Controls ® Configuring Other Displays from Intel GMA Driver for Mobile Attach your external display to the external monitor port or HDMI-Out port, and turn it on. Display Selection Go to the Intel(R) GMA Driver for mobile control panel (see “Intel Graphics Properties”...

  • Page 159: Hdmi Audio Configuration

    Intel Video Driver Controls HDMI Audio Configuration HDMI (High-Definition Multimedia Interface) carries both audio and video signals and you will can configure the audio output as per the instructions below when an HDMI enabled device is connected to the HDMI-Out port. Windows Audio Setup for HDMI Connect a device with HDMI support to the HDMI-Out port.
  • Page 160 Intel Video Driver Controls Adjust the HDMI settings from the control panel tabs. Click OK to close the Sound control panel. Figure B - 7 HDMI Device Properties B - 8 Intel Video Driver Installation...
  • Page 161 Intel Video Driver Controls HDMI Notes • Connect a device with HDMI support to the HDMI-Out port BEFORE attempt- ing to play audio/video sources through the device. Other Applications HDMI Video Configuration If you are using a third party application Connect an HDMI cable from the HDMI-Out port to your external display.

  • Page 162: Display Modes

    Intel Video Driver Controls Display Modes Single Display Video Settings Only one of your attached displays is used. Click Video Settings (button) in the Intel(R) Intel(R) Dual Display Clone (mirrored) GMA Driver for mobile This mode will drive multiple displays with the same content. Each device may be control panel to access settings for Video Qual- configured independently for different resolutions, refresh rates, color quality etc.
  • Page 163 Intel Video Driver Controls To Enable Intel(R) Dual Display Clone Attach your external display to the external monitor port or HDMI-Out port, and turn it on. Go to the Intel(R) GMA Driver for mobile control panel (see “Intel Graphics Properties” on page B - 2) and click Display Devices.
  • Page 164 Intel Video Driver Controls To Enable Extended Desktop Attach your external display to the external monitor port or HDMI-Out port, and turn it on. Display Settings Go to the Intel(R) GMA Driver for mobile control panel (see “Intel Graphics Extended Desktop Properties”...
  • Page 165 Intel Video Driver Controls Using Windows Vista to Enable Extended Mode Attach your external display to the external monitor port or HDMI-Out port, and turn it on. Display Settings Go to the Windows Mobility Center control panel (Mobile PC > Adjust Extended Desktop commonly used mobility settings) and click Connect display.
  • Page 166 Intel Video Driver Controls Using Display Settings to Enable Extended Mode Attach your external display to the external monitor port or HDMI-Out port, and turn it on. Open the Display Settings control panel (see “Video Features” on page 1 - 22).

  • Page 167: Intel Clear Video Technology

    Intel Video Driver Controls Intel Clear Video Technology Intel Clear Video Technology (for Windows Vista 32-bit versions only) is designed TV Wizard to help users get high-quality video playback, sharp image quality, precise color con- trol and advanced support for the latest High Definition displays without the need Use the TV Wizard to for expensive video cards etc.
  • Page 168 Intel Video Driver Controls B - 16...
  • Page 169 Specifications Appendix C: Specifications Latest Specification Information The specifications listed in this Appendix are correct at the time of going to press. Certain items (particularly processor types/ speeds and CD/DVD device types) may be changed, updated or delayed due to the manufacturer's release schedule. Check with your service center for details.

  • Page 170: Specifications

    Specifications Processor Core Logic Video Models A & C: Models A & C: Models A & C: Intel® Celeron® Processor ULV: Intel® GS40 + ICH9M-SFF Chipset Intel® GMA 4500M =============================== 723 (1.20GHz) High Preference 3D/2D Graphic Models B & D: Accelerator 45nm (45 Nanometer) Process Intel®...
  • Page 171 Specifications Audio Communication Slots High Definition Audio Built-In 10M/100M/100M Base-TX Ethernet One ExpressCard 34 Slot Direct Sound 3D™ Compatible Two Mini-Card Slots with USB & PCIe Bluetooth 2.1 + EDR (Enhanced Data interface: Built-In Microphone Rate) Module (Factory Option) Slot 1 for Half Mini-Card WLAN Module 2 * Built-In Speakers Intel®...
  • Page 172 Specifications Operating System Optional Windows® Vista (with Service Pack 2) Intel® WiFi Link 5300 Series (3*3 - 802.11a/g/n) Wireless LAN PCIe Windows® 7 interface Half Mini-Card Module Environmental Spec 802.11b/g/n Wireless LAN PCIe interface Half Mini-Card Module Temperature External Super Multi Optical Device Drive °...

Table of Contents
