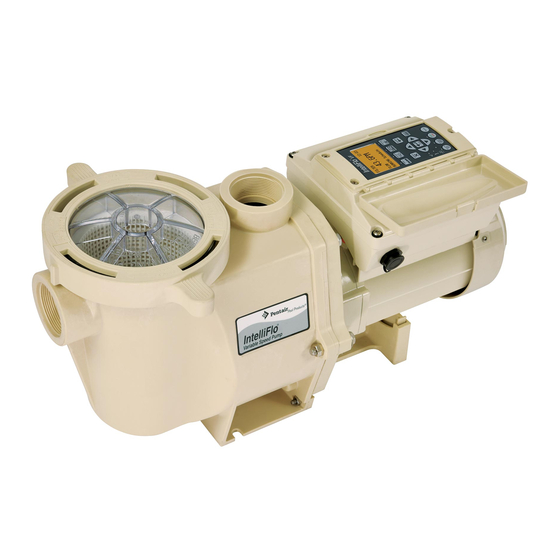

Pentair INTELLIFLO VF Installation And User Manual

Variable flow pump
Hide thumbs Also See for INTELLIFLO VF:
Table of Contents

Advertisement

Quick Links

See also: Installer and User Manual
INTELLIFLO
VARIABLE FLOW PUMP
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
®
VF
INSTALLATION AND
USER'S GUIDE

Advertisement

Table of Contents
loading

Related Manuals for Pentair INTELLIFLO VF

Summary of Contents for Pentair INTELLIFLO VF

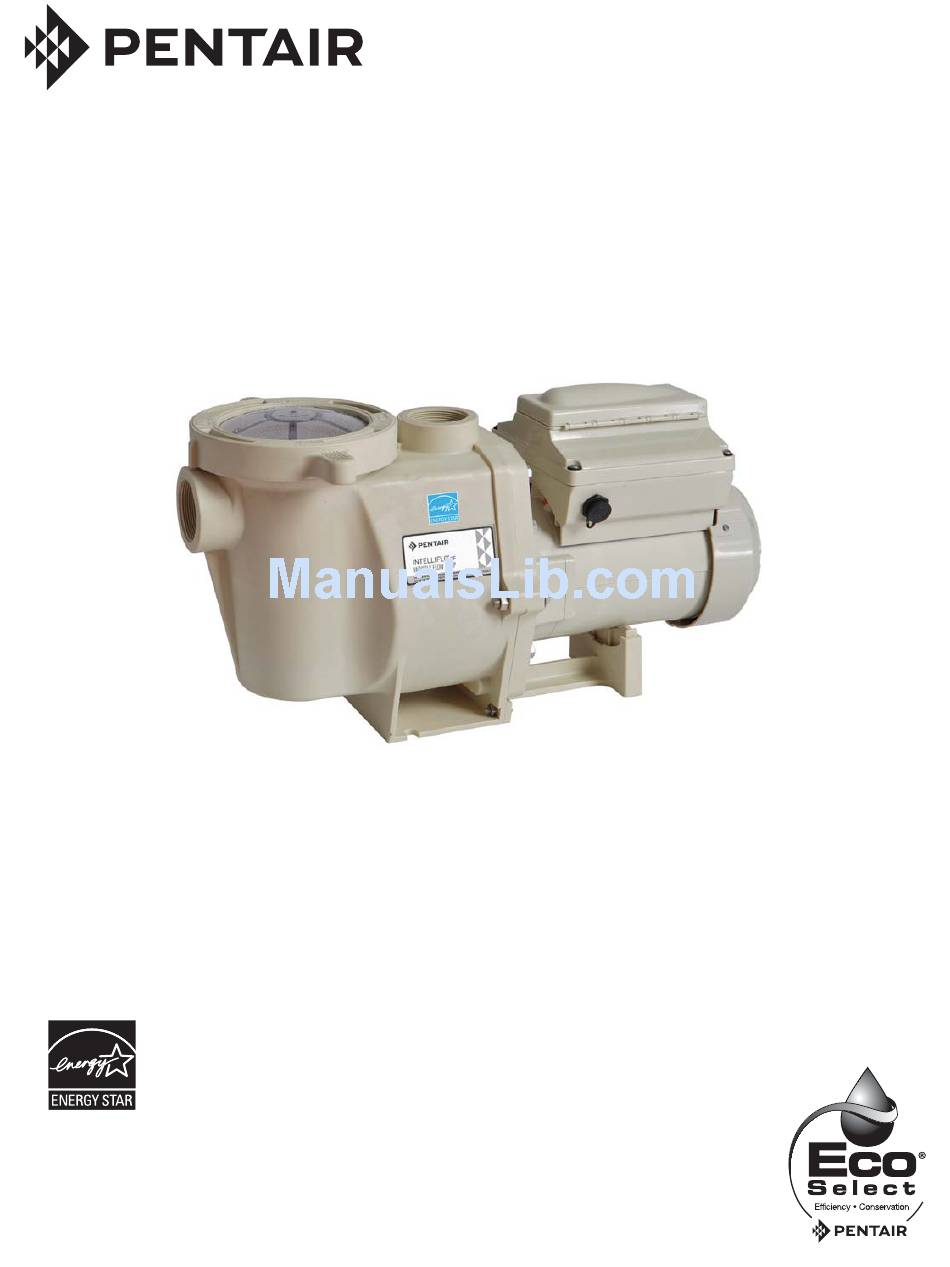

  • Page 1 ® INTELLIFLO VARIABLE FLOW PUMP INSTALLATION AND USER'S GUIDE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS...

  • Page 2: Table Of Contents

    CUSTOMER SERVICE / TECHNICAL SUPPORT If you have questions about ordering Pentair Aquatic Systems replacement parts, and pool products, please contact: Customer Service and Technical Support, USA Sanford, North Carolina (8 A.M. to 4:30 P.M. ET) (8 A.M. to 4:30 P.M. — Eastern/Pacific Times)

  • Page 3: Important Pump Warning And Safety Instructions

    230 VAC charge even when there is no This guide provides installation and operation instructions for this pump. power to the unit. Consult Pentair with any questions regarding this equipment. • The pump is not submersible. Attention Installer: This guide contains important information about the •...
  • Page 4 (D) Disabled submerged outlets, or (E) Suction outlets shall be reconfigured into return inlets. Warnings and safety instructions for Pentair Aquatic Systems pumps and other related products are available at: For Installation of Electrical Controls at Equipment Pad (ON/OFF http://www.pentairpool.com/pool-owner/safety-warnings/ or call...

  • Page 5: Introduction

    Motor assembly Drive assembly and electronics enclosure Communication port for connection to EasyTouch, IntelliTouch or SunTouch control system or IntelliComm communication center via two-wire RS-485 cable IntelliFlo VF (variable flow pump) INTELLIFLO ® VF Variable Flow Pump Installation and User’s Guide...

  • Page 6: Pump Features

    Pump Features • Sizes itself to any pool • Reduces energy cost by as much as 90% • Protects against loss of prime or flow blockage • Prevents thermal overload • Detects and prevents damage from under and over voltage conditions •...

  • Page 7: Motor Features

    Motor fan cover Motor assembly Communication Port for RS-485 (IntelliTouch and IntelliComm) Motor stand IntelliFlo VF Motor Assembly Motor Features • Permanent Magnet Synchronous Motor (PMSM) • High efficiency (3450 RPM 92% and 400 RPM 90%) • Superior speed control •...

  • Page 8: Drive Assembly And Control Panel

    Drive Assembly and Control Panel The IntelliFlo ® VF Variable Flow Pump drive assembly consists of an operator control panel and the system electronics that drive the 230 VAC single phase (260 VAC~170 VAC) motor. The drive microprocessor controls the motor by changing the frequency of the current it receives together with changing the voltage to control the rotational speed.

  • Page 9: Operator Control Panel

    OPERATOR CONTROL PANEL This section describes the operator control panel controls and LEDs. IntelliFlo ® VF Operator Control Panel IntelliFlo ® Filter Vacuum Back Manual mode mode Wash mode Enter Warn. Alarm Feature Feature Start Reset Stop Controls and LEDs Filter button/LED: Starts Filter mode.
  • Page 10 Controls and LEDs (Continued) Arrow buttons: • Up arrow: Move one level up in the menu tree or increase a digit when editing a setting. • Down arrow: Move one level down in the menu tree or decrease a digit when editing a setting. •...

  • Page 11: Navigating The Menu Structure

    Navigating the Menu Structure Before navigating the control panel menu structure, first familiarize yourself with the menu buttons. To change a parameter setting, use the Left and Right arrow buttons to select the digit, then the Up and Down arrow buttons to edit the digit.
  • Page 12 [Blank Page] INTELLIFLO ® VF Variable Flow Pump Installation and User’s Guide...

  • Page 13: Operating The Pump

    OPERATING THE PUMP ® This section describes how to use the IntelliFlo VF Variable Flow Pump control panel. Metering the System The first step to operating and programming the pump is to know what is being used in the pool system. After the devices are selected you can then set valves for the appropriate IntelliFlo ®...
  • Page 14 Manual Mode (Continued) To change the Set Flow and Set Speed features: 1. Ensure that the green power LED is on. 2. Press the Manual button (LED is on). 3. Set Flow: Use the Up and Down arrow buttons to select Set Flow, then press the Select button to edit the setting.

  • Page 15: Control Panel Menu

    Manual Mode (Continued) ® 10. Change Flow and Speed settings while the IntelliFlo VF Variable Flow Pump is running: The Set Flow and Set Speed settings can be changed on the fly while the pump is running. To change the flow and speed settings, perform steps 3 through 8. •...

  • Page 16: Menu Structure

    Menu Structure MAIN SCREEN Press MENU button to access menu items FEATURES Features 1 Set Flow (15 - 130 GPM) Language POOL DATA Time Duration (0:01 - 10:00) (page 22) (page 13) Set Flow (15 - 130 GPM) Features 2 Time Duration (0:01 - 10:00) Activation (Disabled/Enabled) Features 3...

  • Page 17: Pool Data Mode

    Pool Data Mode ® Use the Pool Data menu to configure the IntelliFlo VF Variable Flow Pump for the pool and spa system. From this ® menu you can set an address for the pump when connected to an IntelliTouch Control System, set the volume of pool water, in 1000’s of gallons (kgal) and estimated pool water temperature.

  • Page 18: Priming Mode

    Priming Mode To “prime” a pump means filling the pump and suction pipe with water. This process evacuates the air from all the suction lines and the pump. It may take several minutes to prime depending on the depth of water, pipe size and length.
  • Page 19 Priming Mode (Continued) IntelliFlo 6. To set the System Priming Time: Press the Select button to access the “System ® ® Priming Time” setting. After the IntelliFlo VF Variable Flow Pump is primed it will Priming 12:54 take sometime before the system is primed. This time is called “System Priming 15.MIN Time”.

  • Page 20: Filter Mode

    Filter Mode The IntelliFlo ® VF Variable Flow Pump will calculate the required flow rate based on pool size, clean filter pressure, pool turns per day and cycles per day, and will control the motor speed to keep a constant flow. The filter mode can run cycles, power save or features.

  • Page 21: Programming Cycles Per Day

    Filter Mode (Continued) 5. To set the Cycles Per Day: Press the Select button to access the “Cycles Per Day” setting. To edit this setting, see step 6. ® The IntelliFlo VF Variable Flow Pump uses the Cycles Per Day parameter to IntelliFlo ®...

  • Page 22: Filter Cycle Settings

    Filter Mode (Continued) Filter Cycle Settings Note: The control panel is disabled when the IntelliFlo ® VF Variable Flow Pump is communicating with an ® IntelliTouch Control System. “DISPLAY NOT ACTIVE!” will be displayed. NAME VALUE DESCRIPTION Turnovers The number of times per day the volume of water setup in 1-8 (Default 1) Per Day “Pool Volume”...

  • Page 23: Clean Filter Pressure Example

    Filter Mode (Continued) Clean Filter Pressure Example The following example shows the “Clean Filter Pressure” set to 14 PSI. IntelliFlo ® IntelliFlo ® FILTER 1:37 43.GPM Alert FLOW Service System Soon RUNNING Schedule Filter Filter Back Back Filter Vacuum Manual Filter Vacuum Manual...

  • Page 24: Using Filter Mode With Features Mode

    Filter Mode (Continued) Using Filter mode with Features mode ® The IntelliFlo VF Variable Flow Pump will start and stop at programmed filter cycles 1-4. The filter cycles can be overridden by “Feature” (3-9 only) as shown in the example below. This may cause the required filter volume to be achieved earlier.

  • Page 25: Time And Contrast Menu

    Time and Contrast Menu Use the “Time and Contr” menu settings to set the IntelliFlo ® VF Variable Flow Pump’s system clock and to adjust the control panel display contrast. The pump system clock controls all scheduled start and stop times, functions, and programmed cycles.

  • Page 26: Features Mode

    Features Mode The Feature mode can be used with water features such as spa, cleaner, waterfalls, etc. You can schedule start and stop times for each feature. All Features are operated using Flow control. The Feature mode and Filter mode are run simultaneously. The three types of features are; Features 1 & 2, Features 3 - 9 and M.O. Flo: Features 1 and 2 Feature 1 and Feature 2 run for a pre-defined duration with a specifically set flow.

  • Page 27: Features Settings

    Features Mode (Continued) Feature Settings Name Value Description F1-9 and M.O. Flo 15-130 GPM Pre-set flow for feature 1 - 10 Set Flow (Default 50 GPM) F3-10: Activate Enabled / Disabled If value in line 1 is set Enabled the Feature will be active. Feature (Default Disabled) If value in line 1 is set Disabled the Feature will be turned off.
  • Page 28 Features Mode (Continued) The functions of the Features groups are shown below: How to set up the Feature 1 or 2 (Flow and Duration) mode To access the Features menu: ® 1. Ensure that the green power LED is on and the IntelliFlo VF Variable Flow Pump is stopped.

  • Page 29: Duration)

    Features 1 – 2 (Flow and Duration) To run Feature 1 or 2 (Flow and Duration) 1. Press the Feature 1 or Feature 2 button, then press the Start/Stop button. The active feature LED will be on until the process is finished. 2.
  • Page 30 Enabling Features 3 - 9 (Continued) 3. To enable Feature 3: Press the Select button then the Down arrow button to select Enabled if not already selected. Press the Enter button to save the setting. 4. To set the flow rate for Feature 3: Press the Down arrow button to select “Set Flow” setting. Press the Select button to access the setting.

  • Page 31: Flo (Modulation Output Flow)

    M.O. Flo (Modulation Output Flow) ® M.O. Flo (Modulated Output Flow) is specifically designed for Pentair branded heaters with an IntelliComm Communication Center, although it can be used for other functions, such as water effects. This feature allows you to have flexibility in flow control if the filter cycle flow is less than needed for certain devices. M.O. Flo also allows you to program intervals of flow separated by a specific duration which can be useful for water effects.

  • Page 32: External Control With Intellicomm

    ® The IntelliFlo VF Variable Flow Pump can be remotely controlled by the Pentair IntelliComm communication center using an optional communications cable (P/N 350122). The communication center provides four pairs of input terminal connections. These inputs are actuated by either 15 - 240 VAC or 15 - 100 VDC. Using the device’s inputs, the pump’s external control Programs 1-4 can be controlled.

  • Page 33: Setting Up External Control Using Intellicomm

    External Control (Continued) ® Setting up External Control using IntelliComm Communication Center The IntelliComm communication center is activated by the device voltage when it switches on and off which in turn enables any one of the pump’s Programs 1-4. When the signal stops, the IntelliFlo ®...

  • Page 34: Controlling Pump With Intellitouch

    Pump with the IntelliTouch Control System The IntelliFlo VF Variable Flow Pump can be controlled by an IntelliTouch control system via the RS-485 communication cable. In this configuration the control system starts and stops the pump. The IntelliTouch control system also rewrites many of the parameters in the IntelliFlo pump drive’s memory, such as the filter cycle start and stop times, pool size and the clock.
  • Page 35 ® ® Connecting IntelliFlo Pump to IntelliTouch Control System (Continued) 6. Strip back the cable conductors ¼”. Insert the wires into the either of the COM PORTS (J7 and J8) screw terminals located on the left side of the Personality board. Secure the wires with the screws. For wiring details, refer to the pin configuration shown below.

  • Page 36: Backwash Mode

    Backwash Mode When the Filter mode has detected that the differential pressure is at the “Clean Filter Pressure” the filter must be cleaned. You need to stop the IntelliFlo ® VF Variable Flow Pump either by pressing the Backwash button or “Start/Stop” button. The pump must now be run for a preset cycle time with a preset flow. The flow is adjustable to accommodate the specific filter backwash flow requirement.

  • Page 37: Running Backwash Mode

    Running Backwash Mode To start Backwash mode: 1. Press the Backwash button. 2. When running in Backwash mode the IntelliFlo ® VF Variable Flow Pump will run at the preset backwash flow for the preset backwash time. 3. When the Backwash mode is stopped, manually or after the preset Backwash cycle time, the pump will stop and show the “Rinse”...

  • Page 38: Vacuum Mode

    Vacuum Mode Use Vacuum mode to clean the pool manually. Vacuum mode only operates in flow control. Vacuum mode shuts off all sensors. This mode is identical to Feature 1 and 2 except that you can manually start this mode using the Vacuum button.

  • Page 39: Maintenance

    MAINTENANCE ® The following information describes how to service and maintain the IntelliFlo VF Variable Flow Pump. Pump Strainer Basket The strainer, sometimes referred to as the “Hair and Lint Pot,” is in front of the of the pump. Inside there is a basket which must be kept clean of leaves and debris at all times.

  • Page 40: Motor Service

    Pump Strainer Basket Service (Continued) ® 11. Reconnect the communication cable to the IntelliFlo VF Variable Flow Pump if required. 12. Switch the power ON at the circuit breaker. Reset the pool time clock to the correct time. FILTER OPERATES UNDER HIGH PRESSURE. WHEN Clamp ANY PART OF THE CIRCULATING SYSTEM (e.g., LOCK RING, PUMP, FILTER, VALVES, ETC.) IS SERVICED, AIR...

  • Page 41: Winterizing

    Winterizing ® The IntelliFlo VF Variable Flow Pump’s internal anti-freeze protection is disabled when connected to an ® IntelliTouch Control System. Freeze protection is provided by selecting YES at the ON WITH FREEZE portion of the control system’s appropriate circuit function menu. To re-enable the pump’s internal anti-freeze protection, the power to the drive must be cycled off then back on.

  • Page 42: Installation And Removal

    Piping For most installations Pentair recommends installing a valve on both the pump suction and return lines so that the pump can be isolated during routine maintenance. We also recommend a valve, elbow or tee installed in the suction line should be no closer to the front of he pump than five (5) times the suction line pipe diameter.

  • Page 43: Wiring The Pump

    ® Wiring the IntelliFlo VF Pump To connect the IntelliFlo pump to AC power: 1. Make sure all electrical breakers and switches are turned off before wiring motor. 2. Make sure that the wiring voltage is 230 VAC. 3. Use #12 AWG for wire runs up to 100 feet (30.48 meters) and #10 AWG for lengths longer than 100 feet (30.48 meters).

  • Page 44: Pump Disassembly

    Pump Disassembly Always disconnect power to the IntelliFlo ® VF Variable Flow Pump at the circuit breaker before servicing the pump. Failure to do so could result in death or serious injury to serviceman, pool users or others due to electric shock. Read all servicing instructions before working on the pump.

  • Page 45: Pump Reassembly/Seal Replacement

    Pump Disassembly (Continued) 9. To unscrew the impeller from the shaft, twist the impeller counterclockwise. 10. Remove the rotating portion of the mechanical seal from the impeller. 11. Remove the four bolts from the seal plate to the motor, using a 9/16 inch wrench. 12.

  • Page 46: Drive Assembly Removal And Installation

    Drive Assembly Removal and Installation To remove the IntelliFlo ® VF Variable Flow Pump drive and control panel from the motor assembly: 1. Make sure all electrical breakers and switches are turned off before removing the drive. 2. Disconnect the communication cable from the IntelliFlo pump. 3.

  • Page 47: Illustrated Parts List

    Illustrated Parts List Replacement Parts Item Part Description Item Part Description 072928 DIFFUSER ASSEMBLY WFE 12 070387 BASKET AQ & WF 073131 IMPELLER WFE 12 1000 SER 070429 BOLT HEX HD, 2-56x0.875 s/s, 075713 RUBBER WASHER WFE PUMP (QTY 4) 070430 BOLT 3/8 - 16 X 1¼...

  • Page 48: Pump Dimensions

    ® IntelliFlo VF Pump Dimensions IntelliFlo VF Flow and Power vs Flow Pump Curve ® IntelliFlo Flow and Power vs. Flow Head @ 690 RPM Head @ 2070 RPM Head @ 3450 RPM Power @ 690 RPM Power @ 2070 RPM...

  • Page 49: Troubleshooting

    TROUBLSHOOTING IMPORTANT: Before troubleshooting the pump, read and follow all warning notices, instructions and safety precautions on pages ii - iii. Alerts and Warnings ® The IntelliFlo VF Variable Flow Pump displays all alarms and warnings on the control panel display. When an alarm or warning condition exists, the corresponding LED will be lit on the display.

  • Page 50: General Troubleshooting Problems

    General Troubleshooting Problems Use the following general troubleshooting information to resolve possible problems with your IntelliFlo ® VF Variable Flow Pump. Note: Turn off power to unit prior to attempting service or repair. Problem Possible Cause Corrective Action Pump Failure. Pump will not prime - Air leak in suction.
  • Page 51 General Troubleshooting Problems (Continued) Problem Possible Cause Corrective Action Electrical Problem. Pump may be running too slowly. Check voltage at motor terminals and at meter while pump is running. If low, see (For alert display messages, wiring instructions or consult power company. refer to Alerts and Warnings Check for loose connections.

  • Page 52: General Warnings

    General Warnings • Never go inside the drive enclosure. There is a capacitor bank that holds a 230 VAC charge even when there is no power to the unit. • The IntelliFlo ® VF Variable Flow Pump is not submersible. •...

  • Page 53: Making Your Pool More Energy Efficient

    How to make your pool more energy efficient Swimming pools are great for relaxing, exercising or just having fun. But they also mean higher than average energy bills. The key to saving energy with your pool is to correctly manage the filter pump time, pool temperature and lighting.

  • Page 54: Preventive Maintenance

    Preventive Maintenance Follow a regular program of preventive maintenance, including an annual inspection of the heat exchanger to help maintain heating efficiency. ® Ultra Energy Efficient IntelliFlo Pump When its time to replace your old motor and pump assembly, consider using the IntelliFlo variable speed energy-efficient pump.
  • Page 55 NOTES...
  • Page 56 Pentair Water Pool and Spa, Inc. Those names and brands may be the trademarks or registered trademarks of those third parties.
