Planet ICA-4200V User Manual

Full hd 20m ir vari-focal dome ip camera
Hide thumbs Also See for ICA-4200V:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Full HD 20M IR Vari-focal
Dome IP Camera
ICA-4200V

Advertisement

Table of Contents
loading

Related Manuals for Planet ICA-4200V

Summary of Contents for Planet ICA-4200V

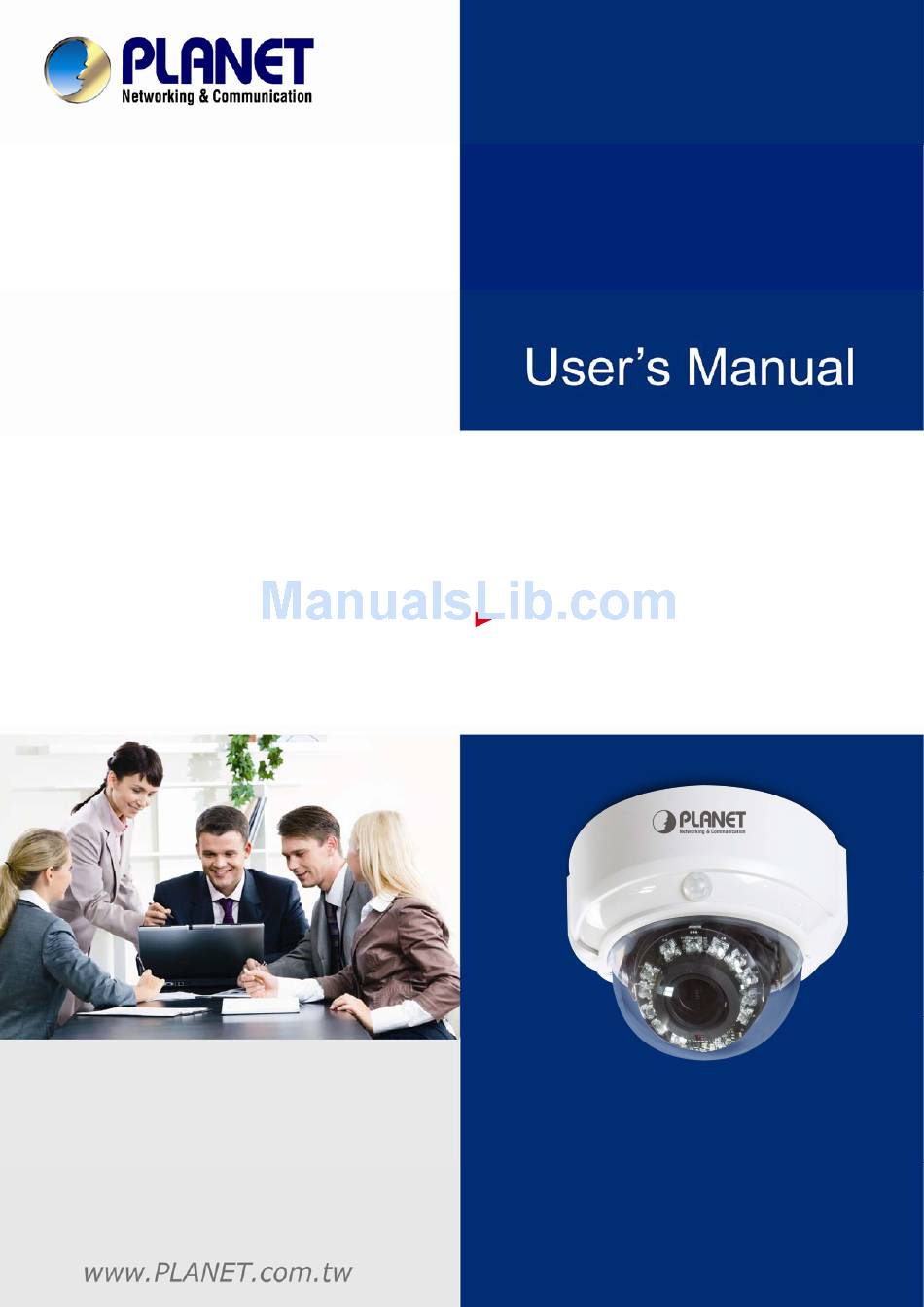

  • Page 1 Full HD 20M IR Vari-focal Dome IP Camera ICA-4200V...
  • Page 2 Further, PLANET reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.
  • Page 3 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision User’s Manual of PLANET Full HD 20M IR Vari-focal Dome IP Camera Model: ICA-4200V Rev: 2.00 (October, 2014)

  • Page 4: Table Of Contents

    2.2 Hardware Installation ................16 2.3 Initial Utility Installation ................17 2.4 Preparation ....................20 2.4.1 Search and View by PLANET IP Wizard II......... 20 2.4.2 Configuring Network by PLANET IP Wizard II......22 2.5 Using UPnP of Windows XP or 7 ............23 2.5.1 Windows XP..................
  • Page 5 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.6.3 Privacy Mask................... 49 3.7 System Configuration................49 3.7.1 System ..................... 50 3.7.2 Date & Time..................51 3.7.3 Maintenance..................52 3.8 Video Configuration................... 53 3.8.1 Common ..................54 3.8.2 Overlay Image................. 54 3.8.3 Video Profile ..................

  • Page 6: Chapter 1. Product Introduction

    1.2 Overview High Resolution Surveillance in Day and Night PLANET ICA-4200V Network Camera with IR Illuminator is a high resolution camera for round-the-clock surveillance over IP networks. It supports H.264 and JPEG compression formats and delivers excellent picture quality in Full HD resolutions at 30 frames per second (fps).
  • Page 7 To adapt to constantly changing lighting conditions, the ICA-4200V comes with a removable IR-cut filter and built-in IR illuminators, which enable the camera to provide color video when there is sufficient light, and black/white video in dark conditions. The ICA-4200V is able to maintain clear images 24 hours a day.
  • Page 8 When people pass by or in an emergency situation, the built-in PIR motion detection sensor in the ICA-4200V will “detect” and start recording automatically. It is able to detect movement as far as 6 meters away. When motion is detected in the specified areas, the additional function of alarm notification can send an e-mail alert or send captured images via FTP upload to a designated storage server.
  • Page 9 Flexible Installation and Power Functionality The ICA-4200V, incorporating IEEE 802.3af Power over Ethernet standard, is able to be powered via the network cable from a PoE power sourcing equipment such as PoE switch and PoE injector. It thus eliminates the need for extra power cables and reduces installation costs while increases the deployment flexibility.

  • Page 10: Features

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 1.3 Features Camera 1/2.7" 2 mega-pixel progressive scan CMOS sensor 2.8~12.0 mm vari-focal, DC auto-iris lens 0.5 lux minimum illumination at F1.2 Maximum resolution 1920 x 1080 Removable IR-cut filter for Day & Night function...
  • Page 11 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V M-JPEG: 1080p / 720p / 640 x 360 / 320 x 180 720p mode H.264: 720p / 640 x 360 / 320 x 180 / 160 x 80 M-JPEG: 720p / 640 x 360 / 320 x 180 / 160 x 80...
  • Page 12 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Power Consumption 8W max. Operating Temperature 0 ~ 50 degrees C Operating Humidity 20 ~ 80% (non-condensing) Weight 635g Dimensions (Φ x L) 152 x 109 mm Emission CE, FCC 10/100 Mbps Ethernet, RJ45...

  • Page 13: Chapter 2. Hardware Interface

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Chapter 2. Hardware Interface 2.1 Physical Descriptions 2.1.1 Identification of ICA-4200V Physical Details Real Panel Item Description Lens Keep the lens clean for an excellent video quality. IR LED Emits infrared light to provide light source in dark places Detects the illumination level or the place where this IP camera is installed, and switches IR LEDs on when it’s required.

  • Page 14: I/O Control Instruction

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 2.1.2 I/O Control Instruction Description of I/O cabling: Interface Description The input power is 12V DC, 1A. ONLY use the power adapter supplied in the DC Power package. Otherwise, the product may be damaged.

  • Page 15: Connector Board

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V The 4-pin terminal block includes 1 input port and 1 output DI/DO port. Terminal block for I/O connectors: Name Cable Color Function 12V DC 12V DC, 50mA (maximum) Digital signal input Digital signal output 2.1.3 Connector board...

  • Page 16: Hardware Installation

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 12V DC out 12V DC output, 50mA (maximum) Digital signal input Ground Digital signal output Connecting to PC or Hub/Switch For connection to 10BASE-T Ethernet or 100BASE-TX Fast Ethernet cabling, this Ethernet port built auto-negotiation protocol can detect or negotiate the transmission speed of the network automatically.

  • Page 17: Initial Utility Installation

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3. Set the mounting base onto ceiling and center it through the mounting hole, using the two retaining screws for the main body, supplied by the appurtenance bag. 4. To adjust lens, move the camera body by pan and/or tilt manually and set the zoom/focus by turning the lens to the left or right direction.
  • Page 18 If the welcome screen does not appear, click “Start” at the taskbar. Then, select “Run” and type “D:\Utility\IPWizard II\setup.exe”, assuming D is your CD-ROM drive. 3. The “Welcome to the Install Shield Wizard for PLANET IP Wizard II” prompt will display on the screen and click “Next” to continue.
  • Page 19 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 4. Please click “Next” to install with original settings, or you may click “Change…” button to modify the install folder and then press “Next” to continue. 5. Please click “Install” to start the installation.

  • Page 20: Preparation

    When you install the Internet Camera in a LAN environment, you have two easy ways to search your cameras either by PLANET IP Wizard II or UPnP discovery. Here is the way to execute PLANET IP Wizard II to discover camera’s IP address and set up related parameter in a camera.
  • Page 21 II is starting to search Internet cameras on the LAN. The existing devices are listed below. View If Planet IP Wizard II finds Internet camera, the View button will be available. Please select the camera you want to view and click the View button. Then you can see the video from the camera directly.

  • Page 22: Configuring Network By Planet Ip Wizard Ii

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 2.4.2 Configuring Network by PLANET IP Wizard II In case you want to change the IP related parameters of wired interface, please select the Internet camera you want to configure and click the LAN button. Related settings will be carried out as shown below.

  • Page 23: Using Upnp Of Windows Xp Or 7

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V After keying in the new username and password, click the “Submit” button to perform your setting accordingly. Click the “<<” button to go back to the previous page. 2.5 Using UPnP of Windows XP or 7 2.5.1 Windows XP...
  • Page 24 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V The “Add or Remove Programs” will display on the screen and click Add/Remove Widows Components to continue. The following screen will appear, select “Networking Services” and click “Details” to continue.
  • Page 25 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V The “Networking Services” will display on the screen; select “Universal Plug and Play” and click “OK” to continue. Please click “Next” to continue.
  • Page 26 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V The program will start installing the UPnP automatically. You will see the pop-up screen below. Please wait while Setup configures the components. Please click “Finish” to complete the UPnP installation...

  • Page 27: Windows 7

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Double-click “My Network Places” on the desktop, the “My Network Places” will display on the screen and double-click the UPnP icon with Internet Camera to view your device in an Internet browser.

  • Page 28: Setup Activex To Use The Internet Camera

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 2.6 Setup ActiveX to use the Internet Camera The Internet Camera web pages communicate with the Internet camera using an ActiveX control. The ActiveX control must be downloaded from the Internet camera and installed on your PC.

  • Page 29: Internet Explorer 6 For Windows Xp

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 2.6.1 Internet Explorer 6 for Windows XP From your IE browser ”Tools” ”Internet Options…” ”Security” ”Custom Level…”, please set up your “Settings” as follows: Set the first 3 items • Download the signed ActiveX controls •...

  • Page 30: Internet Explorer 7 For Windows Vista

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Set the first 3 items • Allow previously unused ActiveX control to run… • Allows Scriptlets • Automatic prompting for ActiveX controls By now, you have finished your entire PC configuration for Internet camera.
  • Page 31 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V • Prompt “Initialize and script active controls not marked….” By now, you have finished your entire PC configuration for Internet camera.

  • Page 32: Chapter 3. Web-Based Management

    The login window of Internet camera will appear, Default login username and password are both admin. If the user name and password have been changed with PLANET IP Wizard II, please enter the new user name and password here. After logging on, you should see the following messages at the top of Internet...
  • Page 33 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Click on the message, and click Run Add-on When you see this message, click Run to install the required ActiveX control After the ActiveX control has been installed and run, the first image will be displayed.

  • Page 34: Live View

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.3 Live View Start-up screen will be as follows whether you are an ordinary user or an administrator. Video Profile ActiveX Control Streaming Protocol Language Image Monitoring Section Setting Menu Client Menu...

  • Page 35: Activex Control

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Video Information Display video information including video format, resolution, frame rate and bit rate. 3.4 ActiveX Control The plug-in ActiveX control supports a lot of functions by clicking the left mouse button.

  • Page 36: Record

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V using any of the graph editing tools. 3.4.3 Record Click Record to activate this function. Press Record button to start recording. The video file is saved as ASF format onto your local PC. If you want to stop it, press Stop to stop recording.

  • Page 37: Volume

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.4.4 Volume Click Volume to activate this function. These have two control bars for speaker and microphone volume. Scroll this control bar to adjust the audio attribute. Check the volume mute to mute the speaker output.

  • Page 38: Network

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.5.1 Network This section provides the menu of connecting the device through Ethernet cable. Display the Ethernet MAC address of the device. Note that user MAC Address cannot change it. Enable this checked box when a DHCP server is installed on the network to issue IP address assignment.

  • Page 39: Ipv6

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Obtain DNS from Enable this checked box when a DHCP server is installed on the DHCP network and provide DNS service. When you send email or position a browser to an Internet domain such as xxxxx.com, the domain name system translates the names...

  • Page 40: Https

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.5.3 HTTPS HTTPS stands for Hypertext Transfer Protocol Secure HTTPS is a combination of the Hypertext Transfer Protocol with the SSL/TLS protocol to provide encrypted communication and secure identification of a network web server. HTTPS connections are often used for sensitive transactions in corporate information systems.

  • Page 41: Pppoe

    The user name is used to log into DDNS. Password The password is used to log into DDNS. This model comes with Planet easy DDNS. When this function is enabled, DDNS hostname will appear automatically. User doesn’t go to www.planetddns.com to apply for a new account.

  • Page 42: Streaming

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V • Access the device by entering Setting Network PPPoE as shown below: PPPoE To enable or disable the PPPoE service here. User Name Type the user name for the PPPoE service which is provided by ISP.

  • Page 43: Upnp

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Otherwise this device cannot serve 3GPP stream. 3. To use the 3GPP function, it is strongly recommended to install the Networked Device with a public and fixed IP address without any firewall protection.

  • Page 44: Bonjour

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Shows the IP address and port for WAN access through Internet. If External IP Address NAT traversal is configured successfully, user can use this IP address and port to access this device.

  • Page 45: Ip Notification

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.5.10 IP Notification In case the IP address is changed, system is able to send out an email to alert someone if the function is enabled. If this function is enabled, the “Send to“ and “Subject” field SMTP Notification (e-mail) need to be filled.

  • Page 46: Qos

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Proxy Port Set port number of Proxy. Proxy Login Name Type the user name for the HTTP Proxy. Proxy Login Password Type the password for the HTTP Proxy. Custom Parameter User can set specific parameters to HTTP server.
  • Page 47 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Select “0” or “90” degrees to rotate image as shown below. 0 / 90 degrees Auto: will adjust the white balance automatically. White Hold: will hold the white balance. Balance Color Level Large value will be colorful.

  • Page 48: Exposure Control

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Use built-in photo sensor or manual to control ICR. In case user selects manual mode, there are 4 modes: Night (On), Day (Off), Auto or Schedule to control built-in IR LEDs. This function is very useful under low illumination environment, even at 0 lux.

  • Page 49: Privacy Mask

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Maximum Set the Maximum Exposure Time. However, the real exposure time Exposure Time may be shorter if it is under good light condition. Exposure value is AE target value. This value is to adjust the...

  • Page 50: System

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.7.1 System You can enter the name of this unit here. It’s very useful to identify the Device Title specific device from multiple units. Software version This information shows the software version in the device.

  • Page 51: Date & Time

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.7.2 Date & Time User can set up the time setting of Internet camera. Synchronize it with PC or remote NTP server. Also, you may select the correct time zone of your country.

  • Page 52: Maintenance

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Dayl ight Sav Set up the date of daylight saving offset. Offset 3.7.3 Maintenance Recall the device hard factory default settings. Note that Default Settings (Including the click this button will reset all devices’ parameters to the network setting) factory settings (including the IP address).

  • Page 53: Video Configuration

    Once the upgrading process is completed, the device will reboot the system automatically. 9. Please wait for 80 seconds, and then you can use PLANET IPWizard II to search the device again. Warning!!! The downloading firmware procedure cannot be interrupted. If the power and/or network connection are/is broken during the download procedure, it might possibly cause serious damage to the device.

  • Page 54: Common

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.8.1 Common Video Profile User can only choose either 1080p or 1080p WDR mode. There are some important information that can be embedded into Text Overlay Setting image, including date, time, and/or text.

  • Page 55: Video Profile

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V There are two options: “Image Overlay Setting” or “User Defined Upload Own Image Text”. Image Overlay Check this item to enable image overlay. Otherwise, the uploaded Setting bitmap will not be overlaid on video.
  • Page 56 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Enhanced Variable Bit Rate (EVBR). For CBR, the video bit rate is between low and high bandwidth based on different resolutions. User can set the desired bit rate to match the limitation of bandwidth.

  • Page 57: Onvif Profile

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.8.4 ONVIF Profile ONVIF protocol defines profile of video streams. In case, the NVR, CMS and/or VMS connect to this device via ONVIF protocol. Use this page to define parameters of video streams.

  • Page 58: Roi

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V set the GOP to 30, then the video stream will have one Intra-frame every 30 frames. Audio Enable or disable the audio function. IP address and port for multicast video streaming of the selected Multicast Video profile.

  • Page 59: Aoi

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.8.6 AOI AOI means Area of Interest. Use this page to specify location and size of AOI windows. Only the profiles with H.264 codec and VBR rate control can support AOI function. It enables a non-uniform distribution of the image quality between a selected region (the AOI) and the rest of the image (background).

  • Page 60: Pixel Counter

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.8.7 Pixel Counter The pixel counter shows the number of pixels in an area of the image. The pixel counter is useful in situations where there is a requirement that the image is a certain size, for example in face recognition.

  • Page 61: User Configuration

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Output Gain: To adjust gain of output audio. 3.10 User Configuration Use this menu to set the user names and password of the Administrator and up to 10 users, and access right of each user.

  • Page 62: Protocol Configuration

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.11 Protocol Configuration 3.11.1 ONVIF ONVIF is a global and open industry forum with the goal to facilitate the development and use of a global open standard for the interface of physical IP-based security products. In other words, it creates a standard for how IP products within video surveillance and other physical security areas can communicate with each other.

  • Page 63: Event Detection Configuration

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V one event schedule to enable event triggering. Type the SMTP server name or the IP address of the SMTP SMTP Server server. Send a test mail to mail server to check this account is available Test or not.

  • Page 64: Motion Detection

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.13.1 Motion Detection Use this menu to specify motion detection window 1 to window 10 and set the conditions for detection while observing a captured image. To add or delete the motion windows. User can specify up to 4...

  • Page 65: Camera Tampering

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.13.2 Camera Tampering Camera tampering detection is a new intelligent functionality that further strengthens the benefit of Network Camera. When the camera is moved, partially obscured, severely defocused, covered or sprayed, an event can be triggered to send notifications, upload images/files to remote server or email.

  • Page 66: Storage Configuration

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.14 Storage Configuration This page shows the status of the attached SD card and Samba server. You may also set up related parameters to manage the attached SD card or Samba server.

  • Page 67: Samba Server

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.14.2 SAMBA Server Host Type the server name or the IP address of the SAMBA server. Share Set working directory path of SAMBA server. User Name Type the user name for the SAMBA server Password Type the password for the SAMBA server.

  • Page 68: Recording List Configuration

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Disk Save recorded files to SD card or remote SAMBA server. Path Define the folder path for the recorded files. Be careful not to click this button or will all the files recorded on Restart SD card or remote SAMBA server will be deleted.

  • Page 69: Continuous Recording List

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.16.2 Continuous Recording List This page only shows the continuous recording files which are stored on remote SAMBA server. User may play or delete the selected file. 3.17 Event Server Configuration 3.17.1 FTP Server...

  • Page 70: Tcp Server

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V User can specify multiple FTP paths as he wishes. Therefore, Name user needs to specify a name for each FTP setting. FTP Server Type the server name or the IP address of the FTP server.

  • Page 71: Http Server

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.17.3 HTTP Server The device also can send event message to the specified HTTP server. User can specify multiple HTTP servers as he wishes. Name Therefore, user needs to specify a name for each HTTP server setting.

  • Page 72: Samba Server

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.17.4 SAMBA Server The device also can send video stream to the specified SAMBA server. Most of the times, the SAMBA server will be another PC or NAS server. User can specify multiple HTTP servers as he wishes.

  • Page 73: Setting

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.18.1 Setting Name Name of the Event or Schedule. Enable Enable or disable this Event or Schedule. Type Schedule start with Event trigger or Schedule trigger. Enable Time Define the feasible time slot.
  • Page 74 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Example 1. Send file to FTP server triggered by motion: Select event trigger Enable time: start from 00:00 to 24:00 every day Triggered by: Motion Area (Added to the Object Detection page) Action : Send FTP (Add in Event Server ->...
  • Page 75 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Select event trigger. Enable time: start from Friday 18:00 and keep working for 12 hours, until it stops on Saturday 06:00. Triggered by : Motion Area (Added to Object Detection page)

  • Page 76: Record

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V 3.18.2 Record User can choose the type of record file for event or schedule application. Record File Type Choose AVI or JPEG file format for record file. Record File Prefix Define the prefix of recorded filename.

  • Page 77: Appendix A: Ping Ip Address

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Appendix A: Ping IP Address The ping (or Packet Internet Groper) command is used to detect whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It’s also a very useful tool to confirm whether Internet camera is installed or not, or if the IP address conflicts with any other device over the network.

  • Page 78: Appendix B: Bandwidth And Video Size Estimation

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Appendix B: Bandwidth and Video Size Estimation The frame rate of video transmitted from the device depends on connection bandwidth between client and server, video resolution, codec type, and quality setting of server. Here is a guideline to help you roughly estimate the bandwidth requirements from your device.

  • Page 79: Appendix C: Ddns Application

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Appendix C: DDNS Application 1. Configuring PLANET DDNS: Step 1: Enable DDNS option through accessing web page of NAS. Step 2: Select on DDNS server provided, and register an account if you have not used yet.

  • Page 80: Appendix D: Configuring Port Forwarding Manually

    Manually set up the device with a fixed IP address, for example, 192.168.0.100. 2. Access the Router with Your Web browser The following steps generally apply to any router that you have on your network. PLANET WNRT-620 is used as an example to clarify the configuration process. Configure the initial settings of the router by following the steps outlined in the router’s Quick Installation Guide.
  • Page 81 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Your WAN IP address will be listed here. 3. Open/set Virtual Server Ports to enable remote image viewing The firewall security features built into the router and most routers prevent users from accessing the video from the device over the Internet.
  • Page 82 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Enter valid ports in the Virtual Server section of your router. Please make sure to check the box on this line to enable settings. Then the device can be accessed from WAN by the router’s WAN IP address.

  • Page 83: Appendix E: Power Line Frequency

    Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V Appendix E: Power Line Frequency COUNTRY VOLTAGE FREQUENCY COMMENTS *Neutral and line wires are reversed from that Argentina 220V 50 Hz used in Australia and elsewhere. *Outlets typically controlled by adjacent switch.

  • Page 84: Appendix F: Troubleshooting & Frequently Asked Questions

    Do not connect device over a router. PLANET IP Wizard II program cannot detect device over a router. If IP address is not assigned to the PC running PLANET IP Wizard II program, then PLANET IP Wizard II program cannot...
  • Page 85 Microsoft’s Internet Explorer from the Microsoft webpage. PLANET IP Wizard II program fails Network may have trouble. Confirm the parameters and connections to save the network parameters.
  • Page 86 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V address of the router and port number of Internet camera. Some routers reject the global IP address to access the Internet camera on the same LAN. Access with the private IP address and correct port number of Internet camera.
  • Page 87 Full HD 20M IR Vari-Focal Dome IP Camera ICA-4200V when audio is enabled. to support a higher frame rate for the streamed image size. Try reducing the video streaming size to 160x120 or 320x240 and/or disabling audio. Audio will consume 32 kbps. Disable audio to improve video.
