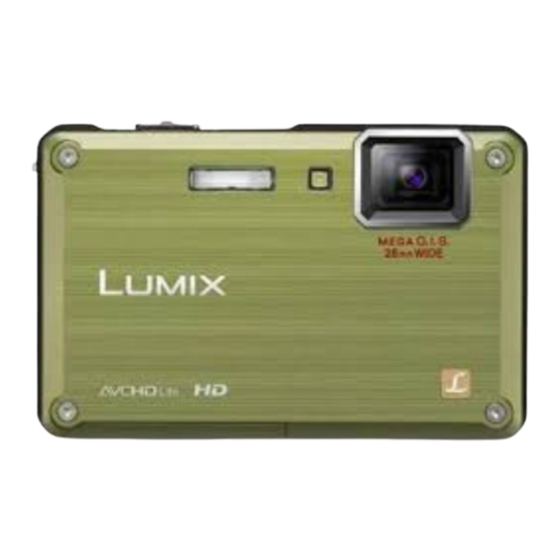

Panasonic DMC-FT1EB Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DMC-FT1EB
Model No.
DMC-FT1EE
DMC-FT1EF
DMC-FT1EG
DMC-FT1EP
DMC-FT1GC
DMC-FT1GJ
DMC-FT1GN
DMC-FT1SG
DMC-TS1P
DMC-TS1PC
DMC-TS1PU
DMC-TS1GH
DMC-TS1GK
DMC-TS1GT
VOL.1
Colours
(A)....................Blue Type (only DMC-FT1EB/EF/EG/EP/
GC/GN, DMC-TS1PC/PU)
(D)....................Orange Type (Except DMC-FT1EB)
(G)....................Green Type (Except DMC-FT1EB)
(S)....................Silver Type (Except DMC-FT1EF, DMC-
TS1GT)
©Panasonic Corporation 2009.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.DSC0903016CE
B26
Digital Camera

Advertisement

Table of Contents
loading

Related Manuals for Panasonic DMC-FT1EB

Summary of Contents for Panasonic DMC-FT1EB

  • Page 1 DMC-TS1P DMC-TS1PC DMC-TS1PU DMC-TS1GH DMC-TS1GK DMC-TS1GT VOL.1 Colours (A)....Blue Type (only DMC-FT1EB/EF/EG/EP/ GC/GN, DMC-TS1PC/PU) (D)....Orange Type (Except DMC-FT1EB) (G)....Green Type (Except DMC-FT1EB) (S)....Silver Type (Except DMC-FT1EF, DMC- TS1GT) ©Panasonic Corporation 2009. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 1.1. General Guidelines ----------------------------------------3 1.2. Leakage Current Cold Check ---------------------------3 1.3. Leakage Current Hot Check (See Figure 1)---------3 1.4. How to Discharge the Capacitor on Flash PCB------------------------------------------------------------4 2 Warning --------------------------------------------------------------5 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive (ES) Devices ---------------5 2.2.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1.3. Leakage Current Hot Check 1. IMPORTANT SAFETY NOTICE (See Figure 1) There are special components used in this equipment 1. Plug the AC cord directly into the AC outlet. Do not use which are important for safety. These parts are marked by an isolation transformer for this check.

  • Page 4: How To Discharge The Capacitor On Flash Pcb

    1.4. How to Discharge the Capacitor on Flash PCB • This unit equipped with two pieces of capacitors as flash charging capacitors. “Either one of the capacitor discharging operation” makes discharging for others as well. CAUTION: 1. Be sure to discharge the capacitor on FLASH PCB. 2.

  • Page 5: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).

  • Page 6: Caution For Ac Cord (For Eb/Gc

    2.3.2.3. How to Replace the Fuse A replacement fuse cover can be purchased from your local Panasonic Dealer. 1. Remove the Fuse Cover with a screwdriver. If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safety.

  • Page 7: How To Replace The Lithium Battery

    Note: The lithium battery is a critical component. (Type No.: ML-421S/ZTK Manufactured by Energy Company, Panasonic Corporation) It must never be subjected to excessive heat or discharge. It must therefore only be fitted in equipment designed specifically for its use.
  • Page 8 NOTE: Above caution is applicable for a battery pack which is for DMC-FT1 and DMC-TS1 series, as well. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

  • Page 9: Service Navigation

    3.2. Air-leak test (inspection) • This product was tested using Panasonic’s internal test standard, which is in accordance with : Waterproof/Dustproof : IEC60529 IP58, certified to a depth of 3.0 m (60 minutes), Shockproof : MIL-STD-810F Method 516.5-Shock, compliant to a height of 1.5 m.

  • Page 10: Important Notice 1:(Other Than U.s.a. And Canadian Market)

    lead free solder. • Use the soldering iron (more than 70W) equipped with the temperature control after setting the temperature at 350±30 degrees C (662±86 °F). Recommended Lead Free Solder (Service Parts Route.) • The following 3 types of lead free solder are available through the service parts route. RFKZ03D01KS-----------(0.3mm 100g Reel) RFKZ06D01KS-----------(0.6mm 100g Reel) RFKZ10D01KS-----------(1.0mm 100g Reel)

  • Page 11: How To Define The Model Suffix

    How to Define the Model Suffix There are eight kinds of DMC-FT1/TS1, regardless of the colours. • a) DMC-FT1 (Japan domestic model.)/SG • b) DMC-TS1P/PC • c) DMC-FT1EB/EF/EG/EP • d) DMC-FT1EE • e) DMC-TS1GT • f) DMC-FT1GN • g) DMC-TS1GK •...

  • Page 12: Initial Settings

    3.7.2. INITIAL SETTINGS: After replacing the MAIN PCB, be sure to perform the initial settings after achieving the adjustment by ordering the following proce- dure in accordance with model suffix of the unit. 1. IMPORTANT NOTICE: Before proceeding Initial settings, be sure to read the following CAUTIONS. 2.
  • Page 13 [Only for "EG, EP, EF and EB" models : (VEP56072B is used as a Main P.C.B.)] When MAIN P.C.B. has just been replaced, only 4 model suffix are displayed as follows. [CASE 2. Other than "After replacing MAIN P.C.B."] • Step 5. Chose the model suffix in "INITIAL SETTINGS": (Refer to "CAUTION 1") [Caution: After replacing MAIN P.C.B.] (Especially, other than "EG, EP, EF and EB"...
  • Page 14 1) As for your reference, major default setting condition is as shown in the following table. Default setting (After "INITIAL SETTINGS") MODEL VIDEO OUTPUT LANGUAGE DATE REMARKS DMC-FT1(Japan domestic model) NTSC Japanese Year/Month/Date DMC-FT1EB English Date/Month/Year DMC-FT1EE Russian Date/Month/Year DMC-FT1EF French Date/Month/Year DMC-FT1EG English...

  • Page 15: Specifications

    4 Specifications...
  • Page 17 NOTE: (Only for "EB/EF/EG/EP" models) • Data form the PC can not be written to the camera using the USB connection cable. • Motion pictures can be recorded continuously for up to 15minutes. The maximum continuous recording time (up to 15minutes) is displayed on the screen.

  • Page 21: Location Of Controls And Components

    5 Location of Controls and Components...

  • Page 23: Service Mode

    6 Service Mode 6.1. Error Code Memory Function 1. General description This unit is equipped with history of error code memory function, and can be memorized 16 error codes in sequence from the latest. When the error is occurred more than 16, the oldest error is overwritten in sequence. The error code is not memorized when the power supply is shut down forcibly (i.e.,when the unit is powered on by the battery, the　battery is pulled out) The error code is memorized to FLASH ROM when the unit has just before powered off.
  • Page 24 3. Error Code List The error code consists of 8 bits data and it shows the following information. Attribute Main item Sub item Error code Contents (Upper) Error Indication High 4bits Low 4 bits Check point (Lower) Detecting Part/Circuit device LENS Lens drive OIS 18*0...
  • Page 25 Attribute Main item Sub item Error code Contents (Upper) Error Indication High 4bits Low 4 bits Check point (Lower) Detecting Part/Circuit device FLASH FLASH 2B*0 0001 EEPROM read error FROM RE FROM 0003 (EEPROM (EEPROM 0004 IC6002 (FLASH ROM) Area) Area) 0002 EEPROM write error...

  • Page 26: Ics (Indication Of Additional Camera Settings When Picture Was Taken) Function

    6.2. ICS (Indication of additional Camera Settings when picture was taken) function 1. General description This unit is equipped with ICS (ICS：Indication of additional Camera Settings when picture was taken) function by playing back the concerned picture on the LCD display. (This function is achieved by utilizing "maker note"...
  • Page 27 3. How to read 4. How to exit : Simply, turn the power off. (Since ICS function is executed under the condition of temporary cancellation of "INITIAL SETTINGS",it wake up with normal condition when turn off the power.)

  • Page 28: Troubleshooting Guide

    7 Troubleshooting Guide 7.1. Service and Check Procedures 7.1.1. Servicing flow • The following is the servicing procedure including assembly/disassembly process. • As for the air-leak test, refer to "7.2. Air-leak Test". <NOTE> Air-leak test (inspection) before taking service measure: •...
  • Page 29 7.1.2. Periodical maintenance (Packing replacement) flow • The integrity of the waterproof packings may decrease about 1 year, with use and age. (We recommend end-users to replace the waterproof packing at least once each year described in the operating instructions.) •...
  • Page 30 Replacing the waterproof packing • The location of waterproof packing are shown at right. (7 types, 8 packings in total) • Waterproof packings are supplied as Waterproof packing kit (Part No.: VUMG1863). <Note for replacement> • Do not touch the waterproof packings directly by the hand. •...

  • Page 31: Air-Leak Test

    7.2. Air-leak Test...

  • Page 32: Air-Leak Test (Inspection)

    7.3. Air-leak Test (Inspection)

  • Page 34: Service Fixture & Tools

    8 Service Fixture & Tools 8.1. Service Fixture and Tools The following Service Fixture and tools are used for checking and servicing this unit.

  • Page 35: When Replacing The Main Pcb

    8.2. When Replacing the Main PCB After replacing the MAIN PCB, be sure to achieve adjustment. The adjustment instruction is available at “software download” on the “Support Information from NWBG/VDBG-AVC” web-site in “TSN system”, together with Maintenance software. 8.3. Service Position This Service Position is used for checking and replacing parts.
  • Page 36 Note when repairing PCB In this unit, battery door lock detection switch is mounted on Main PCB so as to secure the waterproof performance. Be careful of following points. (1)Before removing Main PCB, be sure to cancel Initial setting. If the unit is turned on while Battery Door is not locked correctly, the following warning display as right figure appears on LCD, this unit cannot be operated.

  • Page 37: Disassembly And Assembly Instructions

    9 Disassembly and Assembly Instructions 9.1. Disassembly Flow Chart 9.2. PCB Location...

  • Page 38: Disassembly Procedures

    9.3. Disassembly Procedures 9.3.1. Removal of Rear Alumi Case Item Fig. Removal Rear Alumi Case Fig. D1 Card Battery 4 Screws (A) 2 Screws (B) Rear Alumi Case Top Ornament, Fig. D2 2 Screws (C) Shutter Button, Top Ornament Power (ON/OFF) Button Fig.
  • Page 39 9.3.2. Removal of Top Ornament Fig. D3 Fig. D2...
  • Page 40 9.3.3. Removal of Rear Case Unit Fig. D4 Fig. D5...
  • Page 41 9.3.4. Removal of Lens with CCD Unit NOTE: (When Disassembling/Assembling) 1. When dust stuck, use air-Blower to blow off the dust. 2. Do not touch the surface of lens by your hand. 3. Use Lens Cleaning KIT; VFK1900BK (Only supplied as 10 set/Box) is available as Service Aid.
  • Page 42 9.3.5. Removal of Main P.C.B., Battery Case Fig. D7 Fig. D8...
  • Page 43 9.3.6. Removal of Main P.C.B. Fig. D10 Fig. D9...
  • Page 44 9.3.7. Removal of Flash P.C.B. Fig. D11 Fig. D12...
  • Page 45 9.3.8. Removal of Top P.C.B. Fig. D13 Fig. D14...
  • Page 46 9.3.9. Removal of Rear Operation P.C.B. Fig. D15 Fig. D16...
  • Page 47 9.3.10. Removal of LCD Unit Fig. D17 Fig. D18...

  • Page 48: Measurements And Adjustments

    10 Measurements and Adjustments 10.1. Matrix Chart for Replaced Part and Necessary Adjustment The relation between Replaced part and Necessary Adjustment is shown in the following table. When concerned part is replaced, be sure to achieve the necessary adjustment(s). As for Adjustment condition/procedure, consult the “Adjustment Manual” which is available in Adjustment software. The Adjustment software is available at “TSN Web-site”, therefore, access to “TSN Web-site”...

  • Page 49: Maintenance

    11 Maintenance 11.1. Cleaning Lens and LCD Panel Do not touch the surface of lens and LCD Panel with your hand. When cleaning the lens, use air-Blower to blow off the dust. When cleaning the LCD Panel, dampen the lens cleaning paper with lens cleaner, and the gently wipe the their surface. Note: The Lens Cleaning KIT ;...
  • Page 50 3.The voltage being indicated on the schematic diagram is measured in "Standard-Playback" mode when there is no specify mode is mentioned. Model No. DMC-FT1EB DMC-FT1SG 4.Although the voltage and waveform available on here is measured with standard frame, it may be differ from actual measurement due to modification of circuit and so on.

  • Page 51: S2. Voltage Chart

    S2. Voltage Chart Note) Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-impedance) with the chassis taken as standard. Therefore, there may exist some errors in the voltage values, depending on the internal impedance of the DC circuit tester. S2.1.

  • Page 52: S3. Block Diagram

    S3. Block Diagram S3.1. Overall Block Diagram IC6002 (4.9mm - 22.8mm IC3001 FLASH ROM PREPROCESS /512Mbit CDS,AGC, 1/2.33" 12.1 MEGA PIX A/D,TG, SDRAM/512Mbit CCD DRIVER ZOOM IRIS SHUTTER OISUNIT FOCUS CARD JK2004 IC9601 HDMI HDMI CONTROLER IC9101 MOTOR DRIVE, IC5001 OIS DRIVE &...

  • Page 53: S4. Schematic Diagram

    S4. Schematic Diagram S4.1. Interconnection Diagram FT6401 SPEAKER REAR OPERATION P.C.B. (FOIL SIDE) MICROPHONE ET6302 M6301 FLASH P.C.B. (FOIL SIDE) TOP P.C.B. : COMPONENT SIDE) (FOIL SIDE) ET6301 : COMPONENT SIDE) BATTERY FP9004 BACKUP FP9001 POWER_ON_L D_GND FRAME_GND SHUTTER_1 MODE_DIAL FT6301 SHUTTER_0 POWER_LED_A...

  • Page 54: S4.2. Flash Schematic Diagram

    S4.2. Flash Schematic Diagram CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE 1.25A 32V FUSE. REPLACE ONLY WITH THE SAME TYPE 1.5A 32V FUSE. ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES 1.25A 32V 1.5A 32V...

  • Page 55: S4.3. Top Operation Schematic Diagram

    S4.3. Top Operation Schematic Diagram DMC-FT1/TS1 Top Operation Schematic Diagram...

  • Page 56: S4.4. Rear Operation Schematic Diagram

    S4.4. Rear Operation Schematic Diagram DMC-FT1/TS1 Rear Operation Schematic Diagram...

  • Page 57: S5. Print Circuit Board

    S5. Print Circuit Board S5.1. Flash P.C.B. (Component Side) (Foil Side) DMC-FT1/TS1 Flash P.C.B.

  • Page 58: S5.2. Top Operation P.c.b

    S5.2. Top Operation P.C.B. (Foil Side) DMC-FT1/TS1 Top Operation P.C.B.

  • Page 59: S5.3. Rear Operation P.c.b

    S5.3. Rear Operation P.C.B. (Foil Side) DMC-FT1/TS1 Rear Operation P.C.B. S-10...

  • Page 60: S6. Replacement Parts List

    E.S.D. standards for Electrostatically Sensitive Devices, refer to PREVENTION OF ELECTROSTATIC DISCHARGE (ESD) TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES section. Definition of Parts supplier: 1. Parts marked with [ENERGY] in the remarks column are supplied from Panasonic Corporation Energy Company. Others are supplied from AVC-CSC-SPC. S-11...
  • Page 61 DMC-FT1EB/EE/EF/EG/EP/GC/GJ/GN/SG, TS1GH/GK/GT/P/PC/PU Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks ------ P.C.B. LIST ------ R6406 ERJ2GEJ152 M.RESISTOR CH 1/16W 1.5K VEP56072B MAIN P.C.B. 1 (RTL) E.S.D. EB,EF,EG,EP VEP56072A MAIN P.C.B. 1 (RTL) E.S.D. EE,GC,GJ,GN,...
  • Page 62 DMC-FT1EB/EE/EF/EG/EP/GC/GJ/GN/SG, TS1GH/GK/GT/P/PC/PU Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VKM7954 REAR ALUMI CASE 1 (-A) VHD2067 SCREW VKM7760 REAR ALUMI CASE 1 (-S) VHD2067 SCREW VKM7768 REAR ALUMI CASE 1 (-D)
  • Page 63 DMC-FT1EB/EE/EF/EG/EP/GC/GJ/GN/SG, TS1GH/GK/GT/P/PC/PU Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VPF1317 CAMERA BAG  114 VQT1Z75 O/I SUPPLIED SOFTWARE 1 EE VFF0448-S CD-ROM (SOFT) 1 EB,EE,EF,EG,EP,GC,GJ,GN, (RUSSIAN/UKRAINIAN) SG,GH,GT,P,PC,PU  114 VQT1Z73 O/I SUPPLIED SOFTWARE...

  • Page 64: S7. Exploded View

    S7. Exploded View S7.1. Frame and Casing Section From Ref No. "P-1" to "P-8" are supplied as a "waterproff packing kit" (Part No. VUMG1863) B14 B15 S-15...

  • Page 65: S7.2. Packing Parts And Accessories Section

    S7.2. Packing Parts and Accessories Section 112 (EB,EE,EF,GN,GK,GT,P,PC) 113 (EG,EP,GC,GJ,SG,GH,PU) (EB,GC,GH) (EE,EF,EG,EP,GC,GJ) (EE,EF,EG,EP,GJ, GN,SG,GK,GT,PU) (GN) (EB,GC,GH,SG) (GK,GT) S-16...
