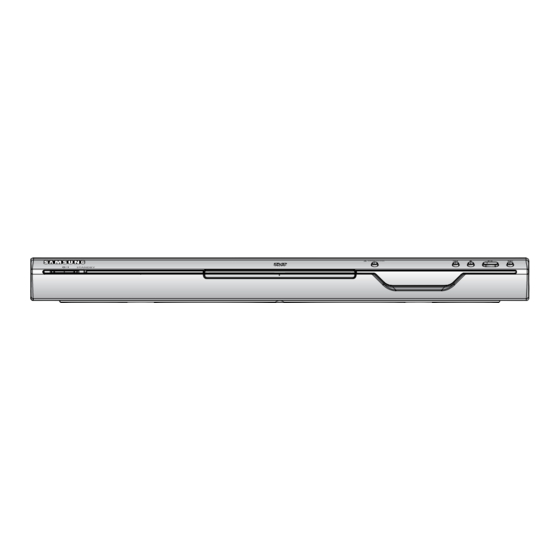

Samsung DVD-P360/CDM Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

ELECTRONICS
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
international and/or domestic law.
© Samsung Electronics Co., Ltd. FEB . 2006
Printed in Korea
AK82-01027A

DVD PLAYER

Chassis : Maxino
DVD-P360/CDM, FOU, SED, XEC, XEE, XEG,
DVD-P365/AFR, AND, CDM, ELT, FOU, HACO,
SERVICE
DVD PLAYER
XEH, XEL, XEO, XET, XEU, XTL
RAD, SAM, SED, SEO, SMR,
TAW, TWN, UMG, XAX, XBG,
XEC, XEE, XEG, XEV, XEH, XEL,
XET, XEO, XEU, XFA, XSA, XSE,
XSG, XSH, XSS, XST, XSV, XTL
Manual
Merit & Character regarding Product
Π37mm With LED Display
´ Zoran Vaddis 882-1 chip solution
ˇ Divx Playback support
¨ 14-bit Video DAC
ˆ Multi-Progressive Scan Video Out
Ø High-Quality Audio

Advertisement

Table of Contents
loading

Related Manuals for Samsung DVD-P360/CDM

Summary of Contents for Samsung DVD-P360/CDM

  • Page 1: Dvd Player

    ˆ Multi-Progressive Scan Video Out Ø High-Quality Audio © Samsung Electronics Co., Ltd. FEB . 2006 This Service Manual is a property of Samsung Electronics Co.,Ltd. Printed in Korea Any unauthorized use of Manual can be punished under applicable international and/or domestic law.

  • Page 2: Table Of Contents

    CONTENTS 1. Precautions 1-1 ~ 1-6 1-1 Safety Precautions (1-1) 1-2 Servicing Precautions (1-3) 1-3 ESD Precautions (1-4) 1-4 Handling the optical pick-up (1-5) 1-5 Pick-up disassembly and reassembly (1-6) 2. Product Specification 2-1 ~ 2-4 2-1 Product Specification (2-1) 2-2 Chassis Product Specification (2-2) 2-3 Option Product Specification...
  • Page 3 CONTENTS 10. PCB Diagrams 10-1 ~ 10-6 10-1 Main DVD PCB (10-2) 10-2 Jack PCB (10-4) 10-3 Power key PCB (DVD-P360 Only) (10-6) 10-4 Power key PCB (DVD-P365 Only) (10-6) 11. Schematic Diagrams 11-1 ~ 11-8 11-1 S.M.P.S (Jack PCB) (11-2) 11-2 Front Micom (Jack PCB) (11-3)

  • Page 4: Precautions 1-1

    Metal Part cal return path to the chassis. Any current measured must not exceed 0.5mA. Reverse the instrument power cord plug in the out- ohmmeter let and repeat the test. See Fig. 1-1. Fig. 1-2 Insulation Resistance Test Samsung Electronics...
  • Page 5 (5) antenna wiring. Always inspect in all areas tinuously and new instructions are issued whenev- for pinched, out-of-place, or frayed wiring, Do not er appropriate. change spacing between a component and the printed-circuit board. Check the AC power cord for damage. Samsung Electronics...

  • Page 6: Servicing Precautions

    Components identi- fied by shading, by( ) or by ( ) in the circuit dia- gram are important for safety or for the characteris- tics of the unit. Always replace them with the exact replacement components. Samsung Electronics...

  • Page 7: Esd Precautions

    (6) Do not remove a replacement ESD device from its protective package until immediately before your are ready to install it.(Most replacement ESD devices are packaged with leads electrically short- ed together by conductive foam, aluminum foil or comparable conductive materials). Samsung Electronics...

  • Page 8: Handling The Optical Pick-Up

    ◆ Be sure to put on a wrist strap grounded to the sheet. ◆ Be sure to lay a conductive sheet made of copper etc. Which is grounded to the table. Samsung Electronics...

  • Page 9: Pick-Up Disassembly And Reassembly

    3) Make solder land 2 points short on Pick-up. (See Fig. 1-4) 4) Disassemble the Pick-up. Note : If the assembly and disassembly are not done in correct sequence, the Pick-up may be damaged. SOLDER LAND 2 POINTS SHORT PICK-UP ASS'Y Fig. 1-4 Samsung Electronics...

  • Page 10: Product Specification 2-1

    Luminance Signal : 1.0Vp-p (75Ω load) S-Video Chrominance Signal : 0.3Vp-p (75Ω loa) 2 Channel L(1/L), R(2/R) 48KHz Sampling : 4Hz to 22KHz *Ferquency Response Audio Output 96KHz Sampling : 4Hz to 44KHz *Dynamic Range 100dB * : Nominal specification Samsung Electronics...

  • Page 11: Chassis Product Specification

    DVD-RAM/-R/-RW/+RW(Video Mode) Compatibility CD-R/-RW Progressive Scan Video Video 108MHz/14 Bit Integrated Audio DAC Down Sampling DTS/AC-3 Decoder Audio MP3/WMA Decoder Digital Out (DTS/AC-3) VCD Playback SVCD/CDV CVD 1.0 Not Compatible Instant Replay/Skip Convenience Kodak Picture CD (JPEG) FRONT DISPLAY Samsung Electronics...

  • Page 12: Option Product Specification

    2-3 Option Product Specification Description Fig Description Parts No Remark Remote Model Standard of AK59-00054B Control DVD-P365/XET Model Standard of Batteries for AC43-12002H DVD-P365/XET Remote Control S.N.A Model Standard of Owners Instructions AK68-01006C DVD-P365/XET Video/Audio Model Standard of AC39-42001R Cable DVD-P365/XET Samsung Electronics...

  • Page 13: Alignment And Adjustments

    3. Alignment and Adjustment 3-1 Location of Test Point Fig. 3-1 Location of Test Point Samsung Electronics...

  • Page 14: Skew Adjustment

    Adjustment Spec. Test Point Adjustment Location TDV-533 “RF” Screw A / B Chapter 14 Flat Waveform (Main PCB - Component Side) Ass’y Deck - Top Side (See Fig. 3-1) (See Fig. 3-2) Fig. 3-2 Ass’y Deck (Top Side) Samsung Electronics...
  • Page 15 If you cannot obtain a Flat waveform, then the unit is defective. Note : The Deck must be in a horizontal position. Use both “A” and “B” screws to adjust. Typical Waveform before Adjustment Waveform after Correct Adjustment Fig.3-3 Envelope Waveform Samsung Electronics...

  • Page 16: Disassembly And Reassembly

    4-1 Cabinet and PCB Note : Reassembly in reverse order. 4-1-1 Top Cabinet Removal 1) Remove 3 Screws Πthe back Top Cabinet. 2) Lift up the Top Cabinet in direction of arrow. 3 SCREWS Fig. 4-1 Top Cabinet Removal Samsung Electronics...
  • Page 17 Disassembly and Reaasembly 4-1-2 Ass’y Front-Cabinet Removal 1) Release 6 Hooks Œ, ´, ˇ ¨ and Remove the Ass’y Front-Cabinet ˆ. 1 HOOK 2 HOOKS 2 HOOKS 1 HOOK Ass’y Front-Cabinet Fig.4-2 Ass’y Front-Cabinet Removal Samsung Electronics...
  • Page 18 Disassembly and Reaasembly 4-1-3 Ass’y Deck Removal 1) Disconnect Flat-Cable from DCN1, DCN2 on Main PCB. 2) Remove 3 Screws Œ from the Ass’y Deck ´ and lift it up. 3 SCREWS FLAT-CABLE ASS'Y-DECK Fig. 4-4 Ass’y Deck Removal Samsung Electronics...
  • Page 19 2) Remove 3 Screws ¨ from the Jack PCB ˆ and lift it up. 6 SCREWS ¨ 3 SCREWS ´ Main PCB Power key PCB ˆ Jack PCB Fig. 4-5 Main PCB, Power Key PCB and Jack PCB Removal Samsung Electronics...

  • Page 20: Deck

    4-2-1 Holder Chuck Removal 1) Push 4 Hooks Œ in the direction of arrow “A” and lift up the Holder Chuck ´. ´ HOLDER CHUCK Œ 2 HOOKS "A" Œ 2 HOOKS "A" Fig. 4-6 Holder Chuck Removal Samsung Electronics...
  • Page 21 1) Insert a Screw Driver Œ into Emergency Hole ´ and push the Slider Housing ˇ in the direction arrow “A”. 2) When the Tray Disc ¨ comes out a little, pull it in the direction arrow “B” by hand. ˇ SLIDER HOUSING ¨ TRAY DISC "B" "A" ´ EMERGENCY HOLE Œ SCREW DRIVER Fig.4-7 Tray Disc Removal Samsung Electronics...
  • Page 22 ´ 1 SCREW ˇ ASS'Y P/U DECK ¨ CHASSIS SUB <Assembly Point> SP + (RED) Œ 4 SOLDERING SP - (BLK) TM - (BLK) SL - (BLK) TM + (BLK) SL + (RED) Fig. 4-8 Assy P/U Deck Removal Samsung Electronics...
  • Page 23 ∏ 2 SCREWS Ô GEAR TRAY ˝ GEAR PULLEY "D" ’ 1 HOOK "C" ´ 2 HOOKS ˆ 1 HOOK ” ASS'Y MOTOR LOAD "A" "A" ˇ ASS'Y PCB DECK Œ 2 SOLDERING Fig. 4-9 Ass’y Housing Removal Samsung Electronics...
  • Page 24 Ú 2 SCREWS Ø MOTOR FEED ˇ HOOK ASS'Y "B" ∏ 2 SCREWS ˆ 2 SCREWS Œ HOOK "A" CHASSIS SUB ¨ GEAR FEED A ´ GEAR FEED B ” MOTOR SPINDLE Fig. 4-10 Ass’y Bracket Deck Removal Samsung Electronics...

  • Page 25: Troubleshooting

    5. Troubleshooting No pick-up home positing Samsung Electronics...
  • Page 26 Troubleshooting No Search Operation Actual velocity occurs Check ZIC1 peripheral circuit. at ZIC1-201 terminal? Actual velocity occurs Check FIC1 peripheral circuit. at FIC1-13, 14 terminal? Focus On? RF SUM signal is OK? See "Fine Seek Check" Samsung Electronics...
  • Page 27 Troubleshooting No focus incoming FIC1-27,28 Check FIC1. output are normal? Check open state from FIC1 to pick-up. Samsung Electronics...
  • Page 28 Troubleshooting FINE SEEK Check ZIC1-195 Check RFSUM input from P/U. output is normal? FIC1-25, 26(T+, T-) Check FIC1 peripheral circuit. terminal outputs are normal? Check DCN1 and P/U. Samsung Electronics...
  • Page 29 A, B, C, D. (ZIC1-157) (SPD Waveform) SPD output is normal? (ZIC1-198) Check ZIC1 peripheral circuit. FIC1-25 output Check FIC1 soldering and power. is normal? FIC1-23 signal Check ZIC1. MON is "H" ? Check or replace disc motor. Samsung Electronics...
  • Page 30 No Tray open/close ZIC1-193, 194 Close End (Open;”L”, Close ; "H") Check ZIC1 perpheral circuit. Open End (Open;”H”, Close ; "L") Check FIC1-11 Check FIC1 perpheral circuit. output at OPEN/CLOSE. Check signal line state from FIC1-11 to tray motor. Samsung Electronics...
  • Page 31 AIC1-2? (DATA 0 Waveform) Analog output of Check ZIC1-118 AIC1-7,9(Vout) is DVD;12.2884MHz normal? AIC5-1, 7 output Check AIC5 peripheral circuit. is normal? Base terminal level Check FMIC-11 mute. of AQ7, AQ9 are "L"? Check JACK1 peripheral soldering shot. Samsung Electronics...
  • Page 32 Troubleshooting S-Video output error Video output of display Select video output to "S-VIDEO". setup is "S-VIDEO". Samsung Electronics...
  • Page 33 Troubleshooting Y/Pr/Pb output error Video output of display Select video output to "I-SCAN". setup is "I-SCAN". Samsung Electronics...
  • Page 34 Troubleshooting Progressive output error Video output of display setup is Select video output to "Pscan & HDMI". "Pscan & HDMI". 5-10 Samsung Electronics...
  • Page 35 VL6 and pin 1in VIC1 . (VIC-MUTE Waveform) Peak to peak Check the soldering of VIC1 voltage level of VIC1 -20 Video signal of Check the connection between about 1V appears at VIC1 and output jack. output jack? Check the RCA cable. Samsung Electronics 5-11...
  • Page 36 Troubleshooting No Power (Standby LED OFF) PFD01 error? Replace fuse. PDS01 voltage Check PDS01 ~ 04. is normal voltage? Replace PIC01. Switching operation Check feed back, 2st voltage. of PIC01 is normal? Replace PIC01 5-12 Samsung Electronics...

  • Page 37: Exploded View And Parts List

    6-3 DVD Mechanical Parts - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-6 Samsung Electronics...

  • Page 38: Cabinet Assembly (Dvd-P360 Only)

    Exploded View and Parts List 6-1 Cabinet Assembly (DVD-P360 Only) W275 W001 W275 W275 C015 P001 P025 P006 P022 (S.N.A) CHASSIS - FRAME A001 C001 C0022 Samsung Electronics...
  • Page 39 ASSY-DOOR TRAY;ABS 94 HB,DVD-P260K/XSE,S C015 AK97-01541A ASSY-CABINET TOP;ASSY,DVD-P260K/XSE, SEI P001 AK92-00998A ASSY PCB-MAIN;DVD-P360/XEL,MAIN PCB ASSY P006 AK92-00908A ASSY PCB-POWER KEY;DVD-P360H,ASSY PCB PO P022 AK92-00986C ASSY PCB-JACK;DVD-P260K SCART ONLY,SMPS P025 AC39-10019A CBF-POWER CORD;KKP-419C,H03VVH2-F,VDE/KE W001 6003-000275 SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(BLK),S W275 6003-001561 SCREW-TAPTITE;BH,+,-,B,M3,L6,ZPC(YEL),SW Samsung Electronics...

  • Page 40: Cabinet Assembly (Dvd-P365 Only)

    Exploded View and Parts List 6-2 Cabinet Assembly (DVD-P365 Only) W275 W001 W275 W275 C015 P001 P025 P006 P022 (S.N.A) CHASSIS - FRAME A001 C001 C0022 Samsung Electronics...
  • Page 41 ASSY PCB-POWER KEY;DVD-P365,ASSY PCB POW AK92-00986C ASSY PCB-JACK;DVD-P260K SCART ONLY,SMPS DVD-P365/XET,XEC,XEE,XEH,XEO P022 AK92-00803H ASSY PCB-JACK;DVD-P365K/XEV,SCART,JACK P DVD-P365/XEV,SEO AK92-00986A ASSY PCB-JACK;DVD-P260K/XSS,SMPS INHOUSE DVD-P365/XSH,XSE,SMR DVD-P365/XET,SEO,XEC,XEE, AC39-10019A CBF-POWER CORD;KKP-419C,H03VVH2-F,VDE/KE P025 XEH,XEO,XEV AC39-12022K CBF-POWER CORD;AT,,GP2,HOUING(2P),250V,3 DVD-P365/XSH,XSE,SMR W001 6003-000275 SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(BLK),S W275 6003-001561 SCREW-TAPTITE;BH,+,-,B,M3,L6,ZPC(YEL),SW Samsung Electronics...

  • Page 42: Dvd Mechanical Parts

    Exploded View and Parts List 6-3 DVD Mechanical Parts W212 H213 H212 H102 W012 H241 H206 H211 H203 H214 W273 H210 W010 W274 H202 W274 H204 H205 H105 H107 H207 H106 H103 W011 H108 H104 H109 Samsung Electronics...
  • Page 43 MOTOR-FEED ASSY;-,DP-9,-,-,-,-,-,- H211 AK97-01453A ASSY-PICK UP;-,DP-19,LD VE H212 AK61-00359A HOLDER-CHUCK;DP-16,POM,T3,W140,L96 H213 AK61-00357A SPRING ETC-CLAMPER;-,SUS304CSP,-,- H214 AK66-00057A GEAR-BACKLASH;DP-16,POM,0.5,-,-,WH H241 AK41-00250C FFC-PU;DP-19,-,-,23P,-,1mm W010 6003-001157 SCREW-TAPTITE;PWH,+,B,M2,L6,ZPC(YE W011 6001-001370 SCREW-MACHINE;CH,+,M1.7,L3.0,ZPC(Y W012 6002-001086 SCREW-TAPPING;PH,+,B,M1.7,L5.0,ZPC W212 6003-001251 SCREW-TAPTITE;CH,+,-,B,M1.7,L3,ZPC W273 6003-000233 SCREW-TAPTITE;PH,+,-,B,M2,L6,ZPC(B W274 6001-001730 SCREW-MACHINE;BH,+,-,M1.7,L2.5,ZPC Samsung Electronics...

  • Page 44: Electrical Parts List

    FFC CABLE-FLAT;30V,80C,285mm,21P,1mm,- AR18 2007-001038 R-CHIP;56Kohm,1%,1/10W,TP,1608 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 AR19 2007-002987 R-CHIP;4.75Kohm,1%,1/10W,TP,1608 2007-002987 R-CHIP;4.75Kohm,1%,1/10W,TP,1608 FR10 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 AR20 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 FR11 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608 AR21 2007-001038 R-CHIP;56Kohm,1%,1/10W,TP,1608 FR13 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 FR15 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608 Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 45 SA DVD-P365/XSE,XSH,SMR 2007-001146 R-CHIP;7.5ohm,5%,1/8W,TP,2012 VR37 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 RR10 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 VR38 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 RR11 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 VR39 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 RR12 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 RR13 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 VR41 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 46 ASSY PCB-POWER KEY;DVD-P360H,ASSY DVD-P360/XEC,XEO,XET,XEL ZIC2 1105-001305 IC-DRAM;4S641632,-,64MBIT,1MX16X4BIT,T CON1 3708-001439 CONNECTOR-FPC/FFC/PIC;4P,1MM,STRAIGHT,SN 1 ZIC3 1107-001502 IC-FLASH MEMORY;29LV160M,2Mx8Bit,TSOP,48 1 FL261 3809-001799 FFC CABLE-FLAT;30V,80C,50mm,4P,1.0mm,UL2 ZKR1 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 KSW1 3404-001261 SWITCH-TACT;15V DC,20mA,100gf,7.4X7.95X1 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 DVD-P365/XET,SEO,SMR,XEC,XEE,XEH,XEO,XEV,XSE,XSH Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 47 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 KR14 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 PDS04 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP PDS11 0402-000012 DIODE-RECTIFIER;UF4007,1KV,1A,DO-41,TP KR15 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 PDS31 0402-001195 DIODE-RECTIFIER;F1T4,400V,1A,DO-204AC,TP KR16 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 PDS33 0402-001194 DIODE-RECTIFIER;SHG2D,200V,2A,-,TP KR17 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 PDS34 0402-001643 DIODE-RECTIFIER;MBRF10A0,100V,10A,ITO-22 Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 48 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400mW,T0-9 1 SCE5 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400mW,T0-9 1 SCE6 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 KR10 2001-000793 R-CARBON;47OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 SCJ1 3722-001359 JACK-SCART;21P,SN,BLK KR11 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M 1 Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 49 TRANS SWITCHING;EER2828,DVD-P260K,-,110~ 1 PCNS2 3711-000203 HEADER-BOARD TO CABLE;1WALL,2P/3P,1R,7.9 1 PVA1 1405-000186 VARISTOR;470V,2500A,17.5x7.5mm,TP PCS32 2301-000129 C-FILM,LEAD-PEF;100nF,5%,50V,TP,10X9X4.3 PDF13 0402-001195 DIODE-RECTIFIER;F1T4,400V,1A,DO-204AC,TP PZD21 0403-000713 DIODE-ZENER;MTZJ20B,18.63-17.7V,500MW,DO 1 VS130 AK39-00088A LEAD CONNECTOR-ASSY;DVD-P260K,-,-,11P,19 PDS01 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 50 MANUAL USERS;DVD-P365,XSE,INDONESIA,-,HV 1 DVD-P365/XSE AK68-01005T MANUAL USERS;DVD-P365,SMR,ENGLISH,-,HVS 1 DVD-P365/SMR AK68-01006P MANUAL USERS;DVD-P365,XSH,ENGLISH/CHINES 1 DVD-P365/XSH AK68-01006F MANUAL USERS;DVD-P365,XEC,SPA/POR,-,HVS 1 DVD-P360/XEC AK68-01006A MANUAL USERS;DVD-P365,XEL,ENG/FRA/GER/HO 1 DVD-P360/XEL P-CASE AK69-00425F PACKING CASE;DVD-P365/XEL,SW-2,A-1, FLEX DVD-P365/XET,XEC,XEE,XEH,XEO Samsung Electronics This Document can not be used without Samsung’s authorization...

  • Page 51: Block Diagrams

    8-3 FIC1 (FAN8026) Block Diagram - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Samsung Electronics This Document can not be used without Samsung’s authorization.

  • Page 52: All Block Diagram

    Block Diagrams 8-1 All Block Diagram Samsung Electronics This Document can not be used without Samsung’s authorization.

  • Page 53: Zic1 (Vaddis 882 Integrated) Block Diagram

    Block Diagrams 8-2 ZIC1 (Vaddis 882 Integrated) Block Diagram Servo Samsung Electronics This Document can not be used without Samsung’s authorization.

  • Page 54: Fic1 (Fan8026) Block Diagram

    Block Diagrams 8-3 FIC1 (FAN8026) Block Diagram FI N Level Shift Level Shift Level Shift Level Shift Level Shift FI N Samsung Electronics This Document can not be used without Samsung’s authorization.

  • Page 55: Wiring Diagram

    9. Wiring Diagram Samsung Electronics...
  • Page 56 10-4 Power Key (DVD-P365 Only) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10-6 10-1 Samsung Electronics...

  • Page 57: Pcb Diagrams

    PCB Diagrams 10-1 Main DVD PCB COMPONENT SIDE ZIC2 ZIC3 ZIC1 FIC1 10-2 Samsung Electronics...
  • Page 58 PCB Diagrams CONDUCTOR SIDE 10-3 Samsung Electronics...

  • Page 59: Jack Pcb

    PCB Diagrams 10-2 Jack PCB COMPONENT SIDE 10-4 Samsung Electronics...
  • Page 60 PCB Diagrams CONDUCTOR SIDE 10-5 Samsung Electronics...

  • Page 61: Power Key Pcb (Dvd-P360 Only)

    PCB Diagrams 10-3 Power Key (DVD-P360 Only) COMPONENT SIDE CONDUCTOR SIDE 10-4 Power Key (DVD-P365 Only) COMPONENT SIDE CONDUCTOR SIDE 10-6 Samsung Electronics...

  • Page 62: Schematic Diagrams

    11-7 Power Key (Power Key PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11-8 ◆ Block Identification of Main PCB AV OUT ENCODER DECODER SERVO SMPS BLOCK POWER KEY FRONT MICOM BLOCK Samsung Electronics This Document can not be used without Samsung’s authorization. 11-1...

  • Page 63: Jack Pcb)

    Schematic Diagrams 11-1 S.M.P.S (Jack PCB) 11-2 This Document can not be used without Samsung’s authorization. Samsung Electronics...

  • Page 64: Front Micom (Jack Pcb)

    Schematic Diagrams 11-2 Front Micom (Jack PCB) Mrst Samsung Electronics This Document can not be used without Samsung’s authorization. 11-3...

  • Page 65: Audio (Dvd Main Pcb)

    Schematic Diagrams 11-3 Audio (DVD Main PCB) Audio 11-4 This Document can not be used without Samsung’s authorization. Samsung Electronics...

  • Page 66: Av Decoder (Dvd Main Pcb)

    Schematic Diagrams 11-4 AV Decoder (DVD Main PCB) Audio MRST Video Digital Audio Samsung Electronics This Document can not be used without Samsung’s authorization. 11-5...

  • Page 67: Rf-Servo (Dvd Main Pcb)

    Schematic Diagrams 11-5 RF-Servo (DVD Main PCB) 11-6 This Document can not be used without Samsung’s authorization. Samsung Electronics...

  • Page 68: Video (Dvd Main Pcb)

    Schematic Diagrams 11-6 Video (DVD Main PCB) Audio Video Samsung Electronics This Document can not be used without Samsung’s authorization. 11-7...

  • Page 69: Power Key (Power Key Pcb)

    Schematic Diagrams 11-7 Power Key (Power Key PCB) 11-8 This Document can not be used without Samsung’s authorization. Samsung Electronics...

  • Page 70: Operating Instructions 12-1

    12. Operating Instructions Samsung Electronics 12-1...
  • Page 71 Operating Instructions 12-2 Samsung Electronics...
  • Page 72 Operating Instructions Samsung Electronics 12-3...
  • Page 73 Operating Instructions 12-4 Samsung Electronics...
  • Page 74 Operating Instructions Samsung Electronics 12-5...
  • Page 75 Operating Instructions 12-6 Samsung Electronics...
  • Page 76 Operating Instructions Samsung Electronics 12-7...
  • Page 77 Operating Instructions 12-8 Samsung Electronics...
  • Page 78 Operating Instructions Samsung Electronics 12-9...
  • Page 79 Operating Instructions MEMO 12-10 Samsung Electronics...

  • Page 80: Circuit Operating Descriptions 13-1

    Input : Common power to transformer (Vp). Fig. 13-2 The output Vs of transformer is determined by the ratio of 1st Np and 2nd Ns. Vs = (Ns/Np) x Vp Fig. 13-3 Vout Vout is output (DC) by diode and condensor. Fig. 13-4 Samsung Electronics 13-1...
  • Page 81 Fig. 13-6 ◆ Terms 1) 1st : Common power input to 1st winding. 2) 2nd : Circuit followings output winding of transformer. 3) f (Frequency) : Switching frequency (T : Switching cycle) 4) Duty : (Ton/T) x 100 13-2 Samsung Electronics...
  • Page 82 Vb is inducted to base winding coil NB. By inducted Vb, Ib start flow and the V CC voltage of Pin 5 PWM IC is sustained stable. Ib is constant and I 1 increases in Proportion to time. After constant time passed Ib become to shortage and PIC1 is cut OFF (S/W OFF). Samsung Electronics 13-3...
  • Page 83 Circuit Operating Descriptions PTDI PDS34 Vout PES34 Snubber Drain Softs POWER-CTL Mos-Fet Icease VD-G < < PICF1 Fig. 13-8 Driving Circuit 13-4 Samsung Electronics...
  • Page 84 PICS1 F-B Voltage increase --> OUT DUTY increase TRANS Primary Cuttent Increase --> TRANS Primary Power increase --> Vout increase --> Vout maintain 4.4V - PRD31, PRD32 : Reduce 4.4V overshoot. - PRS32, PCS32 : Prevent PICS2 oscillation (for phase correction). Samsung Electronics 13-5...
  • Page 85 Converter Removal 5V Rectified 5V Rectified (SNUBBER) VoltageCircuit (x2) Smoothing Circuit Rectified Circuit Motor 12V 1 Port PWM IC Control Circuit Line Filter 12V Rectified 12V Rectified VoltageCircuit Feed Smoothing Circuit Back Circuit Power IN (AC85V~240V) Fig.13-10 13-6 Samsung Electronics...

  • Page 86: System Control

    13-2-2 Block Diagram RF Input Audio Out ZIC1 MPEG DECODER CPU (VADDIS 882) DATA BUS ZIC3 ADDRESS FLASH MEMORY 2 Mbyte Fig. 13-11 Samsung Electronics 13-7...

  • Page 87: Dvd Data Processor

    When the memory has an empty space, where data can be processed and written and the pick-up correctly gets to the original location(before kick back location) again, it reads data again avoids the interrupt of data read previ- ously. The basic operation repeats to perform as described above. 13-3-2 Block Diagram Fig.13-12 13-8 Samsung Electronics...

  • Page 88: Video

    RGB/Component by the rear switch. In Course of encoding, 8bit data can extend to 10bit or more. To convert the extended data to quantization noise as possible, ZIC1 adopts 10bit D/A converter. ZIC1 perform video en-coding as well as copy protection. Samsung Electronics 13-9...

  • Page 89: Audio

    If DVD of multichannel Source disc, if is downmixed and transmit them to Data0. If you want to listen to the multichannel output, you have to connect digital output with AC-3 amp or MPEG/DTS amp. Fig. 13-14 Audio Output Block Diagram 13-10 Samsung Electronics...
  • Page 90 The 2 channels data is converted through audio decoder 2-channel data and Data 0 and are outputted in digital audio interface.Via IEC-958 output process, they is transmitted to digital amplifier or AC-3/MPEG/DTS amplifier built in the external digital input source with IEC-958/1937 transmission format. Samsung Electronics 13-11...
  • Page 91 Circuit Operating Descriptions MEMO 13-12 Samsung Electronics...

  • Page 92: Reference Information

    Reflective layer Semi-reflective layer Polycarbonate Polycarbonate Dual Side Dual Layer : 17GByte Dual Side Single Layer : 9.5GByte Polycarbonate Polycarbonate Semi-reflective layer Reflective layer Reflective layer Bonding layer Bonding layer Reflective layer Reflective layer Semi-reflective layer Polycarbonate Polycarbonate Samsung Electronics 14-1...
  • Page 93 High quality sound that exceeds the CD, multi-channel Audio. DVD-R 1 Time Recording As with CD-R, write only once Rewritable Similar to DVD-RAM except than its technology features DVD-RW (About 1000times) a separated read-write access more like phonograph than a hard disk. 14-2 Samsung Electronics...

  • Page 94: Dvd-Video Fromat

    Recording type Dolby Digital Linear PCM MPEG-1 Layer 2 AUDIO Transmission rate 448Kbps/stream 6.144Mbps/stream 224Kbps 1 Analog CH. Channel 5.1CH/stream 8CH/stream 1 Stream of Dolby Digital 2 Digital CH. (16Bit/44.1KHz) Sampling frequency 48KHz 16, 20, 24Bit/48, 96KHz 16Bit/44.1KHz Samsung Electronics 14-3...
  • Page 95 Data loss and enables Time efficient compression. Loss area Amount of data • MPEG-1 (Fixed compression : Max. 1/140) • Frame unit compression. • Compresses all data using the same ratio. Video-CD - Fast movements are jagged, and unnatural Time 14-4 Samsung Electronics...
  • Page 96 • Various Digital Recordings are possible as shown in the table to the right. Sampling Frequency Bit Rate 16bit 48KHz 20bit 24bit 16bit 96KHz 20bit 24bit • Dolby Digital compatible Audio Mode Channel Format Audio Coding Front Surround (Rear) Remark Mode Mono Stereo Mono Mono Surround Samsung Electronics 14-5...
  • Page 97 • Up to 9 angles of view may be stored, enabling the viewer to select a specific viewpoint at a given time. --> Especially, for the Music Video and Sports Title, this provides a more lively image of the scene. Note ; This function is disc-dependent, may not work on all DVDs. 14-6 Samsung Electronics...
  • Page 98 • Region 6 : China. • Region 0 : Worldwide (All Code) ˆ Œ ´ Œ Ø ´ Œ ˇ ˆ ¨ ´ ¨ • Adoptation of the Macrovision System disables the copying on to other media. Samsung Electronics 14-7...
  • Page 99 • Different Authoring Process are used accoring to the Software developers, and this may affect the DVD image quality. • Authoring Process bit stream Video/Audio MPEG-2 Master Encoding Disc Production bit stream Video/Audio Surround Audio AC-3/MPEG Audio Cutting Subtitle Master Encoding Master Multiplexing bit stream Subtitle Subtitle Master Encoding Authoring Process 14-8 Samsung Electronics...

  • Page 100: Divx (Dvd-P365 Only)

    • Open DivX is a MPEG-4 Simple Profile Implementation. –Released to the Internet community in Jan/2001 • DivX 4.x is a highly optimized MPEG-4 Simple Profile Implementation. –Released Aug/2001. • DivX 5.0 – 5.02 is a MPEG-4 Advanced Simple Profile Implementation. –Released Mar/2002. Samsung Electronics 14-9...
  • Page 101 • The DivX DRM system quickly identifies and responds to security attacks. • Content owners have maximum flexibility to set usage rules and to enforce Digital Millennium Copyright Act (DMCA) rights. • All DivX Certified CE devices require DivX DRM. 14-10 Samsung Electronics...
  • Page 102 Reference Information DivX Certification helps CE makers get high-quality devices to market. • Samsung Electronics 14-11...
  • Page 103 Reference Information MEMO 14-12 Samsung Electronics...
