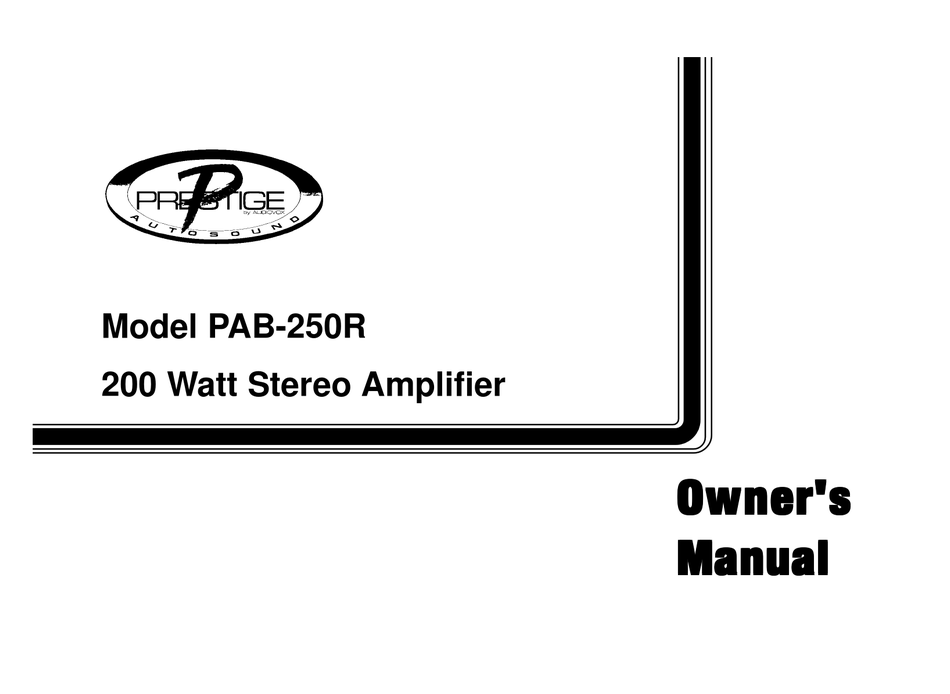

- Page 1 Model PAB-250R 200 Watt Stereo Amplifier Ow ne ne ne ne ne r's Manual Manual Manual Manual Manual...
-
Page 2: Table Of Contents
INDEX Specifications ...1 Precautions ...2 Installation Instructions ...3 Wiring Instructions ...4 - 5 Stereo and Mixed-Mono Input Wiring Diagram ...6 Stereo and Mixed-Mono Output Wiring Diagram ...7 Mono (Bridged) Input Wiring Diagram ... 8 Mono (Bridged) Output Wiring Diagram ... 9 Operation ...10 - 11 Warranty ... -
Page 3: Specifications
10 - 50,000 Hz. ± 1 dB Channel Separation: 50 dB Signal / Noise Ratio: 90 dB (A-Weighted) * Due to continuing improvement, Audiovox reserves the right to change features and design without notice. HELP! 1-800-645-4994 Monday - Friday Saturday... -
Page 4: Precautions
6. Make certain that the speaker(s) to be used with this amplifier are capable of handling the output power (wattage) of the unit. Use of speaker(s) not rated for the output of this amplifier may cause damage to or failure of the speaker(s) for which Audiovox will not be liable. -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS 1. Select a mounting area where the amplifier will have sufficient air circulation for proper cooling. Inadequate air circulation will cause the temperature of the amplifier to rise and will trigger the thermal protection mode. 2. Place the amplifier on the mounting surface and mark the locations of the four mounting holes as shown in the illustration. -
Page 6: Wiring Instructions
WIRING INSTRUCTIONS The wiring of your amplifier will depend on the system and speakers you are using but will either be a stereo, mono, or mixed-mono application. The following pages illustrate the input and output wiring for both types. Please refer to the appropriate diagrams for the system configuration you are using. - Page 7 WIRING INSTRUCTIONS 4. Speaker Connections 4. Speaker Connections 4. Speaker Connections 4. Speaker Connections 4. Speaker Connections Depending on the type and number of speakers used with the amplifier, wire them to the speaker terminals as per the appropriate wiring diagram. For most applications, #18 gauge wire should be used for the speaker leads but in no case thinner than #20 gauge.
-
Page 8: Stereo And Mixed-Mono Input Wiring Diagram
USE THIS INPUT WIRING WITH STEREO AND MIXED-MONO INPUT WIRING DIAGRAM OUTPUT WIRING ON PAGE 7 HIGH-LEVEL LOW-LEVEL CAR STEREO (SPEAKER) OUTPUTS RCA OUTPUTS RIGHT LEFT RIGHT LEFT LEFT RIGHT IMPORTANT USE EITHER HIGH-LEVEL OR LOW-LEVEL INPUTS, NOT BOTH. RCA TYPE 4-PIN SHIELDED CABLE CONNECTOR... -
Page 9: Stereo And Mixed-Mono Output Wiring Diagram
USE THIS OUTPUT WIRING WITH INPUT WIRING ON PAGE 6 LEFT SPEAKER STEREO MODE : 2-8 OHMS MIXED-MONO MODE : 4-8 OHMS MIXED-MONO SPEAKER OR SUB-WOOFER WITH CROSSOVER 4-8 OHMS STEREO AND MIXED-MONO OUTPUT WIRING DIAGRAM RIGHT SPEAKER STEREO MODE : 2-8 OHMS MIXED-MONO MODE : 4-8 OHMS USE #10 GAUGE WIRE (SEE TEXT) -
Page 10: Mono (Bridged) Input Wiring Diagram
MONO (BRIDGED) INPUT WIRING DIAGRAM LOW-LEVEL RCA OUTPUTS TO 2nd AMPLIFIER IMPORTANT USE EITHER HIGH OR LOW-LEVEL INPUTS, NOT BOTH. "Y" RCA TYPE SHIELDED CABLE (NOT SUPPLIED) HIGH-LEVEL (SPEAKER) OUTPUTS CAR STEREO OFF 12dB 18dB USE THIS INPUT WIRING WITH OUTPUT WIRING ON PAGE 9 TO 2nd AMPLIFIER 4-PIN... -
Page 11: Mono (Bridged) Output Wiring Diagram
USE THIS OUTPUT WIRING WITH INPUT WIRING ON PAGE 8 MONO SPEAKER SUB-WOOFER 4 - 8 OHMS MONO (BRIDGED) OUTPUT WIRING DIAGRAM CONNECT THIS WIRE LAST USE #10 GAUGE WIRE (SEE TEXT) AUTO-ANTENNA LEAD 12 VOLT VEHICLE CHASSIS BATTERY GROUND EXISTING SCREW OR BOLT CLEAN PAINT, RUST, DIRT OR GREASE FROM AREA... -
Page 12: Operation
OPERATION After initial set-up, the amplifier should not require any further adjustment unless there is a change in the car stereo or speaker system with which it is used. Power Indicator The Power LED functions as a power and warning indicator. The indicator is white when the power to the amplifier is off. - Page 13 Filter Selector This switch allows selection of the frequency filters that permit the amplifier to be used to reproduce the entire audio range, just the bass, or all frequencies above the bass range. In the "OFF" position of the switch, the response is flat and unaffected so the entire audio frequency range is reproduced by the amplifier.
- Page 14 Remote Subwoofer Level Control Input This connector permits the amplifier to be used with an optional Remote Control Unit PAB-RC. The PAB-RC control unit allows for adjustment of the bass boost gain level from the passenger compartment. Fuse The circuitry of the amplifier is protected from damage by automotive-type fast-blow fuses. If fuse replacement is necessary, use only fuses of the same ampere rating as originally supplied with the unit.
-
Page 15: Warranty
CD changers, power amplifiers, equalizers and accessories. AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor. - Page 16 © 2000 Audiovox Corp., Hauppauge, N.Y. Printed in Korea 128-5717...
