Summary of Contents for LiteOn SK-7260

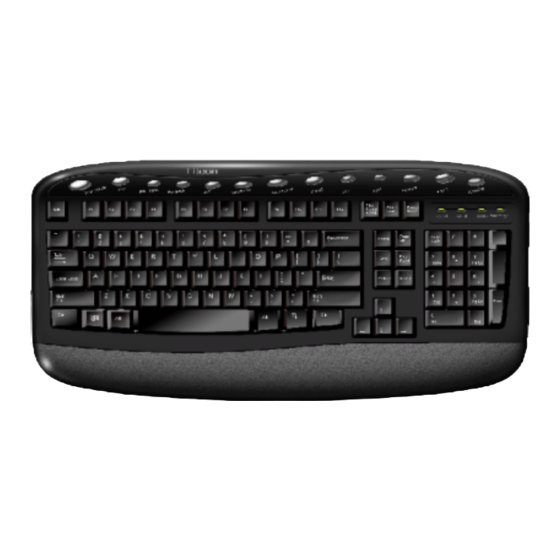

- Page 1 User’s Manual For Model : SK-7260 RF Wireless Keyboard Version: 1.0 Department: HIS, R&D Date: May. 22th, 2003 Prepared :Muchuan Lee LITE-ON Technology Department: HIS R&D...
-
Page 2: Table Of Contents
Table of Contents 1. GENERAL ......................1 MAIN FEATURE .....................1 SOFTWARE REQUIREMENT 2. M ECHANICAL ......................2 EYBOARD ECEIVER 3. E LECTRICAL EATURE 3.1 K ......................3 EYBOARD RANSMITTER 3.1.1 Operating voltage ..............................4 3.1.2 Current consumption..............................4 3.1.3 Power consumption..............................4 3.1.4 Low Power Indicator..............................4 3.2 R ..........................5 ECEIVER... -
Page 3: General
1. General SK-7260 is a 27 MHZ RF keyboard set, the product is composed of a wireless desk top PC keyboard and a PS2 receiver. The keyboard includes Standard function keys and several (option) easy access keys. General the receiver supports both keyboard and mouse function. There are only... -
Page 4: Mechanical Id
2. Mechanical ID Keyboard: Receiver : SK-7260 RF WIRELESS KEYBOARD Page No: 2 of 6... -
Page 5: Keyboard Transmitter
Low Power Indicator Low power indicator on the keyboard will be lit during hitting key when the battery voltage in the keyboard transmitter is less than about 2V. SK-7260 RF WIRELESS KEYBOARD Page No: 3 of 6... - Page 6 E0 2E E0 AE E0 21 E0 F0 21 EMail Reader E0 6C E0 EC E0 48 E0 F0 48 WWW Home E0 32 E0 B2 E0 3A E0 F0 3A SK-7260 RF WIRELESS KEYBOARD Page No: 4 of 6...
-
Page 7: Receiver
ON only when data is receiving from the transmitter. 3.3 Function description 3.3.1 Interface specification with host PC The keyboard Receiver uses IBM PS2 interface to PC host in data SK-7260 RF WIRELESS KEYBOARD Page No: 5 of 6... - Page 8 Channel: two channels including CH1 for keyboard(27.145mHZ) and CH2 For mouse (27.045mHz) ID: There has a randomly 256 ID from for selection. Note: The ID indication is to prevent from interfering each other. SK-7260 RF WIRELESS KEYBOARD Page No: 6 of 6...
-
Page 9: Note
The manufacturer is not responsible for any radio or TV Interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. End of SK-7260 User’s Manual SK-7260 RF WIRELESS KEYBOARD Page No: 7 of 6...
