3Com 3C16895 Installation Manual page 21

48-port 10/100/1000BASE-T Module

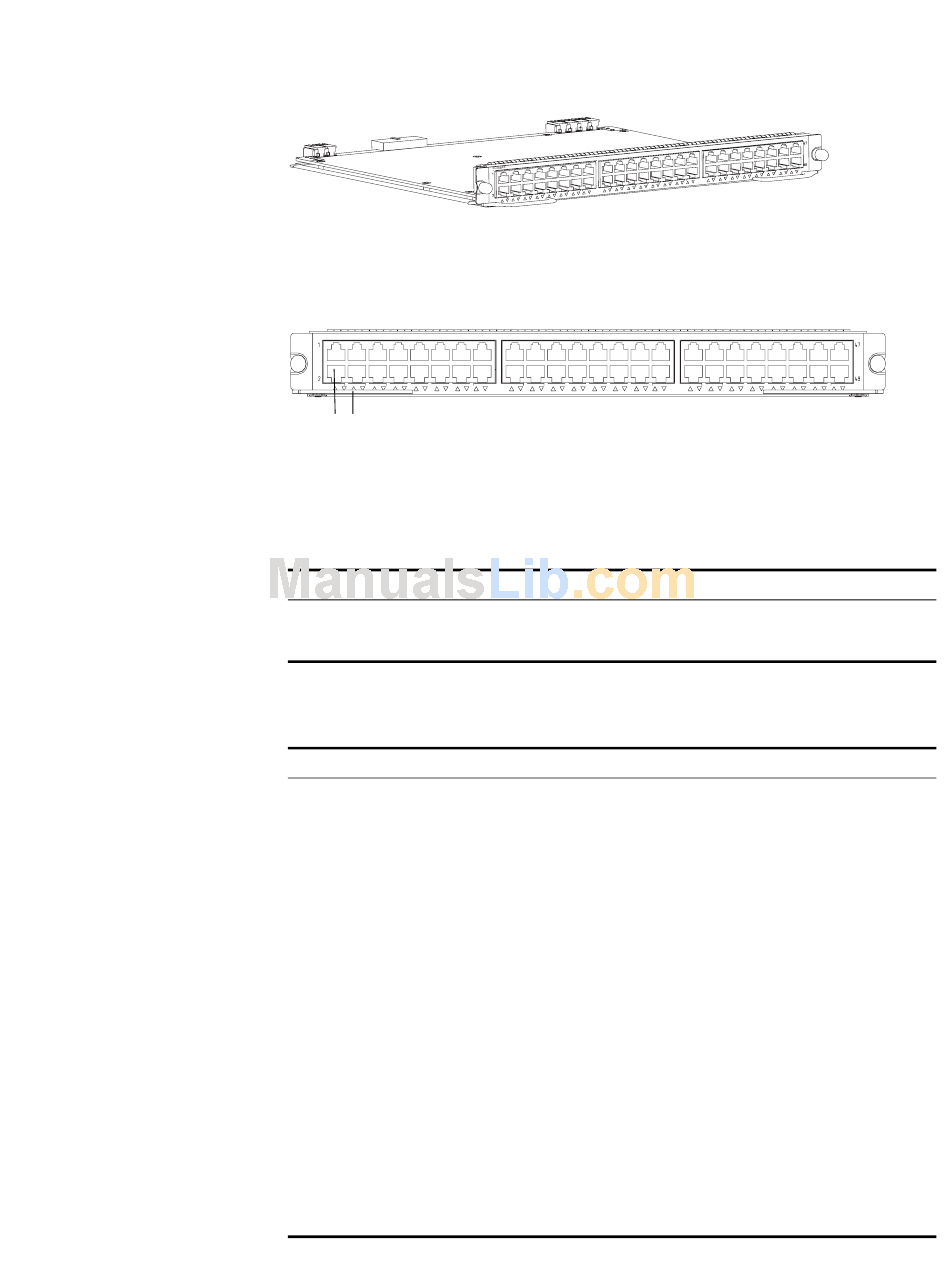

Figure 12
Figure 13 illustrates the front panel and LEDs of the 48-port 10/100/1000BASE-T
module.
Figure 13 Front Panel of the
3C16888
1 2
1 Ethernet port
2 Ethernet port LED
Table 23 describes the 48-port 10/100/1000BASE-T module LEDs.
Table 23 48-port 10/100/1000BASE-T Module LED
LED
LINK/ACT
Table 24 describes the specifications of the 48-port 10/100/1000BASE-T module.
Table 24 Specifications for the 48-port 10/100/1000BASE-T Module
Specification
CPU
BootROM
SDRAM
Dimensions (L X W)
Maximum power consumption
Connector
Number of ports
Port transmission speed
Cables and maximum
transmission distance
Compliance
48-port 10/100/1000BASE-T
Description
Green — The port is connected
Off — The port is not connected
Green flashing — Data is being transmitted
Description
MPC8241
512 KB
128 M
366.7 x 340 mm (14.4 x 13.4 in.)
70 W
RJ-45
48
10/100/1000 Mbps half-/full-duplex MDI/MDI-X
auto-sensing
Category 5 twisted pair with a maximum transmission
distance of 100 m (328 ft.)
1EEE 802.3ab
1EEE 802.3
1EEE 802.3u
1EEE 802.3x
1EEE 802.1p
1EEE 802.1D
1EEE 802.1Q
1EEE 802.1X
1EEE 802.1s
1EEE 802.1w
I/O Modules 21
Module
