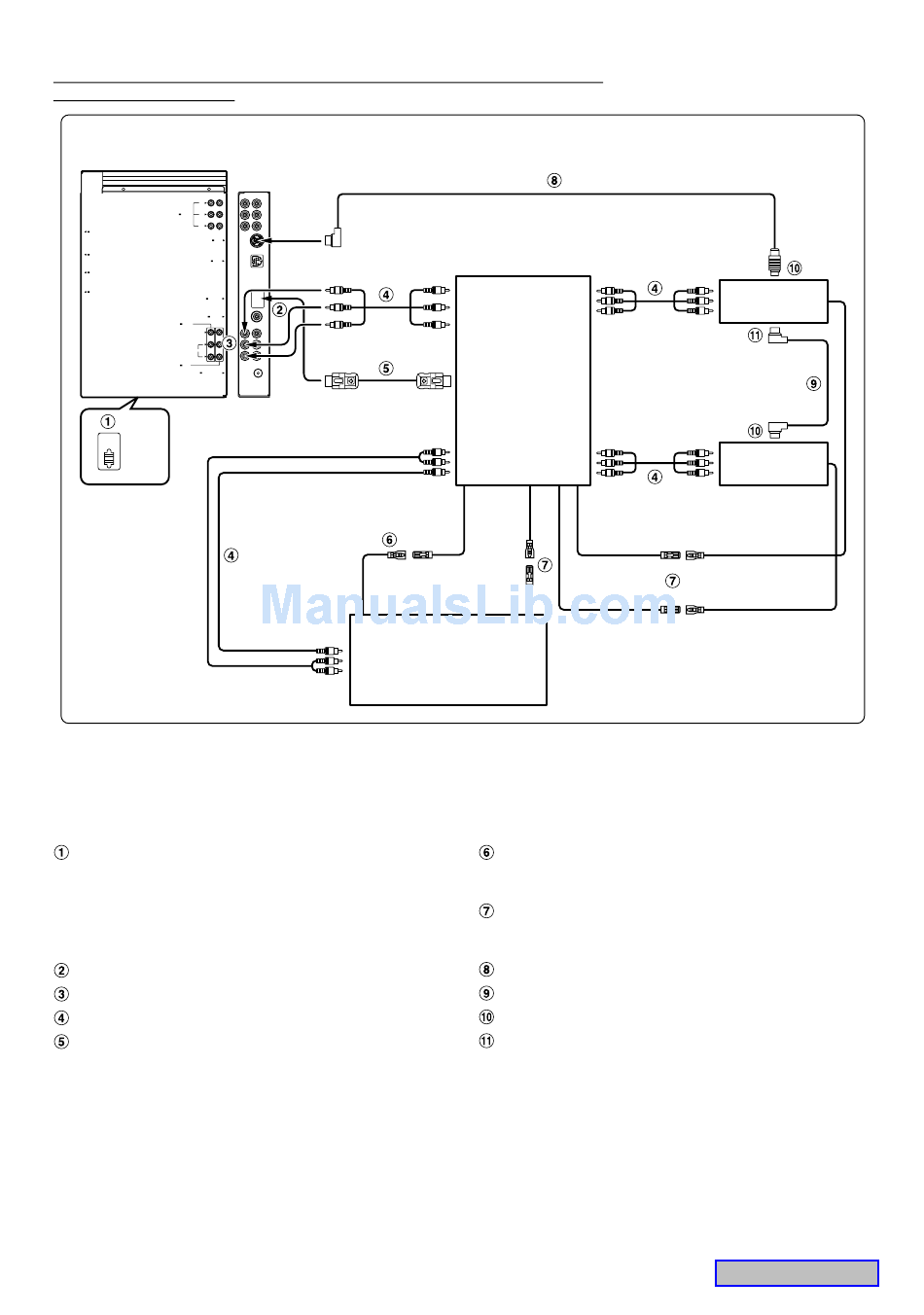

Connect an expansion box (VPE-S431), DVD Player, DVD Changer or the Touch
Panel-compatible Monitor.
IVA-D310R/IVA-D310RB
Tuner BOX
SUBW.
PRE IN/OUT REAR
FRONT
POWER SUPPLY
Ai-NET
REMOTE IN / OUT
EXT.OUT
NAVIGATION IN
DISPLAY OUT
AV SELECTOR
CAMERA IN
AUX OUT
VIDEO
L
AUDIO
R
AUX IN
RADIO ANTENNA IN
EQ/DIV
NORM
To Video Input
Terminals
To Audio Input
Terminals
• If the expansion box (VPE-S431) is connected to either a DVD video player or DVD changer, connect to AUX IN 1. If it is connected
to AUX IN 2, remote control operation will not be possible. If both are to be connected, connect the DVD video player to AUX IN 1,
and the DVD changer to AUX IN 2.
System Switch
When connecting an equalizer or divider using Ai-NET
feature, place this switch in the EQ/DIV position. When no
device is connected, leave the switch in the NORM position.
• Be sure to turn the power off to the unit before changing the
switch position.
To AV Selector Terminal
AUX Video/Audio Output Terminal
RCA Extension Cable (Sold separately)
AV Selector Cable (Included with VPE-S431)
To AUX Input (AUX IN 3)
Terminals
EXPANSION BOX
(VPE-S431)
(Sold separately)
To AUX Output
Terminals
M.CONT
(White/Pink)
REMOTE
IN
(White/Brown)
M.CONT
REMOTE OUT
(White/Pink)
(White/Brown)
TOUCH PANEL COMPATIBLE
REAR MONITOR
(Sold separately)
Monitor Control Lead (White/Pink)
Connect this to the Monitor Control Lead of the touch panel-
compatible rear monitor.
Remote Control Output Lead (White/Brown)
Connect this lead to the remote control input lead. This lead
outputs the controlling signals from the remote control.
Ai-NET Cable (Included with DVD video player)
Ai-NET Cable (Included with DVD changer)
To Ai-NET Connector (Black)
To Ai-NET Connector (Grey)
- 10 -
IVA-D310R/IVA-D310RB
To AUX Input (AUX IN 1)
Terminals
DVD PLAYER (DVA-5210,
etc.) (Sold separately)
To AUX Input (AUX IN 2)
Terminals
DVD CHANGER
(Sold separately)
REMOTE OUT (AUX1) REMOTE IN
(White/Brown) (White/Brown)
REMOTE IN
REMOTE OUT
(White/Brown)
(AUX2)
