QuickSpecs
Overview
Introduction
Introduction
Introduction
Introduction
The HP Compaq t5530 Thin Client delivers a great desktop experience for general office applications or your specific line of
business software. This unit's enhanced features make it ideal for mainstream business use, with support for legacy ports, ICA, RDP,
terminal emulation, Windows Media Player, and basic web browsing. The HP t5530 can provide convenient access to server-based
computing solutions, HP's Consolidated Client Infrastructure (CCI), or a variety of remote desktop solutions.

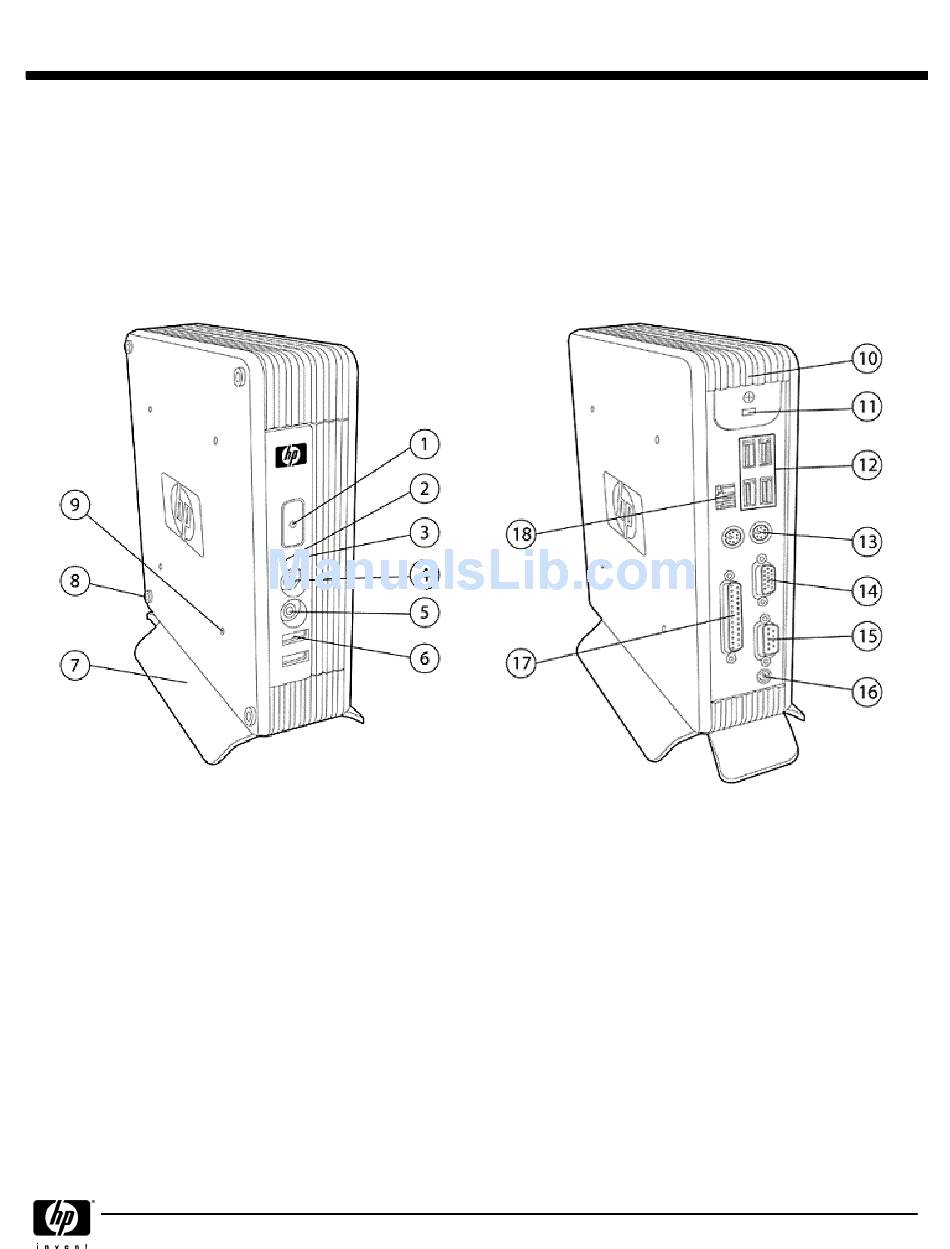

1. Power button
2. Flash activity indicator
3. Power on indicator
4. Audio connector (headphone out)
5. Audio connector (mic in)
6. USB connectors (2)
7. Vertical stand
8. Feet (4) for horizontal orientation
9. HP Quick Release mounting points (4)
DA - 12659
North America — Version 4 — April 5, 2007
HP Compaq t5530 Thin Client
HP Compaq t5530 Thin Client
HP Compaq t5530 Thin Client
HP Compaq t5530 Thin Client
10. Secure USB compartment
11. Kensington lock
12. USB connectors (4)
13. PS/2 connectors (2)
14. VGA connector
15. Serial port connector
16. +12V DC power input
17. Parallel port connector
18. 10/100 RJ-45
Page 1

Advertisement

loading

Related Manuals for HP Compaq t5530

Summary of Contents for HP Compaq t5530

  • Page 1 Introduction The HP Compaq t5530 Thin Client delivers a great desktop experience for general office applications or your specific line of business software. This unit's enhanced features make it ideal for mainstream business use, with support for legacy ports, ICA, RDP, terminal emulation, Windows Media Player, and basic web browsing.
  • Page 2 Included with each HP client! HP's exclusive, built-in HP ThinState Tools allow administrator to make changes to image or settings on one "master" client, capture the new image and settings on a USB flash drive or on the thin client itself, and then easily deploy it to "target" thin clients.
  • Page 3 QuickSpecs HP Compaq t5530 Thin Client HP Compaq t5530 Thin Client HP Compaq t5530 Thin Client HP Compaq t5530 Thin Client Models RK270AA#ABA RK270AA#ABA RK270AA#ABA RK270AA#ABA Model Name Model Name Model Name Model Name HP Compaq t5530 Thin Client Processor...
  • Page 4 On-Site Coverage – 3 Years 331655-001;U4849E Option available directly from third party. Service levels and response times for HP Care Packs may vary depending on your geographic location. Restrictions and limitations apply. For details, visit http://www.hp.com/go/carepack. DA - 12659 North America — Version 4 — April 5, 2007...

  • Page 5: Technical Specifications

    QuickSpecs HP Compaq t5530 Thin Client HP Compaq t5530 Thin Client HP Compaq t5530 Thin Client HP Compaq t5530 Thin Client Technical Specifications Processor Processor Processor Processor VIA Eden 800 MHz Chipsets Chipsets Chipsets Chipsets Northbridge: VIA CN700; Southbridge: VIA VT8237...
  • Page 6 Windows NT 4.0 Terminal Server Edition VMware Virtual Desktop Infrastructure using RDP Session Allocation Session Allocation Session Allocation Session Allocation HP PC Session Allocation Manager Software for HP's Consolidated Client Infrastructure, Citrix Desktop Managers/Session Managers/Session Managers/Session Managers/Session Broker for Virtual Desktop Infrastructure...
  • Page 7 RoHS Directive on a worldwide basis. From July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).
  • Page 8 Material Usage Material Usage This product does not contain any of the following substances in excess of Material Usage Material Usage regulatory limits (refer to the HP General Specification for the Environment at http://www.hp.com/hpinfo/globalcitizenship/environment/ supplychain/gen_specifications.html): Asbestos Certain Azo Colorants Certain Brominated Flame Retardants – may not be used as flame...
  • Page 9 HP products and services are set forth in the express limited warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
