Instruction Manual
D103374X012
Baumann™ 89000 Sanitary Control Valve
Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction
The Baumann 89000 sanitary control valve (figures 1 and 2) provides control solutions for sanitary and aseptic process
systems. These valves meet FDA and USP CLVI standards. They are designed to drain freely from inlet to outlet. In
sanitary and aseptic valve applications, the surface finish of all wetted parts is of the utmost importance and needs to
be free of pits and cracks. The Baumann 89000 series valves meet all of these requirements.
The 89000 control valve covers a wide range of applications in many industries including food and beverage,
biotechnology, pharmaceutical, and others where cleanliness and sterility are required. The valves are designed for
easy maintenance and all parts in contact with the media are made of corrosion resistant S31603 stainless steel.
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .

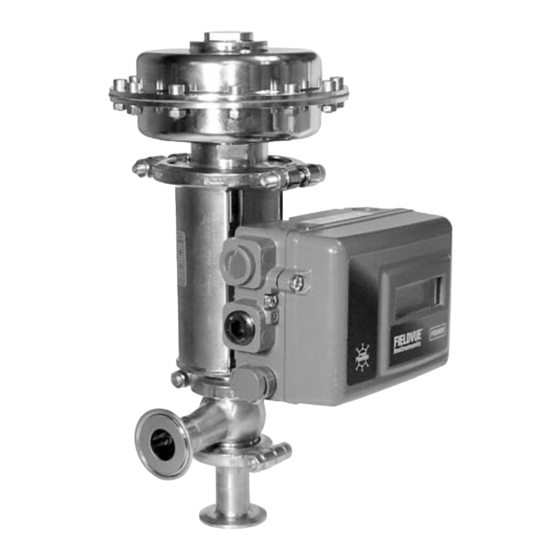

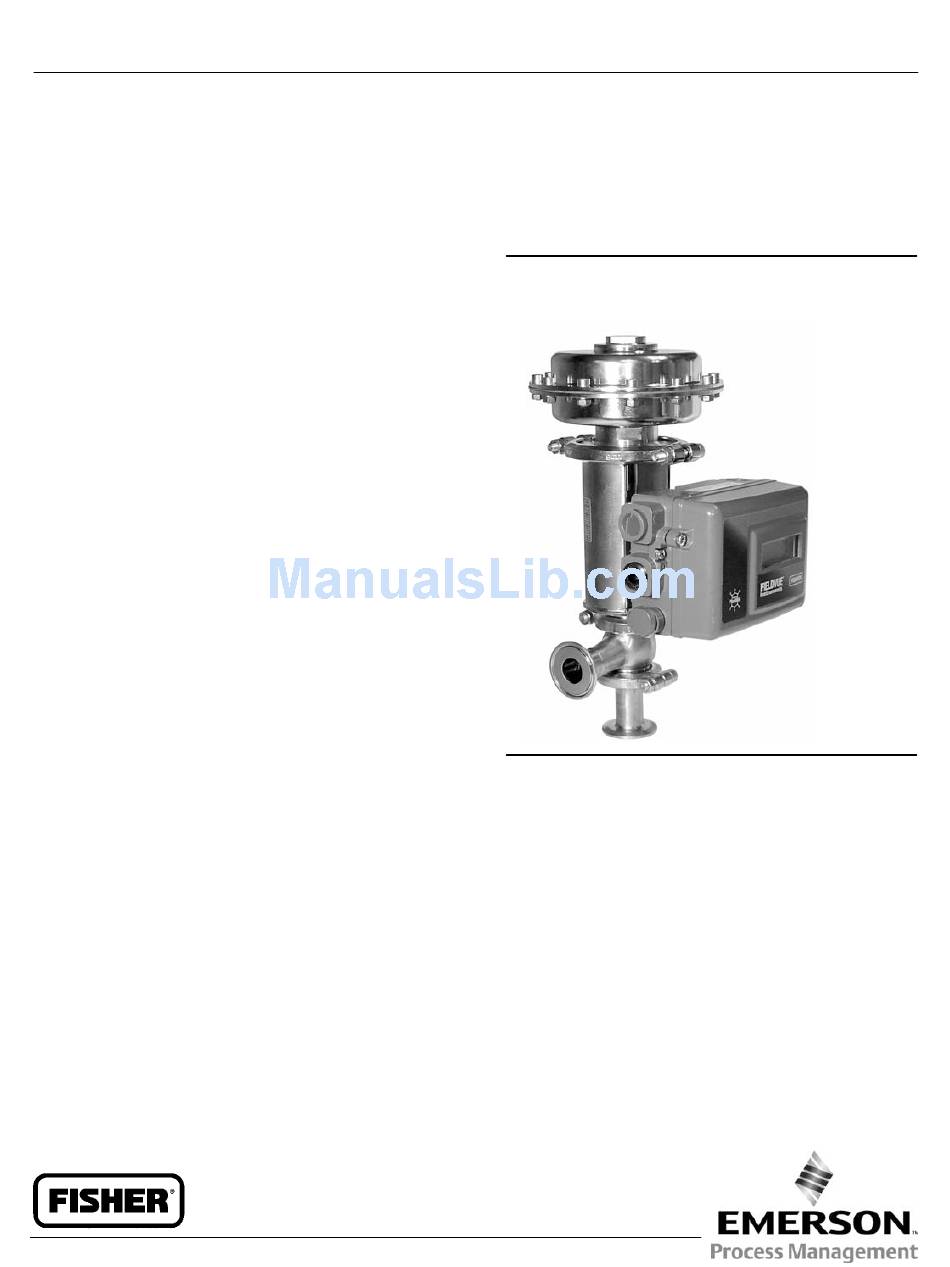

Figure 1. Baumann 89000 NPS 1/2 Sanitary Control
Valve Shown with FIELDVUE™ DVC2000 Digital Valve
2
Controller
2
2
3
4
4
5
5
6
6
7
8
9
W9850
89000 Valve
September 2015

Advertisement

Table of Contents
loading

Related Manuals for Emerson Baumann 89000

Summary of Contents for Emerson Baumann 89000

  • Page 1: Table Of Contents

    W9850 Introduction The Baumann 89000 sanitary control valve (figures 1 and 2) provides control solutions for sanitary and aseptic process systems. These valves meet FDA and USP CLVI standards. They are designed to drain freely from inlet to outlet. In sanitary and aseptic valve applications, the surface finish of all wetted parts is of the utmost importance and needs to be free of pits and cracks.

  • Page 2: Introduction

    This instruction manual includes installation, maintenance, and parts information for the Baumann 89000 series sanitary control valve. Do not install, operate, or maintain Baumann 89000 control valves without being fully trained and qualified in valve, actuator, and accessory installation, operation, and maintenance. To avoid personal injury or property damage, it is important to carefully read, understand, and follow all the contents of this manual, including all safety cautions and warnings.

  • Page 3: Safety Precautions

    Do not expose this product to service conditions or variables other than those for which the product was intended. If you are not sure what these conditions are you should contact your Emerson Process Management sales office for more complete specifications.

  • Page 4: Maintenance

    2. Install the valve so the controlled fluid will flow through the valve body in the direction indicated. If you are not sure, reference Baumann bulletin 51.2:89SV, D103346X012 or contact your Emerson Process Management sales office. 3. A three-valve bypass must be used to permit removal of the control valve from the line without shutting down the system.

  • Page 5: Air Piping

    Instruction Manual 89000 Valve D103374X012 September 2015 Air Piping 1. For an air-to-extend actuator (air-to-close action), connect the actuating air pressure line to the 1/4 NPT opening in the upper diaphragm case. For an air-to-retract actuator (air-to-open action) connect the actuating air pressure line to the 1/4 NPT in the lower diaphragm case.

  • Page 6: Replacing O-Ring Seals

    Instruction Manual 89000 Valve September 2015 D103374X012 4. Carefully remove the actuator from the valve. Valve Body Disassembly 89000A, Angle Valve Body 1. After removal of the actuator (key 2), the bonnet (key 10) should be visible. Slide the bonnet (key 10) out of the valve body assembly and off of the plug and stem (key 12).

  • Page 7: Parts Ordering

    WARNING Use only genuine Fisherr replacement parts. Components that are not supplied by Emerson Process Management should not, under any circumstances, be used in any Fisher valve, because they may void your warranty, might adversely affect the performance of the valve, and could cause personal injury and property damage.

  • Page 8: Parts Kits

    Instruction Manual 89000 Valve September 2015 D103374X012 Figure 5. Baumann 89000 Valve Body Spare Parts Parts Kits Table 2. Baumann 89000 Valve Kits Valve Body Valve Seat & O­Ring Kit O­Ring Kit FFKM Capacity (Cv) Type Plug EPDM (Perfluoroelastomer) 0.29...

  • Page 9: Dimensions

    5.12 20.9 20.4 10.6 10.3 148.15 5.83 135.45 5.33 142.7 5.12 20.9 20.4 10.6 10.3 142.70 5.62 130.00 5.12 155.9 5.50 21.7 21.1 10.6 10.3 155.90 6.14 150.00 5.91 Contact your Emerson Process Management sales office for NPS 6 availability.
  • Page 10 3.54 1.89 2.91 18.3 1-1/2 102.7 3.54 1.89 2.91 10.6 18.3 112.7 3.94 2.20 3.35 10.6 19.2 147.7 5.12 3.07 4.57 10.6 22.9 1553.9 5.50 3.39 5.35 10.6 24.3 Contact your Emerson Process Management sales office for NPS 6 availability.
  • Page 11 Instruction Manual 89000 Valve D103374X012 September 2015...

  • Page 12: Www.fisher.com

    Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user. Baumann, Fisher, and FIELDVUE are marks owned by one of the companies in the Emerson Process Management business unit of Emerson Electric Co.
