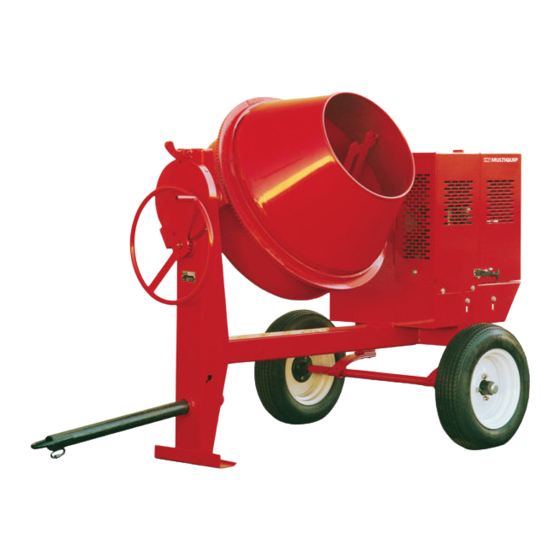

OPERATION AND PARTS MANUAL
MODELS
MC94S
MC94P
CONCRETE MIXERS
Revision #8 (03/06/09)
To find the latest revision of this
publication, visit our website at:
www.multiquip.com
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

Advertisement

Table of Contents
loading

Related Manuals for MULTIQUIP MC94S

Summary of Contents for MULTIQUIP MC94S

  • Page 1 OPERATION AND PARTS MANUAL MODELS MC94S MC94P CONCRETE MIXERS Revision #8 (03/06/09) To find the latest revision of this publication, visit our website at: www.multiquip.com THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
  • Page 2 MC94P/S CONCRETE MIXER — SUGGESTED SPARE PARTS MC94P/S CONCRETE MIXERS 1 TO 3 UNITS WITH HONDA GX240K1QA2 ENGINE Qty..P/N ...... Description 1 ..493399 ....V-BELT w/GAS ENGINE Part numbers on this Suggested 1 ..502212 ....V-BELT w/ELECTRIC MOTOR Spare Parts List may supercede/ NOTE 1 ..

  • Page 3: Nameplate And Decals

    MC94P/S CONCRETE MIXER — NAME PLATE AND DECALS NAME PLATE AND DECALS PAGE 34 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)
  • Page 4 MC94P/S CONCRETE MIXER— NAME PLATE AND DECALS NAME PLATE AND DECALS PART NO PART NAME QTY. REMARKS 512910 MQ MULTIQUIP LOGO CIPDCL160 DECAL, CRUSH WARNING 504713 DECAL, SAFETY INSTRUCTIONS EM948630 DECAL, EMERGENCY STOP DCL151 DECAL, TOWING INSTRUCTIONS 35137 DECAL, WARNING READ...
  • Page 5 MC94P/S — PLASTIC BARREL PLASTIC BARREL ASSY. PAGE 36 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)
  • Page 6 MC94P/S — PLASTIC BARREL PLASTIC BARREL ASSY. PART NO PART NAME QTY. REMARK 514061 RING GEAR EM969013 NUT, LOCK 3/8” NC 508492 BARREL, PLASTIC 9 CU. FT. 505390 PLUG, EXPANSION 508491 KING PIN 510955 SPINDLE BEARING CONE 510956 SPINDLE BEARING CUP 514930 SUPPORT SPIDER 511758...
  • Page 7 MC94P/S — STEEL BARREL STEEL BARREL ASSY. PAGE 38 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)
  • Page 8 MC94P/S — STEEL BARREL STEEL BARREL ASSY. PART NO PART NAME QTY. REMARK 505390 PLUG, EXPANSION 505469 KING PIN 510955 SPINDLE BEARING CONE 510956 SPINDLE BEARING CUP 514061 RING GEAR EM9633057 BOLT 3/8" NC 1-1/2" G5 505473 BARREL, STEEL 9 CU. FT. 511732 SHIM 0.25 THICK 511729...

  • Page 9: Main Frame Assy

    MC94P/S — MAIN FRAME ASSEMBLY MAIN FRAME ASSY. PAGE 40 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)
  • Page 10 MC94P/S — MAIN FRAME ASSEMBLY MAIN FRAME ASSY. PART NO PART NAME QTY. REMARK 514245 GUARD, GEAR WHEEL 492621 WASHER, LOCK 1/4" 492278 ROUND HEAD BOLT 1/4" NC 3/8 G2" 514692 DUMP GEAR 492584 NUT, LOCK 1/2" NC 490895 DUMP LATCH 492395 BOLT 1/2"...
  • Page 11 MC94P/S — AXLE ASSEMBLY AXLE ASSY. PAGE 42 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)
  • Page 12 MC94P/S — AXLE ASSEMBLY AXLE ASSY. PART NO PART NAME QTY. REMARK 492397 BOLT 1/2" NC 2-1/2" G5 EM969023 LOCK NUT 5/8" NC 501030 SPRING SUPPORT 4922406 BOLT 5/8" NC 1-1/2" G5 492589 NUT 1/2" NF 491928 SPRING LEAF 492584 NUT, HEX 1/2"...
  • Page 13 MC94P/S — CABINET ASSEMBLY CABINET ASSY. PAGE 44 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)
  • Page 14 MC94P/S — CABINET ASSEMBLY CABINET ASSY. PART NO PART NAME QTY. REMARKS 490202 RUBBER PROTECTOR 514694 CABINET ENGINE ASSY. W/DECALS ....1 ..... INCLUDES ITEM W/ 492375 BOLT 3/8" NC X 1" G5 EM923023 WASHER, FLAT 5/16" 13287 LOCK NUT 8-32 ............6 ..... REPLACEMENT PART ONLY 2203 WASHER, FLAT #10 ..........
  • Page 15 MC94P/S — GAS ENGINE MOUNTING PLATE ASSEMBLY GAS ENGINE MOUNTING PLATE ASSY. PAGE 46 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)
  • Page 16 MC94P/S — GAS ENGINE MOUNTING PLATE ASSEMBLY GAS ENGINE MOUNTING PLATE ASSY. PART NO PART NAME QTY. REMARKS GX240K1QA2 ENGINE, HONDA 8.0 HP 490956 SNAP RING 500275 SQUARE KEY 1/4 X 40 MM 492476 SET SCREW 5/16" NC X 3/4" 514060 UPPER PULLEY 90745ZE2600...
  • Page 17 MC94P/S — ELECTRIC MOTOR MOUNTING PLATE ASSEMBLY ELECTRIC MOTOR MOUNTING PLATE ASSY. PAGE 48 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)
  • Page 18 MC94P/S — ELECTRIC MOTOR MOUNTING PLATE ASSEMBLY ELECTRIC MOTOR MOUNTING PLATE ASSY. PART NO PART NAME QTY. REMARKS P145K17DB45A MOTOR, ELECTRIC 1.5 HP 490960 SNAP RING 500275 SQUARE KEY 1/4" X 40 MM 492476 SET SCREW 5/16" NC X 3/4" 514060 UPPER PULLEY 500169...
  • Page 19 HONDA GX240K1QA2 ENGINE — AIR CLEANER ASSY. AIR CLEANER ASSY. PAGE 50 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)

  • Page 20: Air Cleaner Assy

    HONDA GX240K1QA2 ENGINE — AIR CLEANER ASSY. AIR CLEANER ASSY. PART NO. PART NAME QTY. REMARKS 16271ZE2000 GASKET, ELBOW 17210ZE2515 ELEMENT, AIR CLEANER, DUAL ....1..... INCLUDES ITEM W/ 17218ZE2505 FILTER, OUTER 17231ZH9820 COVER, AIR CLEANER 17232891000 GROMMET, AIR CLEANER 17238ZE2310 COLLAR, AIR CLEANER 17239ZE1000...
  • Page 21 HONDA GX240K1QA2 ENGINE — CAMSHAFT ASSY. CAMSHAFT ASSY. PAGE 52 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)

  • Page 22: Camshaft Assy

    HONDA GX240K1QA2 ENGINE — CAMSHAFT ASSY. CAMSHAFT ASSY. PART NO. PART NAME QTY. REMARKS 14100ZE2W01 CAMSHAFT ASSY........1 ..... INCLUDES ITEM W/ 14100ZE2306 CAMSHAFT 14410ZE2013 ROD PUSH 14431ZE2010 ARM VALVE ROCKER 14441ZE2000 LIFTER VALVE 14451ZE1013 PIVOT ROCKER ARM 14568ZE1000 SPRING, WEIGHT RETURN 14711ZE2000 VALVE, IN.
  • Page 23 HONDA GX240K1QA2 ENGINE — CARBURETOR ASSY. CARBURETOR ASSY. PAGE 54 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)

  • Page 24: Carburetor Assy

    HONDA GX240K1QA2 ENGINE — CARBURETOR ASSY. CARBURETOR ASSY. PART NO. PART NAME QTY. REMARKS 16010ZE2812 GASKET SET 16011ZA0931 VALVE SET, FLOAT 16013ZA0931 FLOAT SET 16016ZHW01 SCREW SET 16024ZE1811 SCREW SET, DRAIN 16028ZE0005 SCREW SET B 16028ZE2005 CHOKE SET 16100ZE2W71 CARBURETOR ASSY....1 ..INCLUDES ITEMS W/ 16124ZE0005 SCREW, THROTTLE STOP 16166ZE2W70...
  • Page 25 HONDA GX240K1QA2 ENGINE — CONTROL ASSY. CONTROL ASSY. PAGE 56 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)

  • Page 26: Control Assy

    HONDA GX240K1QA2 ENGINE — CONTROL ASSY. CONTROL ASSY. PART NO. PART NAME QTY. REMARKS 16551ZE2000 ARM, GOVERNOR 16555ZE2000 ROD, GOVERNOR 16561ZE2000 SPRING, GOVERNOR 16562ZE2000 SPRING, THROTTLE RETURN 16570ZE2W20 CONTROL ASSEMBLY ........ 1 ..INCLUDES ITEMS W/ 16571ZE2W00 LEVER, CONTROL 16574ZE1000 SPRING, LEVER 16575ZE2W00 WASHER, CONTROL LEVER...

  • Page 27: Crankcase Cover Assy

    HONDA GX240K1QA2 ENGINE — CRANKCASE COVER ASSY. CRANKCASE COVER ASSY. PAGE 58 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)
  • Page 28 HONDA GX240K1QA2 ENGINE — CRANKCASE COVER ASSY. CRANKCASE COVER ASSY. PART NO. PART NAME QTY. REMARKS 11400ZE2601 COVER ASSY., CRANKCASE ..... 1... INCLUDES ITEMS W/ (Q- TYPE) (BALANCER) 11381ZE2801 GASKET, CASE COVER 15600ZG4003 CAP ASSY., OIL FILLER ......1... INCLUDES ITEMS W/ 15600735003 CAP ASSY., OIL FILLER ......
  • Page 29 HONDA GX240K1QA2ENGINE — CRANKSHAFT ASSY. CRANKSHAFT ASSY. PAGE 60 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)

  • Page 30: Crankshaft Assy

    HONDA GX240K1QA2 ENGINE — CRANKSHAFT ASSY. CRANKSHAFT ASSY. PART NO. PART NAME QTY. REMARKS 13320ZE2601 CRANKSHAFT (Q- TYPE) ......1 ..INCLUDES ITEM W/ 13351ZE2010 WEIGHT BALANCER 90745ZE2600 KEY 6.3 X 6.3 X 43 MM 961006206000 BEARING, RADIAL BALL (6206) MC94P/S CONCRETE MIXERS —...

  • Page 31: Cylinder Barrel Assy

    HONDA GX240K1QA2 ENGINE — CYLINDER BARREL ASSY. CYLINDER BARREL ASSY. PAGE 62 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)
  • Page 32 HONDA GX240K1QA2 ENGINE — CYLINDER BARREL ASSY. CYLINDER BARREL ASSY. PART NO. PART NAME QTY. REMARKS 12000ZE2834 CYLINDER ASSY., BALANCER + OIL ALERT ..1 ..INCLUDES ITEMS W/ 15510ZE2043 SWITCH ASSY., OIL LEVEL 16541ZE2010 SHAFT, GOVERNOR ARM 90131896650 BOLT, DRAIN PLUG 90446KE1000 WASHER 8.2 X17X0.8 91201890003...
  • Page 33 HONDA GX240K1QA2 ENGINE — CYLINDER HEAD ASSY. CYLINDER HEAD ASSY. PAGE 64 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)

  • Page 34: Cylinder Head Assy

    HONDA GX240K1QA2 ENGINE — CYLINDER HEAD ASSY. CYLINDER HEAD ASSY. PART NO. PART NAME QTY. REMARKS 12200ZH9000 CYLINDER HEAD COMP........1 ..INCLUDES ITEMS W/ 12204ZE2306 GUIDE, VALVE, OS, OPTIONAL 12205ZE2305 GUIDE, EX. VALVE, OS, OPTIONAL 12216ZE2300 CLIP, VALVE GUIDE 12251ZE2800 GASKET, CYLINDER HEAD 12310ZE2020...
  • Page 35 HONDA GX240K1QA2 ENGINE — FAN COVER ASSY. FAN COVER ASSY. PAGE 66 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)

  • Page 36: Fan Cover Assy

    HONDA GX240K1QA2 ENGINE — FAN COVER ASSY. FAN COVER ASSY. PART NO. PART NAME QTY. REMARKS 16731ZE2003 CLIP, TUBE 19610ZE2010ZC COVER COMP., FAN *NH1* BLACK 19631ZE2D00 SHROUD 32197ZH8003 SUB-HARNESS 36100ZE1015 SWITCH ASSY., ENGINE STOP 90013883000 BOLT, FLANGE 6X12, CT200 90684ZA0601 CLIP, WIRE HARNESS MC94P/S CONCRETE MIXERS —...
  • Page 37 HONDA GX240K1QA2 ENGINE — FLYWHEEL ASSY. FLYWHEEL ASSY. PAGE 68 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)

  • Page 38: Flywheel Assy

    HONDA GX240K1QA2 ENGINE — FLYWHEEL ASSY. FLYWHEEL ASSY. PART NO. PART NAME QTY. REMARKS 19511ZE2000 FAN, COOLING 28450ZE2W11 PULLEY COMP., STARTER, SCREEN GRID 31100ZE2010 FLYWHEEL COMP. 90201ZE3V00 NUT, SPECIAL 16MM 90741ZE2000 KEY, SPECIAL WOODRUFF 25X18 MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09) — PAGE 69...

  • Page 39: Muffler Assy

    HONDA GX240K1QA2 ENGINE — MUFFLER ASSY. MUFFLER ASSY. PAGE 70 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)
  • Page 40 HONDA GX240K1QA2 ENGINE — MUFFLER ASSY. MUFFLER ASSY. PART NO. PART NAME QTY. REMARKS 18310ZE2W00 MUFFLER 18320ZE2W01 PROTECTOR, MUFFLER 18323ZE2W00 PROTECTOR, EX. PIPE 18330ZE2W00 PIPE, EX. 18331ZE2810 CAP, MUFFLER 18333ZK6Y00 GASKET, EX. PIPE 18355ZE2010 ARRESTER, SPARK 18381ZE2W10 GASKET, MUFFLER (ARRESTER) 18381ZE2800 GASKET, MUFFLER 90013883000...
  • Page 41 HONDA GX240K1QA2 ENGINE — FUEL TANK ASSY. FUEL TANK ASSY. PAGE 72 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)

  • Page 42: Fuel Tank Assy

    HONDA GX240K1QA2 ENGINE — FUEL TANK ASSY. FUEL TANK ASSY. PART NO. PART NAME QTY. REMARKS 16854ZH8000 RUBBER SUPPORTER 107MM 16955ZE1000 JOINT, FUEL TANK 17510ZE2010ZD TANK COMP., FUEL *NH1*, BLACK 17620ZH7023 CAP COMP., FUEL FILLER ........1 ..INCLUDES ITEMS W/ 17631ZH7003 GASKET, FUEL FILLER CAP 17672ZE2W01...
  • Page 43 HONDA GX240K1QA2 ENGINE — IGNITION ASSY. IGNITION COIL ASSY. PAGE 74 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)
  • Page 44 HONDA GX240K1QA2 ENGINE — IGNITION ASSY. IGNITION COIL ASSY. PART NO. PART NAME QTY. REMARKS 30500ZF6W02 COIL ASSY., IGNITION 30700ZE1013 CAP ASSY., NOISE SUPPRESSOR 31512ZE2000 GROMMET, WIRE 36101ZE1010 WIRE, STOP SWITCH 370MM 90015883000 BOLT, FLANGE 6X28 MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09) — PAGE 75...

  • Page 45: Piston Assy

    HONDA GX240K1QA2 ENGINE — PISTON ASSY. PISTON ASSY. PAGE 76 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)
  • Page 46 HONDA GX240K1QA2 ENGINE — PISTON ASSY. PISTON ASSY. PART NO. PART NAME QTY. REMARKS 13010ZE2013 RING SET, PISTON, STD. 13011ZE2013 RING SET, PISTON, OS 0.25, OPTIONAL 13012ZE2013 RING SET, PISTON, OS 0.50, OPTIONAL 13013ZE2013 RING SET, PISTON, 0.75, OPTIONAL 13101ZE2W00 PISTON, STANDARD 13102ZE2W00 PISTON, OS 0.25, OPTIONAL...
  • Page 47 HONDA GX240K1QA2 ENGINE — RECOIL STARTER ASSY. RECOIL STARTER ASSY. PAGE 78 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)

  • Page 48: Recoil Starter Assy

    HONDA GX240K1QA2 ENGINE — RECOIL STARTER ASSY. RECOIL STARTER ASSY. PART NO. PART NAME QTY. REMARKS 28400ZE2W01ZB STARTER ASSY., RECOIL *NH1*, BLK ....1 ..INCLUDES ITEMS W/ 28410ZE2W01ZB CASE COMP., RECOIL STARTER *NH1*, BLK 28421ZE2W01 PULLEY, RECOIL STARTER 28422ZE2W01 RATCHET, STARTER 28441ZE2W01 SPRING, FRICTION...
