IBM eServer System x and BladeCenter
IBM UPS3000
2700 Watt/3000 VA UPS
October 2007
© 2007 IBM Corporation

Advertisement

Table of Contents
loading

Related Manuals for IBM UPS3000

Summary of Contents for IBM UPS3000

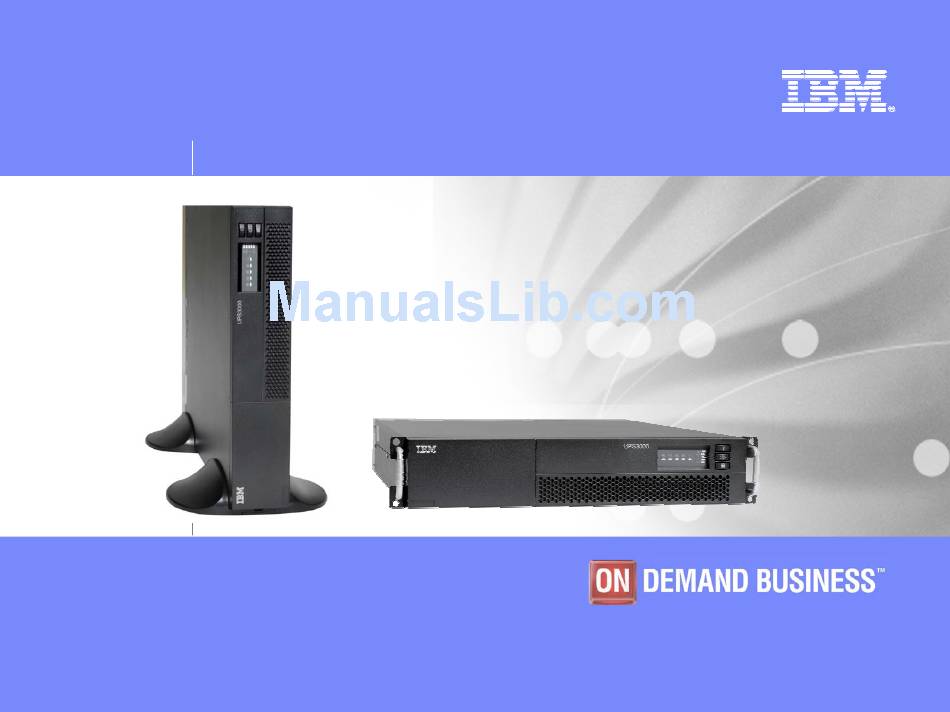

  • Page 1 IBM eServer System x and BladeCenter IBM UPS3000 2700 Watt/3000 VA UPS October 2007 © 2007 IBM Corporation...

  • Page 2: System X Options Program

    IBM System x – UPS3000 Training System x Options Program Increase system reliability. Always include power protection and distributed power UPS and PDU are designed and tested for compatibility to ensure out-of-box usability Available from System x Options group © 2003 IBM Corporation October 2007 ©...

  • Page 3: Ups Market Overview

    IBM System x – UPS3000 Training UPS Market Overview Technology Trends Market Environment Move to rackable products is UPSs need to be competitively speeding up priced and positioned- they are Trend toward dense packaging to becoming standard options with optimize computing power per square server rack sales.

  • Page 4: Understanding Power Terms

    IBM System x – UPS3000 Training Understanding Power Terms 110V • Wattage - a measurement of real power (bucket) • Amps - measurement of the rate of current flow (flow) • Voltage - definition of the capacity (pipe) x306 •...

  • Page 5: Single-Phase Vs. Three-Phase

    IBM System x – UPS3000 Training Single-phase vs. Three-Phase Single Phase Three Phase Signal Single electrical signal between two wires Three electrical signals between three wires Output Single phase Three phase Typically used within a facility, often at point of...
  • Page 6 IBM System x – UPS3000 Training Volt-Amps and Watts: Apparent Power and Real Power While UPSs are generally measured in VA . . . CURRENT Apparent Power 16.67ms. Real Power TIME VOLTAGE . . . The true output power of a UPS is...
  • Page 7 • Long enough to operate required loads before a generator comes on-line • Provides clean and regulated power to electronic devices New UPS3000 shown in rackmount and tower configuration. 1. Frost and Sullivan 2004 World UPS Markets Report © 2003 IBM Corporation October 2007 ©...

  • Page 8: Cost Of Downtime

    IBM System x – UPS3000 Training Why a UPS? Cost of Downtime The power grid typically provides only about 99.9% reliability • In other words, almost 9 hours of downtime per year! • The total cost to the US of power interruptions is $80B annually •...

  • Page 9: Things To Consider When Choosing Power Backup

    IBM System x – UPS3000 Training Things to consider when choosing power backup 1. How critical is the load? Different UPS technologies offer different protection 2. Power requirement in both Watt and VA? As many of today’s servers use power factor corrected supplies, it is important to look at both Watt and VA power needs to avoid over sizing.

  • Page 10: Executive Summary

    IBM System x – UPS3000 Training Executive Summary Announce date: April 25, 2006 GA Date: shipping Market Positioning An easy to install, highly dense Uninterruptible Power Supply. Designed to protect your valuable system and it’s data from unexpected utility power failures and irregularities.

  • Page 11: Ibm Ups Offerings

    IBM System x – UPS3000 Training IBM UPS Offerings Tower Models Tower Models Rack Models Rack Models Features Features 750 VA 750 VA 1000 VA 1000 VA 1500 VA 1500 VA 3000 VA 3000 VA 7500 VA 7500 VA 10000 VA...

  • Page 12: Competitive Positioning

    Dell POWERWARE PW5125 2880 VA Two-in-One UPS System ($1,064.07) IBM Strength IBM Strength SNMP / Serial Port Card is included with IBM UPS – HP offers as an option ($292 web price) and a Six Port Card RoHS compliant ($223 web price)

  • Page 13: Competitive Specifications

    IBM System x – UPS3000 Training Competitive Specifications Specifications UPS3000 HP UPS R3000 XR Dell POWERWARE PW5125 VA Rating 3000 3000 2880 Watts 2700 2700 2700 Form Factor Outlets 9 IEC + 1 PDU 9 IEC + 1 PDU 7 IEC + 1PDU...

  • Page 14: Ups3000 Summary

    IBM System x – UPS3000 Training UPS3000 Summary UPS3000 is the continuation of IBM and Eaton’s commitment to delivering innovative technology Combines high reliability, availability and serviceability (RAS) in a small footprint with cost-effective ownership Developed for the global market place Meets the uptime demands of a 24/7 world ©...
  • Page 15 IBM System x – UPS3000 Training User-Friendly Front Display Off/Standby 2 3 4 Test/Alarm reset Load level LEDs 1. General Alarm 3. Bad Battery/Low Battery 5. Utility LED 2. On Battery 4. Site Wiring Fault Indicator © 2003 IBM Corporation October 2007 ©...

  • Page 16: Ibm Ups3000 Specs Compared To Predecessor

    IBM System x – UPS3000 Training IBM UPS3000 Specs Compared to Predecessor Feature/Function Existing 21302RX Big Hitters: 3000 (Warbler) Replaces Current 3000VA unit Form Factor Its integration with Director opens Watts Delivered 2850W 2700 up the suite of remote power...

  • Page 17: Key Marketing Messages

    ® Advanced Battery Management (ABM ) technology doubles battery service life Pre-configured design guarantees out-of-box usability with multiple IBM servers High power 2700 Watt capacity supports multiple devices Optional Extended Battery Module (EBMs) prolong battery runtime Integrated with IBM Director...

  • Page 18: Configuration Option

    Two-in-One Form Factor allows greater versatility for end users, as units can be used in either tower or compact rackmount configurations for standard 19- inch equipment racks The IBM UPS3000 converts easily between rack and tower configurations. © 2003 IBM Corporation October 2007 ©...

  • Page 19: Extended Battery Modules

    IBM System x – UPS3000 Training Extended Battery Modules • Add EBMs to extend backup time • In rack-mount configurations, each EBM occupies only 2U or 3U of rack space • Add EBMs in battery strings to add configuration flexibility and minimize floor space •...

  • Page 20: Hot-Swappable Components

    IBM System x – UPS3000 Training Hot-Swappable Components Modular design • ease of service • high availability • faster mean time to repair Automatic bypass: • allows you to continue working even while you’re hot-swapping the modules Electronics • manual bypass also...
  • Page 21 IBM System x – UPS3000 Training 21301RX Rear Panel 110-127 Vac model Web/SNMP Card L5-30 Receptacle REPO Port 5-15 Circuit L5-30 Receptacles Breakers Receptacle Battery Connector © 2003 IBM Corporation October 2007 © 2007 IBM Corporation...
  • Page 22 IBM System x – UPS3000 Training 2130JRX Rear Panel 100 Vac model Web/SNMP Card L5-30 Receptacle REPO Port 5-15 Circuit L5-30 Receptacles Breakers Receptacle Battery Connector © 2003 IBM Corporation October 2007 © 2007 IBM Corporation...
  • Page 23 IBM System x – UPS3000 Training 21302RX Rear Panel 200-240 Vac model Web/SNMP Card IEC-320-C20 Input Connector REPO Port IEC-320-C19 IEC-320-C13 Circuit Receptacle Receptacles Breakers Battery Connector © 2003 IBM Corporation October 2007 © 2007 IBM Corporation...
  • Page 24 IBM System x – UPS3000 Training 21302JX Rear Panel 200 Vac model Web/SNMP Card IEC-320-C20 Input Connector REPO Port IEC-320-C19 IEC-320-C13 Circuit Receptacle Receptacles Breakers Battery Connector © 2003 IBM Corporation October 2007 © 2007 IBM Corporation...

  • Page 25: Kit Concept

    IBM System x – UPS3000 Training Kit Concept All UPS models are kitted in one SKU w/ the following: – User’s Guide and manuals – Tower pedestals Tower pedestals – Rack rail kit – Mounting hardware – Software CD and serial cable Rack rails –...

  • Page 26: Transition And Planning

    IBM System x – UPS3000 Training Transition and Planning 21301RX – Replaces 2130R30 (APC IBM UPS3000 XLV) Transition to the new UPS – Used WW for better attach rate, – Operates from 100-127V better feature set, and 21302RX better customer satisfaction than –...

  • Page 27: Transition And Planning (Japan)

    IBM System x – UPS3000 Training Transition and Planning (Japan) 21301JX Transition to the new UPS – Replaces 2130R30 (APC IBM UPS3000 XLV) for better attach rate, better feature set, and – Used Japan better customer – Operates from 100-127V...

  • Page 28: Ibm Ups3000 Base Model Specifications

    4 units 90 minutes IBM Director Integrated? Standard Software Included Full suite of easy to use management software- LanSafe for IBM OS Support Windows, Linux RedHat 7.2, and NetWare 6.0 Warranty 3 year parts and labor © 2003 IBM Corporation October 2007 ©...

  • Page 29: Customer Profile

    IBM System x – UPS3000 Training Customer Profile Primary Market Key User User Characteristics Solution Applications / Usages Requirements Environment Large Enterprise - Cost Optimization Flexibility to grow Task Specific PDC/BDC Constrained Data rack environment or Applications Rack optimized Caching...

  • Page 30: Feature/Function/Benefit Chart

    Same great warranty, 3yr parts and labor warranty The IBM unit comes standard with a 3 yr If a problem ever comes up, IBM is there to service and support warranty- far outpacing competitive 1 or 2 year assist with the 3 yr standard warranty and the...

  • Page 31: Support - Ups Products

    Barry Gruetzmacher, Eaton | Powerware: barrygruetzmacher@eaton.com +1 608 572 0882 Web sites – http://www-03.ibm.com/servers/eserver/xseries/storage/rack.html – http://www.xseries.org Materials – Decision and Solutions Guide – IBM DPI Products – Configuration and Options Guide (COG) © 2003 IBM Corporation October 2007 © 2007 IBM Corporation...

  • Page 32: Information Resources

    IBM System x – UPS3000 Training Information Resources © 2003 IBM Corporation October 2007 © 2007 IBM Corporation...
  • Page 33 IBM System x – UPS3000 Training For more information IBM System x Racks and options – http://www.ibm.com/servers/eserver/xseries/storage/rack.html IBM System x Options – http://www.ibm.com/servers/eserver/xseries/already.html IBM System x Rack Configurator – http://www.ibm.com/servers/eserver/xseries/library/configtools.html IBM System x Configuration and Options Guide – http://www.ibm.com/servers/eserver/xseries/cog/ © 2003 IBM Corporation October 2007 ©...
  • Page 34 IBM System x – UPS3000 Training Contact List for Powerware Products and Services IBM Global Services Program Global Programs U.S. & Canada EMEA and Training IGS Offerings Programs Level Barry Gruetzmacher Marc Hollingsworth Fiona Carlton-Shields Global Programs Manager National Account Manager...
