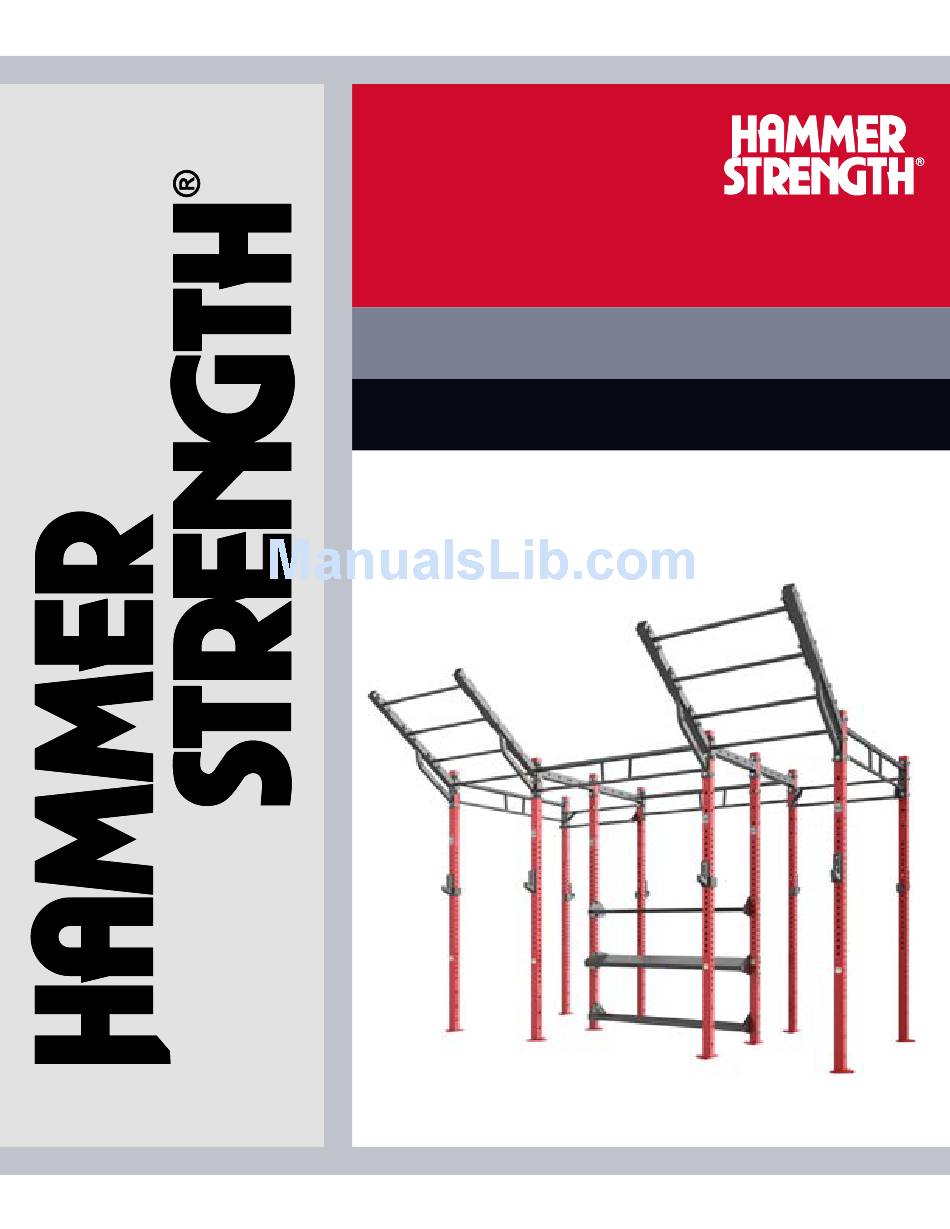

- Page 1 Heavy Duty Athletic Rigs Owner’s Manual & Assembly Instructions AT-FSR 1003688-0001 REV AB...
- Page 2 Operation Manuals and other Product Information available at https://www.lftechsupport.com/web/document-library/documents ﻉﻕﻭﻡﻝﺍ ﻯﻝﻉ ﺓﺡﺍﺕﻡ ﺯﺍﻩﺝﻝﺍ ﻥﻉ ﻯﺭﺥﺃ ﺕﺍﻡﻭﻝﻉﻡﻭ ﻝﻱﻍﺵﺕﻝﺍ ﺓﻝﺩﺃhttps://www.lftechsupport.com/web/document-library/documents 操作マニュアルおよびその他の製品情報については、 https://www.lftechsupport.com/web/document-library/documents をご覧く ださい。 如需操作手册和其他产品信息，请登录：https://www.lftechsupport.com/web/document-library/documents 操作手冊和其他產品資訊請見 https://www.lftechsupport.com/web/document-library/documents 작동 설명서 및 기타 제품 정보는 https://www.lftechsupport.com/web/document-library/documents 에서 찾을 수 있습니다. Trobareu el manual de funcionament i altra informació de producte a https://www.lftechsupport.com/web/document-library/documents Mae Llawlyfrau Gweithredu a Gwybodaeth Arall am Beiriannau ar gael yn https://www.lftechsupport.com/web/document-library/ documents Die Betriebsanleitung und andere Produktinformationen erhalten Sie unter https://www.lftechsupport.com/web/document-library/...
- Page 3 Operating Hours: 9.00h-17.00h (JAPAN) Service Email: kundenberatung@lifefitness.com customersupport@lifefitness.com Hong Kong Operating Hours: 08:30-16.30.h (MEZ) Sales/Marketing Email: Life Fitness Asia Pacific LTD commercialsales@lifefitness.com Spain 32/F, Global Trade Square Life Fitness IBERIA Operating Hours: 7:00am-6:00pm (CST) 21 Wong Chuk Hang Road ______________________________________ C/Frederic Mompou 5,1º1ª...
-
Page 4: Table Of Contents
CONTENTS SAFETY INFORMATION .......................... PREVENTATIVE MAINTENANCE ......................WARRANTY .............................. LABEL LOCATIONS SERIAL NUMBER LABEL ........................GENERAL WARNING LABEL ......................SQUAT HEIGHT LABEL ........................WING REQUIRED BOLT TO FLOOR LABEL ..................TRAY STORAGE LABELS ........................AT BENCH LABELS ..........................SPECIFICATIONS DIMENSIONS/LIVE AREA ........................WEIGHTS ............................. -
Page 5: Safety Information
This equipment is categorized as class S per EN 20957-1 and as such is only intended for commercial, institutional and/ or studio facilities. It is not intended for home use. Contact LIFE FITNESS with any questions regarding this classifica- tion. -
Page 6: Preventative Maintenance
1. DO NOT use or permit use of any equipment that is damaged and/or has worn or broken parts. For all HAMMER STRENGTH equipment use only replacement parts supplied by LIFE FITNESS. 2. MAINTAIN LABELS AND NAMEPLATES - Do not remove labels for any reason. They contain important information. -
Page 7: Preventive Maintenance
LIFE FITNESS APPROVED CLEANERS (United States availability only) Two preferred cleaners have been approved by LIFE FITNESS reliability experts: PureGreen 24 and Gym Wipes. Both cleaners will safely and effectively remove dirt, grime and sweat from equipment. PureGreen 24 and the Antibacterial Force formula of Gym Wipes are both disinfectants that are effective against MRSA and H1N1. -
Page 8: Warranty
WHO PAYS TRANSPORTATION & INSURANCE FOR SERVICE If the Product or any covered part must be returned to a service facility for repairs, We, LIFE FITNESS, will pay all trans- portation and insurance charges for the first year. You are responsible for transportation and insurance charges after the first year. - Page 9 1. Verify the symptom and review the operating instructions. The problem may be unfamiliarity with the product and its features and workouts. 2. Locate and write down the serial number of the unit. 3. Contact the nearest LIFE FITNESS Customer Support Services group. WARRANTY COVERAGE Warranties outside the United States may vary.
-
Page 10: Label Locations
LABEL LOCATIONS SERIAL NUMBER LABEL 350LB (159KG) 495LB (225KG) GENERAL WARNING LABEL... -
Page 11: Squat Height Label
LABEL LOCATIONS (CONTINUED) SQUAT HEIGHT LABEL WING REQUIRED BOLT TO FLOOR LABEL... -
Page 12: Tray Storage Labels
LABEL LOCATIONS (CONTINUED) TRAY STORAGE LABELS... -
Page 13: At Bench Labels
LABEL LOCATIONS (CONTINUED) BENCH LABELS AT-FB AT-MAB... -
Page 14: Specifications
RIG SPECIFICATIONS PRODUCT DIMENSIONS • HEIGHT - 9 FOOT: 109.25” (277CM) 10 FOOT: 121.25” (308CM) (ADD 34” (87CM) FOR WING OPTION) • DEPTH - 4 FOOT: 54” (137CM) 6 FOOT: 78” (198CM) • WIDTH - MINIMUM: 53.5 (136CM) MAXIMUM: N/A MAXIMUM USER WEIGHT •... -
Page 15: Weights
WEIGHT SPECIFICATIONS WEIGHT ITEM NO DESCRIPTION 34-1/2” SQ WLDMT 16.9 42” MB PU BAR 42” SB PU BAR 14.9 42” OB PU BAR 23.9 10.8 42” SQ WLDMT 42” TS PU BAR 20.7 72” MB PU BAR 29.2 13.3 72” SB PU BAR 15.9 72”... -
Page 16: Modular Format
RIGS MODULAR FORMAT HAMMER STRENGTH ATHLETIC RIGS CONSIST OF AN END, A BRIDGE AND A CORE THAT CAN BE CONFIGURED INTO VARIOUS STYLES. EXCEPTIONS AT-FSR-4X4 (NO CORE) AT-FSR-4X6 (CORE ONLY - NO END OR BRIDGE) BRIDGE CORE 4’ DEEP RIGS 6’... -
Page 17: Sample Rigs
SAMPLE RIGS SHOWN WITH OPTIONS ASSEMBLY INSTRUCTIONS HARDWARE ITEM NO. DESCRIPTION TOOLS REQUIRED 3/4-10 x 5” Hex Head Screw QTY. DESCRIPTION 3/4-10 x 1-1/4” Hex Head Screw 3/4” Open End Wrenches 3/4” Flat Washer 1-1/16” Socket Wrench 2.25 OD x 3/8” Spacer 1-1/8”... -
Page 18: Core
CORE • VERIFY RIG LAYOUT WITH OWNER BEFORE ASSEMBLY • BEGIN RIG ASSEMBLY AT THE CORE STANDARD CORE STANDARD CORE ASSEMBLY STEP 1 OF 2 ITEM 9’ 10’ 48 NOTE: ENSURE FEET FACE CENTER OF CORE 22-25 FT-LBS (30-34Nm) - Page 19 STANDARD CORE STANDARD CORE ASSEMBLY STEP 2 OF 2 ITEM QTY 22-25 FT-LBS NOTE: ENSURE FEET FACE (30-34Nm) CENTER OF CORE MONKEY BAR CORE MONKEY BAR CORE ASSEMBLY STEP 1 OF 3 ITEM 9’ 10’ 24 NOTE: ENSURE FEET FACE 22-25 FT-LBS CENTER OF CORE (30-34Nm)
- Page 20 MONKEY BAR CORE MONKEY BAR CORE ASSEMBLY STEP 2 OF 3 ITEM QTY 22-25 FT-LBS (30-34Nm) NOTE: ENSURE FEET FACE CENTER OF CORE MONKEY BAR CORE ASSEMBLY STEP 3 OF 3 ITEM QTY 22-25 FT-LBS (30-34Nm)
- Page 21 STORAGE CORE STORAGE CORE ASSEMBLY STEP 1 OF 3 ITEM QTY 22-25 FT-LBS (30-34Nm) STORAGE CORE ASSEMBLY STEP 2 OF 3 ITEM QTY 22-25 FT-LBS (30-34Nm) NOTE: ENSURE FEET FACE CENTER OF CORE...
- Page 22 STORAGE CORE STORAGE CORE ASSEMBLY STEP 3 OF 3 ITEM QTY 22-25 FT-LBS (30-34Nm)
-
Page 23: Bridges
BRIDGES USE BRIDGE TO CONNECT END TO CORE BRIDGE TO CORE ASSEMBLY STEP 1 OF 1 ITEM QTY 22-25 FT-LBS (30-34Nm) -
Page 24: End
END ASSEMBLY STEP 1 OF 2 ITEM 9’ 10’ 24 22-25 FT-LBS (30-34Nm) NOTE: ENSURE FEET DO NOT FACE INTO 42” WIDE TRAINING SPACES (I.E. BRIDGE AREA) -
Page 25: Final Installation
BOLT TO FLOOR THE RIG MUST NOW BE BOLTED TO THE FLOOR PRIOR TO USE BY AN- CHORING THROUGH EACH BOLT HOLE IN EACH FOOT. REFER TO THE LIFE FITNESS BOLT TO FLOOR GUIDELINES MANUAL FOR INSTALLA- TION ASSISTANCE. INSTALL BAR SUPPORTS INSTALL BAR SUPPORTS ON UPRIGHTS WITH 4 FOOT WIDE SPACES, EXCLUDING UPRIGHTS USED FOR STORAGE. -
Page 26: Optional Equipment
OPTIONAL EQUIPMENT BAR STORAGE ASSEMBLY ITEM QTY 45-50 FT-LBS (61-68Nm) POWER PIVOT ASSEMBLY ITEM QTY 45-50 FT-LBS (61-68Nm) -
Page 27: Wing
OPTIONAL EQUIPMENT WING ASSEMBLY STEP 1 OF 2 ITEM QTY 22-25 FT-LBS (30-34Nm) WING ASSEMBLY STEP 2 OF 2 ITEM QTY 45-50 FT-LBS (61-68Nm) -
Page 28: Dip Handle
OPTIONAL EQUIPMENT DIP HANDLE BAND PEGS... -
Page 29: Bar Catches (Pair)
OPTIONAL EQUIPMENT BAR CATCHES (PAIR) 2-PIPE BUMPER PLATE DIVIDER (PAIR) -
Page 30: At-Fb (Flat Bench)
AT BENCHES Flat Bench (AT-FB) Description The Flat Bench is a traditional flat bench that offers the same high-grade durability and quality that comes with Hammer Strength benches and racks. Product Code: AT-FB Machine Weight: 73 lbs 68 kgs Max User Weight: 350 lbs 33.1 kgs Max Capacity:... -
Page 31: At-Mab
AT BENCHES Multi-Angle Bench (AT-MAB) Description The Multi-Angle Bench is a folding weight bench that offers a back pad with six adjustable pressing angles from 0°-80°, in 13.3° increments, and a seat pad with four adjustments to help ensure ergonomically solid perfor- mance.
