Audiovox VBP5000 Owner's Manual

Video in a bag system with 5.6" lcd monitor vcp & dvd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

VBP5000
VIDEO IN A BAG SYSTEM WITH
5.6" LCD MONITOR VCP & DVD PLAYER

Advertisement

Table of Contents
loading

Related Manuals for Audiovox VBP5000

Summary of Contents for Audiovox VBP5000

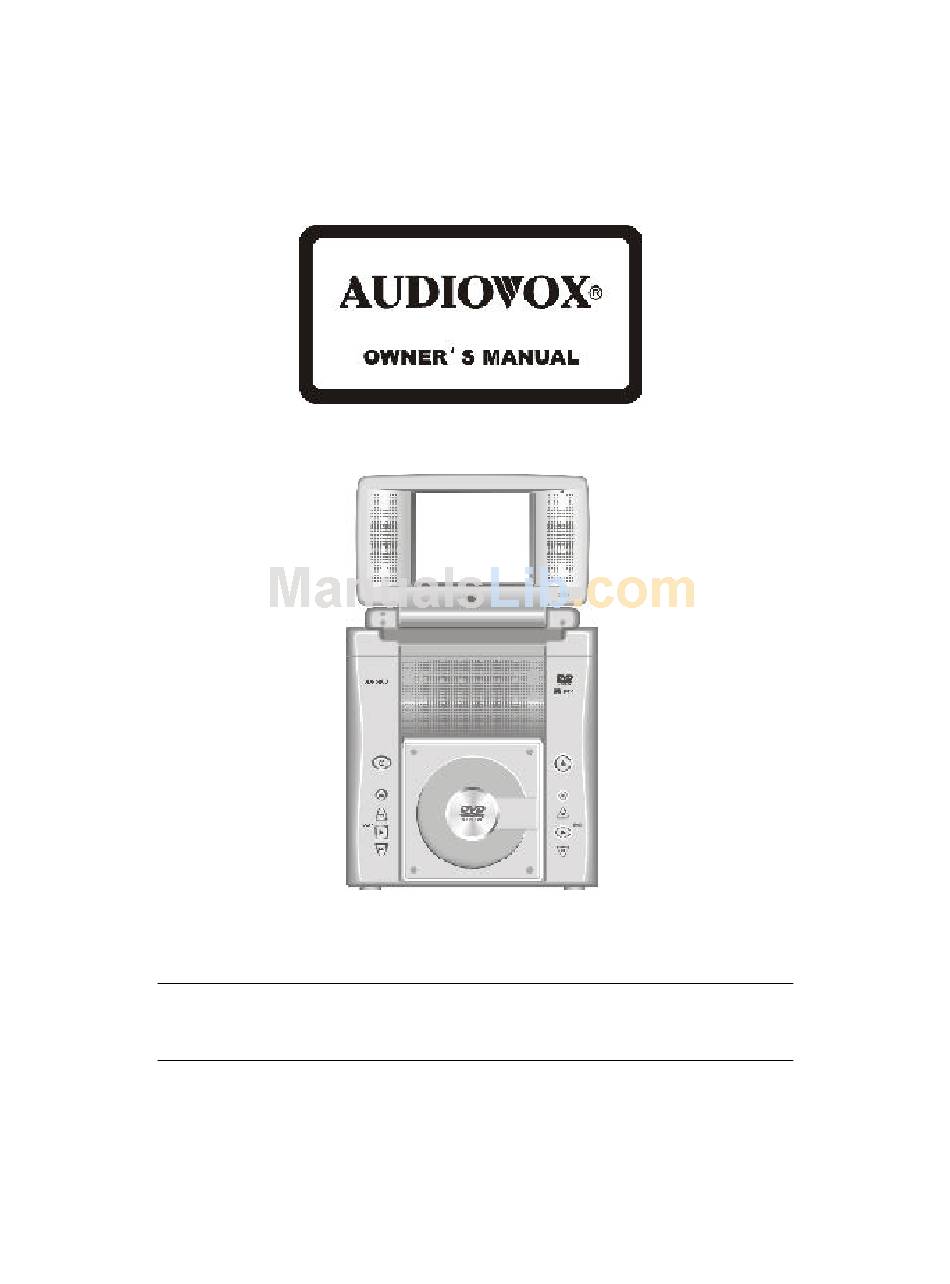

  • Page 1 VBP5000 VIDEO IN A BAG SYSTEM WITH 5.6" LCD MONITOR VCP & DVD PLAYER...

  • Page 2: Safety Precaution

    A. INTRODUCTION Thank you for selecting the VBP5000 “Video in a Bag” System. The system's main features include a 5.6" Liquid Crystal Dis- play (LCD) Monitor Video Cassette Payer (VCP) and a DVD Player. The VBP5000 utilizes state of the art electronics and is designed for use in Vehicles, Hotels, the Office and Home.

  • Page 3: Important Notice

    IMPORTANT NOTICE It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a television viewer or screen that is located in the motor vehicle at any point forward of the back of the driver’s seat, or that is visible, directly or indirectly, to the driver while operating the vehicle.

  • Page 4: Cautions And Warnings

    Operate the “Video in a Bag” System with the bag open to ensure proper ventilation of the VBP5000 system (Monitor/VCP/DVD Player). The system is in- tended to be mounted for rear seat viewing only. Do not use the...

  • Page 5: Cleaning Unit

    3. POWER This system MUST be powered from the type of switched (Acces- sory) power indicated on the marking label (i.e. not directly from the car battery). Power should be applied to the unit when the ignition key is in the Run and/or Accessory positions. To prevent battery discharge, disconnect the “Video in a Bag”...

  • Page 6: Video Cassette

    to direct sunlight or heat sources such as hot air ducts. Do not touch the surface of disc. Handle the disc by its edge. Clean the disc by wiping the disc from the center out with a cleaning cloth. Remove the disc from the unit and store it in its case after playing. Some playback operations of discs may be intentionally fixed by software producers.
  • Page 7 9. 1 x Instruction Manual D. INDOOR PLACEMENT (IN A HOTEL, OFFICE, HOME, ETC) To remove the VBP5000 from the protective mounting/storage bag, place the open end of the unit face down on a flat surface. Unfasten the Velcro Strap and pull it through the loop. Detach all cables and slide the bag upward and off of the unit.

  • Page 8: In-Car Installation

    The Video Monitor is inserted into the slot on the main unit at a 45 Hinged Base E. IN-CAR INSTALLATION NOTE: When used in a vehicle, always keep the VBP5000 fastened in the mounting bag. 1. BETWEEN TWO SEATS °. °...
  • Page 9 a. Refer to Figure 4. Take one of the supplied straps from the storage bag, and connect the latch to the upper side metal ring on the left side of the mounting bag. Attach the "S" hook to the same ring after looping the strap around the headrest of the driver's seat.
  • Page 10 MONITOR PORT on the side of the main unit. h. Refer to Figure 6. You can contact an AUDIOVOX retailer for additional monitor( ) Part #VBDV56, and insert it into the slot of the main unit, or fasten it in the pouch onto the headrest, or just hold it in your hand and connect it to the main unit with the DIN cable.
  • Page 11 2. ON THE SEAT BACK (Refer to Figure 8) a. Hang the bag onto the seat back by looping the shoulder strap of the bag around the headrest of the seat. b. Take one of the supplied straps from the storage bag, and con- nect the latch to the lower metal ring on the left side of the mounting bag.
  • Page 12 3. On the Back Seat Figure 8 a. The Monitor can be inserted into the slot with the screen facing either front (refer to Figure 8a) or rear (refer to Figure 8b). Care- fully place the system with the DVD facing up on the back seat. Guide the vehicles safety belt through the short strap sewn on the bottom of the mounting bag.
  • Page 13 MONITOR PORT on the side of the main unit. Repeat this pro- cess if an optional second monitor is used (2nd DIN cable is supplied with the optional monitor). Contact an Audiovox’s re- tailer for an additional monitor, and insert it into the slot of the main unit, or fasten it in the pouch onto the headrest, or just hold it in your hand and connect it to the main unit with the DIN cable.

  • Page 14: Power Supply

    Take the cigarette lighter adapter from the storage bag. Plug one end into the DC 12V jack on the side of the main unit, then plug the other end into the cigarette lighter socket*. *NOTE: Always disconnect the VBP5000 when not in use. Figure 10 Figure 11...
  • Page 15 3. POWERING THE DETACHED MONITOR INDOORS (Refer to Figure 12) Figure 12 The monitor can be detached from the system by depressing the button below the screen with one hand and removing the video monitor* with the other hand. *NOTE: During the Removal and Reinstallation of the Video Moni- tor, rotate the monitor and the monitor’s hinged base so that they are aligned in a straight line.
  • Page 16 Take the cigarette lighter adapter from the storage bag, plug one end into the DC 12V jack on the side of the monitor, then plug the other end into the cigarette lighter socket. NOTE: When the monitor is combined with the main unit DC 12V power will be supplied from the main unit to the monitor, so there is no need for another power source to be connected to the DC 12V jack on the side of the monitor.
  • Page 17 2) Refer to Figure 15. In the vehicle, the cigarette lighter adapter can drive up to 3 monitors combined with the main unit and con- nected to the main unit with the DIN cable. *Optional Video Monitors Figure 15...

  • Page 18: Controls, Indicators, And Connectors

    G. CONTROLS, INDICATORS, AND CONNECTORS 1. UNIT VIEW (Refer to Figure 16) MONITOR RIGHT SIDE 1) Brightness UP/DOWN Thumbwheel 2) Volume UP/DOWN Thumbwheel 3) Headphone Input # 2 4) Headphone Input # 1 MAIN UNIT 5) REMOTE CONTROL SENSOR 6) MAIN POWER 7) VCP STOP/EJECT Button 8) VCP REWIND Button 9) VCP PLAY Button...
  • Page 19 2. REMOTE CONTROL VIEW (Refer to Figure 17) 1) POWER Button 2) DISPLAY Button 3) DVD ANGLE Button 4) DVD SUBTITLE Button 5) DVD AUDIO Button 6) DVD ZOOM Button 7) DVD UP/DOWN/LEFT/RIGHT/ ENTER Buttons 8) DVD MENU Button 9) DVD Return Button 10) DVD A-B Button 11) DVD NEXT Button 12) DVD PREVIOUS Button...

  • Page 20: Playing A Dvd

    H. PLAYING A DVD After connecting power to the unit, momentarily press the ‘Power’ button on the Main Unit, then press the ‘Power’ button on the side of the Monitor. Press the ‘OPEN’ button on the Main unit to open the DVD Player, insert a disc and close the DVD Player.
  • Page 21 2. MENU A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor. The contents of the menu vary from disc to disc.
  • Page 22 c. Press ‘DISPLAY’ the 3rd time to display the Elapsed Time for the chapter. The heading will disappear automatically in about 3 seconds. Chapter Elapsed Time Screen Display d. Press ‘DISPLAY’ the 4th time to display the Remaining Time for the chapter. The heading will disappear automatically after 3 seconds.
  • Page 23 Angle Screen Display 3) SUBTITLE During disc playback press ‘SUBTITLE’ to select the subtitle lan- guage you desire, with the current Subtitle Language Number (1) and the total Number of Subtitle Languages (2) displayed. If there are multiple languages press ‘SUBTITLE’ again to select another subtitle language.
  • Page 24 4) AUDIO During playback press ‘AUDIO’ to select the audio language you desire, with the current Audio Channel Number (1) and the total number of Audio Channels (2) displayed. Press AUDIO again to select another audio language. The audio display will disappear automatically if the ‘AUDIO’...
  • Page 25 6) A-B REPEAT a. During playback press ‘A-B’ to set the Starting Point A. A - B Repeat Starting Point Screen Display b. Press ‘A-B’ to set the Ending Point B and the player will re- peatedly play the part between Point A and Point B. A - B Repeat Ending Point Screen Display c.
  • Page 26 7) REPEAT a. During playback press ‘REPEAT’ once to repeatedly play the current chapter. Chapter Repeat ON Screen Display b. During playback press’ REPEAT ‘again to repeatedly play the current title. Title Repeat ON Screen Display c. During playback press’ REPEAT’ a 3rd time to cancel the re- peat playback function and resume normal play back.

  • Page 27: Playing Audio Cds

    4. PLAYING AUDIO CDS When playing an audio CD, the DISPLAY Banner appears automatically. It displays the current track and the amount of the time for that track playing, the total amount of time on the disc and the current time running on the disc. Press the DISPLAY button on the remote to display the DISPLAY Banner.

  • Page 28: Using The Repeat Feature

    c. Press ‘DISPLAY’ three times and TOTAL ELAPSED appears along with the current track playing the total time playing on the CD. TOTAL ELAPSED 00:00:00 TOTAL ELAPSED Screen Display d. Press ‘DISPLAY’ four times and TOTAL REMAIN appears along with the current track playing and the amount of time left on the CD.

  • Page 29: Playing Mp3 Discs

    5. PLAYING MP3 DISCS MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD-R discs that have been encoded in MP3 format can be played on your DVD player.

  • Page 30: Selecting A Play Mode

    3) USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF. Pressing REPEAT consecutively changes the repeat options: • REP-ONE- repeats the songs that is playing. • FOLDER REP- repeats the folder that is playing. • FOLDER- turns off repeat and returns to regular play mode.

  • Page 31: Program Play

    5) PROGRAM PLAY To use the program play option, you must create a playlist of songs in the order you want them to play. Note: Once you begin adding songs from a folder to create your play list, you cannot add songs from a different folder.
  • Page 32 Press ‘DISPLAY’ once, and “TIME ELAPSED” will appear along with the amount of time the song has been playing. “TIME ELAPSED” and the of actual amount of time the disc has been playing, will be displayed on-screen until you press DISPLAY again. TIME ELAPSED TIME ELAPSED Screen Display Press ‘DISPLAY’...
  • Page 33 6. SETUP (The contents vary from disc to disc.) Press ‘SETUP ‘to display the Main screen of the SETUP Menu on the screen. Press ‘SETUP ‘again to exit the SETUP Menu and the unit will resume it’s last playback or stop mode. Main SETUP Menu Screen 1) Select ‘GENERAL SETUP’...
  • Page 34 * WIDE: When the player is connected to a wide screen TV, a wide picture is shown on the full screen. b. Select ‘ANGLE MARK’ using UP/DOWN, and then press the RIGHT button to enter the submenu. Choose Angle Mark on or off displayed on the screen using the UP/DOWN and then press ENTER to confirm the setting.
  • Page 35 2) When there’s no disc inside the player, select ‘PREFERENCES’ using UP/DOWN, and then press ‘ENTER’ to enter the prefer- ences page. AUDIO Preference Screen Display a. Select ‘AUDIO’ using UP/DOWN, and then press ‘RIGHT’ to enter the submenu. Select the audio language you desire using UP/DOWN, and then press ‘ENTER’...
  • Page 36 c. Select ‘DISC MENU’ using UP/DOWN, and then press ‘RIGHT’ to enter the submenu. Select the Disc Menu Language you desire using UP/DOWN, then press ‘ENTER’ to confirm the setting. Press ‘LEFT’ to return. DISC MENU Preference Screen Display Note: Language and subtitle selection is only available for discs that are recorded in the above listed languages.
  • Page 37 PASSWORD VERIFY Input Screen Display Enter a 4 digit password, then press ‘ENTER’ to confirm the parental level setting. NOTE: For 1st time use, the default password 3308. e. Select ‘PASSWORD’ using UP/DOWN, and then press RIGHT to enter the submenu. PASSWORD CHANGE Screen Display Press ‘ENTER’...
  • Page 38 NOTE: The Default Password is 3308. This password is al- ways effective even after you have selected your own pass- word and changed it. To avoid others from using the default password to set the parental level and change the password, you can record this default password in another area and delete it from this manual.
  • Page 39 I. BASIC VIDEO CASSETTE OPERATION Turn the unit ON/OFF Power DVD/AUX/VCP Choose the VCP mode Play To playback tape Stop/Eject To stop tape (press once), to eject tape (press twice) a. Press it once in the playback mode, the VCP Rewind enters the reverse picture search mode and the tape will rewind rapidly with Video, the rewind indi-...
  • Page 40 J. PLAYING A VIDEO GAME (Refer to Figure 18) **Games *** Optional Not Included Headphones *Optional Video Monitors 1. Plug the video output from your game system into the yellow video jack and the Audio L and Audio R into the applicable jacks on the side of the main unit, which takes priority over the built-in DVD player.
  • Page 41 . Using MONITOR PORT (Refer to Figure 18 & 19) Besides the monitor combined with the main unit, this system can drive up to 2 additional monitors (Please contact an Audiovox dealer for the additional monitors part # VBDV56) by using the cigarette lighter adapter in the vehicle.

  • Page 42: Specification

    2. Using VIDEO, AUDIO L, AUDIO R outputs for connection to any monitor (Refer to Figure 18) Match the color-coded plugs to the appropriate DVD OUT jacks or VCP OUT jacks on the side of the main unit: Yellow (VIDEO) to Yellow, White (AUDIO L) to White, and Red (AUDIO R) to Red.
  • Page 43 AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from the date of original pur- chase, such defect(s) will be repaired or replaced with reconditioned product (at the Company’s...
  • Page 44 For Customer Service Visit Our Website At .audiovox.com Product Information, Photos, FAQ’s Owner’s Manuals © 2003 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788 128-6647...
