Audiovox VBP4000 Owner's Manual

Audiovox VBP4000 Owner's Manual

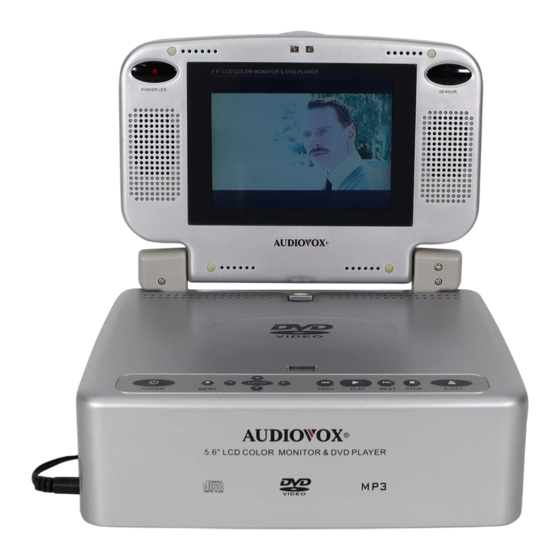

Video in a bag system with detachable 5.6" lcd monitor & dvd player
Hide thumbs Also See for VBP4000:
Table of Contents

Advertisement

Quick Links

VBP4000
VIDEO IN A BAG SYSTEM WITH
DETACHABLE 5.6" LCD MONITOR & DVD PLAYER
1

Advertisement

Table of Contents
loading

Related Manuals for Audiovox VBP4000

Summary of Contents for Audiovox VBP4000

  • Page 1 VBP4000 VIDEO IN A BAG SYSTEM WITH DETACHABLE 5.6" LCD MONITOR & DVD PLAYER...

  • Page 2: Installation

    A. Introduction Thank you for selecting this “Video in a Bag” System. The system's main features include a 5.6" Liquid Crystal Display (LCD) monitor and a DVD player. The system utilizes the latest state of the art elec- tronics and is designed for use in vehicles, hotels, offices or your home.

  • Page 3: Cleaning Unit

    ate the “Video in a Bag” System with the bag open to ensure proper ventilation of the monitor and the DVD player. The system is in- tended to be mounted for rear seat viewing only. Do not use the system in the front seat while operating your vehicle. 3.
  • Page 4 the disc from the center out with a cleaning cloth. Remove the disc from the unit and store it in its case after playing. Some playback operations of discs may be intentionally fixed by software produc- ers. Since this unit plays discs according to the disc contents the software producers designed, some playback features may not be available.
  • Page 5 2. Powering the system in the vehicle (Refer to Figure 2) Figure 2 Unzip the lower compartment of the bag and take the cigarette lighter adapter. Plug one end into the DC 12V jack on the left side of the main unit, then plug the other end into the cigarette lighter socket. 3.
  • Page 6 4.Powering the detached monitor in the vehicle (Refer to Figure 4) Take the cigarette lighter adapter from the lower compartment, plug one end into the DC 12V jack on the right side of the monitor, then plug the other end into the cigarette lighter socket. Note: 1) When the monitor is combined with the main unit, the inside signals including DC 12V power will be supplied from the main...
  • Page 7 Figure 5 Figure 6...
  • Page 8 E. Installation 1.Installing the system onto the seat back in a car (Refer to Figure 7) 1) Unfasten the rear Velcro straps of the bag. Fold inwards the rear piece of the bag and attach its end velcro strap to the lower Velcro strap on the back of the bag to form a triangle.
  • Page 9 5) Unzip the bag and flip down the front flap. Ensure the inside Velcro straps of the bag is fastened to prevent the unit from falling. Swing the monitor upwards and adjust the screen for desired viewing angle. 2. Installing the system between the driver/passenger seat (Refer to Figure 8) Figure 8 1)Take one of the supplied straps from the lower compartment of...
  • Page 10 attach the "S" connector to the rail directly, as it may not be long enough to reach back to the ring. 3)Adjust the straps tightly so that the bag is secured. 4) Unzip the bag and flip down the front flap. Ensure the inside Velcro strap of the bag is fastened to prevent the unit from fall- ing.
  • Page 11 4. Installing the detached monitor onto the seat back in a car (Refer to Figure 10) 1) Follow the installation instruction shown in Item 1, 2 or 3. 2) Detach the monitor from the main unit by depressing the but- ton below the screen with one hand and remove the monitor with the other hand.
  • Page 12 5.Placing the system in a hotel/office/home (Refer to Figure 11) Figure 11 1) Just place the system on a table or other level surface with the system bottom facing down. Uncover the monitor and adjust the screen for the desired viewing angle. This can be done with or without the unit inside its bag.
  • Page 13 F. Controls, Indicators, and Connectors 1. Unit View (Refer to Figure 12) Figure 12...
  • Page 14 1) Brightness Up/Down Thumbwheel 2) Volume Up/Down Thumbwheel 3) Headphone Input Jack # 2 4) Headphone Input Jack # 1 5) S Video Output Jack 6) DVD Video Output Jack 7) DVD Audio L Output Jack 8) DVD Audio R Output Jack 9) Monitor Port # 1 (Output) 10) Monitor Port # 2 (Output) 11) DC 12V Input Jack for Main Unit...
  • Page 15 2. Remote Control View (Refer to Figure 13) 1) Power Button 2)Display Button 3) Angle Button 4) Subtitle Button 5) Audio Button 6) Zoom Button 7) Up/Down/Left/Right/Enter Buttons 8) Menu Button 9) Return Button 10) A-B Button 11) Slow Button 12) Pause Button 13) Stop Button 14)Eject Button...
  • Page 16 1. Basic Operation Turn the unit on/off POWER Eject/load the disc EJECT Start Play/Execute item or setting PLAY Play at 1/2, 1/4, 1/8 or 1/16 times speed SLOW Still Picture PAUSE (1 time) Stop at the present playing point / STOP (2 times) Stop playing Go to the next chapter, track or scene dur-...
  • Page 17 2. SETUP Press ‘SETUP’ to display the Main screen of the SETUP Menu on the screen. Press ‘SETUP’ again to exit the SETUP Menu and the unit will resume it’s last playback or stop mode. Figure 7. Main SETUP Menu Screen 1) Select ‘GENERAL SETUP’...
  • Page 18 * WIDE: When the player is connected to a wide screen TV, a wide picture is shown on the full screen. b. Select ‘ANGLE MARK’ using UP/DOWN, and then press the RIGHT button to enter the submenu. Choose Angle Mark on or off displayed on the screen using the UP/DOWN and then press ENTER to confirm the setting.
  • Page 19 2) When there is no disc inside the player select ‘PREFERENCES’ using UP/DOWN, then press ‘ENTER’ to enter the preferences page. Figure 10. AUDIO Preference Screen Display a. Select ‘AUDIO’ using UP/DOWN, then press ‘RIGHT’ to enter the submenu. Select the audio language you desire using UP/DOWN, then press ‘ENTER’...
  • Page 20 c. Select ‘DISC MENU’ using UP/DOWN, then press ‘RIGHT’ to enter the submenu. Select the Disc Menu Language you desire using UP/DOWN, then press ‘ENTER’ to confirm the setting. Press ‘LEFT’ to return. Figure 12. DISC MENU Preference Screen Display Note: Language and subtitle selection is only available for discs that are recorded in the above listed languages.
  • Page 21 Figure 14. PASSWORD VERIFY Input Screen Display Enter a 4 digit password, then press ‘ENTER’ to confirm the parental level setting. NOTE: For 1st time use the default password is 3308. e. Select ‘PASSWORD’ using UP/DOWN, then press RIGHT to enter the submenu. Figure 15.
  • Page 22 NOTE: The Default Password is 3308. This password is al- ways effective even after you have selected your own pass- word and changed it. To avoid the possibility of others using the default password to set the parental level and change the pass- word, you can record this default password in another area and delete it from this manual.
  • Page 23 3. MENU A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor. The contents of the menu vary from disc to disc.
  • Page 24 c. Press ‘DISPLAY’ the 3rd time to display the Elapsed Time for the chapter. The heading will disappear automatically in about 3 seconds. Figure 21. Chapter Elapsed Time Screen Display d. Press ‘DISPLAY’ the 4th time to display the Remaining Time for the chapter.
  • Page 25 Figure 23. Angle Screen Display 3) SUBTITLE During disc playback press ‘SUBTITLE’ to select the subtitle lan- guage you desire*, with the current Subtitle Language Number (1) and the total Number of Subtitle Languages (2) displayed. If there are multiple languages press ‘SUBTITLE’ again to select another subtitle language.
  • Page 26 4) AUDIO During playback press ‘AUDIO’ to select the audio language you desire*, with the current Audio Channel Number (1) and the total number of Audio Channels (2) displayed. Press AUDIO again to select another audio language. The audio display will disappear automatically if the ‘AUDIO’...
  • Page 27 6) A-B REPEAT a. During playback press ‘A-B’ to set the Starting Point A. Figure 27. A-B Repeat Starting Point Screen Display b. Press ‘A-B’ to set the Ending Point B and the player will re- peatedly play the part between Point A and Point B. Figure 28.
  • Page 28 7) REPEAT a. During playback press ‘REPEAT’ once to repeatedly play the current chapter. Figure 30. Chapter Repeat ON Screen Display b. During playback press ‘REPEAT’ again to repeatedly play the current title. Figure 31. Title Repeat ON Screen Display c.

  • Page 29: Playing Audio Cds

    5. PLAYING AUDIO CDS When playing an audio CD. Press the DISPLAY button on the remote to display the DISPLAY Banner. The options below show you what happens when you press the DISPLAY button. a. During playback press ‘DISPLAY’ once and SINGLE ELAPSED will appear along with the current track playing and the time of that track.

  • Page 30: Using The Repeat Feature

    d. Press ‘DISPLAY’ four times and TOTAL REMAIN appears along with the current track playing and the amount of time remaining on the CD. Figure 36. TOTAL REMAIN Screen Display e. Press ‘DISPLAY’ a fifth time and “DISPLAY OFF” will appear momentarily then disappear.

  • Page 31: Skipping Songs

    1. Insert an MP3 CD, the DVD video player will initialize the disc and the directory (folder) will be shown on the TV screen. Figure 37. MENU Screen Display When an MP3 disc is inserted into the unit, the menu screen appears automatically.

  • Page 32: Selecting A Play Mode

    SELECTING A PLAY MODE The FOLDER play mode is the default. To access the play mode options, press STOP if the disc is playing. Press the right arrow button until the PLAY MODE option is highlighted. Use the up or down arrow to choose an option.
  • Page 33 a) Press ‘DISPLAY’ once, and “SINGLE ELAPSED” will appear along with the amount of time the song has been playing. The actual amount of time the disc has been playing will be displayed on-screen. SINGLE ELAPSED Screen Display Figure 38. b) Press ‘DISPLAY’...
  • Page 34 H. Playing a Video Game (Refer to Figure 14) Turning off the main unit is recommended to save the power, which won’t affect playing a Video Game, if only the monitor is on. Figure 14...
  • Page 35 1. Using MONITOR PORT (Refer to Figure 14 and Figure 15) Besides the monitor combined with the main unit, this system can drive up to 2 additional monitors (Please contact an Audiovox dealer for the additional monitors) by using the cigarette lighter adapter in the vehicle.
  • Page 36 2. Using VIDEO, AUDIO L, AUDIO R outputs (Refer to Figure Match the color-coded plugs to the appropriate DVD OUT jacks on the left side of the main unit: Yellow (VIDEO) to Yellow, White (AUDIO L) to White, and Red (AUDIO R) to Red. 3.
  • Page 37 K. Specification Disc format: DVD/CD Color system: NTSC Screen size: 5.6” DVD video format: Horizontal 720 pixel, vertical 480 pixel (NTSC) Frequency response: DVD (PCM 96 kHz/24 bits ): 20 Hz to 44 kHz DVD (PCM 48 kHz): 20 Hz to 22 kHz CD: 20 Hz to 20 kHz Video output: 1.0 Vp-p/75 Ohm, unbalanced Video S/N: Better than 35 dB...

  • Page 38: 90-Day Limited Warranty

    90 DAY LIMITED WARRANTY AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
  • Page 39 For Customer Service Visit Our Website At .audiovox.com Product Information, Photos, FAQ’s Owner’s Manuals © 2003 Audiovox Electronics Corp., Hauppauge, NY 11788 128-6291B...
