Important Information
Network Camera
WV-SBV131M/
Model No.
WV-SBV111M

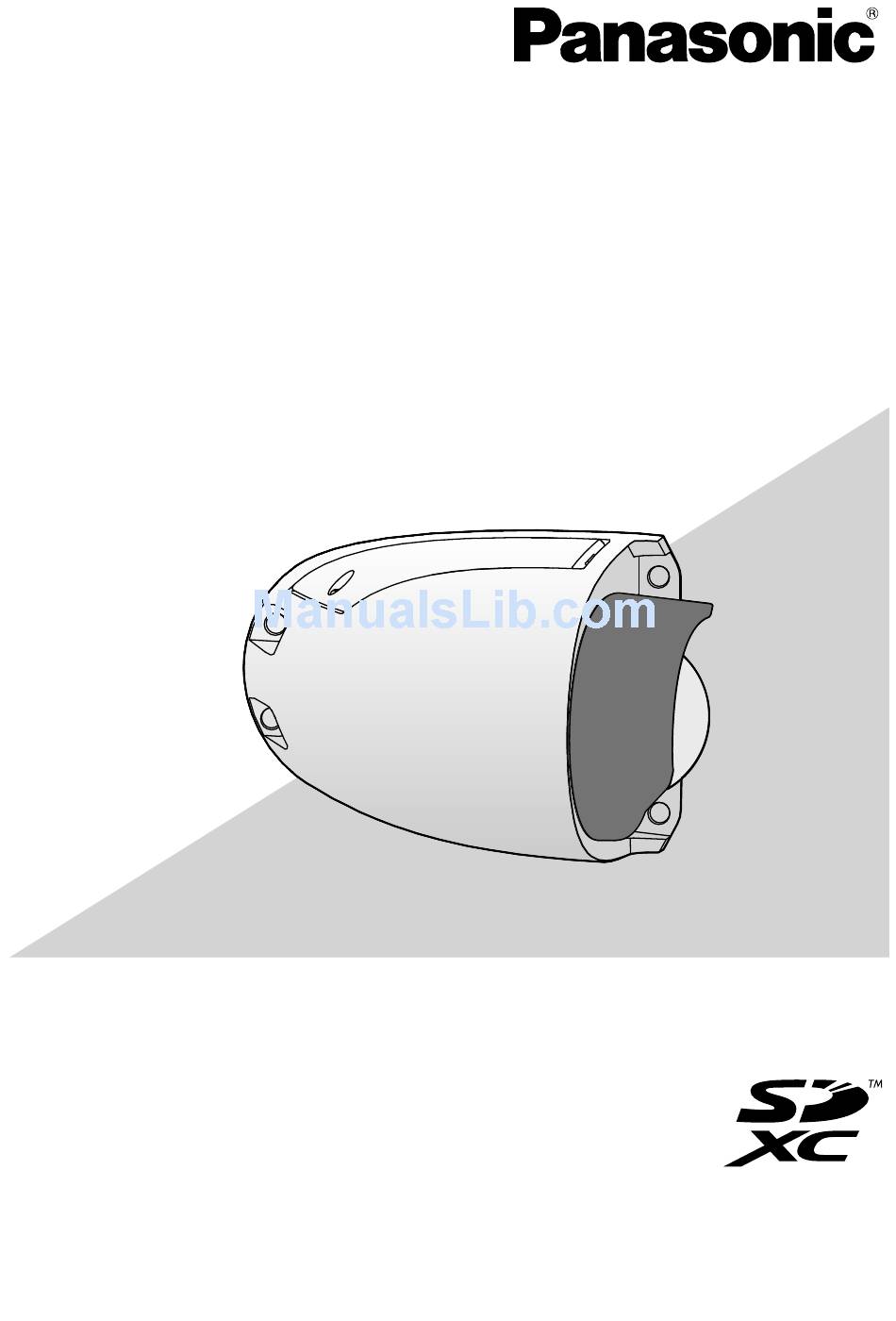

(This illustration represents WV-SBV131M)
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
Advertisement
Table of Contents
Related Manuals for Panasonic WV-SBV131M
Summary of Contents for Panasonic WV-SBV131M
-
Page 1: Important Information
Network Camera WV-SBV131M/ Model No. WV-SBV111M (This illustration represents WV-SBV131M) Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. The model number is abbreviated in some descriptions in this manual. - Page 2 For U.S.A. WARNING: The model number and serial number of this product may be found on the surface of the • To prevent injury, this apparatus must be unit. securely attached to the wall/ceiling in accor- You should note the model number and serial dance with the installation instructions.
-
Page 3: Table Of Contents
Contents Important safety instructions ......................4 Limitation of liability ........................4 Disclaimer of warranty ........................4 Preface ............................5 About notations ..........................5 Main functions ..........................6 About the user manuals ........................ 7 System requirements for a PC ...................... 7 Trademarks and registered trademarks.................. -
Page 4: Important Safety Instructions
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:... -
Page 5: Preface
Preface The network cameras WV-SBV131M / WV-SBV111M are designed to operate using a PC on a net- work (10BASE-T/100BASE-TX). By connecting to a network (LAN) or the Internet, images from the camera can be monitored on a PC via a network. -
Page 6: Main Functions
Main functions H.264 and JPEG triple encoding H.264 dual stream output and JPEG output can be simultaneously provided. Equipped with SD memory card slot It is possible to save H.264 videos and JPEG images on the SD memory card manually when an alarm occurs, during the period of the schedule, or on a Web browser. -
Page 7: About The User Manuals
About the user manuals There are 3 sets of operating instructions for the WV-SBV131M/WV-SBV111M as follows. • Important Information (this document): Provides information about the cautions required for safely using and installing this camera. • Installation Guide: Explains how to install this camera. -
Page 8: Trademarks And Registered Trademarks
• Refer to the "readme.txt" file on the provided CD-ROM for further information about open source software licenses and the source code. • Please note that Panasonic shall not respond to any inquiries regarding the contents of the source code. -
Page 9: Network Security
Network security As you will use this unit connected to a network, your attention is called to the following security risks. ① Leakage or theft of information through this unit ② Use of this unit for illegal operations by persons with malicious intent ③... - Page 10 Do not use this product in an inflammable Correctly perform all wiring atmosphere. Short circuits in the wiring or incorrect wiring Failure to observe this may cause an explosion may cause fire or electrical shock. resulting in injury. Turn the power off when cleaning this product.
- Page 11 About the PC monitor About SD memory card • If the power for the camera is turned off When displaying the same image on the monitor when recording to an SD memory card, for a long time, the monitor may be damaged. the recorded data may become unread- It is recommended to use a screen-saver.
- Page 12 About the MOS image sensor Code label • When continuously shooting a bright light The code labels (accessory) are required at source such as a spotlight, the color filter inquiry for trouble. Use caution not to lose of the MOS image sensor may become these labels.
-
Page 13: Precautions For Installation
Precautions for installation Panasonic assumes no responsibility for injuries or property damage resulting from failures arising out of improper installation or operation inconsistent with this documentation. For information about the installation tasks, refer to the provided Installation Guide. Power supply •... - Page 14 Do not remove or loosen the screws on Time & date setting the bottom of this product. It is necessary to set the time & date before putting this product into operation. Refer to the If the screws (4 pcs.) are loosened, water exposure may cause damage or malfunction of Operating Instructions on the provided the product, or dropping may result in injury.
-
Page 15: Troubleshooting
Or install the software to format the SD memory card CD-ROM) on the PC. Refer to our website (http://security.panasonic.com/pss/security/support/info.html) for further information about the supported software. • Isn't the inserted SD memory card faulty? Replace the card with a normal one. - Page 16 About the indicator The indicator will light or blink as follows depending on the camera status. Indicator type and operation state Change of indicator indication SD ERROR indicator • The SD memory card setting is set to "Not use". Lights off •...
-
Page 17: Specifications
Polycarbonate resin Clear (with hard coating) Tamper-resistant dome cover Others: *1 Refer to our website (http://security.panasonic.com/pss/security/support/info.html) for further information about Power source and Power consumption information. *2 Only when installation work is properly performed according to the instructions in this book and appropriate waterproof treatment is performed. - Page 18 • Camera WV-SBV131M WV-SBV111M Image sensor: 1/3 type MOS image sensor Effective pixels: Approx. 2.4 mega pixels Approx. 1.3 mega pixels Scanning area: 5.28 mm (H) x 3.30 mm (V) 4.86 mm (H) x 3.65 mm (V) {3/16 inches (H) x 5/32 inches (V)}...
- Page 19 • Lens WV-SBV131M WV-SBV111M Digital (electronic) zoom: Choose from 3 levels of x1, x2, x4 Zoom ratio: SBV131M Extra zoom x3 (16:9mode)/ x2.5 (4:3mode) Extra zoom x2 SBV111M Focal length ( f ): 1.95 mm {1/16 inches} Maximum aperture ratio (F): 1:2.2...
- Page 20 Image compression method: H.264* Transmission priority: Constant bit rate / Variable bit rate / Frame rate / Best effort / Advanced VBR Frame rate: <When Variable bit rate, Frame rate, or Advanced VBR is select- ed> 1 fps / 3 fps / 5 fps* / 7.5 fps * / 10 fps* / 12 fps* / 15 fps* / 20 fps* / 30 fps* * The frame rate is limited to “bit rate”.
- Page 21 Up to 16 camera images can be displayed simultaneously on a multi-screen. (Including the camera itself) Compatible SDXC/SDHC/ Manufactured by Panasonic (SD speed class 4 or higher) SD memory card* SDXC memory card: 64 GB, 128 GB SDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB...
-
Page 22: Standard Accessories
Standard accessories Important Information (this document) ....1 pc. Installation Guide ..........1 set Warranty card ............1 set CD-ROM* ............1 pc. Code label* ............1 pc. The following parts are used during installation procedures. Lens adjuster ............1 pc. Template ..............1 pc. Bit (Hex wrench, screw size 6.35 mm {1/4 inches} T10) ..........1 pc. - Page 24 Two Riverfront Plaza, Newark, NJ 07102-5490 Panasonic Testing Centre Panasonic Canada Inc. Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada (905)624-5010 www.panasonic.ca © Panasonic System Networks Co., Ltd. 2015 PGQX1936YA avs1015-1125 Printed in China...
