Page 1

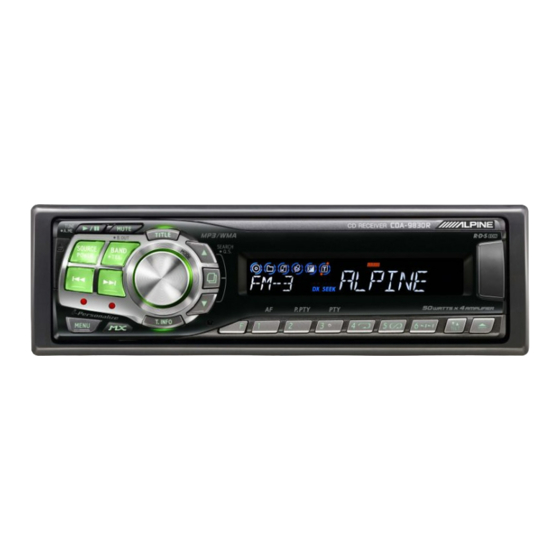

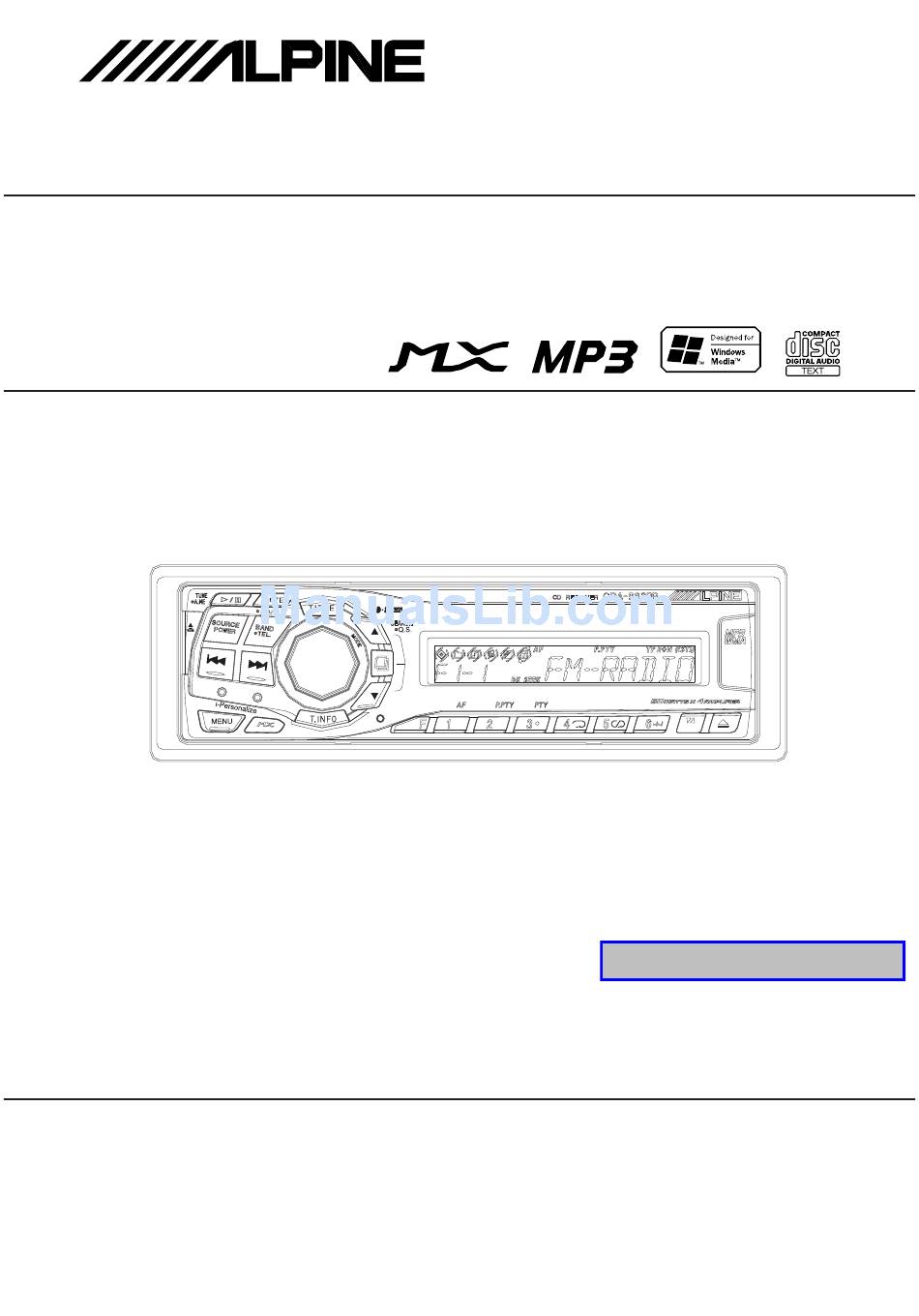

SERVICE MANUAL FM/MW/LW/RDS CD Receiver TILT TO ALPINE Home Page 3 / 04-A 68E36334S01 CDA-9830R...
Page 2
<Cautions for Safe Repair Work> The following cautions will prevent accidents in the workplace and will ensure safe products. *The symbols indicate caution is needed to prevent injuries and damage to property. The symbols and their meanings follow. If you ignore this symbol and handle the product incorrectly or unsafely, Warning serious injury or death may result.
CDA-9830R Contents Packing Assembly Parts List Packing Method View Specifications 5 , 6 Extension Cable Adjustment Procedures 8 to 11 Block Diagram Parts Layout on P.W.Boards and Wiring Diagram 13 to 18 Schematic Diagram 19 to 27 Terminal Voltage of IC/ TR...
CDA-9830R Packing Assembly Parts List Symbol Description Symbol Description Part No. Part No. 101-1 03S60820Y16 SCR,MCH 5X8 ZN A 15D00529K02 CASE,INNER 101-2 03S60824Y01 SCR,WEV 1.7X4 ZN A 15D01798K03 CARRYING,CASE 101-3 01T04296K01 ISO/JASO ANT ADAPTER 01T75411Y02 ASSY,WIRE-ISO-M9830R 101-4 36A02449K01 CAP,RUBBER(A) 68P04190K04...
CDA-9830R Extension Cable * When repairing or measuring the voltage of this unit, connect with the Extension Cable as shown in below. TO CONTENTS - 7 -...
Page 9
CDA-9830R (3) Control Settings Power Switch ..........ON Band Switch ......FM/MW/LW Fader Control ......Center Position T-CORR ........Non Effect Balance Control ....... Center Position ............FLAT Treble Control ......Center Position DEMO ........... OFF Bass Contro ......Center Position Others ...........
Page 10
CDA-9830R Test Point / Step Description Connection Signal Generator Dial Control P .W.Board Adjustment Coordinates TP012 Auto Adjustment : 216kHz , (3-F) After setting up of Signal Genarator, 34dBµ 216kHz TP011 short GND and TP011 (Pull-Down) (Mod. OFF) (3-F) for 2~3 seconds.
Page 11
CDA-9830R Test Point / Step Description Connection Signal Generator Dial Control P .W.Board Adjustment Coordinates Set up of Adjustment Mode : — — — Push SOURCE/POWER + UP at the same time. 98.1MHz, Rotary encoder is turned and noise level...
Page 19
SD901 L902 MA740 RCR875D-102K IC901 L901 MAX829EUK RCR875D-102K CH803 ASSY, WIRE DC-DC 31A TP901 TP903 TP902 TO P. W. BOARD TO PARTS LIST TO CONTENTS - 25 -...
Page 33
CDA-9830R Description of IC Terminal D78F4216AGC : IC001 Symbol Terminal Description IF MUTE IF MUTE control terminal. (H:IF MUTE ON) No connect terminal. RDS data input prevention control terminal of adjoining station. RDS-CONT (H:RDS OFF) IF MUTE(NC) No connect terminal.
Page 34
CDA-9830R Symbol Terminal Description MARKET1 Area set up terminal. MARKET2 MARKET3 AUTOADJ Auto adjustment start signal terminal of FM/AM TUNER. (L:start) No connect terminal. GND terminal. No connect terminal. Power supply terminal. No connect terminal. PAUSE Audio signal detect terminal. (L:Blank) DAVN Data available input terminal of RDS Decoder.
Page 35
CDA-9830R Symbol Terminal Description BUS-IN Ai-NET BUS signal input terminal. CD RST System RESET output terminal to CD u-COM. CD STBY Active stand-by request signal output terminal to CD u-COM. No connect terminal. BUS IN Ai-NET BUS signal input terminal.
Page 36
CDA-9830R Symbol Terminal Description CD FOUT Frame output terminal. REG RESET RESET signal output terminal to system Regulator IC. RDS RESET RESET control signal output terminal to RDS u-COM. T-MUTE A-MUTE signal input terminal from RDS u-COM. RDS FOUT DATA output signal output terminal to RDS u-COM.
Page 37
CDA-9830R TMS320DA150PGE160 : IC101 Symbol Terminal Description CVSS GND connect terminal. External program address terminal. CVSS GND connect terminal. DVDD Power supply terminal. (+3.3V) External program address terminal. Load-Motor2 LOAD motor control terminal. External program address terminal. CVDD Power supply terminal. (+1.6V) HAS(PULL-DOWN) Pull-down connect terminal.
Page 38
CDA-9830R Symbol Terminal Description SSEL BCLK output signal terminal. PF-BUS2 communication SCK signal terminal. CVSS GND connect terminal. (+1.6V) HINT(PULL-DOWN) Pull-down connect terminal. CVDD Power supply terminal. (+1.6V) MSEL LRCLK output signal terminal. (LR polarity, SMCK fixation) EPF-BUS2 communication CS signal terminal.
Page 39
CDA-9830R Symbol Terminal Description X1(NC) No connect terminal. Clock connect terminal. DSP RESET EPF-BUS2 communication RESET signal terminal. External program data terminal. External program address terminal. DVSS GND connect terminal. External program address terminal. CVSS GND connect terminal. DVDD Power supply terminal. (+3.3V) I/O External program data terminal.
CDA-9830R Exploded View (Cabinet) (1/2) RCA302 SW425 CH701 CH401 LCD401 ANT001 8 X2 JK301 CB802 DIN801 M801 JK601 SW603 SW602 CH501 42 X2 NOTE : The place of the connection of (L) as shown in ( ), is mentioned in the...
CDA-9830R Exploded View (Cabinet) (2/2) CH831 117 X2 M831 NOTE : The place of the connection of (L) as shown in ( ), is mentioned in the "Exploded View (Cabinet) (1/2)." ..point of GREASE applied. GREASE,E-PAST ( 11S42419J09 ) GREASE,G-8007 ( 11S41558Y01 )
CDA-9830R Exploded View (CD Deck Mechanism) (DP23S27R) TO PARTS LIST TO CONTENTS - 48 -...
Page 43
CDA-9830R Cabinet Assembly Parts List NOTE : The part that has not PART NUMBER will not be supplied. 01V74800Y49 ASSY,NOSE UNIT 30RT - - - - - - - - - - - COVER,TOP - - - - - - - - - - -...
Page 45
CDA-9830R CD Deck Mechanism Assembly Parts List NOTE : The part that has not PART NUMBER will not be supplied. 01V31800Y79 ASSY,ARM GUIDE 27C11557Y02 CHASSIS,TOP 45B11564Y02 LEVER,LINK-TOP 45B11595Y02 LEVER DISC(R) 45B11596Y02 LEVER,DISC(L) 41B11613Y16 SPRING,PULL 15D50248Y02 GUIDE,TOP-DPS2 07C50608Y01 BKT,MOTOR LOAD-P 03S40014G07...
CDA-9830R Electrical Parts List * Each parts on P.W.Board are described in order of the reference number. =======MAIN P.W.Board BZ601 50T15447Y02 BUZZER,PKM13EPY -R5 C007 08S45676W80 CAP,CER 223K-B1E -CP C010 08S45676W85 CAP,CER 104K-B1C -CP C011 08S45676W89 CAP,CER 473K-B1E -CP C012 08S45677W60...
