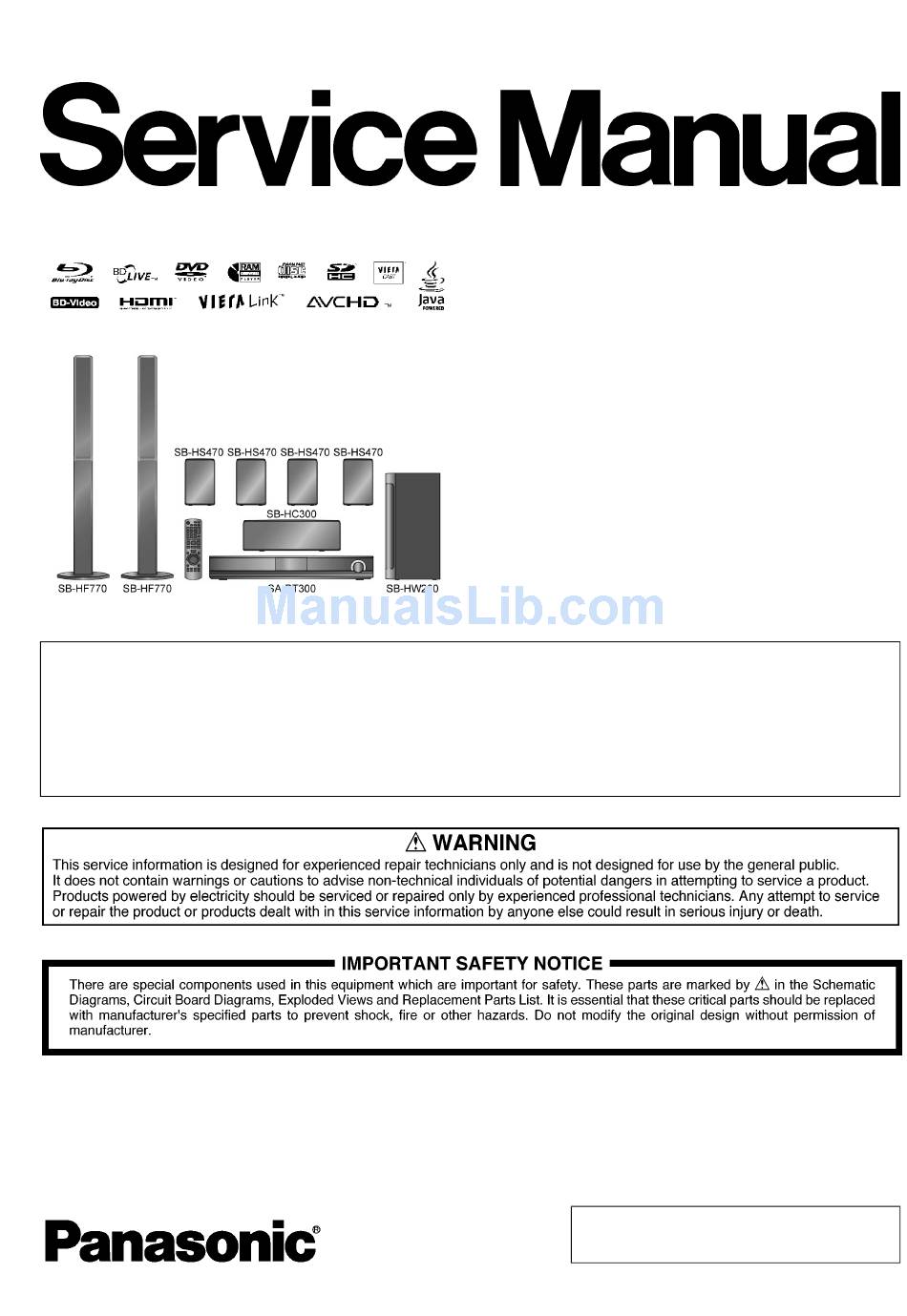

Panasonic SA-BT300PX Service Manual

Blu-ray disc home theater sound system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Notes: These model's BD Drive/Digital P.C.B.
Module are - RFKNBT300P.
Caution:
Pairing of BD Drive and Digital P.C.B. as "BD Drive/Digital P.C.B. Kit Assembly" have to be replaced
together. If the either BD Drive or Digital P.C.B. is changed, BD Drive unit has to be re-aligned. Because the
alignment data for BD Drive Unit is stored in Digital P.C.B.
