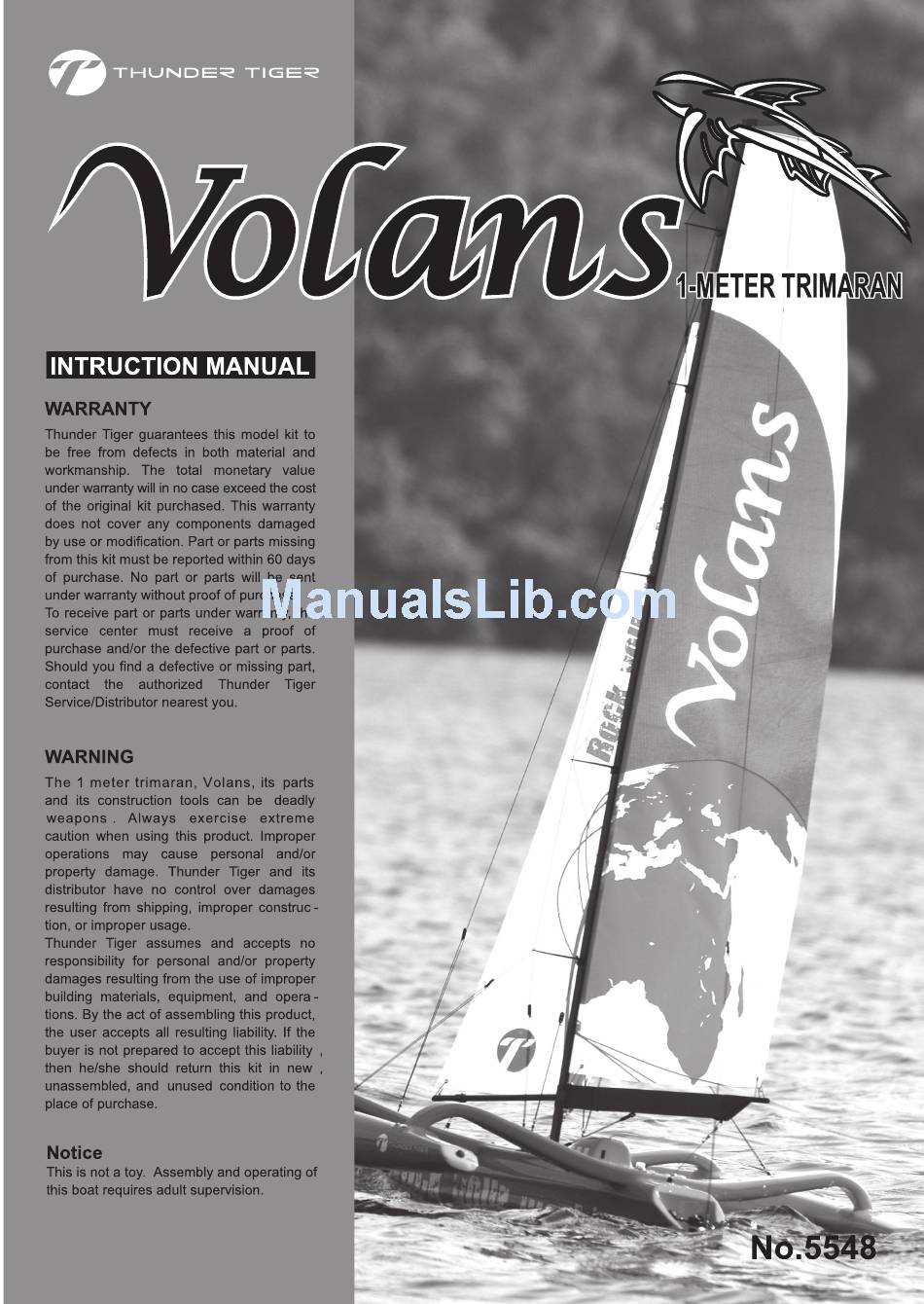

Summary of Contents for THUNDER TIGER Vocans
Page 18
Radio Installation I 1. First cut two sail control lines Main Sail Control Line 25”(65cm) Jib Sail Control Line 30”(75cm) 2. Thread the control lines through front and rear winch line guides then try to reach the line inside the hull. Temporally secure the two ends on the deck and servo tray with tape to prevent the line loosened.
Radio Installation II 34 66 67 68 1. Thread the clevises on the pushrods then adjust and attach the clevises to the servo arm when servo and rudder are at neutral position. 2. Thread one end of the Jib Sail Control String to the servo drum.
