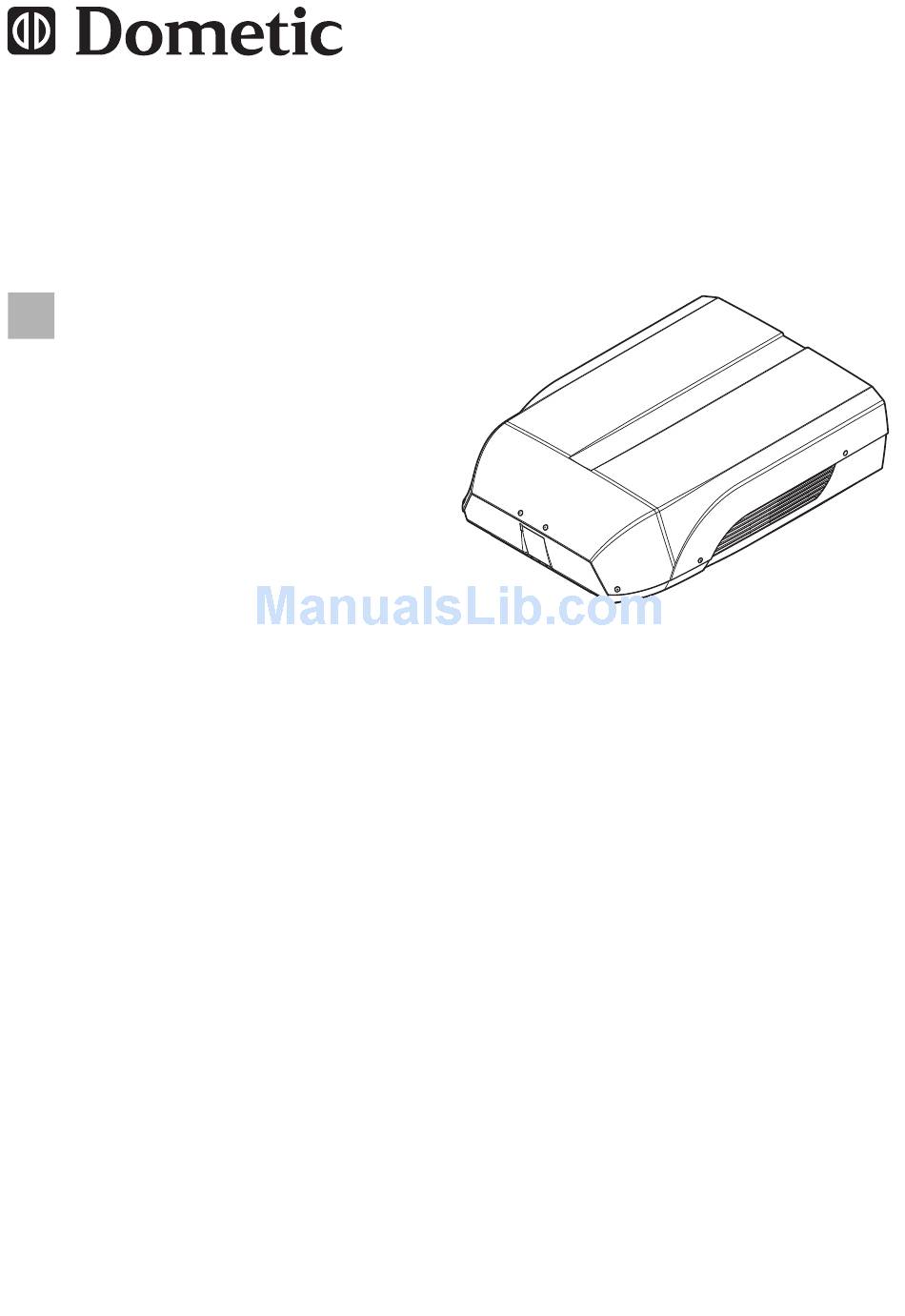

- Page 1 Air conditioning roof unit Installation Manual....3 Dometic Harrier Inverter...
-
Page 3: Table Of Contents
Explanation of symbols Dometic Harrier Inverter Please read this instruction manual carefully before installation and start-up, and store it in a safe place. If you pass on the device to another person, hand over this instruction manual along with it. -
Page 4: Safety And Installation Instructions
Safety and installation instructions Dometic Harrier Inverter NOTE Supplementary information for operating the product. ➤ Action: This symbol indicates that action is required on your part. The required action is described step-by-step. ✓ This symbol describes the result of an action. - Page 5 Safety and installation instructions Dometic Harrier Inverter Handling the device WARNING! Installation and repair of the roof air conditioner may only be carried out by qualified personnel who are familiar with the risks involved and the relevant regulations. Inadequate repairs may cause serious hazards.
- Page 6 Safety and installation instructions Dometic Harrier Inverter NOTICE! Only use the device as intended. The roof air conditioner is not suitable for use in agricultural or construction vehicles. Do not make any alterations or conversions to the device.
-
Page 7: Target Group For This Instruction Manual
Target group for this instruction manual Dometic Harrier Inverter Target group for this instruction manual The instructions in this manual are intended for qualified personnel at workshops who are familiar with the guidelines and safety precautions to be applied. Scope of delivery No. -
Page 8: Intended Use
Intended use Dometic Harrier Inverter Intended use The Dometic Harrier inverter roof air conditioner can condition the interior of campers and caravans with cool or warm dehumidified air. The roof air conditioner is not suitable for installation in construction machines, agricultural machines or similar equipment. It will not work properly if exposed to strong vibrations. -
Page 9: Installation
Installation Dometic Harrier Inverter Installation CAUTION! Beware of injury The roof air conditioner may only be installed by qualified personnel. The following information is intended for technicians who are familiar with the guidelines and safety precautions to be applied. Note on installation Read this installation manual completely before installing the roof air conditioner. - Page 10 Installation Dometic Harrier Inverter Note on transport Always have someone help you carry the roof air conditioner. Always lift the roof air conditioner to move it and never drag it over the roof (fig. 2 A). Do not use the rear or side ventilation slots to lift it (fig. 2 B).
- Page 11 Installation Dometic Harrier Inverter Note on electrical system Only a qualified electrician should connect the roof air conditioner to the electrical power. Check that the voltage specification on the type plate is the same as that of the power supply.
- Page 12 Installation Dometic Harrier Inverter Installing in an existing opening NOTE Existing roof openings in accordance with fig. 3 are suitable for installing the roof air conditioner. Dispose of all waste material, glue, silicone and seals separately. Observe the disposal guidelines.
- Page 13 Installation Dometic Harrier Inverter See fig. 9 ➤ Make an opening on one side in order to feed through the electrical power supply cable. ➤ Feed the 240 Vw cable through the opening into the vehicle interior. Installing the roof air conditioner ADB NOTICE! Risk of damage Observe the structural strength of the roof of the vehicle.
- Page 14 Installation Dometic Harrier Inverter NOTE For the thicker roof seal refer to the instructions included with the seal kit. ➤ Clip the transition duct (3) in place over the duct insert (1). NOTE Ensure the transition duct or seal is located correctly over the duct insert, otherwise the performance of the unit may be affected.
-
Page 15: Troubleshooting
Troubleshooting Dometic Harrier Inverter Installing the ADB cover See fig. c ➤ Place the ADB cover over the ceiling plate. See fig. d ➤ Fix the ADB cover using the 4 screws (2) provided. ➤ Install the screw covers (1) over the opening. - Page 16 Troubleshooting Dometic Harrier Inverter Problem Cause Remedy ➤ Set the roof air conditioner to Not heating well The roof air conditioner is not set to heating. heating. The ambient temperature is below The roof air conditioner will only –2 °C.
-
Page 17: Disposal
Disposal Dometic Harrier Inverter Problem Cause Remedy ➤ Point the remote control to- Remote control The remote control is not pointing wards the ADB display. does not register towards the ADB display. ➤ Replace the batteries in the re- The batteries in the remote control mote control. - Page 18 (oil, grease, etc.) are disposed of correctly. Keep noise levels down to reduce noise pollution. For more information on correct dismantling of our products please refer to the recycling handbooks at www.dometic.com. ➤ Place the packaging material in the appropriate recycling waste bins wherever possible.
-
Page 19: Technical Data
Technical data Dometic Harrier Inverter Technical data Dometic Harrier Inverter Item no.: CK36H401RI Compressor rated capacity: 3675 W Cooling capacity based on ISO 5151: 3124 W Heating capacity based on ISO 5151: 2827 W Rated input voltage: 230 Vw / 50 Hz Power consumption in cooling mode: 6.5 A... - Page 20 Dometic DO Brasil LTDA MEXICO Regional Office Avenida Paulista 1754, conj. 111 Dometic Mx, S. de R. L. de C. V. South Africa & Sub-Saharan Africa SP 01310-920 Sao Paulo Circuito Médicos No. 6 Local 1 Unit 6-7 on Mastiff Linbro Park ...
