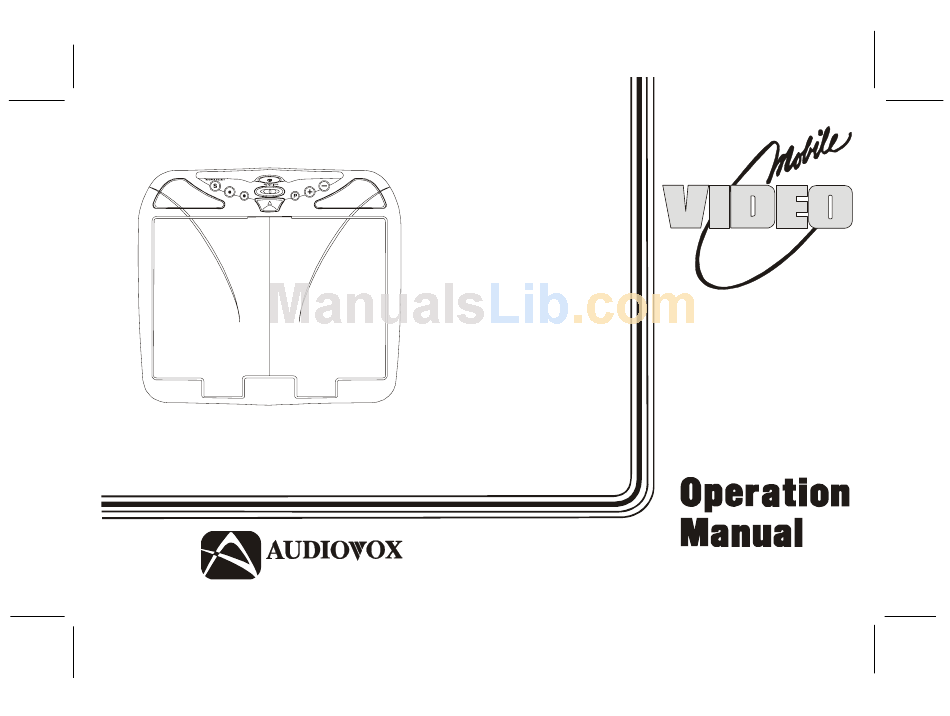

- Page 1 VOD705 FM M S E LE CT IR T P IC TU RE O N/ O FF S E LE CT VOH1012 / VOH1012 S / VOH1012 P DROP-DOWN MONITOR ® ELECTRONICS CORP . VIDEO 128-7288 128-7288 1 of 16...
-
Page 2: Important Notice
Important Notice An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park”... -
Page 3: Safety Precaution
Congratulations on your purchase of the Audiovox VOH1012 Drop-Down Video/Monitor. The VOH1012 has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product and to ensure that you obtain the best results from your equipment. -
Page 4: Controls And Indicators Diagram
Controls and Indicators Diagram SELECT PICTURE ON/OFF SELECT SE LE CT PICTURE ON/OFF SE LE CT 128-7288 4 of 16... - Page 5 2. Infrared Transmitter and Sensor – Use to transmit audio to the wireless headphones. Also allows the remote control to operate the VOH1012 and to control other accessories in the system. 3. Dome Lights – Provide additional interior illumination.
-
Page 6: Remote Control Operation
3) Align the cover tabs with the remote control and press down until the cover clicks. The remote control will operate the VOH1012 and most Audiovox VCP’s. It is not a universal remote control and will not control equipment from other manufacturers. - Page 7 *** The TV Option will only be displayed and the TV control functions are only available if the optional TV Tuner (P/N PODTVT) is installed. POWER Button* Press this button to turn the VOH1012 on. Press the button again to turn the VOH1012 off. SOURCE Button* Each time the button is pressed, the audio / video source will change: DVD, AV1, AUX and TV***.
- Page 8 12. TV Mode Select Button*** Switches certain function keys on the remote control for TV functions. 13. DVD Mode Select button** 14. DISPLAY Button** 15. FM TRANSMITTER ON/OFF Button Turns the FM Modulator ON/OFF. 16. Audio button** 17. ZOOM Button** 18.
- Page 9 34. SETUP Button** 35. RIGHT ( ) Button** 36. PIX Button (PICTURE SELECT) Each time this button is pressed, the OSD will display the “adjustment bars” for BRIGHTNESS, CONTRAST, COLOR or TINT. Once the desired adjustment bar is displayed, use the -/+ buttons to adjust the selected function.
-
Page 10: Overhead Dome Lights
4. Remember to turn the unit off and pivot the LCD to the locked position when not in use. Overhead Dome Lights The lights integrated into the VOH1012 are controlled by a three position slide switch. Sliding the switch to the on position will turn the lights on. -
Page 11: Remote Sensor
Wireless FM Modulator The VOH1012 is equipped with buit-in wireless FM Modulator*, that allows you to listen to the VOH1012 audio signal by tuning your vehicle’s radio to the selected frequency, (88.3, 88.7, 89.1, 89.5, 89.9MHz). This feature is accessed by using either the FM transmitter buttons on the remote (On/Off, Channel Select) or the FM Select button on the unit. - Page 12 The AV1 and AV2 video input may be connected to a DVD Player, Video Cassette Player (VCP), video game system, or other audio / video devices. To access the AV1 or AV2 input, turn the VOH1012 on and press the source button on the VOH1012 or the Source button on the remote control until “AV1”...
-
Page 13: Troubleshooting
Troubleshooting PROBLEM SOLUTION • Check the condition of the vehicle’s Poor in-vehicle radio antenna. radio reception • Verify that the antenna is fully raised. • If a relay box (SIRSWB) has been insatalled, make sure that the FM Modulator is turned OFF. •... -
Page 14: Replacement Parts
Replacement Parts Remote Control A/V Adapter 1363855 LCD Backlighting 1123227 Resolution Pixels Operation Temperature Storage Temperature Backlight life Video Display System Video Output Power Source Dimensions Specifications CFFL 800 x 480 1,152,000 32 -140º F (0 - 60º C) -4 - 158º F (-20 - 70º C) 30,000 Hours NTSC/PAL 1.0Vp-p @ 75 ohms... - Page 15 Applies to Audiovox Mobile Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
- Page 16 For Customer Service Visit Our Website At .audiovox.com Product Information, Photos, FAQ’s Owner’s Manuals 128-7288 © 2004 Audiovox Electronics Corp., Hauppauge, NY 11788 128-7288 16 of 16...
