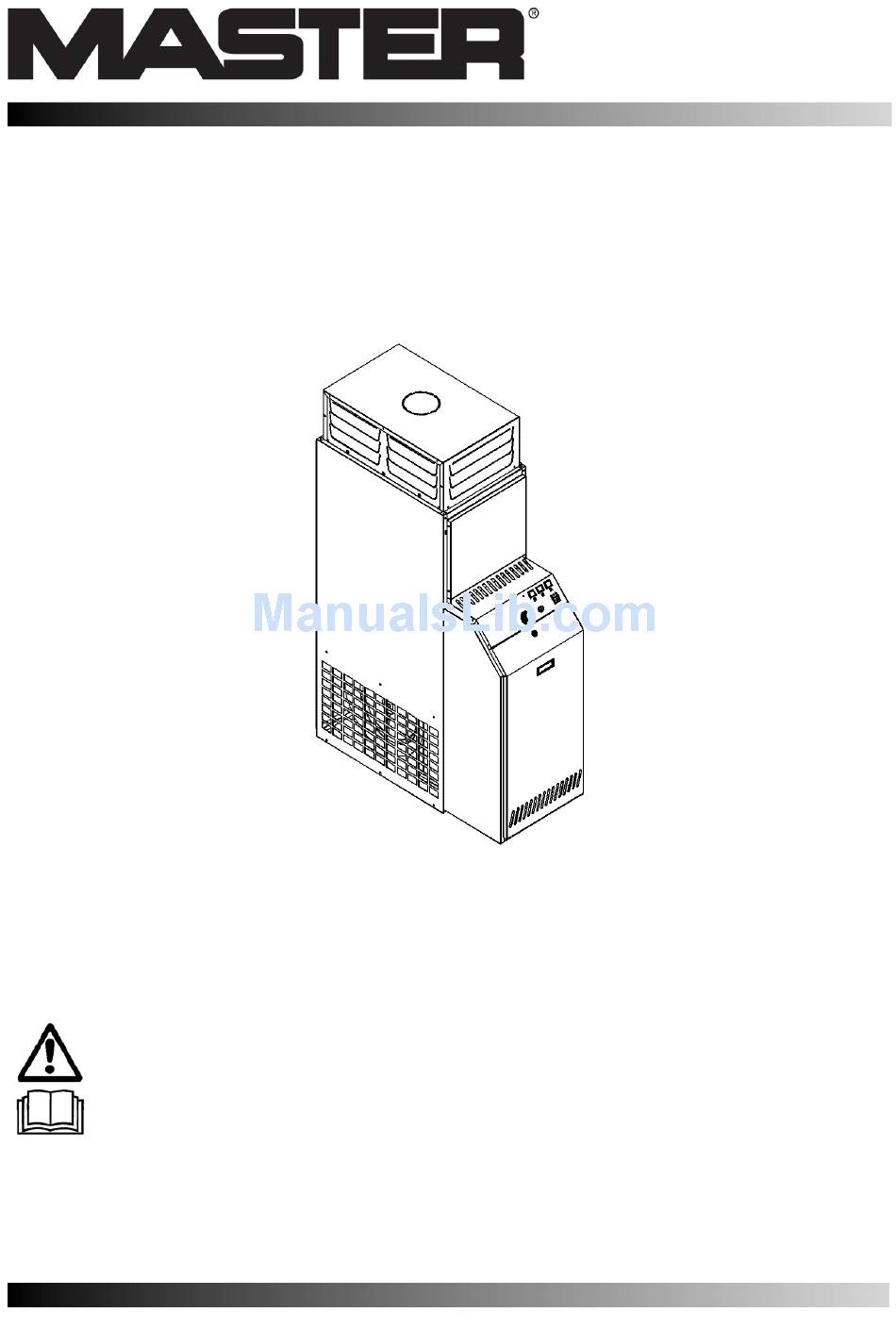

- Page 1 GB – Hot air generator Operation and maintenance manual BF 35 BF 35 BF 35 BF 35 4111.805 BF 45 BF 45 BF 45 BF 45 Edition 10 Rev. 01 BF 75 BF 75 BF 75 BF 75 BF 95...
-
Page 2: Control Board
CONTROL BOARD 1. Commutator 2. Room thermostat 3. Burner 4. Fuel tank 5. Limit thermostat 6. Fan 7. Heat exchanger 8. Combustion chamber 9. Adjustable air head... -
Page 3: General Advice
WARNING: To avoid an overheating of the combustion chamber the fins must never be completely closed. For this reason a blocking bar prevents the complete closure of the fins. BF space heaters have been designed for use in medium to big sized rooms and buildings where a fixed heating system is needed. -
Page 4: Installation
INSTALLATION WARNING! The following operations must be carried out by qualified personnel only. ELECTRIC CONNECTIONS AND SETTINGS: WARNING! The main heater electricity supply has to be provided with grounding and a magneto-thermal switch with a differential. The power wire has to be connected to a switch board linked to a disconnecting switch. -
Page 5: Maintenance
SWITCHING ON To start the heater: • Set the commutator (1) in the “O” position. • Turn the disconnecting switch on the electric board on. • Set the room thermostat (2) at the maximum level and set the commutator (1) in the position: the burner will start and, after the combustion chamber has begun to heat, the fan will start too. - Page 6 To reach the internal part of the heat exchanger and the combustion chamber, remove the burner, the back lower panel (C) as well as the exchanger inspection panel (E). Using a vacuum cleaner or a ramroad, remove soot and extraneous material. Models BF 35 – BF 45 – BF 75: Models BF 95 – BF 105:...
- Page 7 FAN CLEANSING Remove any extraneous material from the net of the aspiration grate (F) and, if necessary, clean the blades with pressurized air blows. BURNER CLEANSING For the heater to function efficiently, the burner has to be regularly services by an authorized service technician. All cleaning, servicing and regulation operations have to be performed as indicated in the burner manual.
-
Page 8: Technical Data
TECHNICAL DATA MODEL BF 35 BF 45 BF 75 BF 95 BF 105 230V ∼ 50 Hz Single phase power supply Air flow 1.900 m³/h 2.800 m³/h 4.500 m³/h 5.300 m³/h 6.300 m³/h Cosumption 2,84 kg/h 3,95 kg/h 6,0 kg/h... -
Page 9: Declaration Of Conformity (Ce)
DESA Italia s.p.a. - Via Tione, 12 - 37010 Pastrengo (Vr) - ITALY Declares under its responsibility that the machine: Hot air generator: BF 35 – BF 45 – BF 75 – BF 95 – BF 105 Complies with: 98/37 CE, 91/368, 93/44, EMC 89/336, 92/31, 93/68, 73/23. - Page 12 DESA HEATING EQUIPMENT DESA ITALIA s.p.a. DESA POLAND Sp. Z.o.o SHANGHAI CO., LTD Via Tione, 12 – 37010 ul Magazynova 5A, 62-023 Rm. 2203, 218, HengFeng Rd, Pastrengo (Verona) – Italy Gadki, Poland Shanghai, China, 200070 www.desaitalia.com www.desapoland.pl www.desa-china.com info@desaitalia.com office@desapoland.pl info@desa-china.com...
