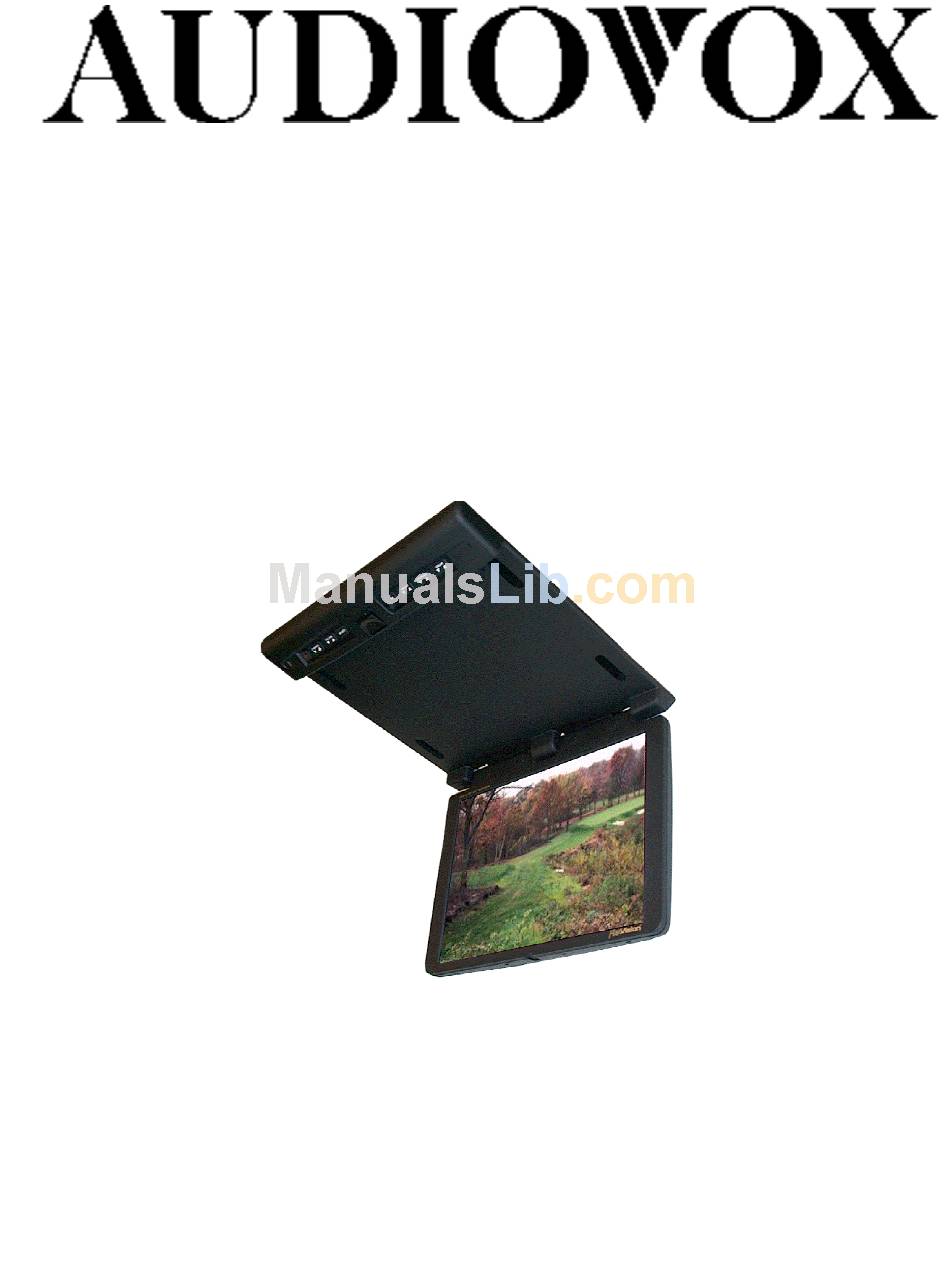

- Page 1 VOH1332 Owner’ s/Installation Manual 13.3” Flip-Down In Vehicle Entertainment System Audiovox Electronics Corporation 150 Marcus Blvd. Hauppauge, NY 11788 1-800-645-4994...
-
Page 2: Package Contents
Built-In TV Tuner Infrared Remote Control Repeater Circuit (for Wireless VCP, and Tuner Functions) (VCP must be purchased separately) Package Contents A) VOH1332 Video Flip Down Pod- (p/n VOH1332) (not shown) B) Source Component Harness- (p/n 8010730) C) Accessory Bag- 1. - Page 3 1) Left RCA Out: Hook-up for left audio out (white female RCA jack) 2) Right RCA Out: Hook-up for right audio out (red female RCA jack) 3) Video Out: Hook-up for video out (yellow female RCA jack) 4) Power Harness Connection: This plug connects to the power harness mating plug 5) Optional Wired Headphone Connections: Green is right positive, Gray is left positive and Black is the ground.
- Page 4 Front Button Panel Features 1) Power: This button turns the VOH1332 on and off. Dimly lit when in stand-by mode. 2) Channel : Pressing will select higher programmed channels and pressing lower programmed channels than current channel. 3) Volume : Pressing will raise the volume and pressing 4) Select: Each press of this button selects the next source (1-3).
- Page 5 General Installation Approach 1) Before beginning installation, please refer to warning on page 10. 2) Decide upon system configuration and options that will be installed (ie: what components, VCP, remote headphones, 2 3) Review all manuals to become familiar with electrical requirements and hook ups. 4) Decide upon mounting locations of all components and method of mounting.
-
Page 6: Vehicle Preparation
Vehicle Preparation 1) Locate vehicle power source. Generally this is best found near the vehicle’ s fuse block, which is usually (though not always) under the steering wheel area. Locate an accessory hot circuit to tap into video system power. Accessory hot means a circuit that is +12VDC when the ignition key is in either the “... - Page 7 Wiring Diagram Hook Up Procedure 1) Connect the power harness to the mating connector on the video pod. 2) Connect the power harness to the vehicle’ s electrical system by tapping into an accessory hot line. 3) Verify all functions of the system before mounting of the finished assembly.
- Page 8 (such as the WHS100,) plug in two RCA “Y” adapters into the left and right audio out RCA jacks on the VOH1332. Using two dual RCA cables, plug the left audio inputs of the modulator and wireless transmitter into the left output “Y”...
-
Page 9: Remote Control Functionality
Remote Control Functionality TELEVISION CONTROLS: 1) TV Power: Turns unit on/off 2) TV/Video: Toggles between 3 available sources; Tuner/VCP/DVD (VCP2) 3) Mute: Mutes headphone audio 4) 0-9: Numbers for channel selection CH: Channel Up CH: Channel Down Vol: Volume Up Vol: Volume Down 9) Skip/Search: Toggles on/off. -
Page 10: Antenna Information
Cut-Away View of Mounting Bosses Roof Structure Screw Boss Note: If longer screws are substituted, care should be taken to prevent piercing the roof, and be sure that pan head screws and washers are used to prevent screws from pulling through the screw boss. -
Page 11: Troubleshooting
Not receiving certain channels Unit will not respond to remote control No power to unit For Installation Help, Call: Audiovox Electronics Corporation 1-800-645-4994 M-F 8:30 AM – 7:00 PM Sat. 9:00 AM – 5:00 PM Cause: Antenna type or location... -
Page 12: Specifications
Specifications Video System: A/V Switching: Power: Aux Audio Outputs: Current Consumption (stand-by mode): Current Consumption (on, but no VCP): Current Consumption (with one VCP on): Audio Noise Floor (30KHz BW): THD+N @ -10dBV, 1KHz (30KHz BW): Cross talk @ 1KHz: Maximum Input Level, Audio L and R: Frequency Response, 20Hz –... - Page 13 P/N 1281332 Rev. B Oct. 00...
