Topcom IP100 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

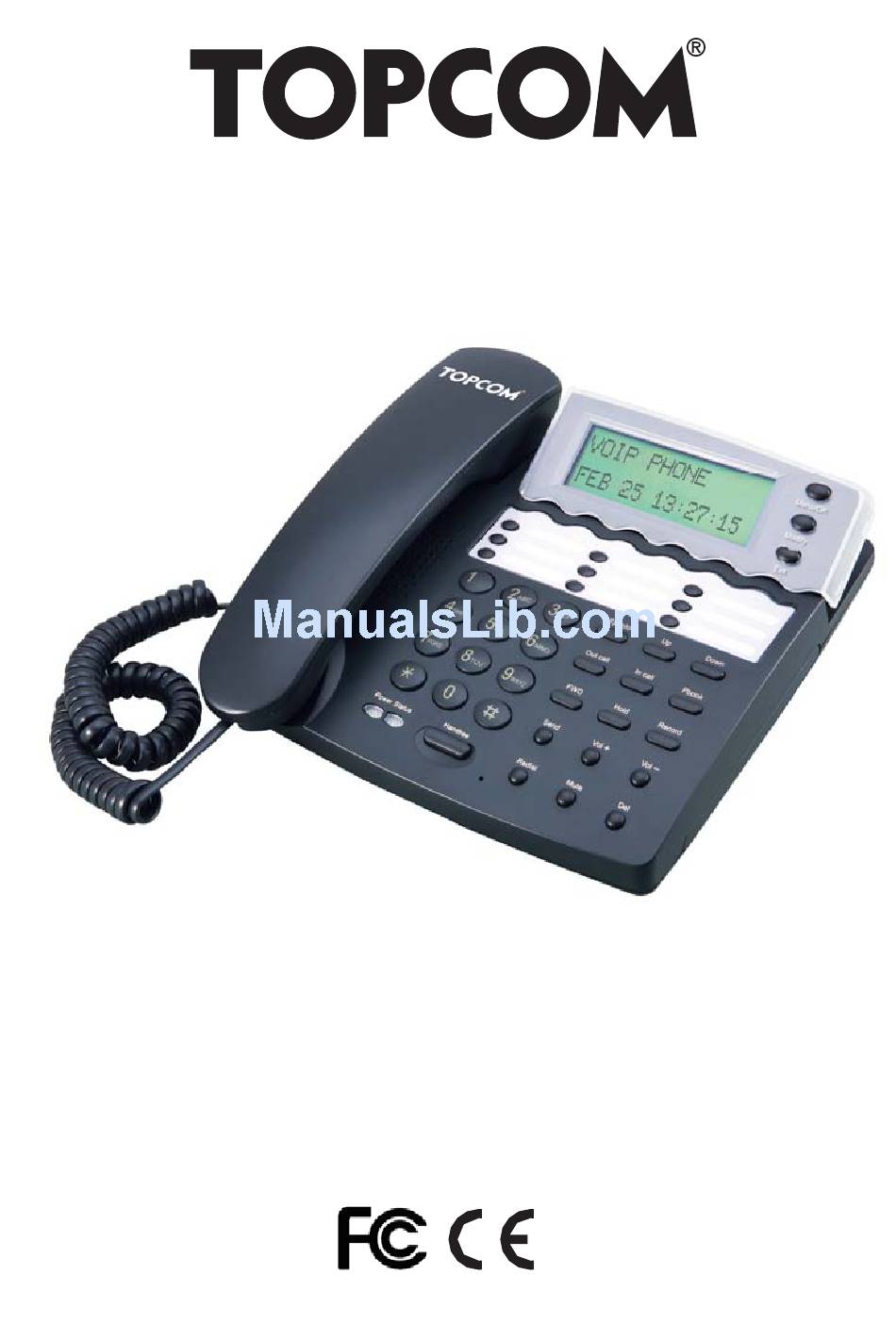

IP100
USER GUIDE
1.0

Advertisement

Table of Contents
loading

Related Manuals for Topcom IP100

Summary of Contents for Topcom IP100

  • Page 1 IP100 USER GUIDE...
  • Page 2 This product is in compliance with the essential requirements and other relevant provisions of the R&TTE directive 1999/5/EC. The Declaration of conformity can be found on : http://www.topcom.net/support/cedeclarations.php The features described in this manual are published with reservation to modifications.

  • Page 3: Table Of Contents

    VoIP SIP Config ......................11 Advance .........................13 Config Manage .......................23 Update..........................23 System Manage ......................25 7 Use keypad configure IP100 IP phone ............... 27 Keypad function ......................27 Keypad Menu ......................... 28 8 Telnet Console ..................... 29 Introduce ........................29 Global Command ......................30 9 Tree Structure .......................
  • Page 4 11 Restore to factory default ..................40 12 POST Mode(safe mode) ..................40 13 FAQ ........................40 13.1 How many servers may IP100 register simultaneously? ..........40 13.2 Why the settings vanish after reboot? ................40 13.3 How to use the dial rule? ....................40 13.4 How to use speed dial function? ..................41...

  • Page 5: Before Initial Use

    Topcom IP100 Before Initial use Thank you for purchasing this new desktop caller ID telephone. Intended Purpose This product is intend to be connected indoor to an analogue PSTN telephone line. Caller ID Caller ID is a network provider service. After subscribing to Caller ID, this phone will display the caller’s phone number.

  • Page 6: Safety Advice

    Topcom IP100 Some of the product materials can be re-used if you bring them to a recycling point. By re- using some parts or raw materials from used products you make an important contribution to the protection of the environment.

  • Page 7: Ip100 Features

    Topcom IP100 IP100 Features Appearance IP100 Interface • Power:Output Power:12VDC,500mA. • WAN:RJ45 port. • LAN:RJ45 port. Electricity characteristic • Speciality of electric: output the 12V 500mA DC • The network connects:2 RJ45 connect, a WAN, a LAN • Support POE function...

  • Page 8: Software

    Topcom IP100 Software • Support two sip accounts at the same time. • Redundancies server support. • NAT, Firewall. • DHCP client and server. • Support PPPoE, (used for ADSL, cable modem connecting). • Support major G7.xxx CODEC. • VAD,CNG.

  • Page 9: Operating Requirement

    > Manual CD Installation Use ethernet cable to connect IP100's LAN port and your computer. Set your computer's ip to the network 192.168.10.x or using dynamic obtain IP. Open your web browser and key in 192.168.10.1. Then you will see the logon page of IP100, the default username and password is admin/admin for administrator and guest/guest for guest.

  • Page 10: Web Configuration

    Web Configuration Access Web setting page Enter IP100 IP address in the web browser and press ENTER to go to the log on page, and key in the username and password to access IP100 setting page. Default username and password is:...

  • Page 11: Network

    ----Set local DNS server in the Preferred DNS and the Alternate DNS • Configure to dynamic obtain IP ----Enable DHCP; If there is DHCP server in your local network, IP100 will automatically obtain WAN port network information from your DHCP server. • Configure PPPoE: ----Enable PPPoE ----PPPoE server: Enter "ANY"...
  • Page 12 Topcom IP100 6.3.2 LAN Config Bridge Mode: Enable this option to switch to bridge mode. IP phone won't assign IP for its LAN port in bridge mode and its LAN and WAN port will be in the same network. (This setting...

  • Page 13: Voip Sip Config

    Local SIP register port, default 5060 Phone Number: Phone number of your SIP account Register Expire Time: register expire time, default is 600 seconds. IP100 will auto configure this expire time to the server recommended setting if it is different from the SIP server.
  • Page 14 DTMF Mode: DTMF signal sending mode: support RFC2833, DTMF_RELAY (inband audio) and SIP info RFC Protocol Edition:Current IP100 SIP version. Set to RFC 2543 if the gate need to communicate to devices (such as CISCO5300) using the SIP 1.0. Default is RFC 3261.

  • Page 15: Advance

    DHCP server lease time. Start IP: Start IP of lease table. End IP: End IP of lease table. Network device connecting to the IP100 LAN port can dynamic obtain the IP in the range between start IP and end IP.
  • Page 16 Topcom IP100 6.5.2 NAT Advance NAT setting. Maximum 10 items for TCP and UDP port mapping. IPSec ALG: Enable/Disable IPSec ALG; FTP ALG: Enable/Disable FTP ALG; PPTP ALG:Enable/Disable PPTP ALG; Transfer Type:Transfer type using port mapping. Inside IP:LAN device IP for port mapping.
  • Page 17 Topcom IP100 6.5.3 Net Service HTTP Port:configure HTTP transfer port, default is 80.User may change this port to enhance system's security. When this port is changed, please use http://xxx.xxx.xxx.xxx:xxxx/ to reconnect. Telnet Port:configure telnet transfer port, default is 23. RTP Initial Port: RTP initial port.
  • Page 18 Access list support two type limits: input_access limit or output_access limit. Each type support 10 items maximum. IP100 firewall filter is base WAN port. So the source address or input destination address should be WAN port IP address. Configuration:...
  • Page 19 Topcom IP100 6.5.5 QoS settings IP100 IP phone implement QoS based on 802.1p, The QoS is used to mark the network communication priority in the data link/MAC sub-layer. IP100 will sorted the packets using the QoS and sends it to the destination.
  • Page 20 Topcom IP100 6.5.6 Advance SIP settings This page is used to set the private sip server, stun server, and back up sip server information. STUN Server setting: STUN Server Addr: configure stun server address; STUN Server Port: configure stun server port default 3478 STUN Effect Time: stun detect NAT type circle, unit: minute.
  • Page 21 Topcom IP100 6.5.7 Digital Map Digit map is a set of rules to determine when the user has finished dialing. AT530P support below digital map: Digital Map is based on some rules to judge when user end their dialing and send the number to the server.
  • Page 22 Enable Three Way Call: Please refer to Value_add_service for detail. Enable Call Waiting: Enable/disable Call Waiting Accept Any Call:If this option is disable, IP100 refuse the incoming call when the called number is different from IP100's phone number. No Answer Time: no answer call forward time setting.
  • Page 23 Topcom IP100 6.5.9 MMI Filter MMI filter is used to make access limit to IP100 IP phone. When MMI filter is enable. Only IP address within the start IP and end IP can access IP100 IP phone. 6.5.10 Audio Settings CODEC: select the prefer CODEC;...
  • Page 24 Topcom IP100 6.5.11 VPN This page is VPN setting page , the IP phone support the VPN with UDP and L2TP protocol .The parameters is as below VPN IP:After VPN registered successfully, VPN server will give an IP aggress to the terminal .

  • Page 25: Config Manage

    Update 6.7.1 Web Update: Update IP phone's settings or firmware. Firmware file is .z extension when configure file is .cfg extension, IP100 will auto select configure update or firmware update according the extension. 6.7.2 TFTP/FTP Update: Upload/download the configure file with FTP or TFTP server. or download firmware from FTP or TFTP server Back up configure file to your FTP/TFTP server.
  • Page 26 Config file import:import the config file. 6.7.3 Auto Provisioning: IP100 IP phone support FTP and TFTP auto update. The gateway will auto obtain the configure file from your update server if configured. To obtain the original configure file, you can use the FTP/TFTP back up as describe above. Configure file using module structure, user may remain the concerned modules and remove other modules.

  • Page 27: System Manage

    Topcom IP100 System Manage 6.8.1 Account Manage Set web access account or keypad password of IP100. 6.8.2 Phone Book: User may set contacts in this page, and the contacts will be saved in the memory. Then using the Pbook, Vol+,Vol-,Menu/OK and Exit keys to choose your friend in the contacts and then press # to call out.
  • Page 28 Topcom IP100 6.8.4 Time Set: Server:type the ip address of time server Timezone:select correct time zone in list box Timeout: longest response time for SNTP Manual Timeset:The time setting Daylight:Daylight saving time 6.8.5 Reboot: Reboot IP phone, some setting needs to reboot to make it works. Please always save config before reboot, otherwise the setting will return to previous setting.

  • Page 29: Use Keypad Configure Ip100 Ip Phone

    Topcom IP100 Use keypad configure IP100 IP phone Keypad function User can configure IP100 through its keypad. List below is the keypad function Keypad Mode Function/Display Idle mode ---- Show current time Sysinfo Idle mode Circularly show phone number,wan ip, gateway info...

  • Page 30: Keypad Menu

    Topcom IP100 Keypad Menu User may use SET, Menu/ok, Exit, Vol+, Vol- to config IP100 detail setting. Press Menu/ok to enter config mode, and the default password is 123. Below list the keypad menu of IP100 IP100 Keypad Menu Level 1...

  • Page 31: Telnet Console

    User may use telnet command to access and manage IP phone. IP100 adopts tree structure for telnet. Every node contains its sub-nodes or local command. User can type "help" or "?" whenever to see sub-nodes and all local command under current node.

  • Page 32: Global Command

    Topcom IP100 Global Command Global command is available under all nodes, IP100 support following commands: Command Function Example chinese Set to Chinese UI #chinese clear Clear telnet screen #clear english Set to English UI #english exit Return to parent-node #exit...
  • Page 33 Topcom IP100 • DHCP path: <config-dhcp># add DHCP rule ---entry -name xxx -startip x.x.x.x -endip x.x.x.x -netmask x.x.x.x - gateway x.x.x.x -dnsserver x.x.x.x _time xxx Example:<config-dhcp>#entry -name lan2004 -startip 192.168.1.2 -endip 192.168.1.254 - netmask 255.255.255.0 -gateway 192.168.1.1 -dnsserver 192.168.10.18 delete DHCP rule ---no entry -name xxx Example: <config-dhcp>#no entry -name lan2004...
  • Page 34 Topcom IP100 You need to reconnect if the WAN port has been changed. Show WAN port settings ---show • MMI Filter path: <config-mmifilter># add filter rule ---entry -start x.x.x.x -end x.x.x.x Example:<config-mmifilter>#entry -start 202.112.20.1 -end 202.112.20.255 Delete filter rule ---no entry -start x.x.x.x Example:<config-mmifilter>#no entry -start 202.112.20.1...
  • Page 35 Topcom IP100 • Dial-peer settings path: <config-pbook># [disable]enable calling through GK and proxy ---[no]enableGKandProxy Add number-IP bond entry ---entry -number xxx -ip x.x.x.x -protocol xxx Example:<config-pbook>#entry -number 100 -ip 202.112.20.100 -protocol sip Add number-IP bond and add prefix to the dial number ---entry -number xxx -ip x.x.x.x -protocol xxx _add xxx...
  • Page 36 Topcom IP100 Set input volume °° °°°° ---input xxx Set outgoing limit list ---out-limit xxx Show outgoing limit list ---out-limit Set output volume °°°°°°°°°°°° °°---output xxx [disable]enable outgoing limit ---[no]shutdown out [disable]enable black list ---[no]shutdown in [disable]enable outgoing limit and black list ---[no]shutdown...

  • Page 37: Debug (Level 0~7)

    Topcom IP100 [disable]enable stun server ---stun [no]enable Set stun detecting interval time ---stun interval-time xxx Set stun server ip and port ---stun -ip x.x.x.x -port xxx Show current sip info ---show • User management path: <config-user># Change user right. ---access -user xxx -access xxx Example:<config-user>#access -user aaa -access 7...
  • Page 38 Topcom IP100 • basic path: <show># show network status Example: #<show>#basic • call path: <show># show current call info Example: #<show>#call active • capability path: <show># show CODEC capability Example: #<show>#capability • debugging path: <show># show debug info Example:#<show>#debugging •...
  • Page 39 Topcom IP100 Show netstate info Example:#<show>#ip netstat Show route info Example:#<show>#ip route Show icmp packets Stat. Example:#<show>#ip icmp Show igmp packets Stat. Example:#<show>#ip igmp Show ip packets Stat. Example:#<show>#ip ip Show RTP packets Stat. Example:#<show>#ip rtp Show TCP packets Stat.
  • Page 40 Topcom IP100 show black list info Example:#<show>#port in-limit show outgoing limit info Example:#<show>#port out-limit show current phone number Example:#<show>#port number show current port status Example:#<show>#port status • PPPoE path: <show># show PPPoE info Example:#<show># pppoe • path: <show># show QoS table info Example:#<show>#qos...

  • Page 41: Telnet And Logout

    Topcom IP100 telnet and logout Usage: #telnet -target -port Login:xxx Password:xxx #logout timesettings path: <time># ---manualset -year xxx -month xxx -day xxx -hour xxx -minute xxx -second xxx Example:<time>#manulset -year 2004 -month 10 -day 1 -hour 8 -minitute 30 -second 0...

  • Page 42: Restore To Factory Default

    How to enter safe mode? There will be a schedule bar in the IP100 booting procedure, press # key within the first 5 seconds, then the phone will go to POST mode. It has a default ip 192.168.10.1 in POST mode.

  • Page 43: How To Use Speed Dial Function

    13.4 How to use speed dial function? There are 9 speed dial keys in the IP100 panel, Usage: Set speed dial number: press the speed key and enter the speed dial number and then press Menu/OK key to save the setting.

  • Page 44: How To Use Call Forward, Call Transfer And 3-Way Conference Calls

    Unattended transfer: If A is the IP100 user, and B calls and talking with A through VoIP. A can press FWD button to hold the call with B, and then enter C's number. B will be transferred to C and can talk with Attended transfer: Only SIP protocol support this function .If A is the IP100 user, and B calls and talking with A...

  • Page 45: How To Use Set The Ip Type Via Keypad

    Topcom IP100 Notice: IP100 supports three message maximum, each message can be 90 seconds. Answering will be deactivated if the message numbers is 3. Record local message: User may use local message to leave message to other local users. Please refer the Record button function as below:...
  • Page 46 Topcom IP100 if "Data/Voice VLAN differentiated" is Tag differentiated but the DiffServ is disable. Device won't distinguish the voice, signaling and data stream. It will add the same data vlan id to them. As below: 3. if "Data/Voice VLAN differentiated" is Tag differentiated and diffServ are both enable. Then device will distinguish the voice, signaling and data stream to VLAN ID setting.

  • Page 47: Topcom Warranty

    14.2 Warranty handling A faulty unit needs to be returned to a Topcom service centre including a valid purchase note. If the unit develops a fault during the warranty period, Topcom or its officially appointed service centre will repair any defects caused by material or manufacturing faults free of charge.

  • Page 48: Warranty Exclusions

    14.3 Warranty exclusions Damage or defects caused by incorrect treatment or operation and damage resulting from use of non-original parts or accessories not recommended by Topcom are not covered by the warranty. The warranty does not cover damage caused by outside factors, such as lightning, water and fire, nor any damage caused during transportation.
  • Page 52 MD8100200...
