Lorex lwu3624 Quick Start Manual

720 P WIR EL ESS DIGITAL SECUR ITY CAME R A SYSTE M
LWU 3 62 4 / LW U3 62 2
Qu i c k Sta rt G uide

Getting Started

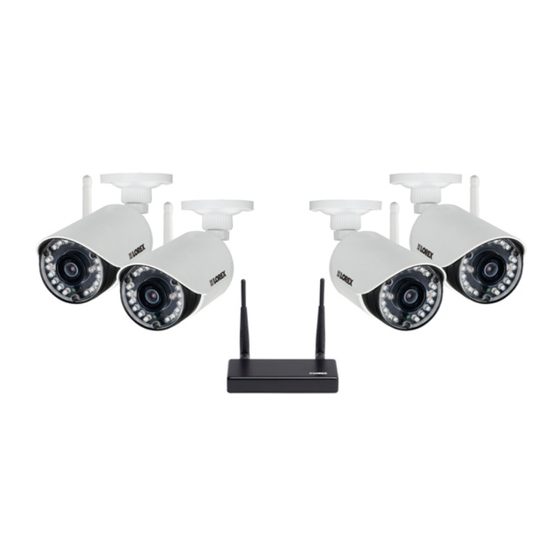

This system comes with the following components:
4x wireless 720p indoor/outdoor cameras*
4x antennas for cameras (pre-attached)*
4x power adapters for cameras*
4x mounting kits for cameras*
1x wireless indoor/outdoor receiver
2x antennas for receiver (pre-attached)
1x mounting kit for receiver
1x double-sided tape for receiver
*Quantity only applies to the LWU3624.
The LWU3622 contains 2 units of each.
NOTE: The LWU3624/LWU3622 is compatible with
Lorex LH050/LH041 series DVRs only.
Visit www.lorextechnology.com for the most up-to-
date list of compatible recorders.

Installation Tips

Before you permanently install your cameras:
Plan where and how they will be positioned.
Determine where you will route the cable that
connects the camera to the power adapter.
Verify the camera's performance by observing
the image on a monitor when the camera
is positioned where it will be permanently
installed.
Avoid installing cameras in locations that
require the wireless signal to pass through
cement, concrete and metal structures. This
will reduce the transmission range.
A. Installing the Cameras
1 Mount the camera to the wall or ceiling using the included screws.
Cable Notch
For outdoor use, installation in a
sheltered location is recommended.
Adjust the angle of the camera until the desired view is set. Tight-
2
en the thumbscrew and the adjustment rings to secure the camera
position.
A B
A) Turn the adjustment B) Loosen lower screw
ring to tighten / loosen with the Allen key to ad-
the stand connection. just the camera's vertical
Adjust the camera's position.
horizontal position.
Connect the camera power adapter to the camera. Connect
3
power adapter to a power outlet.
www.lorextechnology.com
B. Installing the Receiver
OPTIONAL
1
Use the included double-sided tape to securely attach the receiver to
a flat surface.
OR
NOTE:
If you run the cables along the
Use the included screws to mount the receiver to a wall.
wall / ceiling, you must run the ca-
ble through the cable notch on the
ATTENTION:
base. This will keep the camera
cameras before powering on the receiver. This will ensure a
base flush to the wall /
proper connection.
ceiling when mounted.
2
Plug the USB cable from the wireless receiver into your DVR.
C
C) Loosen upper screw
NOTE
with the Allen key
security cameras in the same environment to maintain optimal video
to rotate the camera
frame rate performance.
housing.
1
2
3
4
Make sure to first connect and power on the
: It is not recommended to install more than 4 digital wireless
Need Help?
Visit us online for up-to-date software and
complete instruction manuals
Go to www.lorextechnology.com
Search the model number of your product
Click on your product in the search results
Click the Downloads tab
LWU3624_LWU3622_QSG_EN_R2
