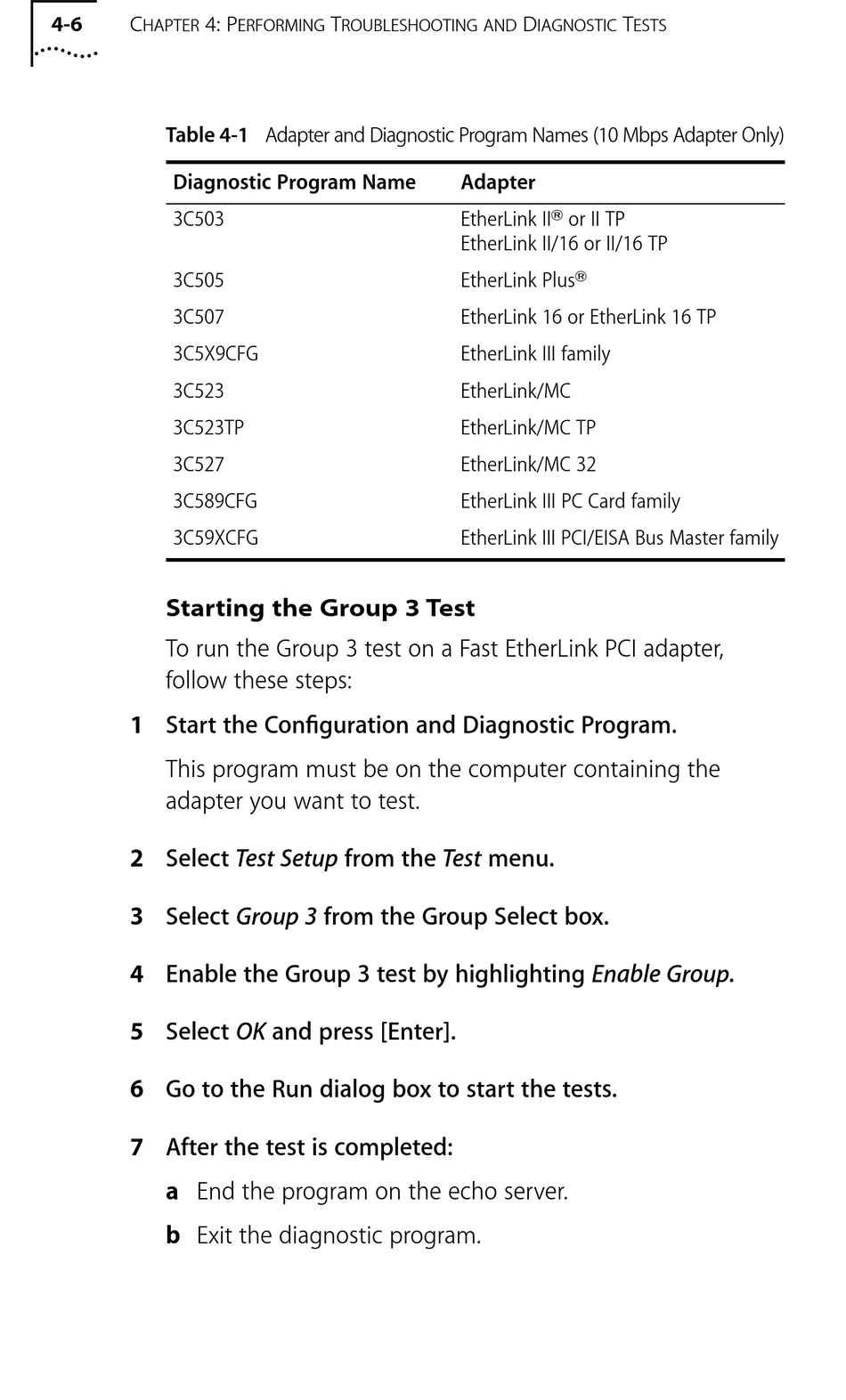

4-6 C 4: P
HAPTER
Table 4-1 Adapter and Diagnostic Program Names (10 Mbps Adapter Only)
Diagnostic Program Name
3C503
3C505
3C507
3C5X9CFG
3C523
3C523TP
3C527
3C589CFG
3C59XCFG

Starting the Group 3 Test

To run the Group 3 test on a Fast EtherLink PCI adapter,
follow these steps:
1 Start the Configuration and Diagnostic Program.
This program must be on the computer containing the
adapter you want to test.
2 Select Test Setup from the Test menu.
3 Select Group 3 from the Group Select box.
4 Enable the Group 3 test by highlighting Enable Group.
5 Select OK and press [Enter].
6 Go to the Run dialog box to start the tests.
7 After the test is completed:
a End the program on the echo server.
b Exit the diagnostic program.
T
ERFORMING ROUBLESHOOTING AND
D
IAGNOSTIC
Adapter
â
EtherLink II or II TP
EtherLink II/16 or II/16 TP
â
EtherLink Plus
EtherLink 16 or EtherLink 16 TP
EtherLink III family
EtherLink/MC
EtherLink/MC TP
EtherLink/MC 32
EtherLink III PC Card family
EtherLink III PCI/EISA Bus Master family
T
ESTS
