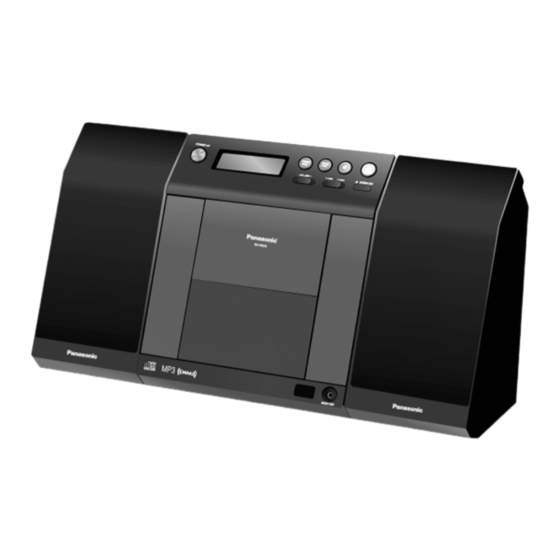

Panasonic SC-EN35P Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Stereo System
  5. SC-EN35P
  6. Service manual
Panasonic SC-EN35P Service Manual

Panasonic SC-EN35P Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Specifications

n AMPLIFIER SECTION
FTC OUTPUT POWER both channel driven simultaneously
10% total harmonic distortion (THD)
1 kHz
RMS OUTPUT POWER both channel driven simultaneously
10% total harmonic distortion (THD)
1 kHz
Output impedance
HEADPHONE
MUSIC PORT
Phone Jack
Terminal
Music Port Jack
Terminal
n TUNER SECTION
Frequency range
FM
AM
n CD PLAYER
Disc played [8cm (3") or 12cm (5")]
(1) CD-Audio (CD-DA)
(2) CD-R/RW (CD-DA, MP3)
(3) MP3
2.8 W per channel
3 W per channel
16 Ω to 32 Ω
14 kΩ
3.5 mm stereo
3.5 mm stereo
87.9 MHz to 107.9 MHz (200 kHz)
87.5 MHz to 108.0 MHz (100 kHz)
520 kHz to 1710 kHz (10 kHz)
SC-EN35P
SC-EN35PC
Colour
(K)... Black Type
System
SC-EN35P-K
Main Unit: SA-EN35P-K
Speakers: SB-EN35AP-K (L) & SB-EN35P-K (R)
SC-EN35PC-K
Main Unit: SA-EN35PC-K
Speakers: SB-EN35APC-K (L) & SB-EN35PC-K (R)
Sampling frequency
CD
MP3
Bit rate
MP3
Decoding
Pick up
Wavelength
Laser power
Audio Output (Disc)
Number of channels
Frequency response
Wow and flutter
Digital filter
D/A converter
n GENERAL
Power supply
Power consumption
Dimension (W x H X D)
Mass
With speakers
Without speakers
Operating temperature range
© 2007 Matsushita Electric Industrial Co. Ltd.. All
rights
reserved.
distribution is a violation of law.
ORDER NO. MD0703013CE
CD Stereo System
44.1 kHz
32 kHz, 44.1 kHz, 48 kHz
32 kbps to 384 kbps
16/20/24 bit linear
CLASS 1
2 channel
20 Hz to 20 kHz (+1, -2 dB)
Below measurement limit
MASH (1 bit DAC)
AC 120 V, 60 Hz
220mm x 236mm x 146 mm
(8 21/32" x 9 9/32" x 5 3/4")
3.57 kg (7.87 lbs)
1.27 kg (2.80 lbs)
+5 to +35°C (+41 to +95°F)
Unauthorized
copying
A6
785 nm
8
30 W
and
