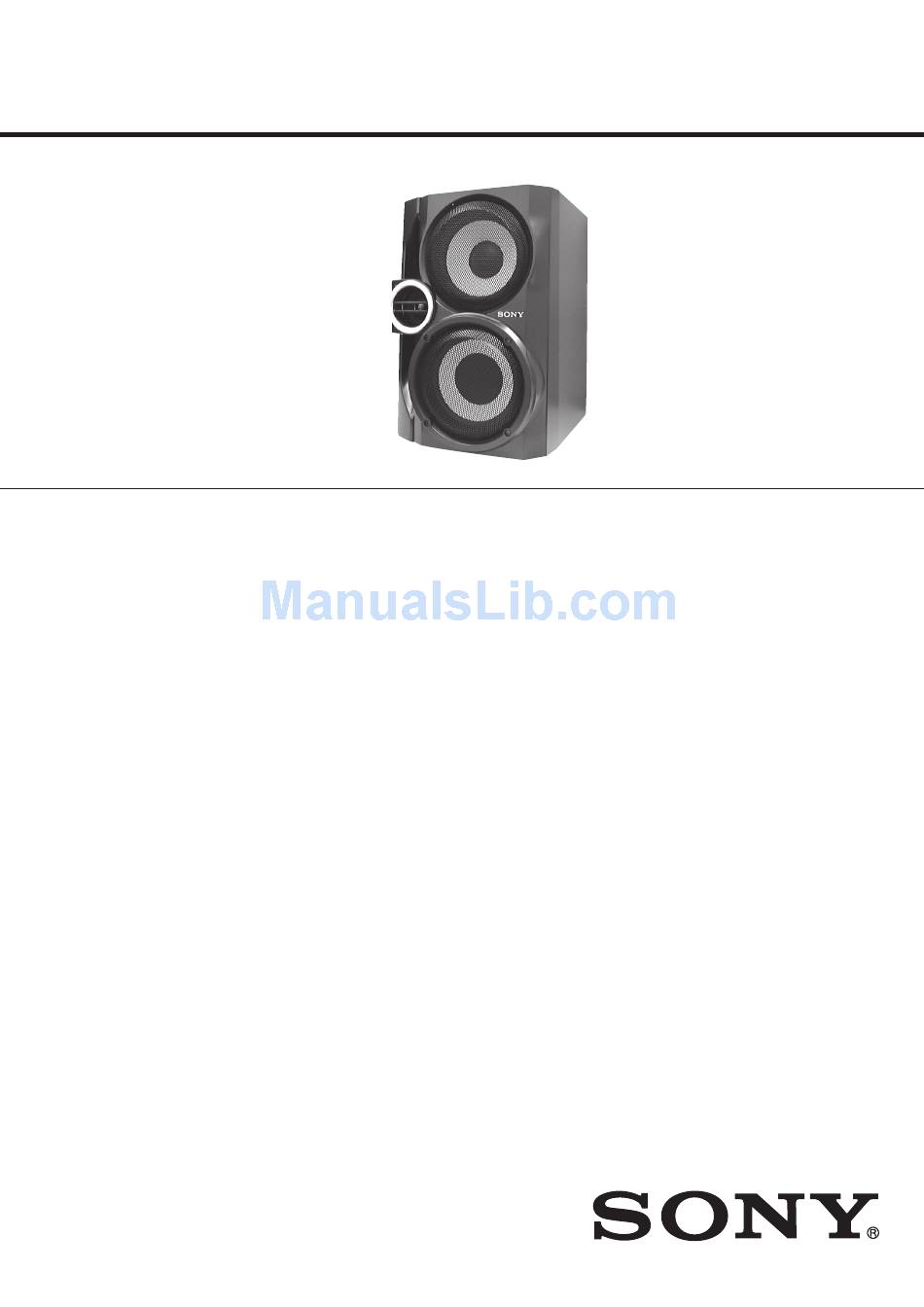

SS-DX30/RG40/RG60/VX333
SERVICE MANUAL
Ver 1.2 2002. 01
• This set is the speaker system in
MHC-DX30/RG40/RG60/VX333.
• SS-RG40 is sold as single model
too.
Sony Corporation
9-873-818-13
2002A1600-1
Home Audio Company
© 2002.1
Published by Sony Engineering Corporation
Photo : SS-RG60 (L ch)
SPECIFICATIONS
Speaker system
: 3-way,3-unit,
Sub Woofer
: 13 cm,cone type
Woofer
: 13 cm,cone type
Tweeter
: 5 cm,cone type
Nominal impedance
: 6 ohmes
: Approx.215 × 325 × 223 mm
Dimensions(w/h/d)
Mass
: Approx.4.3 kg net per speaker
Design and specifications are subject to change without notice.
US Model
Canadian Model
SS-RG40
AEP Model
UK Model
SS-RG40/RG60
E Model
SS-DX30/VX333
Australian Model
SS-DX30
Tourist Model
SS-VX333
SPEAKER SYSTEM
