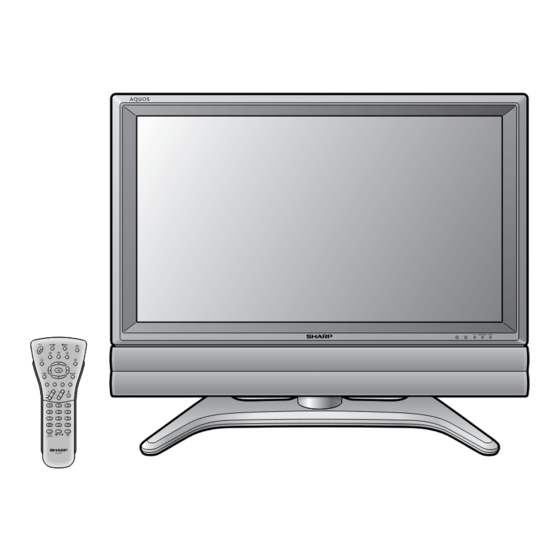

LC - 26GA5E LC - 32GA5E LC - 37GA5E LCD COLOUR TELEVISION LCD-FARBFERNSEHGERÄT TÉLÉVISION COULEUR À ÉCRAN À CRISTAUX LIQUIDES (LCD) LCD-KLEURENTELEVISIE TELEVISORE A COLORI LCD OPERATION MANUAL BEDIENUNGSANLEITUNG MODE D’EMPLOI MANUALE DI ISTRUZIONI GEBRUIKSAANWIJZING MANUAL DE MANEJO Downloaded From TV-Manual.com Manuals...
Page 2
SPECIAL NOTE FOR USERS IN THE U.K. The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 13A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked and of the same rating as above, which is also indicated on the pin face of the plug, must be used.
• The examples used throughout this manual are based on the LC-32GA5E model. Contents Contents …………………………………………………………… 1 AV-LINK ………………………………………………… 17 Dear SHARP customer …………………………………………… 2 AVL CONTROL (AV-LINK CONTROL) ………… 17 Important Safety Precautions ………………………………… 2 AVL TIMERS (AV-LINK TIMERS) ………………… 17 Supplied accessories ……………………………………………...
Dear SHARP customer Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble- free operation of your product, please read the Important Safety Precautions carefully before using this product. Important Safety Precautions •...
Preparation Setting the TV NOTE Removing the terminal cover • The illustration shows the LC-32GA5E. Press the two hooks and slide the cover toward the left of TV to remove. TV (rear view) Standard DIN45325 plug (IEC 169-2) 75-ohm coaxial cable To TV antenna terminals FM antenna cable...
Menu operat ADVANCED DYN. CONTRAST (DYNAMIC CONTRAST) The Ò A DVANCED feature items for the picture adjustments. Menu Operation: PICTURE Group A (page 9) NOTE Set to Ò O NÓ ¥ Ò A DVANCEDÓ items cannot eparation of the picture. mode is selected.
Part names Remote control unit 1 (Subpage) RADIO Displays the RADIO menu Displays the Teletext Subpage in screen and make adjustments Teletext mode. for FM RADIO mode. (See page 25.) TIMER Displays the “FEATURE TIMERS” menu screen directly. 3 (Hold) (See page 16.) Temporarily holds the current Teletext page.
Watching TV NOTE Turning on the power • The TV set is ready to preset automatically all local channels for you. Press a a a a a (Power) on the TV. • If you do not intend to use your TV set with a VCR then proceed to step 3.
Using e You can connect many types of external equipment to your TV, like a decoder, VCR, DVD player, P console and camcorder. To view or select the input source, see the operations below. Using on the TV: Press . Each time you press , the input source will change. Using on the remote control: Press .
Menu operations PICTURE menu Using PICTURE menu screen LEVELS Common Operation ✔ PICTURE MODE Menu Operation: PICTURE Group A (left side of this page) To select a predetermined picture level. Item USER: Select this mode in order to recover the Press MENU to display the menu screen.
Menu operat ADVANCED ✔ DYN. CONTRAST (DYNAMIC CONTRAST) The “ADVANCED” menu consists of the advanced feature items for the picture adjustments. Menu Operation: PICTURE Group A (page 9) NOTE Set to “ON” to increase the contrast on the soft parts •...
Useful adjus When you select “CINEMA”, “ZOOM 14:9” or FM Radio menu screen “PANORAMA”, you can change the vertical “SIZE” and vertical “POSITION”. You can make adjustments for FM radio broadcasting by using RADIO on the remote control. Perform 1 and 2 described on the left to select “CINEMA”, “ZOOM 14:9”...
EFFECTS Different sound sources, fairly often do not have the SHARP takes part in the respective national recycling systems for electronic equipment, which have been founded on the select a predetermined sound effect. same volume level, for example the changing from base of the environmental laws in these countries.
Menu operations EQUALIZER ✔ SPEAKERS Menu Operation: SOUND Group C (page 11) Menu Operation: SOUND Group D (page 11) This enables the selection of the pre-defined Change sound mode. equalization modes. Each time you press the Red Select your desired mode to your preference button, you can switch EQUALIZER MODE depending on the type of broadcast.
Menu operations FEATURES menu Using FEATURES menu screen Selecting an item from FEATURES Group A Common Operation 1 Perform steps 1 and 2 in Common Operation. 2 Press a/b to select “TIMERS”, then press OK. 3 Press a/b to select the desired menu item (Example: “DATE”, “TIME”, “ON TIMER”, “OFF TIMER”, “RADIO/TV”...
Page 17
Menu operations Selecting an item from FEATURES Group C Selecting an item from FEATURES Group E 1 Select the programme you wish to record at the 1 Perform steps 1 and 2 in Common Operation. specified time, using Programme select (0–9), 2 Press a/b to select “CHILD LOCK”, and then Programmes List (a/b) or P (r/s).
Menu operations TIMERS ✔ ON TIMER (Wake-up timer) You can set “DATE”, “TIME” (Clock), “ON TIMER” Menu Operation: FEATURES Group A (page 14) (Wake-up timer) and “OFF TIMER” (Sleep timer) to The “ON TIMER” is used to programme switching ON automatically turn on and off the TV or RADIO at the the TV or RADIO during the 24 hours of the day.
Menu operations S E T U P m e I u A U T O I N S T A L L A T I O N Menu Operation: SETUP Group A (left side of this U s i I g S E T U P m e I u s c r e e I page) In this menu you can perform the Initial Auto Installation C o m m o I O p e r a t i o I...
Menu operations CHILD LOCK ✔ LOCK PROGRAM Use the “CHILD LOCK” function to block access to Menu Operation: FEATURES Group D (page 15) the television by means of a 4-digits code (PIN). To set a Child Lock for individual programmes. The protection can apply to the television itself “LOCK ALL”...
Menu operations SETUP menu AUTO INSTALLATION Menu Operation: SETUP Group A (left side of this Using SETUP menu screen page) In this menu you can perform the Initial Auto Installation Common Operation again. nu operations Using this routine, you can select the on-screen display “SELECT LANGUAGE”, set the “SELECT COUNTRY”, STOP and automatically search for and store all the...
Menu operations EDIT ✔ CHANNEL In this menu you can change the order of the channels, Menu Operation: SETUP Group B (page 19) delete channels, and change or give the channels an Item eight-letter name. CHANNEL: Real Channel Number (See the table Available options in EDIT menu screen in SYSTEM on page 19.) Button...
Menu operations AV SETUP Selecting an item from SETUP Group C Menu Operation: SETUP Group C (left side of this page) 1 Press MENU and the menu screen displays. 2 Press c/d to select “SETUP”. In this menu, you can configure the input terminals in 3 Press a/b to select “GENERAL SETUP”, “AV concordance with the connected device and the signal SETUP”, or “POWER CONTROL”, and then press...
Using e You can connect many types of external equipment to your TV, like a decoder, VCR, DVD player, PC, game console and camcorder. To view or select the input source, see the operations below. Using b on the TV: Press b. Each time you press b, the input source will change. Using b on the remote control: Press b.
Using external equipment EXT 3 EXT 4 A game console, camcorder and some other You can use the EXT 4 terminals when connecting to audiovisual equipment are conveniently connected a DVD player and other audiovisual equipment. using the EXT 3 terminals. L-AUDIO-R Game console COMPONENT...
Useful adjustment settings TitleB PC INPUT mode adjustments PC compatibility chart PICTURE/SOUND adjustments Vertical Frequency Resolution 60Hz After connecting the PC to your TV (see page 23), you 640 x 400 can adjust the “PICTURE” and “SOUND” modes to 720 x 400 your preference setting with the following steps.
Useful adjus When you select “CINEMA”, “ZOOM 14:9” or FM Radio menu screen “PANORAMA”, you can change the vertical “SIZE” and vertical “POSITION”. You can make adjustments for FM radio broadcasting by using RADIO on the remote control. Perform 1 and 2 described on the left to select “CINEMA”, “ZOOM 14:9”...
Useful features When viewing the Teletext information Teletext function • Press Pr to increase the page number. • Press Ps to decrease the page number. What is Teletext? Teletext broadcasts pages of information and Button functions entertainment to specially equipped television sets. Colour (Red/Green/Yellow/Blue): Your TV receives Teletext signals broadcast by a TV You can select a group or block of pages displayed in...
Appendix Troubleshooting Problem Possible Solution • No power. • Is the AC cord disconnected? (See page 3.) • Has the power been turned on? (See page 7.) • Make sure the a (Power) switch of the TV is set to ON. •...
22.5 kg (Display with stand) • As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units.
105.25 — 463.25 The Consumer Electronics Industry has initiated a commitment to improve the energy efficiency of TVs. SHARP has signed this commitment and as a result this TV may have a label on the front of the product informing the customer of the energy consumption in various operating modes.
Page 32
(1) For our customers in Belgium, The Netherlands, Sweden, and Switzerland SHARP takes part in the respective national recycling systems for electronic equipment, which have been founded on the base of the environmental laws in these countries.
The PIN is NOTE • As a precautionary measure, make a note of your PIN above, scissor it from this manual, and keep it in a familiar place. IMPORTANT NOTE ON DISENGAGING ADVANCED CHILD LOCK We suggest that you remove the following instruction from the operation manual to prevent children from reading it.
Page 34
NOTE Downloaded From TV-Manual.com Manuals...
SHARP CORPORATION Printed in Spain Gedruckt in Spanien Imprimé en Espagne Stampato in Spagna Gedrukt in Spanje Impreso en España TINS-B568WJZZ 04P11SPG Downloaded From TV-Manual.com Manuals...
