Summary of Contents for Panasonic TU-HDT206A
-
Page 1: Operating Instructions

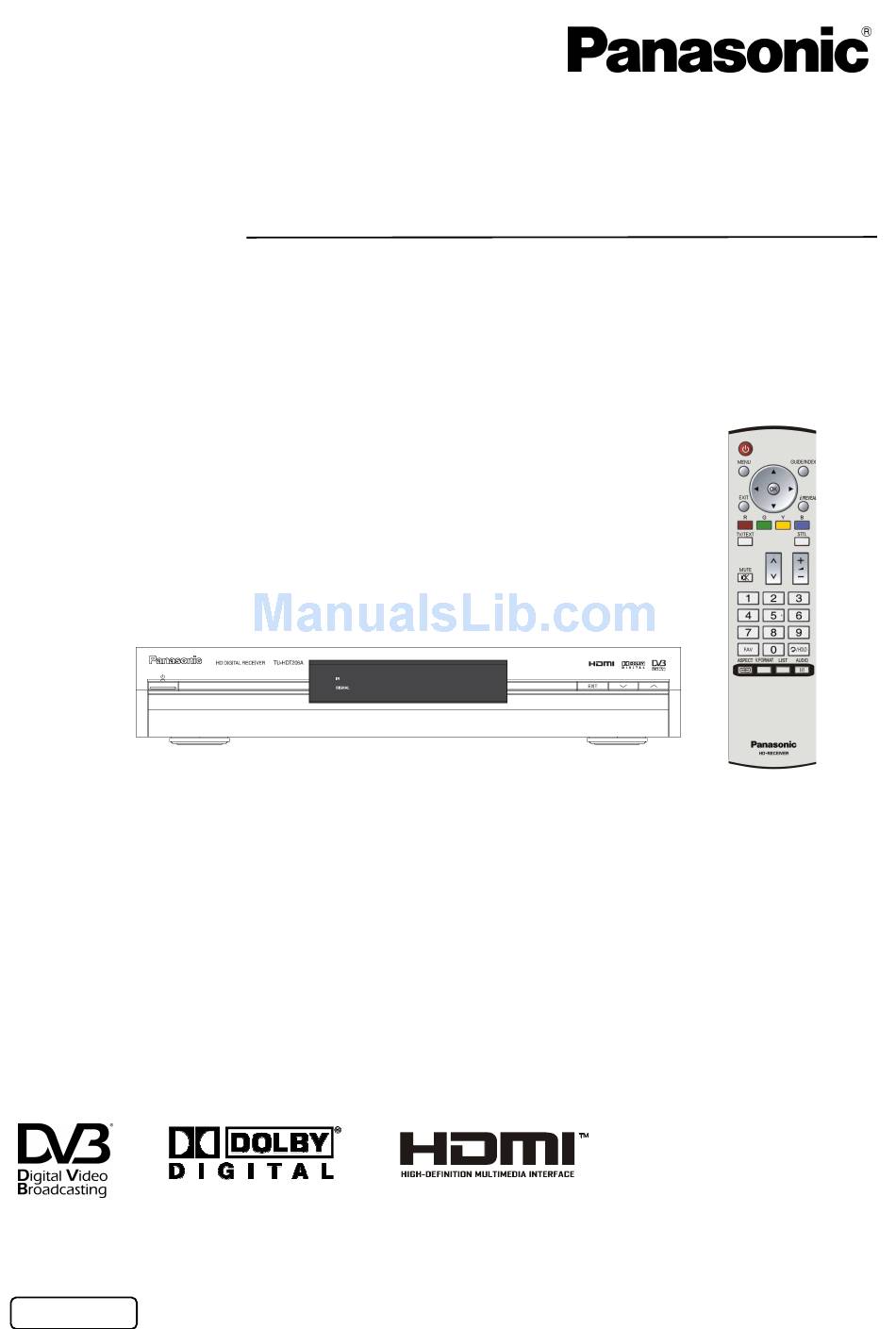

Operating Instructions High Definition Digital Receiver TU-HDT206A Model No. Please read these instructions before operating your set and retain them for future reference. The illustration shown is an image. 25001-B2401 26 March 2007 v3.2 English... -
Page 2: Warnings And Precautions
TU-HDT206A Welcome We hope you have many years of enjoyment from your new Panasonic HD Digital Receiver. The following instructions will enable you to quickly set up and install the equipment and begin receiving the terrestrial digital TV services in your reception area. -
Page 3: Table Of Contents
SD Onscreen Display ...13 Using the Main Menu...13 Favourites List ...14 Video Menu ...14 Audio Menu ...16 Power Saving Setup ...17 Tuning Menu...17 Diagnostic Information ...19 Teletext Operation ...19 Glossary ...21 Troubleshooting...22 Technical Specifications ...25 WARRANTY – Australia only...27 Operating Instructions TU-HDT206A... -
Page 4: Introduction
Operating Instructions TU-HDT206A 1 Introduction This Operating Instruction Book is the GUIDE to your digital receiver. In it you can find comprehensive descriptions of the functions of your receiver. Once you become acquainted with the operations of your digital receiver, you will only need this manual for reference. -
Page 5: Rear Panel
2) Insert 2 AA (1.5 V) batteries according to the + and – markings indicated inside the battery compartment. 3) Replace the cover. Test the remote controller by pressing any key and check if the IR-LED (Red) on the front panel of the receiver flashes. “AA” Batteries Operating Instructions TU-HDT206A... -
Page 6: Remote Control Button Functions
Operating Instructions TU-HDT206A 3.2 Remote Control Button Functions: : To turn your receiver on/off (standby mode). MENU: To display the “Main” Onscreen Display. EXIT: To go back in the menus. Cursor buttons: To select items in the menus. Cursor buttons: To cycle through options within the menus. -
Page 7: Installation Of The Digital Receiver
RCA connector (red/white) cable. Note: If HDMI cable is removed when the digital receiver is switched on, the OSD will NOT change to any other video output terminal. The receiver must be switched off when the HDMI cable is removed. Operating Instructions TU-HDT206A (A) Aerial Connection (B) YPbPr Connection (C) HDMI Connection... - Page 8 Operating Instructions TU-HDT206A RGB Connection (D) Connect the RGB 15pin D socket to your display device. (Refer to D) Check the display video specifications, many displays cannot show 50Hz TV formats that the STB outputs. Note: RGB Cable is not supplied.
-
Page 9: Hd Stb Start Up
The first time the digital receiver is installed, or after default settings are restored, the digital receiver will automatically scan for available digital services. This will take around five minutes or so. HD (HDMI) LCD/Plasma Table 1: Output format table Operating Instructions TU-HDT206A SD (VIDEO, S-VIDEO) LCD/Plasma... -
Page 10: Operating Instructions: Knowing Your Basic Controls
Operating Instructions TU-HDT206A 5 Operating Instructions: Knowing your basic controls To become acquainted with the operations and functions of your receiver, please learn how to use the control buttons on the Remote Control and the Front Panel. The following segment is an introduction to features that you will most commonly use. -
Page 11: Program Guide
Directly enter a logical channel by using the number keys on the remote control. Broadcasters have allocated logical channel numbers (LCN) to their services based on their service number identity. The programs can be selected by the LCN. LCN channel selection is not aligned with favourite channels setting. Operating Instructions TU-HDT206A... -
Page 12: Audio Mode Selection
Operating Instructions TU-HDT206A 1: TEN, 2: ABC, 3: SBS, 5: TEN Regionals, 6: SEVEN Regionals, 7: SEVEN, 8: NINE Regionals, 9: NINE. Pushing the Cursor Up/Down then change the banner to the next channel banner information. To view the new channel, the OK button must be pushed while the banner is displayed. -
Page 13: Sd Onscreen Display
Power Saving Setup provides access to: Automatic Off Timer Tuning Menu provides access to: Signal Display Channel Installation Region Select Restore Default Settings System Update Diagnostic Information displays the Software Version number and serial ID of your receiver. MENU button. Operating Instructions TU-HDT206A... -
Page 14: Favourites List
Operating Instructions TU-HDT206A 6.1 Favourites List This feature allows you to personalise your list of favourite channels, TV or Radio. The set up of favourites is accessed from the Main Menu or by the “LIST” button of the remote control. - Page 15 Operating Instructions TU-HDT206A HD Video Output Format The initial installation of the digital receiver defaults the video output format to 1280x720p for LCD and PDP TV’s and 720x576p for CRT TV’s. LCD and Plasma TV’s can be changed to 720x576p, 1280x720p and 1920x1080i video formats.
-
Page 16: Audio Menu
Operating Instructions TU-HDT206A 6.3 Audio Menu Volume Control This menu item is used to activate or deactivate the volume control buttons on the remote control. If the digital receiver is connected to the display by HDMI(DVI), the volume control is automatically set to maximum and deactivated. -
Page 17: Power Saving Setup
In the Auto Channel Search OSD, all channels found will be listed. The channel search may take a few minutes. If you exit an auto scan during the scan process, some channels may not be available to you. Operating Instructions TU-HDT206A... - Page 18 Operating Instructions TU-HDT206A Manual Channel Search In the “Manual Channel Search” window you can set the specific channel to search. Press the left or right button then RF channel you wish to search. Note: The RF channel is not the same number as the station identification.
-
Page 19: Diagnostic Information
Pushing the coloured button can access these subjects. This is the current preferred method of operation in Australia. Red /Green / Yellow / Blue buttons In TOP TEXT mode these correspond to the differently coloured subjects. Operating Instructions TU-HDT206A... - Page 20 Operating Instructions TU-HDT206A TV / Teletext mode Press the TEXT button. The screen will display the Teletext page. Press again when you wish to return to TV mode. Note: If you press the TEXT button while viewing a station that is not transmitting teletext, there may not be any indication on the screen.
-
Page 21: Glossary
Video: using display Operating Instructions TU-HDT206A OAD: Over air download is a method upgrading operating software of the STB. Also referred to as DVB-SSU. Program Guide:... -
Page 22: Troubleshooting
Shooting Guide” below. If you have tried all of the actions suggested above without solving the problem, please contact the Panasonic Customer Care Centre on 132 600 for additional help. DTV Reception Trouble Shooting Guide After a channel scan, some channels or no channels are found. - Page 23 The received signal may be too weak to allow the digital TV receiver to reliably “lock” to the desired signal and generate a stable picture. Please check antenna & cabling or contact your local TV antenna installer. Operating Instructions TU-HDT206A...
- Page 24 Operating Instructions TU-HDT206A Impulse Noise Interference from household appliances such as lights, refrigerators, washing machines, electric stoves, etc may cause pictures to break up and audio to mute or distort momentarily. In the first instance, replace antenna fly-lead with a quality RG6 or RG59 Quad Shield 75 ohm coaxial cable fly lead.
-
Page 25: Technical Specifications
2x RCA connectors for TV audio, adjustable volume 2x RCA connectors for VCR audio, fixed volume S-VHS for TV or video recorder A type connector DB-15 (Female) Coaxial / Optical For software maintenance 4 Keypads, 7-segment display and 3 LED indicators, IR Sensor TU-HDT206A... - Page 26 Operating Instructions TU-HDT206A Power requirements Mains input voltage Mains input frequency Power consumption Environmental Condition Temperature Relative Humidity Dimension Dimension Weight Accessory Remote Controller Battery User’s manual A/V Cable RF Cable EMC / Safety Standard Note Design and specifications are subject to change without notice.
-
Page 27: Warranty - Australia Only
1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or it's Authorised Service Centre will perform necessary service on the product without charge for parts or labour if, in the opinion of Panasonic, the product is found to be faulty within the warranty period. - Page 28 Warranty Service purposes. Model Number Matsushita Electric Industrial Co.,Ltd. Panasonic Australia Pty. Limited Web site : www.panasonic.com.au © 2006 Panasonic AVC Networks Company. All Rights Reserved. Serial Number A0906-1207...
