Page 1 TABLE OF CONTENTS Information on the hybrid system and adjusting and op- Before driving erating features such as door locks, mirrors, and steer- ing column. When driving Driving, stopping and safe-driving information. Interior Air conditioning and audio systems, as well as other in- features terior features for a comfortable driving experience.
Page 2: Table Of Contents
TABLE OF CONTENTS Index 1-6. Refueling Before driving Opening the fuel tank cap........105 1-1. Hybrid system 1-7. Theft deterrent system Hybrid system features ..24 Immobilizer system..... 110 Hybrid system Theft prevention labels ..113 precautions ......29 Energy monitor/ 1-8.
Page 3 2-2. Instrument cluster Interior features Gauges and meters .... 181 Indicators and warning lights ......... 184 3-1. Using the air conditioning Multi-information display ..187 system and defogger Automatic air 2-3. Operating the lights and conditioning system..238 wipers Rear window and outside Headlight switch....
Page 4 TABLE OF CONTENTS Index 3-4. Using the interior lights Maintenance and care Interior lights list ....321 • Interior lights/ personal lights ....322 4-1. Maintenance and care Cleaning and protecting 3-5. Using the storage features the vehicle exterior ... 346 List of storage features..
Page 5 When trouble arises Vehicle specifications 5-1. Essential information 6-1. Specifications Emergency flashers .... 428 Maintenance data (fuel, oil level, etc.) ... 496 If your vehicle needs to be towed ......429 Fuel information....506 If you think something Tire information ....509 is wrong ......
Page 6 Pictorial index Exterior Headlights (high beam) and Headlights (low beam) P. 204 daytime running lights P. 204 Outside rear view mirrors P. 210 Windshield wipers P. 96 Hood P. 364 Side turn signal lights P. 178  Front fog lights P.
Page 7  Rear window defogger P. 247 Fuel filler door P. 105   Rear window wiper P. 214 Side doors P. 65 License plate lights P. 204 Tires Back door P. 71 ●Rotation P. 384 ●Replacement P. 463 Rear turn signal lights P.
Page 8 Pictorial index Interior Power window SRS driver airbag P. 116   switches P. 98 SRS driver knee airbag P. 116 Seat belts P. 84 SRS front passenger Head restraints airbag P. 116 P. 81   Luggage cover P. 343 Front seats P.
Page 9   Moon roof switches P. 101   Coat hooks P. 339 Vanity mirrors P. 333  Assist grips P. 340 Microphone P. 296 SRS curtain shield airbags P. 116 Sun visors P. 332 Interior lights P. 322 Personal lights P.
Page 10 Pictorial index Interior Type A Window lock switch P. 98 Door lock switch P. 65 Inside door lock buttons P. 66 Bottle holders P. 330 Power window switches P. 98 Type B Window lock switch P. 98 Door lock switch P.
Page 11 Hybrid transmission shift lever P. 175 “ECO MODE” switch P. 176 Parking brake lever P. 179 Cup holders P. 329 “EV MODE” switch P. 172   Shift lock override button P. 477 Seat heater switches P. 337  : If equipped...
Page 12 Pictorial index Instrument panel Windshield wiper and washer switch P. 210  Rear window wiper and washer switch P. 214 Emergency flasher switch P. 428 Gauges and meters P. 181 Headlight switch P. 204 Multi-information display P. 187 Turn signal lever P.
Page 13 Air conditioning system P. 238  P. 247 Rear window defogger button Rear window and outside rear view mirror  P. 247 defogger button  : If equipped *: Refer to “Display Audio System Owner’s Manual”.
Page 14 Pictorial index Instrument panel Climate remote control switches P. 243 “DISP” switch P. 188 Audio remote control “TRIP” switch P. 188 switches P. 288 Horn P. 180  Cruise control switch P. 217  Telephone switches P. 296  Talk switch Engine (ignition) switch (vehicles without a smart key system)
Page 15 Outside rear view mirror switches P. 96 Instrument panel light control dial P. 182  : If equipped : Refer to “Display Audio System Owner’s Manual”. : For vehicles with a Display Audio system, refer to “Display Audio System Owner’s Manual”.
Page 16: For Your Information
Accessories, spare parts and modification of your Toyota A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available on the market. You should know that Toyota does not warrant these products and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle.
Page 17 ● SRS airbag system ● Seat belt pretensioner system Be sure to check with your Toyota dealer for precautionary measures or spe- cial instructions regarding installation of a mobile two-way radio system. High voltage parts and cables on the hybrid vehicles emit approximately the...
Page 18 Furthermore, these computers do not record con- versations, sounds or pictures. ● Data usage Toyota may use the data recorded in these computers to diagnose malfunc- tions, conduct research and development, and improve quality. Toyota will not disclose the recorded data to a third party except: •...
Page 19 EDR. ● Disclosure of the EDR data Toyota will not disclose the data recorded in an EDR to a third party except when: • An agreement from the vehicle’s owner (or the lessee for a leased vehicle) is obtained •...
Page 20 Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.
Page 21 In the event that your vehicle must be disposed of, the hybrid battery must be disposed of by your Toyota dealer or a qualified service shop. If the hybrid battery is not disposed of properly, it...
Page 22 This is a warning against something which, if ignored, may cause damage to the vehicle or its equipment. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.
Page 24: Before Driving
Before driving 1-1. Hybrid system 1-5. Opening and closing the windows and moon roof Hybrid system features ..24 Power windows ....98 Hybrid system precautions ...... 29 Moon roof......101 Energy monitor/ consumption screen..35 1-6. Refueling Hybrid vehicle driving Opening the fuel tank tips ........
Page 25: Hybrid System
1-1. Hybrid system Hybrid system features Your vehicle is a hybrid vehicle. It has characteristics different from conventional vehicles. Be sure you are closely familiar with the char- acteristics of your vehicle, and operate with care. The hybrid system combines the use of a gasoline engine and an electric motor (traction motor) according to driving conditions, improving fuel efficiency and reducing exhaust emissions.
Page 26 1-1. Hybrid system ■ When stopped/during start off The gasoline engine stops* when the vehicle is stopped. During start-off, the electric motor (traction motor) drives the vehicle. At slow speeds or when traveling down a gentle slope, the engine is stopped* and the motor is used. *: However, when the hybrid battery (traction battery) needs to be charged or while the engine is being warmed up, the gasoline engine may not stop automatically.
Page 27 1-1. Hybrid system ■ Regenerative braking In the following situations, kinetic energy is converted to electric energy and deceleration force can be obtained in conjunction with the recharging of the hybrid battery (traction battery). ● The accelerator pedal is released with the shift lever in D or B. ●...
Page 28 After the 12-volt battery has discharged or has been changed or removed The gasoline engine may not stop even if the vehicle is running on the hybrid battery (traction battery). If this continues for a few days, contact your Toyota dealer.
Page 29 When in the area surrounding the rear of the vehicle, rather than in front of the vehicle ■ Maintenance, repair, recycling, and disposal Contact your Toyota dealer regarding maintenance, repair, recycling and dis- posal. Do not dispose of the vehicle yourself. ■ Customization that can be configured at Toyota dealer Settings (e.
Page 30: Hybrid System Precautions
1-1. Hybrid system Hybrid system precautions Take care when handling the hybrid system, as it contains a high voltage system (about 520 V at maximum) as well as parts that become extremely hot when the hybrid system is operating. Obey the caution labels attached to the vehicle.
Page 31 If the emergency shut off system activates, your vehicle will not restart. To restart the hybrid system, contact your Toyota dealer. Hybrid warning message A message is automatically displayed when a malfunction occurs in the hybrid system or an improper operation is attempted.
Page 32 If a warning light comes on, a warning message is displayed, or the 12- volt battery has been disconnected The hybrid system may not start. In that case, try to start the system again. If the “READY” indicator does not come on, contact your Toyota dealer. ■ Running out of fuel...
Page 33 1-1. Hybrid system CAUTION ■ High voltage and high temperature precautions The vehicle has high voltage DC and AC systems as well as a 12-volt sys- tem. DC and AC high voltage is very dangerous and can cause severe burns and electric shock that may result in death or serious injury.
Page 34 Carefully inspect the ground under the vehicle. If you find that liquid has leaked onto the ground, the fuel system may have been damaged. Leave the vehicle as soon as possible and contact your Toyota dealer. ■ Nickel-metal hydride battery Your vehicle contains a sealed nickel-metal hydride battery.
Page 35 1-1. Hybrid system NOTICE ■ Hybrid battery air vent ● Do not place foreign objects over or in front of the air vent. The hybrid bat- tery (traction battery) may overheat and be damaged. ● Clean the air vent regularly to prevent the hybrid battery (traction battery) from overheating.
Page 36: Energy Monitor/Consumption Screen
1-1. Hybrid system Energy monitor/consumption screen You can view the status of your hybrid system on the multi-informa- tion display and Display Audio system. Display Audio system (if equipped) Multi-information display Energy monitor Display Audio system (if equipped) Press “CAR”. If the “Trip Information”...
Page 37 1-1. Hybrid system Multi-information Display Audio system display When the vehi- cle is powered by the electric motor (traction motor) When the vehi- cle is powered by the gasoline engine When the vehi- cle is powered by both the gas- oline engine and the electric motor (traction...
Page 38 1-1. Hybrid system Multi-information Display Audio system display Hybrid battery (traction bat- tery) status Full Full These images are examples only, and may vary slightly from actual condi- tions.
Page 39 1-1. Hybrid system Trip Information screen (Display Audio system) Press “CAR”. (P. 35) If the “Energy Monitor” screen is displayed, touch “Trip Information”. Fuel consumption in the past 15 minutes Displays the average vehicle speed since the hybrid system was started. Displays the driving time since the hybrid system was started.
Page 40 1-1. Hybrid system Fuel consumption screen (Multi-information display) There are 2 menu items available for the fuel consumption screen. After pressing the “DISP” switch, select one of the menu items below and the system will change to the details screen. The “5min Consumption”, “Past Record”...
Page 41 1-1. Hybrid system ■ “Past Record” There are 2 types of displays for the past record. Personal best and monthly average can be changed between on the settings screen. (P. 41) Personal Best Displays the best 3 fuel consumption records and the current fuel consumption ranking.
Page 42 1-1. Hybrid system ■ Remaining hybrid battery (traction battery) charge display The charge amount of the hybrid battery (traction battery) is automatically controlled by the hybrid system. For this reason, even if electricity is recov- ered via the regenerative braking, or electricity is generated via the gasoline engine, the displayed hybrid battery (traction battery) charge amount may not reach the highest level (level 8).
Page 43: Hybrid Vehicle Driving Tips
1-1. Hybrid system Hybrid vehicle driving tips For economical and ecological driving, pay attention to the following points: ■ Using Eco drive mode P. 176 ■ Use of Hybrid System Indicator By keeping Hybrid System Indicator within Eco area, more Eco-friendly driving may be possible.
Page 44 1-1. Hybrid system ■ Checking tire inflation pressure Make sure to check the tire inflation pressure frequently. Improper tire inflation pressure can cause poor fuel consumption. Also, as snow tires can cause large amounts of friction, their use on dry roads can lead to poor fuel consumption.
Page 45: Key Information
1-2. Key information Keys The following keys are provided with the vehicle. Vehicles without a smart key system (vehicles without immo- bilizer system) Master keys Operating the wireless remote control function (P. 61) Valet key Key number plate Vehicles without a smart key system (vehicles with immobi- lizer system) Master keys Operating the wireless remote...
Page 46 Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a key (without a smart key system) or mechanical key (with a smart key system) is lost, a new key can be made by your Toyota dealer using the key number plate. (P. 478) ■...
Page 47 When a vehicle key is lost (vehicles with a smart key system) If the key remains lost, the risk of vehicle theft increases significantly. Visit your Toyota dealer immediately with all remaining electronic keys that was provided with your vehicle.
Page 48: Opening, Closing And Locking The Doors
1-3. Opening, closing and locking the doors  Smart key system The following operations can be performed simply by carrying the electronic key on your person, for example in your pocket. (The driver should always carry the electronic key.) Electronic key Electronic key Electronic key Unlocks and locks the side doors (P.
Page 49 1-3. Opening, closing and locking the doors Unlocking and locking the doors (front door handles only) Grip the driver’s door handle to unlock the door.* (Grip the pas- senger’s door handle to unlock all doors.) Make sure to touch the sensor on the back of the handle.
Page 50 1-3. Opening, closing and locking the doors Unlocking and locking the back door Press the button to unlock the back door. The door cannot be unlocked for 3 seconds after the door is locked. Press the button to lock the back door.
Page 51 1-3. Opening, closing and locking the doors Antenna location and effective range ■ Antenna location Antennas inside the cabin Antennas outside the cabin Antenna outside the luggage compartment...
Page 52 1-3. Opening, closing and locking the doors ■ Effective range (areas within which the electronic key is detected) When locking or unlocking the doors The system can be operated when the electronic key is within about 2.3 ft. (0.7 m) of outside door handle.
Page 53 1-3. Opening, closing and locking the doors ■ When the door cannot be locked by the lock sensor on the surface of the door handle Use your palm to touch the lock sensor. ■ Alarms and warning indicators A combination of exterior and interior alarms as well as warning messages shown on the multi-information display is used to prevent theft of the vehicle and accidents resulting from erroneous operation.
Page 54 1-3. Opening, closing and locking the doors ■ Switching the door unlock function It is possible to set which doors the entry function unlocks using the wireless remote control. STEP Turn the “POWER” switch off. STEP When the indicator light on the key surface is not on, press and hold for about 5 seconds while pressing and holding The setting changes each time an operation is performed, as shown below.
Page 55 1-3. Opening, closing and locking the doors ■ Electronic key battery-saving function When battery-saving mode is set, battery depletion is minimized by stopping the electronic key from receiving radio waves. Press twice while pressing and holding . Confirm that the electronic key indicator flashes 4 times.
Page 56 1-3. Opening, closing and locking the doors ■ Conditions affecting operation The smart key system uses weak radio waves. In the following situations, the communication between the electronic key and the vehicle may be affected, preventing the smart key system, wireless remote control and immobilizer system from operating properly.
Page 57 1-3. Opening, closing and locking the doors ■ Notes for the entry function ● Even when the electronic key is within the effective range (detection areas), the system may not operate properly in the following cases: • The electronic key is too close to the window or outside door handle, near the ground, or in a high place when the doors are locked or unlocked.
Page 58 To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of the vehicle. ● The smart key system can be deactivated in advance. Ask your Toyota dealer for details. ■ To operate the smart key system properly Make sure to carry the electronic key when operating the system.
Page 59 ● Starting the hybrid system and changing “POWER” switch modes: P. 479 Stopping the hybrid system: P. 480 ● ■ Customization that can be configured at Toyota dealer Settings (e. g. operation signals) can be changed. (Customizable features: P. 522)
Page 60 1-3. Opening, closing and locking the doors ■ Certification for the smart key system U.S.A. FCC ID: HYQ23AAB FCC ID: HYQ14FBA NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 61 (P. 50) The radio waves may affect the operation of such devices. If necessary, the entry function can be disabled. Ask your Toyota dealer for details, such as the frequency of radio waves and timing of the emitted radio waves.
Page 62: Wireless Remote Control
1-3. Opening, closing and locking the doors Wireless remote control The wireless remote control can be used to lock and unlock the vehi- cle. Vehicles without a smart key system Locks all the doors Check that the door is securely locked.
Page 63 1-3. Opening, closing and locking the doors ■ Operation signals Vehicles without a smart key system The emergency flashers flash to indicate that the doors have been locked/ unlocked. (Locked: once; Unlocked: twice) Vehicles with a smart key system A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked.
Page 64 1-3. Opening, closing and locking the doors ■ Conditions affecting operation Vehicles without a smart key system The wireless remote control function may not operate normally in the follow- ing situations: ● When the wireless key battery is depleted ● Near a TV tower, electric power plant, gas station, radio station, large dis- play, airport or other facility that generates strong radio waves or electri- cal noise...
Page 65 The number of keys already registered to the vehicle can be confirmed. Ask your Toyota dealer for details. ■ Customization that can be configured at Toyota dealer Settings (e.g. wireless remote control system) can be changed. (Customizable features P. 522) ■...
Page 66: Side Doors
1-3. Opening, closing and locking the doors Side doors The vehicle can be locked and unlocked using the entry function, wireless remote control, key or door lock switch. ■ Entry function (if equipped) P. 47 ■ Wireless remote control P. 61 ■...
Page 67 1-3. Opening, closing and locking the doors ■ Inside lock buttons Locks the door Unlocks the door The front doors can be opened by pulling the inside handle even if the lock buttons are in the lock position. Locking the front doors from the outside without a key STEP Move the inside door lock button to the lock position.
Page 68 1-3. Opening, closing and locking the doors Rear door child-protector lock The door cannot be opened from inside the vehicle when the lock is set. Unlock Lock These locks can be set to prevent children from opening the rear doors. Push down on each rear door switch to lock both rear doors.
Page 69 1-3. Opening, closing and locking the doors Automatic door locking and unlocking systems The following functions can be set or canceled: Function Operation Shift position linked Shifting the shift lever out of P locks all door locking function doors. Shift position linked Shifting the shift lever to P unlocks all doors.
Page 70 If a wrong key is used (vehicles with a smart key system) The key cylinder rotates freely to isolate inside mechanism. ■ Customization that can be configured at Toyota dealer Settings (e.g. unlocking function using a key) can be changed. (Customizable features P. 522)
Page 71 1-3. Opening, closing and locking the doors CAUTION ■ To prevent an accident Observe the following precautions while driving the vehicle. Failure to do so may result in a door opening and an occupant falling out, resulting in death or serious injury. ●...
Page 72: Back Door
1-3. Opening, closing and locking the doors Back door The back door can be locked/unlocked and opened by the following procedures. ■ Locking and unlocking the back door Wireless remote control P. 61 Door lock switches P. 65 Entry function (if equipped) P.
Page 73 1-3. Opening, closing and locking the doors When closing the back door Lower the back door using the back door handle, and make sure to push the back door down from the outside to close it. CAUTION ■ Caution while driving ●...
Page 74 1-3. Opening, closing and locking the doors CAUTION ■ When children are in the vehicle Observe the following precautions. Failure to do so may result in death or serious injury. ● Do not allow children to play in the luggage compartment. If a child is accidentally locked in the luggage compartment, they could have heat exhaustion or other injuries.
Page 75 If a bicycle carrier or similar heavy object is attached to the back door, it may suddenly shut again after being opened, causing someone’s hands, head or neck to be caught and injured. When installing an accessory part to the back door, using a genuine Toyota part is recommended.
Page 76 Do not touch the damper stay rod with gloves or other fabric items. ● Do not attach any accessories other than genuine Toyota parts to the back door. ● Do not place your hand on the damper stay or apply lateral forces to it.
Page 77: Adjustable Components (Seats, Mirrors, Steering Wheel)
1-4. Adjustable components (seats, mirrors, steering wheel) Front seats Seat position adjustment lever Seatback angle adjustment lever Vertical height adjustment lever (if equipped) CAUTION ■ Seat adjustment ● Be careful that the seat does not hit passengers or luggage. ● To reduce the risk of sliding under the lap belt during a collision, do not recline the seat more than necessary.
Page 78: Rear Seats
1-4. Adjustable components (seats, mirrors, steering wheel) Rear seats The seatbacks of the rear seats can be folded down. Folding down the rear seatbacks ■ Before folding down the rear seatbacks Stow the rear seat belt buckles STEP as shown. STEP Stow the seat belts.
Page 79 1-4. Adjustable components (seats, mirrors, steering wheel) STEP Remove the outside head restraints. (P. 81) STEP Lower the center head restraint to the lowest position. (P. 81) ■ Folding down rear seatbacks Vehicles with a split rear seats Pull the seatback lock release knob and fold the seatback down.
Page 80: Rear Seats
1-4. Adjustable components (seats, mirrors, steering wheel) CAUTION ■ When folding the rear seatbacks down Observe the following precautions. Failure to do so may result in death or serious injury. ● Do not fold the seatbacks down while driving. ● Stop the vehicle on level ground, set the parking brake and shift the shift lever to P.
Page 81 1-4. Adjustable components (seats, mirrors, steering wheel) CAUTION ■ After returning the rear seatback to the upright position Observe the following precautions. Failure to do so may result in death or serious injury. ● Make sure that the seatback is securely locked in position by lightly pushing it back and forth.
Page 82: Head Restraints
1-4. Adjustable components (seats, mirrors, steering wheel) Head restraints Head restraints are provided for all seats. Vehicles with adjustable type head restraints Pull the head restraint up. Down Push the head restraint down while pushing the lock release Lock release button.
Page 83 1-4. Adjustable components (seats, mirrors, steering wheel) Pull the head restraint up while pressing STEP the lock release button. Lock release buttons ■ Installing the head restraints Front adjustable and rear center head restraints Align the head restraint with installation holes and push it down to the lock posi- tion.
Page 84: Head Restraints
1-4. Adjustable components (seats, mirrors, steering wheel) ■ Adjusting the height of the head restraints (vehicles with adjustable type head restraints) Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears. ■...
Page 85: Seat Belts
1-4. Adjustable components (seats, mirrors, steering wheel) Seat belts Make sure that all occupants are wearing their seat belts before driv- ing the vehicle. ■ Correct use of the seat belts ● Extend the shoulder belt so that it comes fully over the shoulder, does come into contact with the...
Page 86 1-4. Adjustable components (seats, mirrors, steering wheel) Rear center seat belt ■ Fastening the seat belt The rear center seat belt is a 3-point type restraint with 2 buckles. Both seat belt buckles must be correctly located and securely latched for proper operation.
Page 87: Seat Belts
1-4. Adjustable components (seats, mirrors, steering wheel) ■ Releasing the seat belt Release the rear center seat belt only when necessary, such as when folding down the rear seat. For safety, always store the plate in the designated place after releasing it. To release tab “A”, press the STEP release button.
Page 88 1-4. Adjustable components (seats, mirrors, steering wheel) Holding tab “A” and “B” together, STEP insert both tabs all the way into the cover on the roof. With tab “B” inserted all the way STEP into the cover, move tab “A” slightly back toward the cover’s inlet, so that it blocks the inlet.
Page 89 1-4. Adjustable components (seats, mirrors, steering wheel) Seat belt pretensioners (front seats) The pretensioner helps the seat belt to quickly restrain the occu- pant by retracting the seat belt when the vehicle is subjected to certain types of severe frontal or side collision.
Page 90 Each seat belt should be used by one person only. Do not use a seat belt for more than one person at once, including children. ● Toyota recommends that children be seated in the rear seat and always use a seat belt and/or an appropriate child restraint system. ●...
Page 91 ● If the pretensioner has activated, the SRS warning light will come on. In that case, the seat belt cannot be used again and must be replaced at your Toyota dealer.
Page 92 ● Ensure that the belt and plate are locked and the belt is not twisted. If the seat belt does not function correctly, immediately contact your Toyota dealer. ● Replace the seat assembly, including the belts, if your vehicle has been involved in a serious accident, even if there’s no obvious damage.
Page 93 1-4. Adjustable components (seats, mirrors, steering wheel) CAUTION ■ Using a seat belt extender ● Do not wear the seat belt extender if you can fasten the seat belt without the extender. ● Do not use the seat belt extender when installing a child restraint system because the belt will not securely hold the child restraint system, increas- ing the risk of death or serious injury in the event of an accident.
Page 94: Steering Wheel
1-4. Adjustable components (seats, mirrors, steering wheel) Steering wheel The steering wheel can be adjusted to a comfortable position. Hold the steering wheel and STEP push the lever down. Adjust to the ideal position by STEP moving the steering wheel horizontally and vertically.
Page 95: Anti-Glare Inside Rear View Mirror
1-4. Adjustable components (seats, mirrors, steering wheel) Anti-glare inside rear view mirror The rear view mirror’s position can be adjusted to enable sufficient confirmation of the rear view in accordance with the driver's seating posture. Adjusting the height of rear view mirror Adjust the height of the rear view mirror by moving it up and down.
Page 96 1-4. Adjustable components (seats, mirrors, steering wheel) CAUTION ■ Caution while driving Do not adjust the position of the mirror while driving. Doing so may lead to mishandling of the vehicle and cause an accident, resulting in death or serious injury.
Page 97: Outside Rear View Mirrors
1-4. Adjustable components (seats, mirrors, steering wheel) Outside rear view mirrors Mirror angle can be adjusted using the switch. To select a mirror to adjust, STEP press the switch. Left Right To adjust the mirror, press the STEP switch. Right Down Left Folding the mirrors...
Page 98 1-4. Adjustable components (seats, mirrors, steering wheel) ■ Mirror angle can be adjusted when Vehicles without a smart key system The engine switch is in the “ACC” or “ON” position. Vehicles with a smart key system The “POWER” switch is in ACCESSORY or ON mode. ■...
Page 99: Opening And Closing The Windows And Moon Roof
1-5. Opening and closing the windows and moon roof  Power windows The power windows can be opened and closed using the switches. Operating the switch moves the windows as follows: Closing One-touch closing (driver’s window only)* Opening One-touch opening (driver’s window only)* : To stop the window partway, operate the switch in the oppo-...
Page 100 1-5. Opening and closing the windows and moon roof ■ The power windows can be operated when Vehicles without a smart key system The engine switch is in the “ON” position. Vehicles with a smart key system The “POWER” switch is in ON mode. ■...
Page 101 If you release the switch while the window is moving, start again from the beginning. If the window continues to close but then re-open slightly even after perform- ing the above procedure correctly, have the vehicle inspected by your Toyota dealer. CAUTION ■...
Page 102: Moon Roof
1-5. Opening and closing the windows and moon roof  Moon roof Use the overhead switches to open and close the moon roof and tilt it up and down. ■ Opening and closing Opens the moon roof* The moon roof stops slightly before the fully open position to reduce wind noise.
Page 103 1-5. Opening and closing the windows and moon roof ■ The moon roof can be operated when The “POWER” switch is in ON mode. ■ Operating the moon roof after turning the hybrid system off The moon roof can be operated for approximately 45 seconds after the “POWER”...
Page 104: Moon Roof
1 second. Then it will tilt down, open and close. Check to make sure that the moon roof is completely closed and then release the switch. If the moon roof does not fully close even after performing the above proce- dure correctly, have the vehicle inspected by your Toyota dealer.
Page 105 1-5. Opening and closing the windows and moon roof ■ Moon roof open reminder function An alarm will sound and a message is shown on the multi-information dis- play when the driver’s door is opened with the moon roof not fully closed and the “POWER”...
Page 106: Refueling Opening The Fuel Tank Cap
1-6. Refueling Opening the fuel tank cap Perform the following steps to open the fuel tank cap: ■ Before refueling the vehicle ● Vehicles without a smart key system Turn the engine switch off and ensure that all the doors and windows are closed.
Page 107 1-6. Refueling Hang the fuel tank cap on the STEP back of the fuel filler door. Closing the fuel tank cap After refueling, turn the fuel tank cap until you hear a click. Once the cap is released, it will turn slightly in the opposite direction.
Page 108 1-6. Refueling ■ Fuel types Unleaded gasoline (Octane rating 87 [Research Octane Number 91] or higher) ■ Use of ethanol blended gasoline in a gasoline engine ● Use only gasoline containing up to 15% DO NOT use gasoline ethanol. containing more than 15% DO NOT use any flex-fuel or gasoline ethanol.
Page 109 Do not top off the fuel tank ■ When replacing the fuel cap Do not use anything but a genuine Toyota fuel tank cap designed for your vehicle. Doing so may cause a fire or other incident which may result in death or serious injury.
Page 110 1-6. Refueling NOTICE ■ Refueling Do not spill fuel during refueling. Doing so may damage the vehicle, such as causing the emission control system to operate abnormally or damaging fuel system components or the vehicle's painted surface.
Page 111: Theft Deterrent System
1-7. Theft deterrent system  Immobilizer system The vehicle’s keys have built-in transponder chips that prevent the hybrid system from starting if a key has not been previously regis- tered in the vehicle’s on-board computer. Never leave the keys inside the vehicle when you leave the vehicle. This system is designed to help prevent vehicle theft but does not guarantee absolute security against all vehicle thefts.
Page 112 1-7. Theft deterrent system Vehicles with a smart key system The indicator light flashes after the “POWER” switch has been turned off to indicate that the system is operating. The indicator light stops flash- ing after the “POWER” switch has been turned to ACCES- SORY or ON mode to indicate that the system has been can- celed.
Page 113 1-7. Theft deterrent system ■ Certifications for the immobilizer system U.S.A. FCC ID: NI4TMIMB-3 FCC ID: MOZRI-33BTY This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 114: Theft Prevention Labels
1-7. Theft deterrent system Theft prevention labels These labels are attached to the vehicle to reduce vehicle theft by facilitating the tracing and recovery of parts from sto- len vehicles. Do not remove under penalty of law.
Page 115: Safety Information
1-8. Safety information Correct driving posture Drive with a good posture as follows: Sit upright and well back in the seat. (P. 76) Adjust the position of the seat forward or backward to ensure the pedals can be reached easily depressed to the extent required.
Page 116 1-8. Safety information CAUTION ■ While driving ● Do not adjust the position of the driver’s seat. Doing so could cause the driver to lose control of the vehicle. ● Do not place a cushion between the driver or passenger and the seatback. A cushion may prevent correct posture from being achieved, and reduce the effectiveness of the seat belt and head restraint, increasing the risk of death or serious injury to the driver or passenger.
Page 117: Srs Airbags
1-8. Safety information SRS airbags The SRS airbags inflate when the vehicle is subjected to certain types of severe impacts that may cause significant injury to the occupants. They work together with the seat belts to help reduce the risk of death or serious injury. SRS front airbags SRS driver airbag/front passenger airbag Can help protect the head and chest of the driver and front pas-...
Page 118 1-8. Safety information SRS side and curtain shield airbags SRS side airbags Can help protect the torso of the front seat occupants. SRS curtain shield airbags Can help protect primarily the head of occupants in the outer seats. Other SRS airbags SRS seat cushion airbags Can help restrain the driver and front passenger.
Page 119 1-8. Safety information SRS airbag system components Curtain shield airbags Driver’s seat cushion airbag SRS warning light and “AIR Side impact sensors (front) BAG ON” and “AIR BAG Seat belt pretensioners and OFF” indicator lights force limiters Side airbags Side impact sensors (front Side impact sensors (rear) door) Front...
Page 120 1-8. Safety information Your vehicle is equipped with ADVANCED AIRBAGS designed based on the US motor vehicle safety standards (FMVSS208). The airbag sensor assembly (ECU) controls airbag deployment based on infor- mation obtained from the sensors etc. shown in the system compo- nents diagram above.
Page 121 1-8. Safety information ■ If the SRS airbags deploy (inflate) ● Bruising and slight abrasions may result from contact with a deploying (inflating) SRS airbag. ● A loud noise and white powder will be emitted. ● Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as the front seats, parts of the front and rear pillars, and roof side rails, may be hot for several minutes.
Page 122 1-8. Safety information ■ SRS airbag deployment conditions (SRS side and curtain shield air- bags) ● The SRS side and curtain shield airbags will deploy in the event of an impact that exceeds the set threshold level (the level of force corre- sponding to the impact force produced by an approximately 3300 lb.
Page 123 1-8. Safety information ■ Types of collisions that may not deploy the SRS airbags (SRS front air- bags/SRS seat cushion airbags) The SRS front airbags and SRS seat cushion airbags do not generally inflate if the vehicle is involved in a side or rear collision, if it rolls over, or if it is involved in a low-speed frontal collision.
Page 124 ■ When to contact your Toyota dealer In the following cases, the vehicle will require inspection and/or repair. Con- tact your Toyota dealer as soon as possible. ● Any of the SRS airbags have been inflated. ● The front of the vehicle is damaged or...
Page 125 1-8. Safety information ● A portion of a door is damaged or deformed, or the vehicle was involved in an accident that was not severe enough to cause the SRS side and cur- tain shield airbags to inflate. ● The pad section of the steering wheel, dashboard near the front passenger air- bag or lower portion of the instrument panel is scratched, cracked, or other-...
Page 126 1-8. Safety information CAUTION ■ SRS airbag precautions Observe the following precautions regarding the SRS airbags. Failure to do so may cause death or serious injury. ● The driver and all passengers in the vehicle must wear their seat belts properly.
Page 127 An infant or child who is too small to use a seat belt should be properly secured using a child restraint sys- tem. Toyota strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained. The rear seats are safer for infants and children than the front passenger seat.
Page 128 1-8. Safety information CAUTION ■ SRS airbag precautions ● Do not allow a child to stand in front of the SRS front passenger airbag unit or sit on the knees of a front passenger. ● Do not allow the front seat occupants to hold items on their knees.
Page 129 1-8. Safety information CAUTION ■ SRS airbag precautions ● Do not attach anything to areas such as a door, windshield glass, side door glass, front or rear pillar, roof side rail and assist grip. ● Vehicles without a smart key system: Do not attach any heavy, sharp or hard objects such as keys and accessories to the key.
Page 130 Modification and disposal of SRS airbag system components Do not dispose of your vehicle or perform any of the following modifications without consulting your Toyota dealer. The SRS airbags may malfunction or deploy (inflate) accidentally, causing death or serious injury.
Page 131: Front Passenger Occupant Classification System
1-8. Safety information Front passenger occupant classification system Your vehicle is equipped with a front passenger occupant classifica- tion system. This system detects the conditions of the front passen- ger seat and activates or deactivates the devices for the front passenger.
Page 132 1-8. Safety information Condition and operation in the front passenger occupant classification system ■ Adult “AIR BAG ON” and “AIR BAG OFF” “AIR BAG indicator lights ON” SRS warning light Indicator/ warning light Seat belt reminder light flashing Front passenger airbag Side airbag on the front passenger seat Activated Curtain shield airbag in the front passenger...
Page 133 1-8. Safety information ■ Child restraint system with infant “AIR BAG ON” and “AIR BAG OFF” “AIR BAG indicator lights OFF” SRS warning light Indicator/ warning light Seat belt reminder light flashing Front passenger airbag Deactivated Side airbag on the front passenger seat Activated Curtain shield airbag in the front passenger Devices...
Page 134 1-8. Safety information ■ There is a malfunction in the system “AIR BAG ON” and “AIR BAG OFF” “AIR BAG indicator lights OFF” Indicator/ warning light SRS warning light Seat belt reminder light Front passenger airbag Deactivated Side airbag on the front passenger seat Activated Curtain shield airbag in the front passenger Devices...
Page 135 1-8. Safety information CAUTION ■ Front passenger occupant classification system precautions Observe the following precautions regarding the front passenger occupant classification system. Failure to do so may cause death or serious injury. ● Wear the seat belt properly. ● Make sure the front passenger’s seat belt plate has not been left inserted into the buckle before someone sits in the front passenger seat.
Page 136 Do not kick the front passenger seat or subject it to severe impact. Other- wise, the SRS warning light may come on to indicate a malfunction of the detection system. In this case, contact your Toyota dealer immediately. ● Child restraint systems installed on the rear seat should not contact the front seatbacks.
Page 137: Child Restraint Systems
1-8. Safety information Child restraint systems A child restraint system for a small child or baby must itself be prop- erly restrained on the seat with the lap portion of the lap/shoulder belt. The laws of all 50 states of the U.S.A. and Canada now require the use of child restraint systems.
Page 138 1-8. Safety information Forward facing — Convertible seat Booster seat ■ Selecting an appropriate child restraint system ● Use a child restraint system appropriate for the child until the child becomes large enough to properly wear the vehicle’s seat belt. ●...
Page 139 ● Toyota strongly urges the use of a proper child restraint system that con- forms to the size of the child, installed on the rear seat. According to acci- dent statistics, the child is safer when properly restrained in the rear seat than in the front seat.
Page 140 1-8. Safety information CAUTION ■ Child restraint precautions ● Do not allow the child to lean his/her head or any part of his/her body against the door or the area of the seat, front and rear pillars or roof side rails from which the SRS side airbags or SRS curtain shield airbags deploy even if the child is seated in the child restraint system.
Page 141: Installing Child Restraints
1-8. Safety information Installing child restraints Follow the child restraint system manufacturer’s instructions. Firmly secure child restraints to the rear seats using the LATCH anchors or a seat belt. Attach the top tether strap when installing a child restraint. The lap/shoulder belt can be used if your child restraint system is not compatible with the LATCH (Lower Anchors and Tethers for Chil- dren) system.
Page 142 1-8. Safety information Installation with LATCH system Type A STEP Widen the gap in the seat cushion slightly. STEP Latch the hooks of the lower straps onto the LATCH anchors. If the child restraint has a top tether strap, the top tether strap should be latched onto the top tether strap anchor.
Page 143 1-8. Safety information Type B STEP Widen the gap in the seat cushion slightly. Latch the buckles onto the STEP LATCH anchors. If the child restraint has a top tether strap, the top tether strap should be latched onto the top tether strap anchor.
Page 144 1-8. Safety information Run the seat belt through the STEP child restraint system and insert the plate into the buckle. Make sure that the belt is not twisted. Fully extend the shoulder belt STEP and allow it to retract to put it in lock mode.
Page 145 1-8. Safety information Forward facing Convertible seat ■ STEP Rear center seat: Adjust the head restraint to the upmost  position. ( P. 81) Place the child restraint system STEP on the seat facing the front of the vehicle. Run the seat belt through the STEP child restraint system and insert the plate into the buckle.
Page 146 1-8. Safety information While pushing the child restraint STEP system into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place. After shoulder belt retracted to a point where there is no slack in the belt, pull the belt to check that it cannot be extended.
Page 147 1-8. Safety information Removing a child restraint installed with a seat belt Push the buckle release button and fully retract the seat belt. Child restraint systems with a top tether strap STEP Remove the luggage cover (if equipped). (P. 343) STEP Remove the head restraint (P.
Page 148 1-8. Safety information CAUTION ■ When installing a booster seat To prevent the belt from going into ALR lock mode, do not fully extend the shoulder belt. ALR mode causes the belt to tighten only. This could cause injury or discomfort to the child. (P. 88) ■...
Page 149 1-8. Safety information CAUTION ■ When installing a child restraint system ● Shake the child restraint system left and right, and forward and backward to ensure that it has been securely installed. ● After securing a child restraint system, never adjust the seat. ●...
Page 150: When Driving
When driving 2-1. Driving procedures 2-4. Using other driving systems Driving the vehicle.... 150 Cruise control....217 Engine (ignition) switch......160 Driving assist systems ..221 Power (ignition) switch ..164 2-5. Driving information EV drive mode ....172 Hybrid transmission ..175 Cargo and luggage ..
Page 151: Driving Procedures
2-1. Driving procedures Driving the vehicle The following procedures should be observed to ensure safe driv- ing: ■ Starting the hybrid system  P. 160, 164 ■ Driving STEP With the brake pedal depressed, shift the shift lever to D. (P.
Page 152 The vehicle is judged to be driving uphill or downhill ● When the accelerator pedal is released ■ Breaking in your new Toyota To extend the life of the vehicle, observing the following precautions is rec- ommended: ● For the first 200 miles (300 km): Avoid sudden stops.
Page 153 2-1. Driving procedures ■ Operating your vehicle in a foreign country Comply with the relevant vehicle registration laws and confirm the availability of the correct fuel. (P. 498) ■ For efficient use ● Shift the shift lever to D when driving. In the N position, the gasoline engine operates but electricity cannot be generated.
Page 154 Large amounts of exhaust in the vehi- cle can cause driver drowsiness and an accident, resulting in death or a serious health hazard. Have the vehicle inspected by your Toyota dealer immediately. ●...
Page 155 2-1. Driving procedures CAUTION ● Do not shift the shift lever to R while the vehicle is moving forward. Doing so can damage the transmission and may result in a loss of vehicle control. ● Do not shift the shift lever to D while the vehicle is moving backward. Doing so can damage the transmission and may result in a loss of vehicle control.
Page 156 If you hear a squealing or scraping noise (brake pad wear limit indica- tors) Have the brake pads checked and replaced by your Toyota dealer as soon as possible. Rotor damage may result if the pads are not replaced when needed.
Page 157 2-1. Driving procedures CAUTION ■ When the vehicle is stopped ● Do not depress the accelerator pedal unnecessarily. If the vehicle is in any gear other than P or N, the vehicle may accelerate suddenly and unexpectedly, causing an accident. ●...
Page 158 The exhaust system should be checked occasionally. If there is a hole or crack caused by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle inspected and repaired by your Toyota dealer. Failure to do so may allow exhaust gases to enter the vehicle, resulting in...
Page 159 2-1. Driving procedures CAUTION ■ When taking a nap in the vehicle Always turn the hybrid system off. Otherwise, if you accidentally move the shift lever or depress the accelerator pedal, this could cause an accident or fire due to hybrid system overheating. Additionally, if the vehicle is parked in a poorly ventilated area, exhaust gases may collect and enter the vehicle, leading to death or a serious health hazard.
Page 160 Short in electrical components ● Engine damage caused by water immersion In the event that you drive on a flooded road and the vehicle is flooded, be sure to have your Toyota dealer check the following: ● Brake function ●...
Page 161: Engine (Ignition) Switch
2-1. Driving procedures Engine (ignition) switch (vehicles without a smart key system) ■ Starting the hybrid system STEP Check that the parking brake is set. STEP Check that the shift lever is set in P. STEP Firmly depress the brake pedal. Turn the engine switch to the STEP “START”...
Page 162 2-1. Driving procedures ■ Changing the engine switch positions “LOCK” The steering wheel is locked and the key can be removed. (The key can be removed only when the shift lever is in P.) “ACC” Some electrical components such as the power outlet can be used.
Page 163: Engine (Ignition) Switch
■ If the “READY” indicator does not come on If the “READY” indicator does not come on when you turn the engine switch with the shift lever in P and the brake pedal depressed, contact your Toyota dealer immediately. ■...
Page 164 Do not leave the engine switch in the “ACC” or “ON” position for long periods of time without the hybrid system on. ■ When starting the hybrid system If the hybrid system becomes difficult to start, have your vehicle checked by your Toyota dealer immediately.
Page 165: Power (Ignition) Switch
2-1. Driving procedures Power (ignition) switch (vehicles with a smart key system) Performing the following operations when carrying the electronic key on your person starts the hybrid system or changes “POWER” switch modes. ■ Starting the hybrid system STEP Check that the parking brake is set. STEP Check that the shift lever is set in P.
Page 166 2-1. Driving procedures STEP Check that the “READY” indicator is on. If the “READY” indicator changes from a flashing light to a solid light and a beep sound, the hybrid system is starting normally. The vehicle will not move when the “READY” indicator is off. The vehicle can move when the “READY”...
Page 167 2-1. Driving procedures ■ Changing “POWER” switch modes Modes can be changed by pressing the “POWER” switch with brake pedal released. (The mode changes each time the switch is pressed.) Off* The emergency flashers can be used. The multi-information display is off.
Page 168 2-1. Driving procedures When stopping the hybrid system with the shift lever in a position other than P If the hybrid system is stopped with the shift lever in a position other than P, the “POWER” switch will not be turned off but instead be turned to ACCESSORY mode.
Page 169 If the hybrid system does not start ● The immobilizer system may not have been deactivated. (P. 110) Contact your Toyota dealer. ● Check that the shift lever is securely set in P. The hybrid system may not start if the shift lever is not securely in the P position.
Page 170 If the “READY” indicator does not come on If the “READY” indicator does not come on when you press the “POWER” switch with the shift lever in P and the brake pedal depressed, contact your Toyota dealer immediately. ■ If the hybrid system is malfunctioning P.
Page 171 When “CHECK SMART KEY SYSTEM” is displayed on the multi-infor- mation display The system may be malfunctioning. Have the vehicle inspected by your Toyota dealer immediately. Failure to do so may lead to the system operat- ing abnormally and possibly cause an accident or damage to the vehicle. ■...
Page 172 Toyota dealer immediately. ■ Symptoms indicating a malfunction with the “POWER” switch If the “POWER” switch seems to be operating somewhat differently than usual, such as the switch sticking slightly, there may be a malfunction. Con- tact your Toyota dealer immediately.
Page 173: Ev Drive Mode
2-1. Driving procedures EV drive mode In EV drive mode, the electric motor (traction motor), powered by the hybrid battery (traction battery), is used to drive the vehicle. This mode allows you to drive in residential areas early in the morn- ing and late at night, or in indoor parking lots etc.
Page 174 2-1. Driving procedures ■ Switching to EV drive mode when the gasoline engine is cold If the hybrid system is started while the gasoline engine is cold, the gasoline engine will start automatically after a short period of time in order to warm up.
Page 175 2-1. Driving procedures ■ Automatic cancelation of EV drive mode When driving in EV drive mode, the gasoline engine may automatically restart in the following situations. When EV drive mode is canceled, a buzzer will sound and the EV drive mode indicator will flash and go off. ●...
Page 176: Hybrid Transmission
2-1. Driving procedures Hybrid transmission Select a shift position appropriate for the driving conditions. ■ Shifting the shift lever Vehicles without a smart key system While the engine switch is in the “ON” position, move the shift lever with the brake pedal depressed. Vehicles with a smart key system While the “POWER”...
Page 177: Air Conditioning System
2-1. Driving procedures ■ Shift position purpose Shift position Function Parking the vehicle/starting the hybrid system Reversing Neutral Normal driving Position for engine braking : To improve fuel efficiency and reduce noises, set the shift lever in the D position for normal driving. ■...
Page 178 2-1. Driving procedures ■ Operation of the air conditioning system in Eco drive mode Eco drive mode controls the heating/cooling operations and fan speed of the air conditioning system to enhance fuel efficiency. (P. 244) To improve air conditioning performance, adjust the temperature setting or fan speed, or turn off Eco drive mode.
Page 179: Turn Signal Lever
2-1. Driving procedures Turn signal lever The turn signal lever can be used to show the following intentions of the driver: Right turn Left turn Lane change to the right (push and hold the lever partway) The right hand signals will flash until you release the lever.
Page 180: Parking Brake
2-1. Driving procedures Parking brake To set the parking brake, fully pull the parking brake lever while depressing the brake pedal. release parking brake, slightly raise the lever and lower it com- pletely while pressing the button. U.S.A. Canada ■ Parking brake engaged warning buzzer A buzzer will sound if the vehicle is driven at a speed of approximately 3 mph (5 km/h) or more with the parking brake engaged.
Page 181: Horn
2-1. Driving procedures Horn To sound the horn, press on or close to the mark. ■ After adjusting the steering wheel Make sure that the steering wheel is securely locked. The horn may not sound if the steering wheel is not securely locked. (P.
Page 182: Instrument Cluster Gauges And Meters
2-2. Instrument cluster Gauges and meters Speedometer Displays the vehicle speed. Shift position display Displays the selected shift position. (P. 175) Fuel gauge Displays the quantity of fuel remaining in the tank. Multi-information display Presents the driver with a variety of driving-related data. (P. 187)
Page 183 2-2. Instrument cluster Instrument panel light control The brightness of the instrument panel lights can be adjusted by turn- ing the dial. Brighter Darker ■ The meters and multi-information display illuminate when Vehicles without a smart key system The engine switch is in the “ON” position. Vehicles with a smart key system The “POWER”...
Page 184 2-2. Instrument cluster NOTICE ■ To prevent damage to the engine and its components This vehicle is not installed with an engine coolant temperature gauge. Instead, is shown on the multi-information display. The engine may be overheating if is shown on the multi-information display. In this case, immediately stop the vehicle in a safe place.
Page 185: Indicators And Warning Lights
2-2. Instrument cluster Indicators and warning lights The indicators and warning lights on the instrument cluster inform the driver of the status of the vehicle’s various systems. For the purpose of explanation, the following illustration displays all indicators and warning lights illuminated.
Page 186 There may be a malfunction in a system if a light does not come on, or if the lights do not turn off. Have the vehicle inspected by your Toyota dealer. : The light flashes to indicate that the system is operating.
Page 187 There may be a malfunction in a system if a light does not come on, or if the lights do not turn off. Have the vehicle inspected by your Toyota dealer. : For vehicles sold in U.S.A.
Page 188: Multi-Information Display
2-2. Instrument cluster Multi-information display The multi-information display presents the driver with a variety of driving-related data including the current outside air temperature. ● Drive information Displays information such as the hybrid system operating conditions and fuel consump- tion. ● Settings and screen off Perform operations such as changing the date/time and screen settings.
Page 189 2-2. Instrument cluster Touch tracer display (vehicles with Display Audio system) When a steering wheel switch is touched, an illustration of the switch is shown on the screen, helping the driver to confirm which switch they are touching without needing to look down at their hands.
Page 190 2-2. Instrument cluster Items displayed in the upper part of the screen The following items are always displayed in the upper part of the screen. (When using some menu items, these items will not be dis- played.) Odometer/trip meter P. 190 Average fuel consumption Depending on whether the odometer or trip meter is displayed, the displayed contents differ.
Page 191 2-2. Instrument cluster ■ Odometer/trip meter Each time the “TRIP” switch is pressed, the display changes as fol- lows: Odometer Displays the total distance that the vehicle has been driven. Some models, pressing and holding the “TRIP” switch will switch the dis- play between MPH and km/h.
Page 192 2-2. Instrument cluster Switching menu screens Each time the “DISP” switch is pressed, the menu screen changes. When the desired menu screen is displayed, stop pressing the “DISP” switch. The details screen will soon be displayed. However, to display the “Settings & Screen Off” details screen, press and hold the “DISP”...
Page 193 2-2. Instrument cluster “ECO Savings” If the price of gasoline is input, the cost of the consumed fuel according to the driven distance is displayed. If the fuel consumption comparison is set, the difference between the input fuel consumption and your vehicle's actual fuel consumption is expressed as an amount of money that was possibly saved.
Page 194 2-2. Instrument cluster ● When the trip meter is displayed: the record since the trip meter was reset is displayed. The record for trip meter A and trip meter B is displayed separately. When the trip meter is reset, the record is also reset. (P. 190) Average speed Average speed will be displayed.
Page 195 2-2. Instrument cluster ■ “ECO Score” Hybrid battery (traction battery) charge level display EV drive indicator lamp Illuminates when only the electric motor is used to drive the vehicle Hybrid System Indicator Hybrid System Indicator represents the hybrid system power output and regenerative charging.
Page 196 2-2. Instrument cluster ■ “ECO Savings” Basic display Detailed display With 2 types of displays available, the cost of the consumed fuel can be displayed or the fuel consumption's comparison can be displayed. Switching between basic display and detailed display can be performed on the screen settings screen.
Page 197 2-2. Instrument cluster The cost of consumed fuel per mile/kilometer (your car) The more fuel efficient your driving is, the further left the vehicle mark moves. ■ “ECO Savings Record” If the fuel consumption compari- son is input in “ECO Savings”, the savings history will be dis- played.
Page 198 2-2. Instrument cluster Hybrid System Indicator Charge area Shows energy regeneration* status. Regenerated energy will be used to charge the hybrid battery (traction battery). *: When used in this manual, “regeneration” refers to the conversion of energy created by the movement of the vehicle into electrical energy. Hybrid Eco area Shows that gasoline engine power is not being used very often.
Page 199 2-2. Instrument cluster Screen settings If “Settings & Screen Off” is selected on the menu screen, the follow- ing items can be set. Always perform this operation after stopping the vehicle in a safe place. (Some items cannot be set while driving.) Press the “DISP”...
Page 200 2-2. Instrument cluster ■ Basic settings/Changing the clock shortcut The date, time, clock mode (12 or 24 hour), touch tracer settings and the displayed language can be changed. ● Pressing the “DISP” (forward) or “TRIP” (back) switch changes the date. ●...
Page 201 2-2. Instrument cluster ■ “ECO savings” settings The gasoline price and fuel consumption comparison settings can be set, and the screen settings can be changed between basic and detailed. ● To input the gasoline price, press the “DISP” (to increase) or “TRIP”...
Page 202 2-2. Instrument cluster ■ Menu screen selection The following screen changes and settings can be performed: • The savings record screen can be switched on or off. • The 5 minute fuel consump- tion screen can be switched on or off. •...
Page 203 2-2. Instrument cluster ■ The clock is displayed when Vehicles without a smart key system The engine switch is in the “ON” position. Vehicles with a smart key system The “POWER” switch is in ON mode. ■ Eco score ● As the accelerator pedal is not depressed, the driven distance using cruise control (if equipped) is not included in the eco score.
Page 204 2-2. Instrument cluster CAUTION ■ Eco score Eco score should be used as a guide only. Always drive safely in accor- dance with road and traffic conditions. NOTICE ■ The multi-information display at low temperatures Allow the interior of the vehicle to warm up before using the liquid crystal information display.
Page 205: Operating The Lights And Wipers
2-3. Operating the lights and wipers Headlight switch The headlights can be operated manually. Turning the end of the lever turns on the lights as follows: Type A The daytime running lights turn on. side marker, parking, tail, license plate, daytime run- ning lights and instru- ment panel lights turn The headlights and...
Page 206 2-3. Operating the lights and wipers Type B The daytime running lights turn on. side marker, parking, tail, license plate, daytime run- ning lights and instru- ment panel lights turn The headlights and all lights listed above (except daytime run- ning lights) turn on.
Page 207 2-3. Operating the lights and wipers ■ Daytime running light system ● To make your vehicle more visible to other drivers, the headlights turn on automatically (at a reduced intensity) whenever the hybrid system is started and the parking brake is released. Daytime running lights are not designed for use at night.
Page 208 2-3. Operating the lights and wipers ■ Customization that can be configured at Toyota dealer Setting of the daytime running light system can be changed. (Customizable features: P. 522) NOTICE ■ To prevent 12-volt battery discharge Do not leave the lights on longer than necessary when the hybrid system is...
Page 209: Fog Light Switch
2-3. Operating the lights and wipers  Fog light switch The fog lights secure excellent visibility in difficult driving condi- tions, such as in rain and fog. Type A Turns the front fog lights off Turns the front fog lights on ...
Page 210 2-3. Operating the lights and wipers Type B Turns the front fog lights off Turns the front fog lights on ■ Fog lights can be used when The headlights are on in low beam.
Page 211: Windshield Wipers And Washer
2-3. Operating the lights and wipers Windshield wipers and washer The wiper operation is selected by moving the lever as follows: Type A Intermittent wind- shield wiper opera- tion speed wind- shield wiper opera- tion High speed wind- shield wiper opera- tion Temporary operation Increases the intermittent...
Page 212 2-3. Operating the lights and wipers Washer/wiper dual opera- tion The wipers will automatically operate a couple of times after the washer squirts. Type B Intermittent wind- shield wiper opera- tion speed wind- shield wiper opera- tion High speed wind- shield wiper opera- tion Temporary operation...
Page 213 2-3. Operating the lights and wipers Washer/wiper dual opera- tion The wipers will automatically operate a couple of times after the washer squirts. ■ The windshield wipers and washer can be operated when Vehicles without a smart key system The engine switch is in the “ON” position. Vehicles with a smart key system The “POWER”...
Page 214 Do not operate the switch continually as the washer fluid pump may over- heat. ■ When a nozzle becomes blocked In this case, contact your Toyota dealer. Do not try to clear it with a pin or other object. The nozzle will be damaged.
Page 215: Rear Window Wiper And Washer
2-3. Operating the lights and wipers  Rear window wiper and washer The wiper operation is selected by moving the lever as follows: Type A Intermittent window wiper operation Normal window wiper operation Washer/wiper dual operation Washer/wiper dual operation The wipers will automatically operate a couple of times after the washer squirts.
Page 216 2-3. Operating the lights and wipers Type B Intermittent window wiper operation Normal window wiper operation Washer/wiper dual operation Washer/wiper dual operation The wipers will automatically operate a couple of times after the washer squirts. ■ The rear window wiper and washer can be operated when Vehicles without a smart key system The engine switch is in the “ON”...
Page 217 Do not operate the switch continually as the washer fluid pump may over- heat. ■ When a nozzle becomes blocked In this case, contact your Toyota dealer. Do not try to clear it with a pin or other object. The nozzle will be damaged.
Page 218: Using Other Driving Systems
2-4. Using other driving systems  Cruise control Use the cruise control to maintain a set speed without depressing the accelerator pedal. Indicators Cruise control switch ■ Setting the vehicle speed STEP Press the “ON-OFF” button to activate the cruise control. Cruise control indicator will come on.
Page 219 2-4. Using other driving systems ■ Adjusting the set speed To change the set speed, operate the lever until the desired set speed is obtained. Increases the speed Decreases the speed Fine adjustment: Momentarily move the lever in the desired direction.
Page 220 If the cruise control speed cannot be set or if the cruise control cancels immediately after being activated, there may be a malfunction in the cruise control system. Have the vehicle inspected by your Toyota dealer.
Page 221 2-4. Using other driving systems CAUTION ■ To avoid operating the cruise control by mistake Switch the cruise control off using the “ON-OFF” button when not in use. ■ Situations unsuitable for cruise control Do not use cruise control in any of the following situations. Doing so may result in loss of control and could cause an accident resulting in death or serious injury.
Page 222: Driving Assist Systems
2-4. Using other driving systems Driving assist systems To help enhance driving safety and performance, the following sys- tems operate automatically in response to various driving situations. Be aware, however, that these systems are supplementary and should not be relied upon too heavily when operating the vehicle. ■...
Page 223 2-4. Using other driving systems When the TRAC/VSC/ABS systems are operating The slip indicator light will flash while the TRAC/VSC/ABS sys- tems are operating. ■ Sounds and vibrations caused by the ABS, brake assist, TRAC, VSC and hill-start assist control systems ●...
Page 224 2-4. Using other driving systems ■ Operating conditions of hill-start assist control When the following four conditions are met, the hill-start assist control will operate: ● The shift lever is in a position other than P or N (when starting off for- ward/backward on an upward incline).
Page 225 2-4. Using other driving systems CAUTION ■ The ABS does not operate effectively when ● The limits of tire gripping performance have been exceeded (such as excessively worn tires on a snow covered road). ● The vehicle hydroplanes while driving at high speed on wet or slick roads. ■...
Page 226 The ABS, TRAC and VSC systems will not function correctly if different tires are installed on the vehicle. Contact your Toyota dealer for further information when replacing tires or wheels. ■ Handling of tires and the suspension Using tires with any kind of problem or modifying the suspension will affect the driving assist systems, and may cause a system to malfunction.
Page 227: Driving Information Cargo And Luggage
2-5. Driving information Cargo and luggage Take notice of the following information about storage precau- tions, cargo capacity and load: ● Stow cargo and luggage in the luggage compartment whenever possible. ● Be sure all items are secured in place. ●...
Page 228 Consult this manual to determine how this reduces the available cargo and luggage load capacity of your vehicle. (P. 496) Toyota does not recommend towing a trailer with your vehicle. Your vehicle is not designed for trailer towing. Calculation formula for your vehicle Cargo capacity Total load capacity (vehicle capacity weight) (P.
Page 229 2-5. Driving information As shown in the example above, if the number of occupants increases, the cargo and luggage load will be reduced by an amount that equals the increased weight due to the additional occupants. In other words, if an increase in the number of occupants causes an excess of the total load capacity (combined weight of occupants plus cargo and luggage load), you must reduce the cargo and luggage on your vehicle.
Page 230 2-5. Driving information CAUTION ● Secure all items in the occupant compartment, as they may shift and injure someone during sudden braking, sudden swerving or an acci- dent. ● When you fold down the rear seats, long items should not be placed directly behind the front seats.
Page 231: Vehicle Load Limits
Seating capacity means the maximum number of occupants whose estimated average weight is 150 lb. (68 kg) per person. ■ Towing capacity Toyota does not recommend towing a trailer with your vehicle. ■ Cargo capacity Cargo capacity may increase or decrease depending on the weight and the number of occupants.
Page 232: Winter Driving Tips
2-5. Driving information Winter driving tips Carry out the necessary preparations and inspections before driving the vehicle in winter. Always drive the vehicle in a manner appropri- ate to the prevailing weather conditions. ■ Pre-winter preparations ● Use fluids that are appropriate to the prevailing outside tem- peratures.
Page 233 2-5. Driving information ■ When driving the vehicle Accelerate the vehicle slowly, keep a safe distance between you and the vehicle ahead, and drive at a reduced speed suitable to road conditions. ■ When parking the vehicle Park the vehicle and move the shift lever to P without setting the parking brake.
Page 234 2-5. Driving information ■ Tire chain installation Observe the following precautions when installing and removing chains: ● Install and remove tire chains in a safe location. ● Install tire chains on the front tires only. Do not install tire chains on the rear tires.
Page 235 NOTICE ■ Repairing or replacing snow tires Request repairs or replacement of snow tires from Toyota dealers or legiti- mate tire retailers. This is because the removal and attachment of snow tires affects the opera- tion of the tire pressure warning valves and transmitters.
Page 236: Trailer Towing
Trailer towing Toyota does not recommend towing a trailer with your vehicle. Toyota also does not recommend the installation of a tow hitch or the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc. Your vehicle is not designed for trailer towing or for the use of tow...
Page 237: Dinghy Towing
2-5. Driving information Dinghy towing Your vehicle is not designed to be dinghy towed (with 4 wheels on the ground) behind a motor home. NOTICE ■ To avoid serious damage to your vehicle Do not tow your vehicle with the four wheels on the ground.
Page 238 2-5. Driving information...
Page 239 2-5. Driving information...
Page 240: Interior Features
Interior features 3-1. Using the air conditioning Using the “SET UP” menu (“Bluetooth” menu) ..308 system and defogger Using the “SET UP” menu Automatic air conditioning (“Phone” menu)....314 system ......238 Rear window and 3-4. Using the interior lights outside rear view mirror defoggers ....
Page 241: Automatic Air Conditioning System
3-1. Using the air conditioning system and defogger Automatic air conditioning system Air outlets and fan speed are automatically adjusted according to the temperature setting. Cooling and dehumidification Temperature display Windshield function on/off button defogger button Fan speed display Air outlet display Outside/recirculated air mode button Air outlet selector button...
Page 242 3-1. Using the air conditioning system and defogger Using the automatic air conditioning system STEP Press The air conditioning system begins to operate. Air outlets and fan speed are automatically adjusted according to the temper- ature setting. STEP To adjust the temperature setting, turn clockwise to increase the temperature and turn counterclockwise to...
Page 243 3-1. Using the air conditioning system and defogger Defogging the windshield Press dehumidification function operates speed increases. Set the outside/recirculated air mode button to the outside air mode if the recirculated air mode is used. (It may switch automati- cally.) To defog the windshield and the side windows early, turn the air flow and temperature up.
Page 244 3-1. Using the air conditioning system and defogger Air flows to the upper body and feet. : Some models Air flows mainly to the feet. *: When the warming function is operating, air flows to the upper body as well to warm the upper body effectively.
Page 245 3-1. Using the air conditioning system and defogger Switching between outside air and recirculated air modes Press The mode switches between outside air mode (the indicator is off) and recirculated air mode (the indicator is on) each time the button is pressed. Adjusting the position of and opening and closing the air outlets Center outlets Direct air flow to the left or right,...
Page 246 3-1. Using the air conditioning system and defogger Open the vent. Close the vent. Steering wheel switches Temperature control Press “” on to increase temperature “” decrease the temperature. Outside air or recirculated air mode The mode switches between out- side air mode and recirculated air mode each time is pressed.
Page 247 3-1. Using the air conditioning system and defogger ■ Operation of the air conditioning system in Eco drive mode In Eco drive mode, the air conditioning system is controlled as follows to pri- oritize fuel efficiency: ● Heating/cooling capacity is restricted. ●...
Page 248 3-1. Using the air conditioning system and defogger ■ Outside/recirculated air mode ● When driving on dusty roads such as tunnels or in heavy traffic, set the outside/recirculated air mode button to the recirculated air mode. This is effective in preventing outside air from entering the vehicle interior. Dur- ing cooling operation, setting the recirculated air mode will also cool the vehicle interior effectively.
Page 249 3-1. Using the air conditioning system and defogger ■ Air conditioning filter P. 399 ■ When operating the steering switches P. 188 ■ Customization The air conditioning control of Eco drive mode can be changed to the same setting as that used in normal drive mode. (Customizable features P.
Page 250: Rear Window And Outside Rear View Mirror Defoggers
3-1. Using the air conditioning system and defogger Rear window and outside rear view mirror defoggers Defoggers are used to defog the rear window, and to remove rain- drops, dew and frost from the outside rear view mirrors. Turns the defoggers on/off The defoggers will automati- cally turn off after approxi- mately 15 minutes.
Page 251: Using The Audio System
3-2. Using the audio system Audio system types Without Display Audio system CD player and AM/FM radio Title Page Using the radio P. 254 Using the CD player P. 256 Playing back MP3 and WMA discs P. 261 Operating an iPod P.
Page 252 3-2. Using the audio system With Display Audio system Owners of models equipped with a Display Audio system should refer to the “Display Audio System Owner's Manual”. ® ■ About Bluetooth The Bluetooth wordmark and logo are owned by Bluetooth SIG. and permission has been granted to use the trademark of the licensee Panasonic Corporation.
Page 253 3-2. Using the audio system CAUTION ■ U.S.A. (without Display Audio system) Part 15 of the FCC Rules FCC ID: ACJ932PTA184 FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
Page 254 3-2. Using the audio system CAUTION Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that neces- sary for successful communication.
Page 255 3-2. Using the audio system CAUTION ■ For vehicles sold in the U.S.A. (with Display Audio system) FCC ID: BABFT0032A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 256 3-2. Using the audio system CAUTION ■ For vehicles sold in Canada (with Display Audio system) IC: 2024B-FT0032A CAUTION: Radio Frequency Radiation Exposure This equipment complies with IC radiation exposure limits set forth for uncontrolled equipment and meets RSS-102 of the IC radio frequency (RF) Exposure rules.
Page 257: Using The Radio
3-2. Using the audio system Using the radio Power Volume Adjusting the frequency or Station selector selecting items Seeking the frequency Scanning for AM/FM mode receivable stations button Setting station presets  STEP Search for desired stations by turning or pressing “ ”...
Page 258 3-2. Using the audio system Scanning radio stations ■ Scanning the preset radio stations STEP Press and hold until you hear a beep. Preset stations will be played for 5 seconds each. STEP When the desired station is reached, press again.
Page 259: Using The Cd Player
3-2. Using the audio system Using the CD player Power Volume CD eject Random playback Selecting a Repeat play track or displays track list Playback Search playback Fast-forwarding Selecting a track or reversing Displays text message Loading CDs Insert a CD. Ejecting CDs Press and remove the CD.
Page 260 3-2. Using the audio system Selecting a track from a track list STEP Press The track list will be displayed. STEP Turn and press to select a track. To return to the previous display, press (BACK). Scanning tracks STEP Press The first 10 seconds of each track will be played.
Page 261 Operation has stopped due to a high temperature inside the player. Wait for a while and then press . If the CD still cannot be played back, contact your Toyota dealer. ■ Discs that can be used Discs with the marks shown below can be used.
Page 262 3-2. Using the audio system CAUTION ■ Certification for the CD player This product is a class I laser product. Do not open the cover of the player or attempt to repair the unit yourself. Refer servicing to qualified personnel. NOTICE ■...
Page 263 3-2. Using the audio system NOTICE ● CDs with a transparent or translucent recording area ● CDs that have had tape, stickers or CD- R labels attached to them, or that have had the label peeled off ■ CD player precautions Failure to follow the precautions below may result in serious damage to the CDs or the player itself.
Page 264: Playing Back Mp3 And Wma Discs
3-2. Using the audio system Playing back MP3 and WMA discs Power Volume Disc eject Random playback Selecting a file Repeat play or displays folder list Playback Search playback Selecting a file Selecting a folder, fast- Displays text message forwarding or reversing Loading and ejecting MP3 and WMA discs P.
Page 265 3-2. Using the audio system STEP Turn and press to select a folder and a file. To return to the previous display, press (BACK). ■ Returning to the first folder Press and hold ) until you hear a beep. Scanning a folder STEP Press and hold until you hear a beep.
Page 266 3-2. Using the audio system Random playback Pressing (RDM) changes modes in the following order: Folder random  Disc random  Off Repeat play Pressing (RPT) changes modes in the following order: File repeat  Folder repeat*  Off *: Available except when RDM (random playback) is selected Switching the display Press Track title, Artist name and Album title (MP3 only) are shown on the dis-...
Page 267 3-2. Using the audio system ■ Display P. 258 ■ Error messages “ERROR”: This indicates a problem either in the CD or inside the player. “CD CHECK”: The CD may be dirty, damaged or inserted up-side down. “NO SUPPORT”: This indicates that MP3/WMA files are not included in the ■...
Page 268 3-2. Using the audio system ■ MP3 and WMA files MP3 (MPEG Audio LAYER3) is a standard audio compression format. Files can be compressed to approximately 1/10 of their original size by using MP3 compression. WMA (Windows Media Audio) is a Microsoft audio compression format. This format compresses audio data to a size smaller than that of the MP3 format.
Page 269 3-2. Using the audio system ● Compatible media Media that can be used for MP3 and WMA playback are CD-Rs and CD- RWs. Playback in some instances may not be possible, depending on the status of the CD-R or CD-RW. Playback may not be possible or the audio may jump if the disc is scratched or marked with fingerprints.
Page 270 3-2. Using the audio system ● MP3 and WMA playback When a disc containing MP3 or WMA files is inserted, all files on the disc are first checked. Once the file check is finished, the first MP3 or WMA file is played.
Page 271: Operating An Ipod
3-2. Using the audio system Operating an iPod Connecting an iPod enables you to enjoy music from the vehicle speakers. ■ Connecting an iPod Open the cover and connect STEP an iPod using an iPod cable. Turn on the power of the iPod if it is not turned on.
Page 272 3-2. Using the audio system Selecting a play mode STEP Press (BROWSE) to select iPod menu mode. STEP Turning clockwise changes the play mode in the fol- lowing order: “Playlists”“Artists”“Albums”“Songs”“Podcasts”“Genres” “Composers”“Audiobooks” STEP Press to select the desired play mode. ■ Play mode list First Second...
Page 273 3-2. Using the audio system ■ Selecting a list STEP Turn to display the first selection list. STEP Press to select the desired item. Pressing the knob changes to the second selection list. STEP Repeat the same procedure to select the desired item. To return to the previous selection list, press (BACK).
Page 274 3-2. Using the audio system Fast-forwarding and reversing songs To fast-forward or reverse, press and hold ) or Shuffle playback Pressing (RDM) changes modes in the following order: Track shuffle  Album shuffle  Off Repeat play Press (RPT) To cancel, press (RPT) again.
Page 275 3-2. Using the audio system ■ Cord hook A cord can be secured as shown in the illustration. Cords with a diameter of approximately 0.2 in. (5 mm) can be secured. ■ About iPod ● “Made for iPod” and “Made for iPhone” mean that an electronic acces- sory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple per- formance standards.
Page 276 3-2. Using the audio system ■ iPod functions ● When an iPod is connected and the audio source is changed to iPod mode, the iPod will resume play from the same point in which it was last used. ● Depending on the iPod that is connected to the system, certain functions may not be available.
Page 277 3-2. Using the audio system ■ Compatible models      The following iPod , iPod nano , iPod classic , iPod touch and iPhone devices can be used with this system. ● Made for • iPod touch (4th generation) •...
Page 278 3-2. Using the audio system NOTICE ■ Cord hook Do not secure items other than cords on the cord hook. Doing so may dam- age the cord hook. ■ To prevent damage to iPod ● Do not leave iPod in the vehicle. The temperature inside the vehicle may become high, resulting in damage to the iPod.
Page 279: Operating A Usb Memory
3-2. Using the audio system Operating a USB memory Connecting a USB memory enables you to enjoy music from the vehicle speakers. ■ Connecting a USB memory Open the cover and connect a STEP USB memory. Turn on the power of the USB memory if it is not turned on.
Page 280 3-2. Using the audio system Selecting a folder ■ Selecting folders one at a time To select the desired folder, press ) or ■ Selecting a folder and file from a folder list STEP Press The folder list will be displayed. STEP Turn and press to select a folder and a file.
Page 281 3-2. Using the audio system Scanning files STEP Press The first 10 seconds of all files in the folder will be played. STEP When the desired folder is reached, press again. Fast-forwarding and reversing files To fast-forward or reverse, press and hold ) or Random playback Pressing...
Page 282 3-2. Using the audio system ■ Cord hook P. 272 ■ USB memory functions ● Depending on the USB memory that is connected to the system, the device itself may not be operable and certain functions may not be avail- able.
Page 283 3-2. Using the audio system ■ USB memory ● Compatible devices USB memory that can be used for MP3 and WMA playback ● Compatible device formats The following device formats can be used: • USB communication formats: USB2.0 FS (12 Mbps) •...
Page 284 3-2. Using the audio system ● MP3 file compatibility • Compatible standards MP3 (MPEG1 AUDIO LAYERIII, MPEG2 AUDIO LAYERIII, MPEG2.5) • Compatible sampling frequencies MPEG1 AUDIO LAYERII, III: 32, 44.1, 48 (kHz) MPEG2 AUDIO LAYERII, III: 16, 22.05, 24 (kHz) MPEG2.5: 8, 11.025, 12 (kHz) •...
Page 285 3-2. Using the audio system ● MP3 and WMA playback • When a device containing MP3 or WMA files is connected, all files in the USB memory are checked. Once the file check is finished, the first MP3 or WMA file is played. To make the file check finish more quickly, we recommend that you do not include any files other than MP3 or WMA files or create any unnecessary folders.
Page 286 3-2. Using the audio system NOTICE ■ Cord hook (P. 275) ■ To prevent damage to USB memory ● Do not leave USB memory in the vehicle. The temperature inside the vehi- cle may become high, resulting in damage to the player. ●...
Page 287: Optimal Use Of The Audio System
3-2. Using the audio system Optimal use of the audio system Displays the current mode Changes the following set- tings • Sound quality and vol- ume balance (P. 285) The sound quality and bal- ance setting changed to produce the best sound.
Page 288 3-2. Using the audio system Using the audio control function ■ Changing sound quality modes STEP Press STEP Turn to select “Sound Setting”. STEP Press STEP Turn to select the desired mode. “BASS”,“TREBLE”,“FADER”,“BALANCE”, or“ASL” STEP Press ■ Adjusting sound quality Turning adjusts the level.
Page 289 3-2. Using the audio system ■ Adjusting the Automatic Sound Levelizer (ASL) When ASL is selected, turning to the right changes the amount of ASL in the order of “LOW”, “MID” and “HIGH”. Turning to the left turns ASL off. ASL automatically adjusts the volume and tone quality according to vehi- cle speed.
Page 290: Using The Aux Port
3-2. Using the audio system Using the AUX port This port can be used to connect a portable audio device and listen to it through the vehicle’s speakers. Open the cover and connect STEP the portable audio device. STEP Press until “AUX”...
Page 291: Using The Steering Wheel Audio Switches
3-2. Using the audio system Using the steering wheel audio switches Some audio features can be controlled using the switches on the steering wheel. Operation may differ and usage may not be possible with audio/nav- igation systems that are not compatible with the steering switches in this vehicle.
Page 292 3-2. Using the audio system Adjusting the volume Press “+” on to increase the volume and “-” to decrease the vol- ume. Hold down “+” or “-” on to continue increasing or decreasing the vol- ume. Silencing a sound Press and hold To cancel, press and hold again.
Page 293 3-2. Using the audio system Selecting a folder or album (MP3 and WMA, USB memory and ® Bluetooth audio) ® STEP Press to select CD, USB memory or Bluetooth audio mode. STEP Press and hold “” or “” on until you hear a beep. CAUTION ■...
Page 294: Using The Bluetooth
® 3-3. Using the Bluetooth audio system ® Bluetooth audio/phone ■ ® Bluetooth audio ® The Bluetooth audio system enables you to enjoy music played on a portable digital audio player (portable player) from the vehi- cle speakers via wireless communication. ®...
Page 295 ® 3-3. Using the Bluetooth audio system ■ Conditions affecting operation ® The Bluetooth audio/phone may not operate normally in the following situa- tions: ● ® The portable player does not support Bluetooth ● The cellular phone is located outside the service area ®...
Page 296 ® 3-3. Using the Bluetooth audio system ■ Compatible models ● ® Bluetooth specifications: Ver. 1.1, or higher (recommended: Ver. 2.1 + EDR or higher) ● Following Profiles: • A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher (recom- mended: Ver. 1.2 or higher) •...
Page 297 ® 3-3. Using the Bluetooth audio system CAUTION ■ Caution while driving ● Do not use a cellular phone. ● ® Do not connect Bluetooth device or operate the controls. ■ Caution regarding interference with electronic devices ® ● Your audio unit is fitted with Bluetooth antennas.
Page 298: Bluetooth ® Audio/Phone
® 3-3. Using the Bluetooth audio system ® Using the Bluetooth audio/phone ■ Audio unit ® Bluetooth connection con- dition If “BT” is not displayed, the ® Bluetooth audio/phone cannot be used. Display A message, name, number, etc. is displayed. Lower-case characters and special characters cannot be displayed.
Page 299 ® 3-3. Using the Bluetooth audio system ■ Audio switches P. 288 ■ Telephone switches Volume On-hook switch Turns the hands-free sys- tem off/ends a call/refuses a call Off-hook switch Turns the hands-free sys- tem on/starts a call ■ Microphone Vehicles without moon roof Vehicles with moon roof...
Page 300 ® 3-3. Using the Bluetooth audio system ® Using the Bluetooth audio/phone for the first time ® Before using the Bluetooth audio/phone, it is necessary to register a ® Bluetooth device in the system. Follow the procedure below to reg- ister (pair) a device: STEP Press...
Page 301 ® 3-3. Using the Bluetooth audio system ® Menu list of the Bluetooth audio/phone First menu Second menu Third menu Operation details Registering a “BT Pairing” ® Bluetooth device Listing the registered “List Phone” cellular phones Listing the registered “List Audio” portable players “Passkey”...
Page 302 ® 3-3. Using the Bluetooth audio system First menu Second menu Third menu Operation details “Add contacts” Adding a new number Registering a speed “Add SD” dial “Delete Call Deleting a number History” stored in the call history “Phonebook” Deleting a number “Delete stored in the contacts”...
Page 303: Operating A Bluetooth ® Enabled Portable Player
® 3-3. Using the Bluetooth audio system ® Operating a Bluetooth enabled portable player Selecting an album, fast-forwarding or reversing Power Volume Repeat play Random playback Selecting items Playback Search playback Selecting a track Playback/Pause Displays text message Selecting an album Press ) or ) to select the desired album.
Page 304 ® 3-3. Using the Bluetooth audio system Scanning tracks STEP Press The first 10 seconds of all tracks in the album will be played. STEP When the desired track is reached, press again. Playing and pausing tracks Press ) to play or pause a track. Fast-forwarding and reversing tracks To fast-forward or reverse, press and hold ) or...
Page 305 ® 3-3. Using the Bluetooth audio system ® ■ Bluetooth audio system functions Depending on the portable player that is connected to the system, certain functions may not be available.
Page 306: Making A Phone Call
® 3-3. Using the Bluetooth audio system Making a phone call To enter the “PHONE” mode, press the off-hook switch. ■ Making a phone call ● Dialing by selecting a name ● Speed dialing ● Dialing by entering the number ●...
Page 307 ® 3-3. Using the Bluetooth audio system Dialing by selecting a name STEP Select “Phonebook” using STEP Select the desired name using and press the off-hook switch. By pressing (Add S. Dial) and then one of the speed dial but- tons (from ) while the desired name is selected, it can be registered as a speed dial.
Page 308 ® 3-3. Using the Bluetooth audio system Dialing from call histories STEP Select “All calls”, “Missed calls”, “Incoming calls” or “Outgoing calls” using STEP Select the desired number using and press the off- hook switch. The following operations can be performed: ●...
Page 309 ® 3-3. Using the Bluetooth audio system Operations during a call ● Transferring a call A call can be transferred between the cellular phone and system while dialing, receiving a call, or during a call. Use one of the fol- lowing methods: a.
Page 310 ® 3-3. Using the Bluetooth audio system Adjusting the ringtone volume when receiving a call Change the ringtone volume using To decrease the volume: Turn counterclockwise. To increase the volume: Turn clockwise. ■ When talking on the phone ● Do not talk simultaneously with the other party. ●...
Page 311: Using The "Set Up" Menu ("Bluetooth" Menu)
® 3-3. Using the Bluetooth audio system Using the “SET UP” menu (“Bluetooth” menu) ® Registering a Bluetooth device in the system allows the system to function. The following functions can be used for registered devices: ■ Functions and operation procedures STEP Press and select “Bluetooth”...
Page 312 ® 3-3. Using the Bluetooth audio system Registering a portable player Select “Pairing” using , and perform the procedure for register- ing a portable player. (P. 297) Listing the registered cellular phones Select “List Phone” using . The list of registered cellular phones will be displayed.
Page 313 ® 3-3. Using the Bluetooth audio system Listing the registered portable players Select “List Audio” using . The list of registered portable play- ers will be displayed. ● Connecting the registered portable player to the audio system STEP Select the name of the portable player to be connected using STEP Select “Select”...
Page 314 ® 3-3. Using the Bluetooth audio system Changing the passkey STEP Select “Passkey” using STEP Select a 4 to 8-digit passkey using Input the number 1 digit at a time. STEP When the entire number to be registered as a passkey has been input, press again.
Page 315 ® 3-3. Using the Bluetooth audio system Displaying the device status Select “Bluetooth info” using ● Displaying the device name Select “Device Name” using ● Displaying the device address Select “Device Address” using Setting the automatic connection confirmation display to on or off If the “Display Setting”...
Page 316 ® 3-3. Using the Bluetooth audio system Initialization Select “Initialize” using ● Initializing the sound settings Select “Sound setting” using and press (YES). For details about sound settings: P. 314 ● Initializing the device information Select “Car Device Info” using and press (YES).
Page 317: Using The "Set Up" Menu ("Phone" Menu)
® 3-3. Using the Bluetooth audio system Using the “SET UP” menu (“Phone” menu) ■ Functions and operation procedures To enter the menu of each function, press and follow the steps below using ● Adding a new phone number 1. “Phone”  2. “Phonebook”  3. “Add contacts” ●...
Page 318 ® 3-3. Using the Bluetooth audio system Adding a new phone number Select “Add contacts” using ● Transferring all contacts from the cellular phone Select “Overwrite all contacts” using and press (YES). ● Transferring one contact from the cellular phone Select “Add one contact”...
Page 319 ® 3-3. Using the Bluetooth audio system Deleting call histories Select “Delete Call History” using ● Deleting outgoing call history STEP Select “Outgoing Calls” using STEP Select the desired phone number using and press (YES). To delete all outgoing call history data, press (ALL) and then press (YES).
Page 320 ® 3-3. Using the Bluetooth audio system ● Deleting missed call history STEP Select “Missed Calls” using STEP Select the desired phone number using and press (YES). To delete all missed call history data, press (ALL) and then press (YES). ●...
Page 321 ® 3-3. Using the Bluetooth audio system Deleting a registered phone number STEP Select “Delete contacts” using STEP Select the desired phone number using and press (YES). To delete all of the registered phone numbers, select “All delete” using and press (YES).
Page 322 ® 3-3. Using the Bluetooth audio system Setting ringtone volume STEP Select “Ringtone Volume” using STEP Change the ringtone volume. To decrease the volume: Turn counterclockwise. To increase the volume: Turn clockwise. Setting ringtone STEP Select “Ringtone” using STEP Using , select a ringtone (1 - 3).
Page 323 ® 3-3. Using the Bluetooth audio system ■ Phone number Up to 1000 names can be stored. ■ Call history Up to 10 numbers can be stored in each of the outgoing, incoming and missed call history memories. ■ Limitation of number of digits A phone number that exceeds 24 digits cannot be registered.
Page 324: Using The Interior Lights
3-4. Using the interior lights Interior lights list Interior lights/personal lights (P. 322) Luggage compartment light (if equipped)
Page 325: Interior Lights/Personal Lights
3-4. Using the interior lights Interior lights/personal lights Interior lights/personal lights Interior lights Turns the lights off Turns the lights on/off linked to door positions Turns the lights on Personal lights Turns the lights on Turns the lights off...
Page 326 “POWER” switch is off, the lights will go off automatically after 20 minutes. ■ Customization that can be configured at Toyota dealer Settings (e.g. the time elapsed before lights turn off) can be changed. (Customizable features P. 522) NOTICE ■...
Page 327: Using The Storage Features
3-5. Using the storage features List of storage features Bottle holders Auxiliary boxes (if equipped) Glove box Cup holders Console box (if equipped) CAUTION ■ Items that should not be left in the storage spaces Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause the following when cabin temperature becomes high: ●...
Page 328: Glove Box
3-5. Using the storage features Glove box and console box Glove box Pull up the lever to open the glove box. CAUTION ■ Caution while driving Keep the glove box closed. In the event of sudden braking or sudden swerv- ing, an accident may occur due to an occupant being struck by the open glove box or the items stored inside.
Page 329 3-5. Using the storage features Console box Remove the lid at the bottom of the console box. Small items can be stored in this space. ■ When using the console box lid as an armrest The lid can be slid forward or backwards. CAUTION ■...
Page 330: Auxiliary Boxes
3-5. Using the storage features Auxiliary boxes Auxiliary boxes Type A Type B Type C...
Page 331 3-5. Using the storage features Auxiliary boxes Type D Type E (if equipped) CAUTION ■ Items unsuitable for the box Do not place items that easily roll over or extend past the box’s rim. The items may be thrown out of the tray, causing an accident.
Page 332: Cup Holders
3-5. Using the storage features Cup holders Cup holders Front Rear (type A) Rear (type B) Pull down the cup holder lid.
Page 333: Bottle Holders
3-5. Using the storage features Cup holders and bottle holders CAUTION ■ Items unsuitable for the cup holder Do not place anything other than cups or beverage cans in the cup holders. Items in the cup holders may be thrown out of the holders in the event of an accident or sudden braking, causing injury.
Page 334 3-5. Using the storage features Bottle holders NOTICE ■ Items that should not be stowed in the bottle holders Put the cap on before stowing a bottle. Do not place open bottles in the bot- tle holders, or glasses and paper cups containing liquid. The contents may spill and glasses may break.
Page 335: Other Interior Features
3-6. Other interior features Sun visors To set the visor in the for- ward position, flip it down. To set the visor in the side position, flip down, unhook, and swing it to the side.
Page 336: Vanity Mirrors
3-6. Other interior features Vanity mirrors Slide the cover to open.
Page 337: Outside Temperature Display
3-6. Other interior features Outside temperature display The temperature display shows temperatures within the range of -40°F (-40°C) and 122°F (50°C). The outside temperature dis- play of the “Drive Information” screen can be displayed by pressing the “DISP” switch. (P. 191) ■...
Page 338 When the vehicle is stopped, or moving at low speeds (less than 16 mph [25 km/h]) ● When the outside temperature has changed suddenly (at the entrance/ exit of a garage, tunnel, etc.) ■ When “” or “E” is displayed The system may be malfunctioning. Take your vehicle to your Toyota dealer.
Page 339: Power Outlet
3-6. Other interior features Power outlet The power outlet can be used for 12 V accessories that run on less than 10 A. ■ The power outlet can be used when Vehicles without a smart key system The engine switch is in the “ACC” or “ON” position. Vehicles with a smart key system The “POWER”...
Page 340: Seat Heaters
3-6. Other interior features  Seat heaters Turns on the front left seat heater Turns on the front right seat heater The indicator light comes on. Push the switch once again to turn off the seat heater. ■ The seat heaters can be used when The “POWER”...
Page 341 3-6. Other interior features CAUTION ■ Burns ● Use caution when seating the following persons in a seat with the seat heater on to avoid the possibility of burns: • Babies, small children, the elderly, the sick and the physically chal- lenged •...
Page 342: Coat Hooks
3-6. Other interior features  Coat hooks CAUTION ■ Items that cannot be hung on the coat hook Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS curtain shield airbags deploy, these items may become projectiles, causing death or serious injury.
Page 343: Assist Grips
3-6. Other interior features Assist grips An assist grip installed on the ceiling can be used to support your body while sitting on the seat. Front Rear (if equipped) CAUTION ■ Assist grip Do not use the assist grip when getting in or out of the vehicle or rising from your seat.
Page 344: Floor Mat
3-6. Other interior features Floor mat Use only floor mats designed specifically for vehicles of the same model and model year as your vehicle. Fix them securely in place onto the carpet. Insert the retaining hooks STEP (clips) into the floor mat eye- lets.
Page 345 When installing the driver's floor mat ● Do not use floor mats designed for other models or different model year vehicles, even if they are Toyota Genuine floor mats. ● Only use floor mats designed for the driver's seat. ●...
Page 346: Luggage Cover
3-6. Other interior features  Luggage cover ■ Removing the luggage cover Unhook the cords. STEP Push the luggage cover for- STEP ward disengage anchors. Remove the luggage cover. STEP  : If equipped...
Page 347 3-6. Other interior features ■ Installing the luggage cover Place the luggage cover on STEP the anchors. Push the luggage cover until a STEP click sound is heard. STEP Hook the cords.
Page 348: Maintenance And Care
Maintenance and care 4-1. Maintenance and care Cleaning and protecting the vehicle exterior..346 Cleaning and protecting the vehicle interior..349 4-2. Maintenance Maintenance requirements ....352 General maintenance..355 Emission inspection and maintenance (I/M) programs......359 4-3. Do-it-yourself maintenance Do-it-yourself service precautions ....
Page 349: Cleaning And Protecting The Vehicle Exterior
4-1. Maintenance and care Cleaning and protecting the vehicle exterior Perform the following to protect the vehicle and maintain it in prime condition: ● Working from top to bottom, liberally apply water to the vehicle body, wheel wells and underside of the vehicle to remove any dirt and dust.
Page 350 4-1. Maintenance and care ■ When using a car wash (vehicles with a smart key system) If the door handle becomes wet while the electronic key is within the effec- tive range, the door may lock and unlock repeatedly. In that case, follow the following correction procedures to wash the vehicle: ●...
Page 351 4-1. Maintenance and care NOTICE ■ To prevent paint deterioration and corrosion on the body and compo- nents (aluminum wheels etc.) ● Wash the vehicle immediately in the following cases: • After driving near the sea coast • After driving on salted roads •...
Page 352: Cleaning And Protecting The Vehicle Interior
4-1. Maintenance and care Cleaning and protecting the vehicle interior The following procedures will help protect your vehicle's interior and keep it in top condition: ■ Protecting the vehicle interior Remove dirt and dust using a vacuum cleaner. Wipe dirty sur- faces with a cloth dampened with lukewarm water.
Page 353 4-1. Maintenance and care CAUTION ■ Water in the vehicle ● Do not splash or spill liquid in the vehicle, such as on the floor, in the hybrid battery (traction battery) air vents, and in the luggage compartment. Doing so may cause the hybrid battery, electrical components, etc. to mal- function or catch fire.
Page 354 4-1. Maintenance and care NOTICE ■ Cleaning detergents ● Do not use the following types of detergent, as they may discolor the vehi- cle interior or cause streaks or damage to painted surfaces: • Non-seat portions: Organic substances such as benzene or gasoline, alkaline or acidic solutions, dye, and bleach •...
Page 355: Maintenance
It is recommended that genuine Toyota parts be used for repairs to ensure performance of each system. If non-Toyota parts are used in replacement or if a repair shop other than a Toyota dealer performs repairs, confirm the war- ranty coverage.
Page 356 Continue to press and hold the button until the trip meter displays “000000”. ■ Allow inspection and repairs to be performed by a Toyota dealer ● Toyota technicians are well-trained specialists and are kept up to date with the latest service information. They are well informed about the operations of all systems on your vehicle.
Page 357 4-2. Maintenance CAUTION ■ If your vehicle is not properly maintained Improper maintenance could result in serious damage to the vehicle and possible serious injury or death. ■ Handling of the 12-volt battery ● Engine exhaust, some of its constituents, and a wide variety of automobile components contain or emit chemicals known to the State of California to cause cancer and birth defects and other reproductive harm.
Page 358: General Maintenance
Booklet” “Owner’s Manual Supplement/Scheduled Maintenance Guide”. It is recommended that any problem you notice should be brought to the attention of your Toyota dealer or qualified service shop for advice. Engine compartment Items Check points Is the brake fluid at the correct...
Page 359 4-2. Maintenance Vehicle interior Items Check points 12-volt battery Check the connections. (P. 379) • The accelerator pedal should Accelerator pedal move smoothly (without uneven pedal effort or catching). • Does the brake pedal move smoothly? • Does the brake pedal have appro- priate clearance from the floor? Brake pedal (P.
Page 360 4-2. Maintenance Items Check points • Does the parking brake lever operate normally? Parking brake • When parked on a slope and the parking brake is on, is the vehicle securely stopped? • Do the seat belts operate smoothly? Seat belts •...
Page 361 4-2. Maintenance Vehicle exterior Items Check points Doors • Do the doors operate smoothly? • Does the engine hood lock sys- Engine hood tem work properly? • There should not be any signs of Fluid leaks fluid leakage after the vehicle has been parked.
Page 362: Emission Inspection And Maintenance (I/M) Programs
If the malfunction indicator lamp comes on The OBD system determines that a problem exists somewhere in the emission control system. Your vehicle may not pass the I/ M test and may need to be repaired. Contact your Toyota dealer to service the vehicle. ■...
Page 363: Do-It-Yourself Maintenance
Brake fluid level (P. 375) • Rag or paper towel • Funnel (used only for adding brake fluid) • “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol based non-silicate, non-amine, non-nitrite and non-borate coolant with long-life hybrid organic acid technology For the U.S.A.:...
Page 364 4-3. Do-it-yourself maintenance Items Parts and tools • “Toyota Genuine Motor Oil” or equivalent Engine oil level (P. 369) • Rag or paper towel • Funnel (used only for adding engine oil) • Fuse with same amperage rating Fuses (P. 404) as original •...
Page 365 4-3. Do-it-yourself maintenance CAUTION The engine compartment contains many mechanisms and fluids that may move suddenly, become hot, or become electrically energized. To avoid death or serious injury, observe the following precautions: ■ When working on the engine compartment ● Vehicles without a smart key system: Make sure that the engine switch is in the “LOCK”...
Page 366 4-3. Do-it-yourself maintenance CAUTION ■ Safety glasses Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting in your eyes. NOTICE ■ If you remove the air cleaner filter Driving with the air cleaner filter removed may cause excessive engine wear due to dirt in the air.
Page 367: Hood
4-3. Do-it-yourself maintenance Hood Release the lock from the inside of the vehicle to open the hood. Pull the hood lock release STEP lever. The hood will pop up slightly. Pull up the auxiliary catch STEP lever and lift the hood. Hold the hood open by insert- STEP ing the supporting rod into the...
Page 368 4-3. Do-it-yourself maintenance CAUTION ■ Pre-driving check Check that the hood is fully closed and locked. If the hood is not locked properly, it may open while the vehicle is in motion and cause an accident, which may result in death or serious injury. ■...
Page 369: Positioning A Floor Jack
4-3. Do-it-yourself maintenance Positioning a floor jack When raising your vehicle with a floor jack, position the jack cor- rectly. Improper placement may damage your vehicle or cause injury. Front Rear...
Page 370 4-3. Do-it-yourself maintenance CAUTION ■ When raising your vehicle Make sure to observe the following precautions to reduce the possibility of death or serious injury: ● Lift up the vehicle using a floor jack such as the one shown in the illustra- tion.
Page 371: Engine Compartment
4-3. Do-it-yourself maintenance Engine compartment Fuse boxes (P. 404) Engine/power control unit coolant radiator (P. 375) Engine oil filler cap (P. 370) Electric cooling fan Engine coolant radiator cap Condenser (P. 375) Power control unit Engine oil level dipstick coolant reservoir (P. 373) (P.
Page 372 4-3. Do-it-yourself maintenance Engine oil With the engine at operating temperature and turned off, check the oil level on the dipstick. ■ Checking the engine oil STEP Park the vehicle on level ground. After warming up the engine and turning off the hybrid system, wait more than 5 minutes for the oil to drain back into the bottom of the engine.
Page 373 4-3. Do-it-yourself maintenance ■ Adding engine oil If the oil level is below or near the low level mark, add engine oil of the same type as that already in the engine. Make sure to check the oil type and prepare the items needed before adding oil.
Page 374 Dispose of used oil and filters only in a safe and acceptable manner. Do not dispose of used oil and filters in household trash, in sewers or onto the ground. Call your Toyota dealer, service station or auto parts store for information concerning recycling or disposal.
Page 375 4-3. Do-it-yourself maintenance NOTICE ■ To prevent serious engine damage Check the oil level on a regular basis. ■ When replacing the engine oil ● Be careful not to spill engine oil on the vehicle components. ● Avoid overfilling, or the engine could be damaged. ●...
Page 376 4-3. Do-it-yourself maintenance Coolant Engine coolant reservoir The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on the reservoir when the engine is cold. Reservoir cap “FULL” line “LOW” line If the level is on or below the “LOW”...
Page 377 If the coolant level drops within a short time of replenishing Visually check the radiators, hoses, engine/power control unit coolant reser- voir caps, drain cock and water pump. If you cannot find a leak, have your Toyota dealer test the cap and check for leaks in the cooling systems. CAUTION ■...
Page 378 Check the radiator and condenser and clear away any foreign objects. If either of the above parts is extremely dirty or you are not sure of their condition, have your vehicle inspected by your Toyota dealer. CAUTION ■ When the hybrid system is hot Do not touch the radiators or condenser as they may be hot and cause seri- ous injuries, such as burns.
Page 379 4-3. Do-it-yourself maintenance ■ Adding fluid Make sure to check the fluid type and prepare the necessary item. Fluid type FMVSS No.116 DOT 3 or SAE J1703 brake fluid Item Clean funnel Slide and lift up the rubber strip STEP and clips to partly remove it as shown.
Page 380 4-3. Do-it-yourself maintenance ■ Brake fluid can absorb moisture from the air Excess moisture in the brake fluid can cause a dangerous loss of braking efficiency. Use only newly opened brake fluid. CAUTION ■ When filling the reservoir Take care as brake fluid can harm your hands and eyes and damage painted surfaces.
Page 381 4-3. Do-it-yourself maintenance Washer fluid If the amount of washer fluid is insufficient, add washer fluid. CAUTION ■ When adding washer fluid Add washer fluid after the hybrid system has been stopped and cooled down sufficiently. Washer fluid contains alcohol and may catch fire if spilled inside a hot engine compartment.
Page 382: 12-Volt Battery
4-3. Do-it-yourself maintenance 12-volt battery ■ Location The 12-volt battery is located under the rear right seat. ■ Removing the 12-volt battery cover Push in the center part of STEP the clips Remove the clips Disengage the 3 clips and 3 STEP guides on the back of the cover and remove the 12-volt...
Page 383 4-3. Do-it-yourself maintenance ■ Exterior Make sure that the 12-volt battery terminals are not corroded and that there are no loose connections, cracks, or loose clamps. Terminals Hold-down clamp ■ Installing the 12-volt battery cover Install 12-volt battery STEP cover. Guides Clips Check if the clips and guides...
Page 384 12-volt battery. Take extra care when connecting the 12-volt battery if the “POWER” switch mode prior to discharge is unknown. If the system will not start even after multiple attempts, contact your Toyota dealer.
Page 385 4-3. Do-it-yourself maintenance CAUTION ■ Chemicals in the 12-volt battery The 12-volt battery contains poisonous and corrosive sulfuric acid and may produce hydrogen gas which is flammable and explosive. To reduce the risk of death or serious injury, take the following precautions while working on or near the 12-volt battery: ●...
Page 386 Use a 12-volt battery designed for this vehicle. Failure to do so may cause gas (hydrogen) to enter the passenger compartment, causing a fire or explo- sion. For replacement of the 12-volt battery, contact your Toyota dealer. NOTICE ■ When recharging the 12-volt battery Never recharge the 12-volt battery while the hybrid system is operating.
Page 387: Tires
■ Tire rotation Rotate the tires in the order shown. To equalize tire wear and extend tire life, Toyota recom- mends that tire rotation is Front carried out at the same inter- val as tire inspection. Do not fail to initialize the tire...
Page 388 Have tire pressure warning valve and transmitter ID codes registered by your Toyota dealer. (P. 386) ■ The tire pressure warning system must be initialized in the fol- lowing circumstances: ●...
Page 389 ● A tire goes flat repeatedly or cannot be properly repaired due to the size or location of a cut or other damage If you are not sure, consult with your Toyota dealer.
Page 390 4-3. Do-it-yourself maintenance ■ Replacing tires and wheels If the ID code of the tire pressure warning valve and transmitter is not registered, the tire pressure warning system will not work properly. After driving for about 20 minutes, the tire pressure warning light blinks for 1 minute and stays on to indicate a system malfunction.
Page 391 4-3. Do-it-yourself maintenance ■ Tire types ● Summer tires Summer tires are high-speed performance tires best suited to highway driving under dry conditions. Since summer tires do not have the same traction performance as snow tires, summer tires are inadequate for driving on snow-covered or icy roads.
Page 392 Initialization can be completed in a few minutes. However, in the follow- ing cases, the settings have not been recorded and the system will not operate properly. If repeated attempts to record tire inflation pressure settings are unsuccessful, have the vehicle inspected by your Toyota dealer. ●...
Page 393 Do not mix tires of different makes, models or tread patterns. Also, do not mix tires of remarkably different treadwear. ● Do not use tire sizes other than those recommended by Toyota. ● Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
Page 394 When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your Toyota dealer or other qualified service shop as soon as possible. Make sure to replace the tire pressure warning valve and transmitter when replacing the tire.
Page 395: Tire Inflation Pressure
4-3. Do-it-yourself maintenance Tire inflation pressure ■ Tire inflation pressure The recommended cold tire inflation pressure and tire size are displayed on the tire and loading information label. (P. 504)
Page 396 4-3. Do-it-yourself maintenance ■ Inspection and adjustment procedure Tire valve Tire pressure gauge STEP Remove the tire valve cap. STEP Press the tip of the tire pressure gauge onto the tire valve. STEP Read the pressure using the gauge gradations. STEP If the tire inflation pressure is not at the recommended level, adjust the pressure.
Page 397 Reduced driving comfort and tire life ● Reduced safety ● Damage to the drive train If a tire needs frequent inflating, have it checked by your Toyota dealer. ■ Instructions for checking tire inflation pressure When checking tire inflation pressure, observe the following: ●...
Page 398 4-3. Do-it-yourself maintenance CAUTION ■ Proper inflation is critical to save tire performance Keep your tires properly inflated. Otherwise, the following conditions may occur and result in an accident causing death or serious injury: ● Excessive wear ● Uneven wear ●...
Page 399: Wheels
● Bent wheels that have been straightened ■ Aluminum wheel precautions (if equipped) ● Use only Toyota wheel nuts and wrenches designed for use with your aluminum wheels. ● When rotating, repairing or changing your tires, check that the wheel nuts are still tight after driving 1000 miles (1600 km).
Page 400 4-3. Do-it-yourself maintenance ■ When replacing wheels The wheels of your vehicle are equipped with tire pressure warning valves and transmitters that allow the tire pressure warning system to provide advance warning in the event of a loss in tire inflation pressure. Whenever wheels are replaced, tire pressure warning valves and trans- mitters must be installed.
Page 401 Because tire repair or replacement may affect the tire pressure warn- ing valves and transmitters, make sure to have tires serviced by your Toyota dealer or other qualified service shop. In addition, make sure to purchase your tire pressure warning valves and transmitters at your Toyota dealer.
Page 402: Air Conditioning Filter
4-3. Do-it-yourself maintenance Air conditioning filter The air conditioning filter must be changed regularly to maintain air conditioning efficiency. ■ Replacement method STEP Vehicles without a smart key system Turn the engine switch to the “LOCK” position. Vehicles with a smart key system Turn the “POWER”...
Page 403 4-3. Do-it-yourself maintenance Remove the filter cover. STEP Remove the air conditioning STEP filter and replace it with a new one. The“UP” mark shown on the filter should be pointing up. ■ Checking interval Inspect and replace the air conditioning filter according to the maintenance schedule.
Page 404: Wireless Remote Control/Electronic Key Battery
4-3. Do-it-yourself maintenance Wireless remote control/electronic key battery Replace the battery with a new one if it is depleted. ■ You will need the following items: ● Flathead screwdriver ● Small flathead screwdriver ● Lithium battery CR2016 (vehicles without a smart key sys- tem), or CR2032 (vehicles with a smart key system) ■...
Page 405 4-3. Do-it-yourself maintenance ■ Replacing the battery (vehicles with a smart key system) Take out the mechanical key. STEP Remove the cover. STEP To prevent damage to the key, cover the tip of the screwdriver with a rag. Remove the depleted battery STEP using a small flathead screw- driver.
Page 406 Use a CR2016 (vehicles without a smart key system) or CR2032 (vehi- cles with a smart key system) lithium battery ● Batteries can be purchased at your Toyota dealer, local electrical appli- ance shops or camera stores. ● Replace only with the same or equivalent type recommended by the manufacturer.
Page 407: Checking And Replacing Fuses
4-3. Do-it-yourself maintenance Checking and replacing fuses If any of the electrical components do not operate, a fuse may have blown. If this happens, check and replace the fuses as necessary. STEP Vehicles without a smart key system Turn the engine switch off. Vehicles with a smart key system Turn the “POWER”...
Page 408 4-3. Do-it-yourself maintenance Under the instrument panel Remove the cover. STEP After a system failure, see “Fuse layout and amperage rat- ings” (P. 408) for details about which fuse to check. STEP Remove the fuse with the pull-out tool. Only type A fuse can be removed using the pullout tool.
Page 409 4-3. Do-it-yourself maintenance STEP Check if the fuse is blown. Type A Normal fuse Blown fuse Replace the blown fuse with a new fuse of an appropriate amperage rating. The amper- age rating can be found on the fuse box lid. Type B Normal fuse Blown fuse...
Page 410 Type D Normal fuse Blown fuse Replace the blown fuse with a new fuse of an appropriate amperage rating. The amper- age rating can be found on the fuse box lid. Type E Normal fuse Blown fuse Contact your Toyota dealer.
Page 411 4-3. Do-it-yourself maintenance Fuse layout and amperage ratings Engine compartment (type A fuse box) Fuse Ampere Circuit Multiport fuel injection system/ EFI-MAIN 20 A sequential multiport fuel injection system, EFI NO.2 HORN 10 A Horn 30 A IG2 NO.2, METER, IGN SPARE 7.5 A Spare fuse...
Page 412 4-3. Do-it-yourself maintenance Fuse Ampere Circuit Multiport fuel injection system/ sequential multiport fuel injection system, steering switches, brake IG2 NO.2 10 A system, starter system, smart key system, occupant classification system, SRS airbag system Audio system, vehicle control and operation data recording, main DOME 15 A body ECU, personal lights, lug-...
Page 413 4-3. Do-it-yourself maintenance Fuse Ampere Circuit Air conditioning system, gauge and meters, occupant classifica- ECU-B NO.2 7.5 A tion system, tire pressure warning system, starter system, smart key system, power door lock system 7.5 A Starter system STRG LOCK 20 A Starter system ABS NO.2 10 A...
Page 414 4-3. Do-it-yourself maintenance Engine compartment (type B fuse box) Fuse Ampere Circuit DC/DC 100 A Hybrid system ABS MTR NO.2 30 A Brake system 40 A Air conditioning system 50 A Electric power steering system...
Page 415 4-3. Do-it-yourself maintenance Under the driver’s side instrument panel Fuse Ampere Circuit Parking lights, side marker lights, TAIL 10 A tail lights, license plate lights, front fog lights, gauge and meters PANEL Instrument panel lights DOOR R/R 20 A Rear power window (right side) DOOR P 20 A Front power window (right side)
Page 416 (P. 415) ● If the replaced fuse blows again, have the vehicle inspected by your Toyota dealer. ■ If there is an overload in a circuit The fuses are designed to blow, protecting the wiring harness from damage.
Page 417 Never use a fuse of a higher amperage rating than that indicated, or use any other object in place of a fuse. ● Always use a genuine Toyota fuse or equivalent. Never replace a fuse with a wire, even as a temporary fix. ●...
Page 418: Light Bulbs
You may replace the following bulbs by yourself. The difficulty level of replacement varies depending on the bulb. As there is a danger that components may be damaged, we recommend that replacement is carried out by your Toyota dealer. ■ Preparing for light bulb replacement Check the wattage of the light bulb to be replaced.
Page 419 4-3. Do-it-yourself maintenance ■ Rear bulb locations Rear turn signal lights Tail and rear side marker lights License plate lights Back-up lights Replacing light bulbs ■ Headlights and daytime running lights Turn the bulb base counterclock- STEP wise. High beam and daytime run- ning lights (inside) Low beam (outside)
Page 420 4-3. Do-it-yourself maintenance Unplug connector while STEP pushing the lock release. High beam and daytime run- ning lights Low beam Replace the light bulb, and install STEP the bulb base. Align the 3 tabs on the light bulb with the mounting, and insert. Turn and secure the bulb base.
Page 421 4-3. Do-it-yourself maintenance Partly remove the fender liner. STEP Unplug connector while STEP pushing the lock release. Turn the bulb base counterclock- STEP wise. Install a new bulb. STEP Align the 3 tabs on the light bulb with the mounting, and insert.
Page 422 4-3. Do-it-yourself maintenance Turn and secure the bulb. Install STEP the connector. Shake the bulb base gently to check that it is not loose, turn the front fog light on once and visu- ally confirm that no light is leaking through the mounting.
Page 423 4-3. Do-it-yourself maintenance Turn the bulb base counterclock- STEP wise. Remove the light bulb. STEP STEP When installing, reverse the steps listed. ■ Front side marker lights Turn the steering wheel in the STEP opposite direction of the light to be replaced.
Page 424 4-3. Do-it-yourself maintenance Remove the clips. STEP Partly remove the fender liner. STEP Turn the bulb base counterclock- STEP wise. Remove the light bulb. STEP...
Page 425 4-3. Do-it-yourself maintenance STEP When installing the light bulb and bulb base, reverse the steps listed. Installing the clips. STEP ■ Front turn signal lights STEP STEP Partly remove the fender liner as described in STEP of “Front fog lights”. (P. 417) Turn the bulb base counterclock- STEP wise.
Page 426 4-3. Do-it-yourself maintenance ■ Rear turn signal lights, tail and rear side marker lights, and back-up lights Open the back door and remove STEP the bolts. Pull the lamp assembly straight back to disengage the clip and 2 pins. Where the clip attaches Turn the bulb base counterclock- STEP wise.
Page 427 4-3. Do-it-yourself maintenance Remove the light bulb. STEP Rear turn signal light Tail and rear side marker light Back-up light STEP When installing, reverse the steps listed. ■ License plate light Remove the cover. STEP Insert a properly sized screw- driver into the hole of the cover, and pry off the cover as shown in the illustration.
Page 428 ■ LED light bulbs The stop lights and high mounted stoplight consist of a number of LEDs. If any of the LEDs burn out, take your vehicle to your Toyota dealer to have the light replaced. ■ Condensation build-up on the inside of the lens Temporary condensation build-up on the inside of the headlight lens does not indicate a malfunction.
Page 429 4-3. Do-it-yourself maintenance CAUTION ■ Replacing light bulbs ● Turn off the lights. Do not attempt to replace the bulb immediately after turning off the lights. The bulbs become very hot and may cause burns. ● Do not touch the glass portion of the light bulb with bare hands. When it is unavoidable to hold the glass portion, use and hold with a clean dry cloth to avoid getting moisture and oils on the bulb.
Page 430: When Trouble Arises
When trouble arises 5-1. Essential information Emergency flashers ..428 If your vehicle needs to be towed ......429 If you think something is wrong ......436 5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer sounds ......
Page 431: Essential Information
5-1. Essential information Emergency flashers The emergency flashers are used to warn other drivers when the vehicle has to be stopped in the road due to a breakdown, etc. Press the switch. All the turn signal lights will flash. To turn them off, press the switch once again.
Page 432: If Your Vehicle Needs To Be Towed
If your vehicle needs to be towed If towing is necessary, we recommend having your vehicle towed by your Toyota dealer or a commercial towing service, using a lift-type truck or flatbed truck. Use a safety chain system for all towing, and abide by all state/pro- vincial and local laws.
Page 433 5-1. Essential information Towing with a sling-type truck Do not tow with a sling-type truck to prevent body damage. Towing with a wheel-lift type truck From the front Release the parking brake. From the rear Use a towing dolly under the front wheels.
Page 434 5-1. Essential information Using a flatbed truck If your Toyota is transported by a flatbed truck, it should be tied down at the locations shown in the illustration. If you use chains or cables to tie down your vehicle, the angles shaded in black must be 45.
Page 435 5-1. Essential information Emergency towing procedure STEP Take out the towing eyelet. (P. 463) Push the eyelet cover and then STEP open it. Insert the towing eyelet into the STEP hole and tighten partially by hand. Tighten down the towing eyelet STEP securely using a wheel nut wrench.
Page 436 5-1. Essential information STEP Vehicles without a smart key system: Enter the vehicle being towed and start the hybrid system. If the hybrid system does not start, turn the engine switch to the “ON” position. Vehicles with a smart key system: Enter the vehicle being towed and start the hybrid system.
Page 437 5-1. Essential information CAUTION Observe the following precautions. Failure to do so may result in death or serious injury. ■ When towing the vehicle Be sure to transport the vehicle with the front wheels raised or with all four wheels raised off the ground. If the vehicle is towed with the front wheels contacting the ground, the drivetrain and related parts may be damaged or...
Page 438 5-1. Essential information NOTICE ■ To prevent damage to the vehicle when towing using a wheel-lift type truck When raising the vehicle, ensure adequate ground clearance for towing at the opposite end of the raised vehicle. Without adequate clearance, the vehicle could be damaged while being towed.
Page 439: If You Think Something Is Wrong
5-1. Essential information If you think something is wrong If you notice any of the following symptoms, your vehicle probably needs adjustment or repair. Contact your Toyota dealer as soon as possible. ■ Visible symptoms ● Fluid leaks under the vehicle (Water dripping from the air conditioning after use is normal.)
Page 440: Steps To Take In An Emergency
If a light comes on or flashes, but then goes off, this does not necessarily indicate a malfunction in the system. However, if this continues to occur, have the vehicle inspected by your Toyota dealer. Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
Page 441 Charging system warning light Indicates a malfunction in the vehicle's charging sys- Have the vehicle inspected by your Toyota dealer immediately. Failure to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident.
Page 442 5-2. Steps to take in an emergency Warning light Warning light/Details Electric power steering system warning light (warn- ing buzzer) Indicates a malfunction in the EPS (Electric Power Steering) system Slip indicator light Indicates a malfunction in: • Vehicle stability control; (Comes on) •...
Page 443 • Flat tire (P. 463) inflation pressure is adjusted, have the system checked by your Toyota dealer. When the light comes on after blinking for 1 minute: Have the system Malfunction in the tire checked by your Toyota pressure warning system dealer. (P. 443)
Page 444: On Or A Warning Buzzer
5-2. Steps to take in an emergency : Driver's and front passenger's seat belt buzzer: The driver's and front passenger's seat belt buzzer sounds to alert the driver and front passenger that his or her seat belt is not fastened. Once the engine switch is turned to the “ON”...
Page 445 If the fuel tank cap is loose, tighten it securely. The malfunction indica- tor lamp will go off after several trips. If the malfunction indicator lamp does not go off even after several trips, con- tact your Toyota dealer as soon as possible. ■ When the tire pressure warning light comes on Check the tire inflation pressure and adjust to the appropriate level.
Page 446 If there is a lot of snow or ice on the vehicle, particularly around the wheels or wheel housings ● If non-genuine Toyota wheels are used (Even if you use Toyota wheels, the tire pressure warning system may not work properly with some types of tires.) ●...
Page 447 Check the tires. If a tire is flat, change it with the spare tire and have the flat tire repaired by the nearest Toyota dealer. ● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could lose control of the steering wheel or the brakes.
Page 448 5-2. Steps to take in an emergency CAUTION ■ Maintenance of the tires Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label (tire and load information label).
Page 449 5-2. Steps to take in an emergency CAUTION TPMS (tire pressure warning system) malfunctions may occur for a vari- ety of reasons, including the installation of replacement or alternate tires or wheels on the vehicle that prevent the TPMS (tire pressure warning system) from functioning properly.
Page 450: If A Warning Message Is Displayed
If any of the warning lights comes on again after the following actions have been performed, contact your Toyota dealer.
Page 451 Stop the vehicle immediately. The following warning indicates the possibility of damage to the vehi- cle that may lead to an accident. Immediately stop the vehicle in a safe place and contact your Toyota dealer. Warning message Details Indicates a malfunction in the hybrid system A buzzer sounds in accordance with the warning message that is displayed.
Page 452 A buzzer sounds and a warning message is shown on the multi-infor- mation display. Failure to investigate the cause of the following warn- ings may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Toyota dealer immediately. Warning message Details •...
Page 453 5-2. Steps to take in an emergency Follow the correction procedures. A buzzer sounds and a warning message is shown on the multi-infor- mation display. After taking the specified steps to correct the sus- pected problem, check that the warning message goes off. Warning message Details Correction procedure...
Page 454 5-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that the moon roof is not fully closed (with the “POWER” switch off Close the moon roof. and the driver's door (Flashes) is open) A buzzer also sounds. (If equipped) Indicates that the parking brake is still...
Page 455 5-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that all maintenance is required to corre- spond to the driven distance on the main- Perform the necessary tenance schedule maintenance. Comes on approxi- Please reset the main- mately 5000 miles tenance data after the (8000 km) after the...
Page 456 5-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that the hybrid battery (trac- tion battery) power Shift the shift lever to P has dropped because and restart the hybrid a long period of time system when starting has elapsed after the vehicle.
Page 457 5-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that the EV drive mode is not available A buzzer also sounds. The reason the EV drive mode is not available (the vehicle Use the EV drive mode is idling, battery when it becomes avail- charge is low, speed is...
Page 458 5-2. Steps to take in an emergency Have the malfunction repaired immediately. (vehicles with a smart key system) After taking the specified steps to correct the suspected problem, check that the warning message and light go off. Correction Interior Exterior Warning message Details procedure...
Page 459 5-2. Steps to take in an emergency Correction Interior Exterior Warning message Details procedure buzzer buzzer The electronic key was carried outside the vehicle and the Turn the driver’s door “POWER” was opened switch off or and closed bring the elec- while the shift tronic key back lever was in P...
Page 460 5-2. Steps to take in an emergency Correction Interior Exterior Warning message Details procedure buzzer buzzer An attempt was made to lock the doors using the entry func- Turn the tion after the “POWER” Continuous electronic key switch off and Once (For 5 seconds) was carried out-...
Page 461 5-2. Steps to take in an emergency Correction Interior Exterior Warning message Details procedure buzzer buzzer The driver’s door was opened while a shift lever posi- tion other than Shift the shift  Continuous P was selected lever to P. without turning (Flashes) off the...
Page 462 5-2. Steps to take in an emergency Correction Interior Exterior Warning message Details procedure buzzer buzzer An attempt was made to lock the doors using the smart key system while the electronic key was still inside the vehi- cle. An attempt was Retrieve the made to lock electronic key...
Page 463 5-2. Steps to take in an emergency Correction Interior Exterior Warning message Details procedure buzzer buzzer • The electronic key could not be detected when the “POWER” switch was pressed after the doors were Touch the elec- unlocked with tronic key to the the mechanical “POWER”...
Page 464 5-2. Steps to take in an emergency Correction Interior Exterior Warning message Details procedure buzzer buzzer Replace the The electronic electronic key  key has a low Once battery. battery. (P. 401) The driver's door was opened and closed with the “POWER”...
Page 465 5-2. Steps to take in an emergency Correction Interior Exterior Warning message Details procedure buzzer buzzer The steering Press the lock could not “POWER” be released switch while within 3 sec- depressing the  Once onds of the brake pedal and “POWER”...
Page 466: If You Have A Flat Tire
5-2. Steps to take in an emergency If you have a flat tire Your vehicle is equipped with a spare tire. The flat tire can be replaced with the spare tire. ■ Before jacking up the vehicle ● Stop the vehicle on a hard, flat surface. ●...
Page 467 5-2. Steps to take in an emergency Taking out the jack Move the driver seat to the front STEP most position. Push the tabs in and remove the STEP cover by pulling it towards you. For tightening STEP For loosening...
Page 468 5-2. Steps to take in an emergency Taking out the compact spare tire Remove the luggage floor cover STEP by lifting up the points indicated by the arrows. Remove the spare wheel cush- STEP ions, then loosen the center fas- tener that secures the spare tire.
Page 469 5-2. Steps to take in an emergency Replacing a flat tire Chock the tires. STEP Wheel chock Flat tire positions Behind the Left- rear right- hand hand side side tire Front Behind the Right- rear left- hand hand side side tire In front of Left-...
Page 470 5-2. Steps to take in an emergency Slightly loosen the wheel nuts STEP (one turn). Turn the tire jack portion “A” by STEP hand until the notch of the jack is in contact with the jack point. Raise the vehicle until the tire is STEP slightly raised off the ground.
Page 471 5-2. Steps to take in an emergency Installing the compact spare tire Remove any dirt or foreign mat- STEP ter from the wheel contact sur- face. If foreign matter is on the wheel contact surface, the wheel nuts may loosen while the vehicle is in motion, causing the tire to come off.
Page 472 5-2. Steps to take in an emergency Lower the vehicle. STEP Firmly tighten each wheel nut STEP two or three times in the order shown in the illustration. Tightening torque: 76 ft•lbf (103 N•m, 10.5 kgf•m) STEP Stow the tire jack and all tools. Stow the flat tire in the luggage STEP compartment as shown in the...
Page 473 5-2. Steps to take in an emergency ■ The compact spare tire ● The compact spare tire is identified by the label “TEMPORARY USE ONLY” on the tire sidewall. Use the compact spare tire temporarily, and only in an emergency. ●...
Page 474 5-2. Steps to take in an emergency CAUTION ■ When using the compact spare tire ● Remember that the compact spare tire provided is specifically designed for use with your vehicle. Do not use your compact spare tire on another vehicle. ●...
Page 475 5-2. Steps to take in an emergency CAUTION ■ Using the tire jack Improper use of the tire jack may cause the vehicle to suddenly fall off the jack, leading to death or serious injury. ● Do not use the tire jack for any purpose other than replacing tires or installing and removing tire chains.
Page 476 • If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by your Toyota dealer. • When installing the wheel nuts, be sure to install them with the...
Page 477 When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your Toyota dealer or other qualified service shop as soon as possible. Make sure to replace the tire pressure warning valve and...
Page 478: If The Hybrid System Will Not Start
5-2. Steps to take in an emergency If the hybrid system will not start Reasons for the hybrid system not starting vary depending on the situation. Check the following and perform the appropriate proce- dure: ■ The hybrid system will not start even though the correct starting procedure is being followed.
Page 479 ● One or both of the 12-volt battery terminals may be discon- nected. ● The 12-volt battery may be discharged. (P. 481) Contact your Toyota dealer if the problem cannot be repaired, or if repair procedures are unknown. Emergency start function (vehicles with a smart key system)
Page 480: If The Shift Lever Cannot Be Shifted From P
(a system to pre- vent accidental operation of the shift lever). Have the vehicle inspected by your Toyota dealer immediately. The following steps may be used as an emergency measure to...
Page 481: If You Lose Your Keys
5-2. Steps to take in an emergency If you lose your keys New genuine keys can be made by your Toyota dealer. For vehicles without a smart key system, bring a master key and the key number stamped on the key number plate. For vehicles with a smart key sys- tem, bring the other key and the key number stamped on the key number plate.
Page 482: If The Electronic Key Does Not Operate Properly
Turning the key once again within 5 seconds unlocks the other doors. Starting the hybrid system STEP Ensure that the shift lever is in P and depress the brake pedal. Touch the Toyota emblem side of STEP electronic “POWER” switch. When electronic detected, a buzzer sounds and the “POWER”...
Page 483 STEP Press the “POWER” switch. In the event that the “POWER” switch still cannot be operated, con- tact your Toyota dealer. ■ Stopping the hybrid system Shift the shift lever to P and press the “POWER” switch as you normally do when stopping the hybrid system.
Page 484: If The Vehicle 12-Volt Battery Is Discharged
The following procedures may be used to start the hybrid system if the vehicle’s 12-volt battery is discharged. You can also call your Toyota dealer or a qualified repair shop. If you have a set of jumper (or booster) cables and a second vehi- cle with a 12-volt battery, you can jump start your vehicle by follow- ing the steps below.
Page 485 5-2. Steps to take in an emergency STEP Connect the jumper cables according to the following procedure: Connect a positive jumper cable clamp to the exclusive jump starting terminal on your vehicle. Connect the clamp on the other end of the positive cable to the positive (+) battery terminal on the second vehicle.
Page 486 ON mode. STEP Make sure the “READY” indicator comes on. If the indicator does not come on, contact your Toyota dealer. STEP Once the hybrid system has started, remove the jumper cables in the exact reverse order from which they were con- nected.
Page 487 5-2. Steps to take in an emergency ■ Starting the hybrid system when the 12-volt battery is discharged The hybrid system cannot be started by push-starting. ■ To prevent 12-volt battery discharge ● Turn off the headlights and the audio system while the hybrid system is off.
Page 488 12-volt battery. ■ After recharging the 12-volt battery Have the 12-volt battery inspected at your Toyota dealer as soon as possi- ble. If the 12-volt battery is deteriorating, continued use may cause the 12-volt battery to emit a malodorous gas, which may be detrimental to the health of passengers.
Page 489 5-2. Steps to take in an emergency CAUTION ■ 12-volt battery precautions The 12-volt battery contains poisonous and corrosive acidic electrolyte, while related parts contain lead and lead compounds. Observe the following precautions when handling the 12-volt battery: ● When working with the 12-volt battery, always wear safety glasses and take care not to allow any battery fluids (acid) to come into contact with skin, clothing or the vehicle body.
Page 490: If Your Vehicle Overheats
If you do not see steam: Carefully lift the hood. After the hybrid system has STEP cooled down sufficiently, inspect the hoses and radiator core (radiator) for any leaks. Radiator Cooling fan If a large amount of coolant leaks, immediately contact your Toyota dealer.
Page 491 (The fan may not operate in freezing temperatures.) STEP If the fan is not operating: Stop the hybrid system immediately and contact your Toyota dealer. If the fan is operating: Have the vehicle inspected at the nearest Toyota dealer.
Page 492 (radiator) for any leaks. Radiator Cooling fan If a large amount of coolant leaks, immediately contact your Toyota dealer. The coolant level is satisfactory if STEP it is between the “F” and “L” lines on the reservoir.
Page 493 Start the hybrid system and check for the multi-information display. If the message does not disappear: Stop the hybrid system and contact your Toyota dealer. If the message is not displayed: Have the vehicle inspected at the nearest Toyota dealer.
Page 494 5-2. Steps to take in an emergency NOTICE ■ When adding engine/power control unit coolant Wait until the hybrid system has cooled down before adding engine/power control unit coolant. When adding coolant, do so slowly. Adding cool coolant to a hot hybrid sys- tem too quickly can cause damage to the hybrid system.
Page 495: If The Vehicle Becomes Stuck
5-2. Steps to take in an emergency If the vehicle becomes stuck Carry out the following procedures if the tires spin or the vehicle becomes stuck in mud, dirt or snow: STEP Shift the shift lever to P and set the parking brake. Stop the hybrid system.
Page 496: If Your Vehicle Has To Be Stopped In An Emergency
5-2. Steps to take in an emergency If your vehicle has to be stopped in an emergency Only in an emergency, such as if it becomes impossible to stop the vehicle in the normal way, stop the vehicle using the following pro- cedure: STEP Steadily step on the brake pedal with both feet and firmly...
Page 497 5-2. Steps to take in an emergency Vehicles with a smart key sys- STEP tem: To stop the hybrid sys- tem, press and hold the “POWER” switch for 2 consec- utive seconds or more, or press it briefly 3 times or more Press and hold for 2 seconds or more, in succession.
Page 498: Vehicle Specifications
Vehicle specifications 6-1. Specifications Maintenance data (fuel, oil level, etc.) ..496 Fuel information ....506 Tire information ....509 6-2. Customization Customizable features ..522 Items to initialize ....528...
Page 499: Specifications Maintenance Data (Fuel, Oil Level, Etc.)
6-1. Specifications Maintenance data (fuel, oil level, etc.) Dimensions and weights Overall length 157.3 in. (3995 mm) Overall width 66.7 in. (1695 mm) Without moon roof 56.9 in. (1445 mm) Overall height With moon roof 57.7 in. (1465 mm) Wheelbase 100.4 in.
Page 500 ■ Vehicle identification number The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle. This number is stamped under the front passenger’s seat.
Page 501 6-1. Specifications ■ Engine number The engine number is stamped on the engine block as shown. Engine Model 1NZ-FXE Type 4-cylinder in line, 4-cycle, gasoline 2.95 3.33 in. (75.0  84.7 mm) Bore and stroke Displacement 91.3 cu.in. (1497 cm Intake: 0.006 ...
Page 502 5 minutes, and check the oil level on the dipstick. ■ Engine oil selection “Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following grade and viscosity.
Page 503 5.6 qt. (5.3 L, 4.7 Imp. qt.) Power control unit 1.7 qt. (1.6 L, 1.4 Imp. qt.) Use either of the following: • “Toyota Super Long Life Coolant” • A similar high-quality ethylene glycol- Coolant type based non-silicate, non-amine, non-nitrite,...
Page 504 6-1. Specifications Ignition system Spark plug Make DENSO FK16R-A8 0.03 in. (0.8 mm) NOTICE ■ Iridium-tipped spark plugs Use only iridium-tipped spark plugs. Do not adjust the spark plug gap. Electrical system 12-volt battery Open voltage* at 68F (20C): Fully charged 12.5 V or over ...
Page 505 : The fluid capacity is a reference quantity. If replacement is necessary, con- tact your Toyota dealer. NOTICE ■ Transmission fluid type Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration in shift quality, locking up of the transmission accompanied by vibration and, ultimately, damage to the vehicle’s transmission.
Page 506 6-1. Specifications Brakes Pedal clearance 2.8 in. (70 mm) Min. 0.04  0.24 in. (1.0  6.0 mm) Pedal free play Brake pad wear limit 0.04 in. (1.0 mm) Brake lining wear limit 0.04 in. (1.0 mm) 8  11 clicks Parking brake lever travel Fluid type SAE J1703 or FMVSS No.116 DOT 3...
Page 507 6-1. Specifications Tires and wheels 15-inch tires P175/65R15 84H, T125/70D16 96M Tire size (spare) Front: 35 psi (240 kPa, 2.4 kgf/cm or bar) Rear: Tire inflation pressure 33 psi (230 kPa, 2.3 kgf/cm or bar) (recommended cold Spare: tire inflation pressure) 60 psi (420 kPa, 4.2 kgf/cm or bar) Never exceed the maximum cold tire infla-...
Page 508 6-1. Specifications Light bulbs Light bulbs Bulb No Type Headlights Low beam 9704 High beam 9005  Parking lights  Front turn signal lights  Front fog lights* Tail and rear side marker Exterior  lights  License plate lights ...
Page 509: Fuel Information
In very few cases, driveability problems may be caused by the brand of gas- oline you are using. If driveability problems persist, try changing the brand of gasoline. If this does not correct the problem, consult your Toyota dealer. ■...
Page 510 Non-recommendation of the use of gasoline containing MMT Some gasoline contains an octane enhancing additive called MMT (Methyl- cyclopentadienyl Manganese Tricarbonyl). Toyota does not recommend the use of gasoline that contains MMT. If fuel containing MMT is used, your emission control system may be adversely affected.
Page 511 6-1. Specifications ■ If your engine knocks ● Consult your Toyota dealer. ● You may occasionally notice light knocking for a short time while acceler- ating or driving uphill. This is normal and there is no need for concern. NOTICE ■...
Page 512: Tire Information
6-1. Specifications Tire information Typical tire symbols Full-size tire Compact spare tire...
Page 513 6-1. Specifications Tire size (P. 512) TUBELESS or TUBE TYPE A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire has a tube inside the tire and the tube main- tains the air pressure.
Page 514 6-1. Specifications Typical DOT and Tire Identification Number (TIN) DOT symbol* Tire Identification Number (TIN) Tire manufacturer's identifica- tion mark Tire size code Manufacturer's optional tire type code (3 or 4 letters) Manufacturing week Manufacturing year : The DOT symbol certifies that the tire conforms to applicable Federal...
Page 515 6-1. Specifications Tire size ■ Typical tire size information The illustration indicates typical tire size. Tire use (P = Passenger car, T = Temporary use) Section width (millimeters) Aspect ratio (tire height to section width) Tire construction code (R = Radial, D = Diagonal) Wheel diameter (inches) Load index (2 digits or 3 digits) Speed symbol...
Page 516 U.S. Department of Transportation. It provides the purchasers and/or prospective purchasers of Toyota vehicles with information on uniform tire quality grading. Your Toyota dealer will help answer any questions you may have as you read this information. ■ DOT quality grades All passenger vehicle tires must conform to Federal Safety Requirements in addition to these grades.
Page 517 6-1. Specifications ■ Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a speci- fied government test course. For example, a tire graded 150 would wear one and a half (1 - 1/2) times as well on the government course as a tire graded 100.
Page 518 6-1. Specifications ■ Temperature A, B, C The temperature grades are A (the highest), B, and C, represent- ing the tire's resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speci- fied indoor laboratory test wheel.
Page 519 6-1. Specifications Glossary of tire terminology Tire related term Meaning Tire pressure when the vehicle has been Cold tire inflation pres- parked for three hours or more, or has not sure been driven more than 1 mile or 1.5 km under that condition The maximum cold inflated pressure to which a Maximum inflation...
Page 520 6-1. Specifications Tire related term Meaning The combined weight of installed regular pro- duction options weighing over 5 lb. (2.3 kg) in excess of the standard items which they Production options replace, not previously considered in curb weight weight or accessory weight, including heavy duty brakes, ride levelers, roof rack, heavy duty battery, and special trim A metal support for a tire or a tire and tube...
Page 521 6-1. Specifications Tire related term Meaning A breakdown of the bond between components Bead separation in the bead A pneumatic tire in which the ply cords that extend to the beads are laid at alternate angles Bias ply tire substantially less than 90 degrees to the cen- terline of the tread The tire structure, except tread and sidewall Carcass...
Page 522 6-1. Specifications Tire related term Meaning (a) The sidewall that contains a whitewall, bears white lettering, or bears manufac- turer, brand, and/or model name molding that is higher or deeper than the same Intended outboard molding on the other sidewall of the tire, or sidewall (b) The outward facing sidewall of an asymmet- rical tire that has a particular side that must...
Page 523 6-1. Specifications Tire related term Meaning A parting of rubber compound between adja- Ply separation cent plies A mechanical device made of rubber, chemi- cals, fabric and steel or other materials, that, Pneumatic tire when mounted on an automotive wheel, pro- vides the traction and contains the gas or fluid that sustains the load A pneumatic tire in which the ply cords that...
Page 524 6-1. Specifications Tire related term Meaning That portion of a tire that comes into contact Tread with the road A tread section running circumferentially Tread rib around a tire Tread separation Pulling away of the tread from the tire carcass The projections within the principal grooves Treadwear indicators designed to give a visual indication of the...
Page 525: Customization
Toyota dealer. Some function settings are changed simultaneously with other functions being customized. Contact your Toyota dealer for further details. Customizable Features Vehicles with a Display Audio system: Settings that can be...
Page 526 6-2. Customization Default set- Customized Item Function ting setting Vehicle Level 2 Proximity The volume of Notifica- Vehicle Proxim- Level 1 — tion Sys- ity Notification System sound Level 3  P. 25) Operation sig- — (Emergency flashers) Operation sig- —...
Page 527 6-2. Customization Default set- Customized Item Function ting setting Smart key sys- — Smart key Number of per- system  P. 47) missible times Twice Unlimited — of continuous smart lock Wireless — remote control Driver's door Wireless unlocked in remote All doors Unlocking...
Page 528 6-2. Customization Default set- Customized Item Function ting setting Driver's door unlocked in All doors Unlocking one step, all unlocked in — using a key doors one step. unlocked in two steps Speed-detect- ing automatic door lock func- tion* Door lock Opening ...
Page 529 6-2. Customization Default set- Customized Item Function ting setting Time elapsed 7.5 seconds — before lights 15 seconds 30 seconds — turn off Operation when the doors — are unlocked Operation after the engine switch is turned — to the “LOCK” Illumination position ...
Page 530 6-2. Customization Default set- Customized Item Function ting setting Automatic air condi- Air condition- tioning sys- ing control of — Eco drive mode  P. 238) : If equipped : Vehicles with a smart key system : Vehicles without a smart key system...
Page 531: Items To Initialize
6-2. Customization Items to initialize The following items must be initialized for normal system operation after such cases as the 12-volt battery being reconnected, or mainte- nance being performed on the vehicle: Item When to initialize Reference Maintenance data After the maintenance is performed P.
Page 532: For Owners
For owners Reporting safety defects for U.S. owners ....530 Seat belt instructions for Canadian owners (in French) ..... 531 SRS airbag instructions for Canadian owners (in French) ..... 533...
Page 533: Reporting Safety Defects For U.s. Owners
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-331-4331). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
Page 534: Seat Belt Instructions For Canadian Owners (In French)
Seat belt instructions for Canadian owners (in French) The following is a French explanation of seat belt instructions extracted from the seat belt section in this manual. See the seat belt section for more detailed seat belt instructions in English. Utilisation correcte des ceintures de sécurité...
Page 535 ATTENTION ■ Lorsque vous utilisez ou rangez la ceinture de sécurité du siège central arrière ● N’utilisez pas la ceinture de sécurité du siège arrière central lorsque l’une des boucles est détachée. Si vous n’attachez qu’une des boucles, il y a risque de blessures graves voire mortelles en cas de freinage brusque ou de collision.
Page 536: Srs Airbag Instructions For Canadian Owners (In French)
SRS airbag instructions for Canadian owners (in French) The following is a French explanation of SRS airbag instructions extracted from the SRS airbag section in this manual. See the SRS airbag section for more detailed SRS airbag instructions in English. Coussins gonflables frontaux SRS Le coussin gonflable conducteur/le coussin gonflable passager avant SRS...
Page 537 Coussins gonflables latéraux et rideau SRS Coussins gonflables latéraux SRS Participent à la protection du torse des passagers avant. Coussins gonflables rideau SRS Participent principalement à la protection de la tête des occupants assis aux places extérieures. Autres coussins gonflables SRS Coussins gonflables d'assise SRS Participent à...
Page 538 Composants du système de coussins gonflables SRS Coussins gonflables rideau Coussin gonflable conducteur Témoin d’alerte SRS et témoins indicateurs “AIR Contacteur de boucle de BAG ON” et “AIR BAG ceinture sécurité OFF” conducteur Coussins gonflables Coussin gonflable d'assise latéraux conducteur Capteurs d’impact latéral Capteurs d'impact latéral (arrière)
Page 539 Coussin gonflable Boîtier électronique genoux du conducteur coussins gonflables Système de classification Capteurs d’impact avant l’occupant siège Coussin gonflable passager passager avant (ECU et avant capteurs) Votre véhicule équipé COUSSINS GONFLABLES INTELLIGENTS conçus selon les normes de sécurité américaines applicables aux véhicules à moteur (FMVSS208). Le boîtier électronique (ECU) des coussins gonflables régule le déploiement des coussins gonflables sur la base des informations qu’il reçoit des capteurs, etc., indiqués ci-dessus dans le schéma illustrant les...
Page 540 ATTENTION ■ Précautions concernant les coussins gonflables SRS Respectez les précautions suivantes concernant les coussins gonflables SRS. Autrement, des blessures graves, voire mortelles, pourraient s’ensuivre. ● Le conducteur et tous les passagers du véhicule doivent porter correctement leur ceinture de sécurité. Les coussins gonflables SRS sont des dispositifs supplémentaires à...
Page 541 Installez dans un siège de sécurité enfant les nourrissons et les enfants trop petits pour pouvoir utiliser la ceinture de sécurité. Toyota recommande vivement que les nourrissons et les jeunes enfants soient installés sur les sièges arrière du véhicule et convenablement attachés.
Page 542 ATTENTION ■ Précautions concernant les coussins gonflables SRS ●Ne pas s'asseoir sur le bord du siège et ne pas s'appuyer contre la planche de bord. ●Ne laissez pas un enfant rester debout devant coussin gonflable passager avant ou bien s’asseoir sur les genoux du passager avant.
Page 543 ATTENTION ■ Précautions concernant les coussins gonflables SRS ● Ne fixez ni ne posez aucun objet sur le tableau de bord, la garniture du volant de direction et la partie inférieure du tableau de bord. déploiement coussins gonflables SRS conducteur, passager avant et de genoux du conducteur, ces objets risquent de se transformer en projectiles.
Page 544 Si les parties renfermant les coussins gonflables SRS, telles que la garniture du volant et les garnitures de montants avant et arrière, sont abîmées ou craquelées, faites-les remplacer par votre concessionnaire Toyota. ● Ne disposez rien sur le siège du passager avant, comme par exemple un coussin.
Page 545 Modification et mise au rebut des éléments du système de coussins gonflables SRS Consultez votre concessionnaire Toyota avant de mettre votre véhicule au rebut ou de procéder à l'une des modifications suivantes. Les coussins gonflables SRS peuvent être défaillants ou se déployer (se gonfler) accidentellement, provoquant la mort ou de graves blessures.
Page 546: Index
Index Abbreviation list ...... 544 Alphabetical index....546 What to do if......558...
Page 547: Abbreviation List
Abbreviation list Abbreviation/Acronym list ABBREVIATIONS MEANING Air Conditioning Anti-lock Brake System Accessory Automatic Locking Retractor Child Restraint System DISP Display Electronic Control Unit Event Data Recorder Emergency Locking Retractor Electric Power Steering Electric Vehicle GAWR Gross Axle Weight Ratings GVWR Gross Vehicle Weight Rating Emission inspection and maintenance LATCH...
Page 548 Abbreviation list ABBREVIATIONS MEANING Tire Identification Number TPMS Tire Pressure Warning System TRAC Traction Control Treadwear Indicators Vehicle Identification Number Vehicle Stability Control...
Page 549: Alphabetical Index
Alphabetical index Alphabetical index A/C..........238 Antenna ........255 ABS ...........221 Anti-lock brake system ... 221 Air conditioning filter....399 Assist grips ......340 Air conditioning system Audio input....268, 276, 287 Air conditioning filter....399 Audio system Automatic air conditioning Antenna......... 255 system ........238 Audio input ....
Page 550 Alphabetical index Back door........71 Care Back-up lights Exterior........346 Replacing light bulbs .... 415 Interior ........349 Wattage ........ 505 Seat belts ......349 Battery Cargo capacity ......226 Checking ......379 CD player ........256 Hybrid battery Chains ........231 (traction battery)....29 Child-protectors ......67 If the vehicle 12-volt Child restraint system battery is discharged..
Page 551 Alphabetical index Child safety Cooling system Airbag precautions ....125 Hybrid system overheating ... 487 Child-protectors.......67 Cord hook......... 272 Child restraint system....136 Cruise control ......217 How your child should Cup holders......329 wear the seat belt ....88 Curtain shield airbags ..... 116 Installing child restraints..140 Customizable features ....
Page 552 Alphabetical index Doors If you have a flat tire .....463 Back door ....... 71 If you lose your keys .....478 Door lock ....47, 61, 65 If you think something is Door windows......98 wrong ........436 Rear door child protector..67 If your vehicle has to Side doors ......
Page 553 Alphabetical index Engine oil Front passenger’s seat Capacity ........499 belt reminder light ....439 Checking .......369 Front seats Preparing and checking Adjustment ......76 before winter .......231 Front side marker lights Engine/power control unit Replacing light bulbs..... 415 coolant Switch ........204 Capacity ........500 Wattage.........
Page 554 Alphabetical index Heaters Keyless entry......61 Seat heaters ......337 Keys Side mirrors ......247 Electronic key......44 Hill-start assist control ... 221 Engine switch ....160, 164 Hood ......... 364 If the electronic key does Horn.......... 180 not operate properly....479 Hybrid system If you lose your keys .....478 Emergency shut off system ..
Page 555 Alphabetical index Luggage compartment light Odometer........189 Wattage.........505 Luggage cover ......343 Engine oil ......369 Opener Back door........71 Maintenance Fuel filler door ....... 105 Do-it-yourself Hood ........364 maintenance .......360 Outside rear view mirrors Emission inspection and Adjusting and folding....96 maintenance (I/M) Defogger .......
Page 556 Alphabetical index Radiator........375 Seat belts Radio ........254 Adjusting the seat belt.....84 Rear seat Automatic Locking Folding down ......77 Retractor (ALR).....88 Rear turn signal lights Child restraint system Replacing light bulbs .... 415 installation......140 Wattage ........ 505 Cleaning and maintaining Rear window defogger....
Page 557 Alphabetical index Seats Smart key system Adjustment ......76 Entry function ......47 Adjustment precautions...76 Starting the hybrid Child seats/child system ......160, 164 restraint system Spare tire installation......140 Inflation pressure ....504 Cleaning ........349 Storage location ....463 Front seat adjustment .....76 Spark plug ........
Page 558 Alphabetical index Switch Tires Cruise control ....... 217 Chains ........231 “ECO MODE” switch .... 176 Checking .......384 Emergency flasher switch ..428 If you have a flat tire....463 EV drive mode switch... 172 Inflation pressure....392 Engine switch ....160, 164 Inflation pressure sensor..385 Fog light switch.....
Page 559 Alphabetical index Vanity mirrors......333 Pretensioners......438 Vehicle data recordings ....18 Seat belt reminder light ..439 Vehicle identification Slip indicator light....438 number ........497 SRS airbag system ....438 Vehicle Proximity Notification Tire pressure......439 System ........25 Tire pressure warning Vehicle stability control...221 system ........
Page 560 Alphabetical index Windows Power windows ...... 98 Rear window defogger ..247 Washer ......210, 214 Windshield wipers....210 Wireless remote control key Replacing the key battery..401 Wireless remote control..61 WMA disc ......... 261...
Page 561: What To Do If
What to do if... What to do if... A tire punctures If you have a flat tire P. 463 P. 475 If the hybrid system will not start P. 110 Immobilizer system The hybrid system does not start If the vehicle 12-volt battery is dis- P.
Page 562: Warning Lights
What to do if... ■ Warning lights Brake system warning Electric power steering system light warning light P. 438 (red indicator) Slip indicator light* P. 437 P. 438 Brake system warning light Charging system warning (yellow indicator) light P. 438 P.
Page 563: Gas Station Information
(L, Imp. qt.) (Drain and refill With filter 3.9 (3.7, 3.3)  reference) Without filter 3.6 (3.4, 3.0) Toyota Genuine Motor Oil or equivalent Oil grade: P. 499 Engine oil type ILSAC GF-5 multigrade engine oil Recommended oil viscosity: SAE 0W-20...

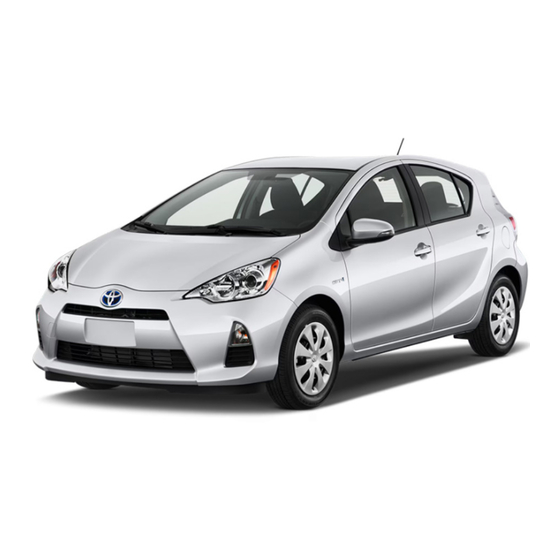

Toyota 2014 Prius Manual

Before Driving

Hybrid System Precautions

Key Information

1-3. Opening, Closing and

Opening, Closing and Locking the Doors

Adjustable Components (Seats, Mirrors, Steering Wheel)

Opening and Closing the Windows and Moon Roof

Refueling Opening the Fuel Tank Cap

Theft Deterrent System

Safety Information

When Driving

Driving Procedures

Instrument Cluster Gauges and Meters

Operating the Lights and Wipers

Using Other Driving Systems

Driving Information Cargo and Luggage

Interior Features

Using the Air Conditioning System and Defogger

3-1. Using the Air Conditioning

Using the Audio System

Using the Bluetooth Audio/Phone

Using the Interior Lights

Using the Storage Features

Other Interior Features

Maintenance and Care

Maintenance and Care Cleaning and Protecting

Maintenance Requirements

Do-It-Yourself Maintenance

When Trouble Arises

Essential Information

Steps to Take in an Emergency

Vehicle Specifications

Specifications Maintenance Data (Fuel, Oil Level, Etc.)

Customization

For Owners

Index

Abbreviation List

Alphabetical Index

What to Do if

Quick Links

Related Manuals for Toyota 2014 Prius

Summary of Contents for Toyota 2014 Prius
