WASHER INSTALLATION
INSTRUCTIONS
Table of Contents

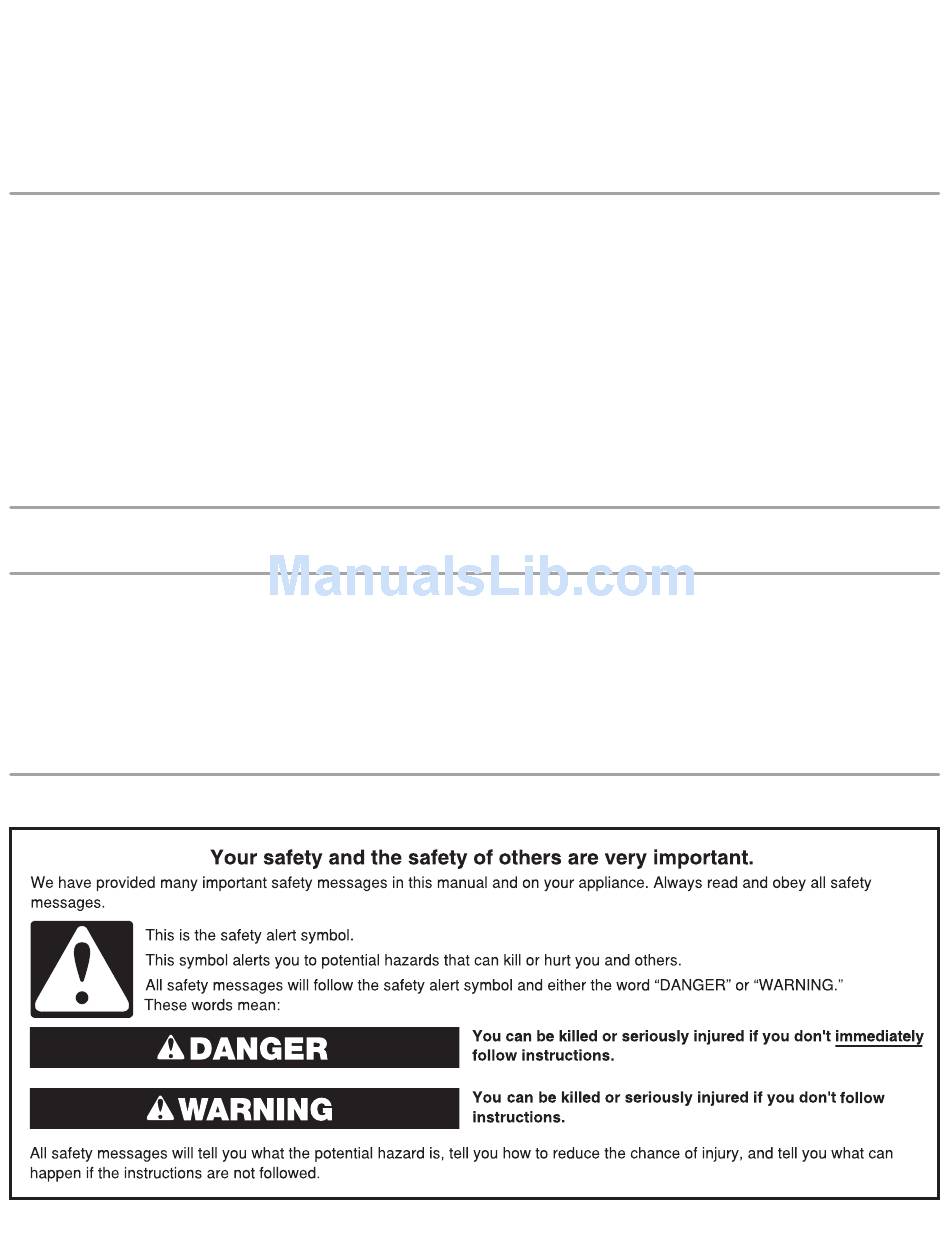

WASHER SAFETY .........................................................1
INSTALLATION REQUIREMENTS ................................2
Tools and Parts ................................................................2
Location Requirements ..................................................3
Drain System ...................................................................4
Electrical Requirements .................................................5
INSTALLATION INSTRUCTIONS ..................................5
Connect Drain Hose ........................................................6
Connect Inlet Hoses ........................................................7
Level Washer ...................................................................8
Complete Installation Checklist .....................................9
