GE Monogram ZDP48L4GHSS Dimension Manual

ZDP48N4GHSS
(Natural Gas)
ZDP48L4GHSS
(Liquid Propane)

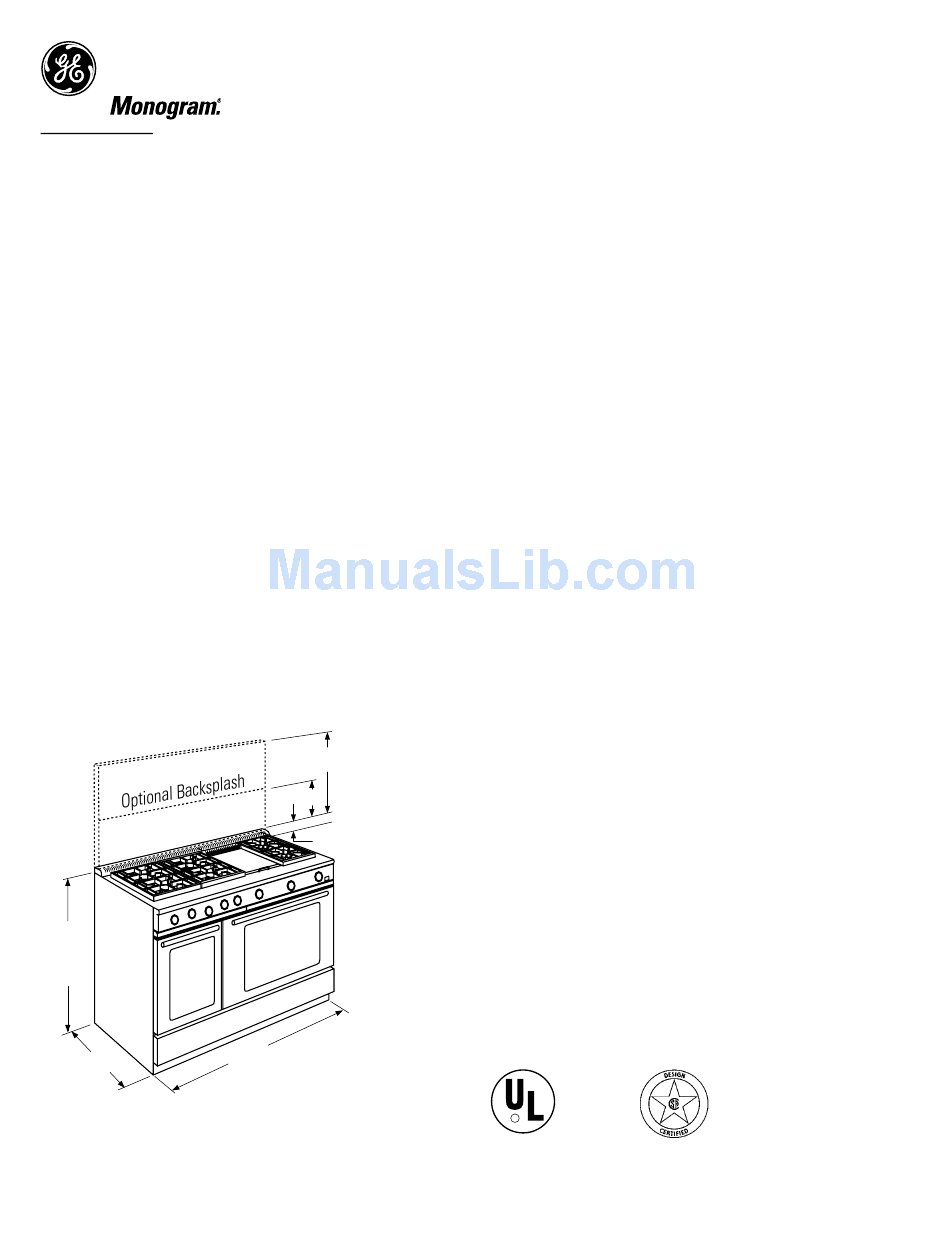

Dimensions and Clearances (in inches)
Professional ranges offer a number of choices in size and cooktop
configurations.
All Professional Ranges are factory set for natural or liquid propane
gas. The correct model should be ordered for the installation situation.
48" Natural Gas Model
ZDP48N4GHSS–4 gas burners, grill and griddle
48" Liquid Propane Gas Model
ZDP48L4GHSS–4 gas burners, grill and griddle
Note: Conversion kits (WB49X10132, Natural to LP and WB49X10133,
LP to Natural) are available if the wrong gas type was ordered. High
Altitude kit, WB49X10130 (for Natural and LP gas models), is also
available. The kits must be installed by a qualified service technician
at additional cost.
Installation Information
Before installing, consult installation instructions packed with product
or online at Monogram.com for current dimensional data.
A 48" or 54" wide professional vent hood with a minimum 1200 CFM
is recommended for installation over this range.
35-1/4"
to
36-3/4"
28-1/4"
Clearances between range and side wall or combustible material
must be at least 12" on each side.
Specification Revised 10/05
130548
– GE Monogram 48" Dual Fuel Professional Range
with 4 Burners, Grill and Griddle
22"
12"
1-1/2"
47-7/8"

Advance Planning

Refer to dimensional drawings for appropriate placement and
necessary clearances when planning the installation.
• Cabinetry cannot be installed directly above the range.
• Working areas adjacent to the range should have 18" minimum
clearance between countertop and cabinet bottom.
• Clearance between range and side wall or combustible material
must be at least 12" on each side.
If the range is installed in an island
• Allow 12" minimum clearance at the back to combustible materials.
• Allow 36" minimum above the cooking surface to combustible
materials.
• The vent hood blower should provide at least 1200 CFM.
• Installation must conform with local codes. In the absence of local
codes, the range must comply with the National Fuel Gas Code,
ANSI Z223.1-1990.
Listed by
Underwriters
Laboratories
R
For answers to your Monogram,
GE appliance questions, visit our website at
®
GEAppliances.com or call GE Answer Center
service, 800.626.2000.
